Overview

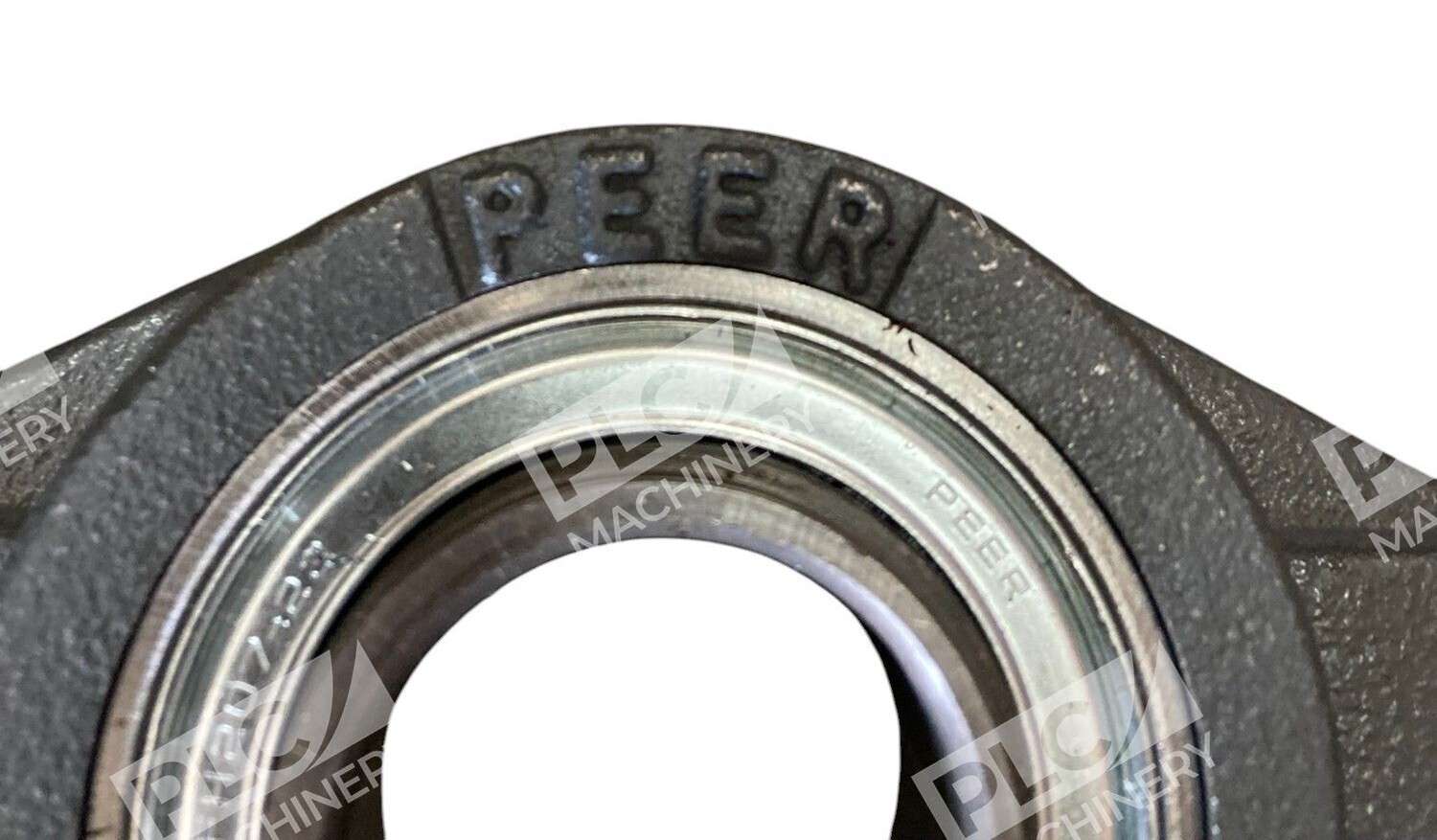

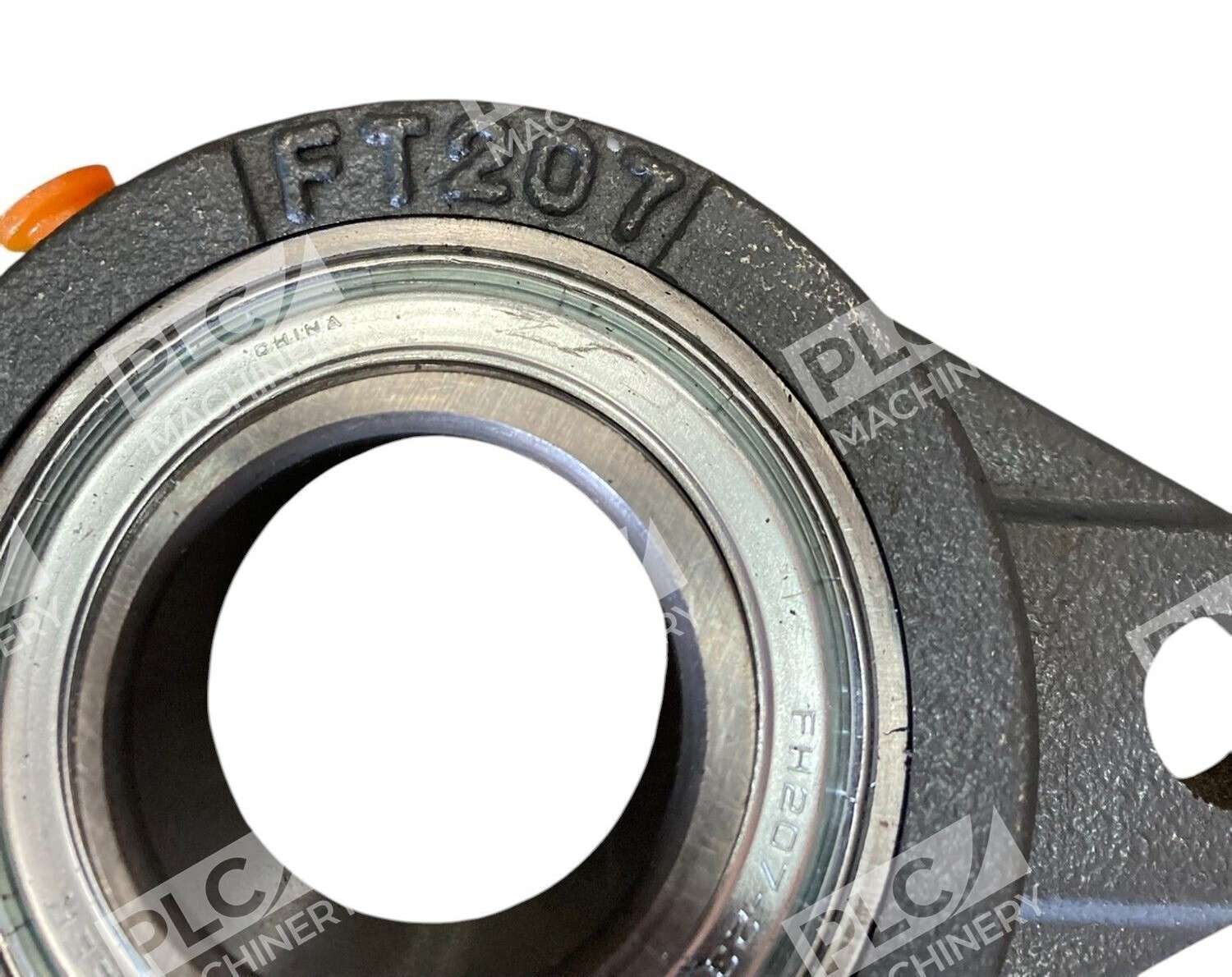

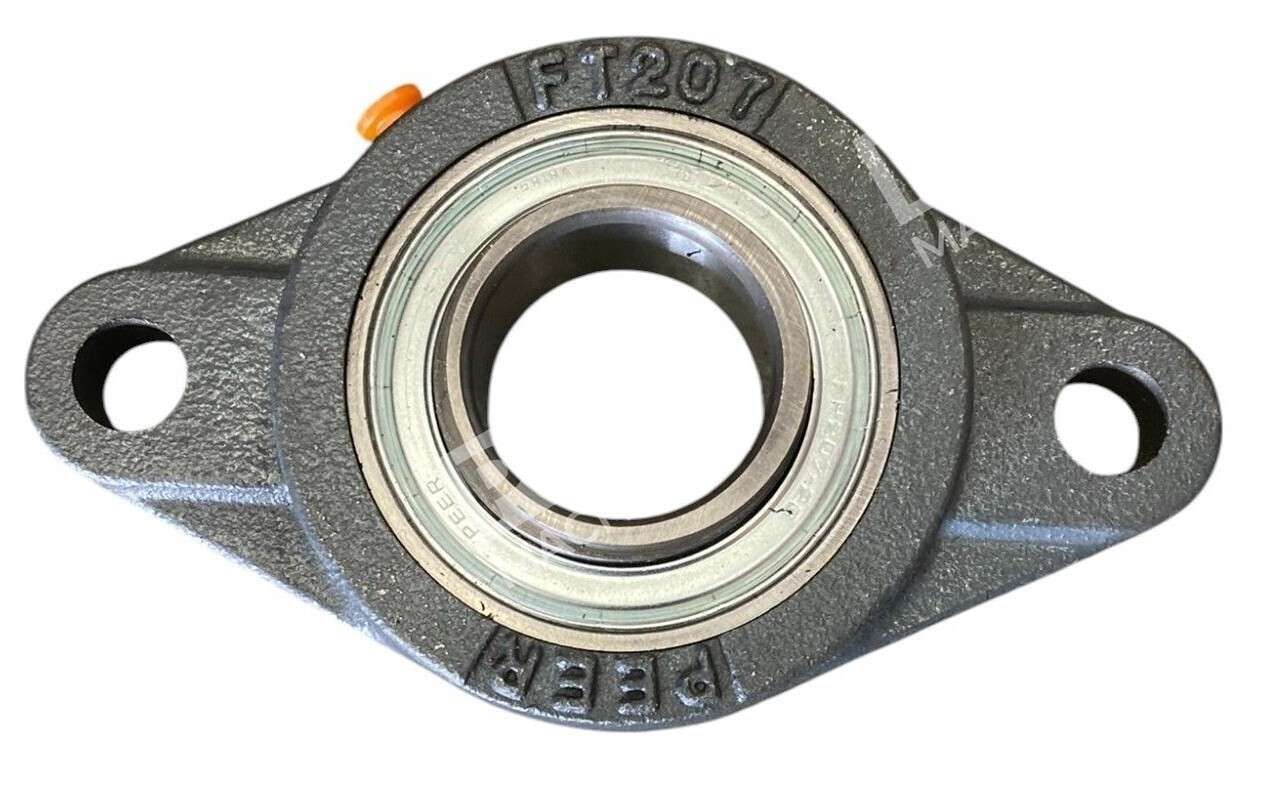

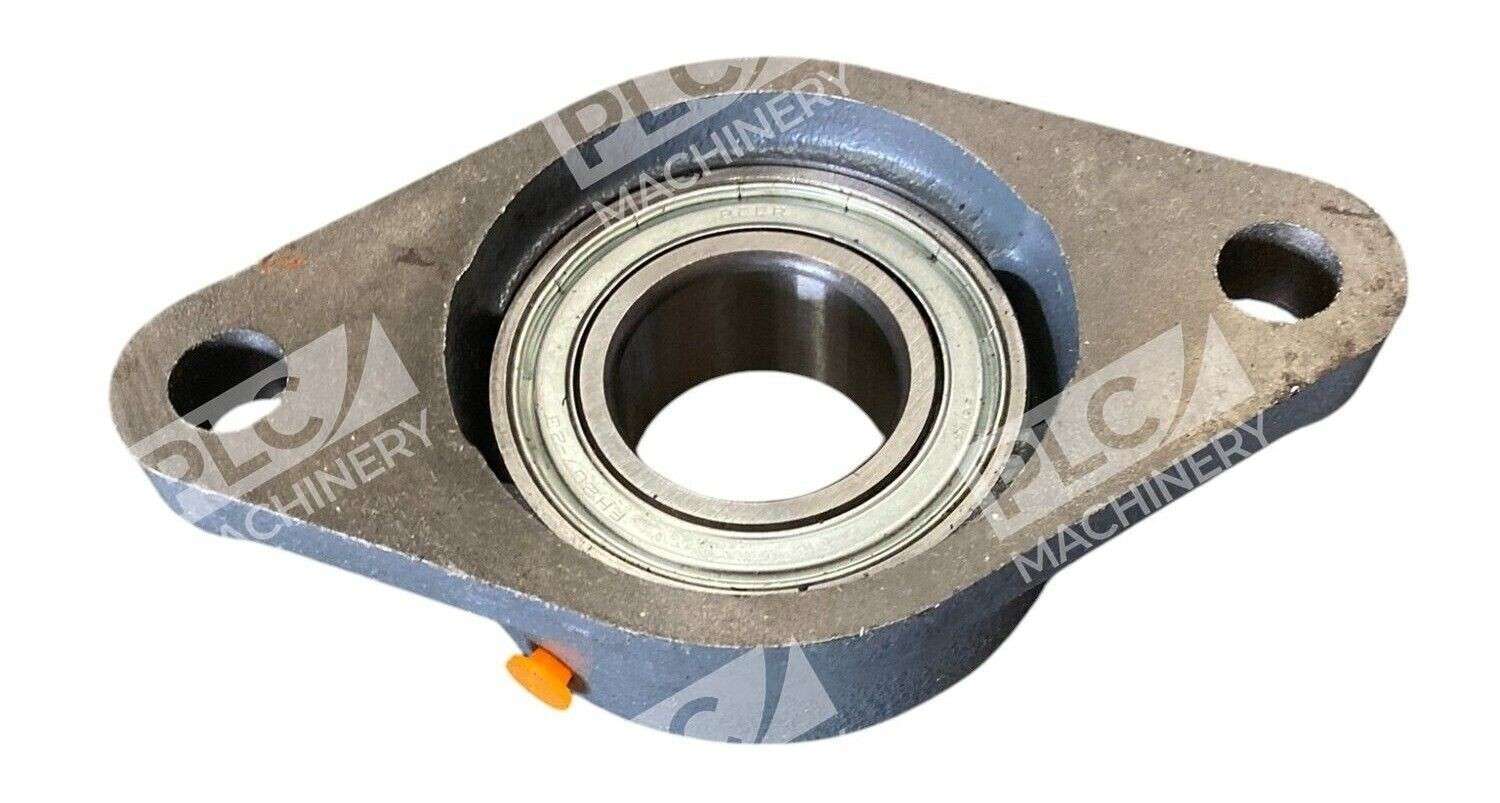

The Peer FH207-23 flange mount bearing is a precision-engineered 2-bolt flange-mounted bearing unit built for demanding industrial automation and mechanical power transmission applications. This bearing combines reliable cast iron housing construction with ball and roller bearing internals to deliver consistent performance in conveyor systems, driven equipment, and machinery requiring sturdy shaft support.
Key Features
- 2-Bolt Flange Mount: Solid cast iron housing with standard 2-bolt flange design for straightforward installation and removal
- Durable Construction: Cast iron housing provides excellent corrosion resistance and structural rigidity in industrial environments
- Ball & Roller Bearing Insert: High-quality insert bearing ensures smooth rotation and extended service life
- Industrial-Grade Design: Engineered for mechanical power transmission, conveyor drives, and general machinery support
- Easy Maintenance: Accessible design allows for straightforward inspections and bearing replacement without complex tooling
Technical Specifications
- Shaft Diameter: 1.5 inches (38.1 mm)
- Mounting Type: 2-Bolt Flange
- Housing Material: Cast Iron
- Bearing Type: Ball & Roller
- Overall Housing Diameter: 6.3438 inches
- Bolt Center-to-Center: 5.125 inches
- Housing Depth: 1.1875 inches
- Mounting Configuration: Solid Housing, Single-Piece Construction
- Manufacturer: Peer Bearing
- Condition: New – No Box
Typical Applications
The Peer FH207-23 performs reliably in a wide range of industrial settings:
- Conveyor system shaft support and driven rollers
- Fan and blower motor mounting
- Pump and compressor driven equipment
- Industrial gearbox and reducer support
- Material handling machinery and automation systems
- Agricultural and food processing equipment
Compatibility & Replacements
Compatible With
- Standard 1.5-inch (1½”) shaft applications
- FT207 flange-mount housing systems
- Industrial motors and gearmotors with compatible shaft sizes
- Drive couplings and flexible shaft connections rated for FT207 housings
- Standard industrial automation platforms using ball and roller bearing supports
Replaces / Drop-In Replacement For
- FH207-20 (alternate shaft diameter)
- FH207-22 (alternate shaft diameter)
- Other UC207 series insert bearings with FT207 flange housings
- Verify compatibility with your system integrator before ordering to confirm exact replacement requirements
Works With
- FT207 flange-mount housing frame
- Standard 2-bolt ISO flange mount configurations
- Ball and roller bearing insert maintenance kits
- Industrial bearing lubrication systems and grease specifications per Peer Bearing recommendations
