Overview

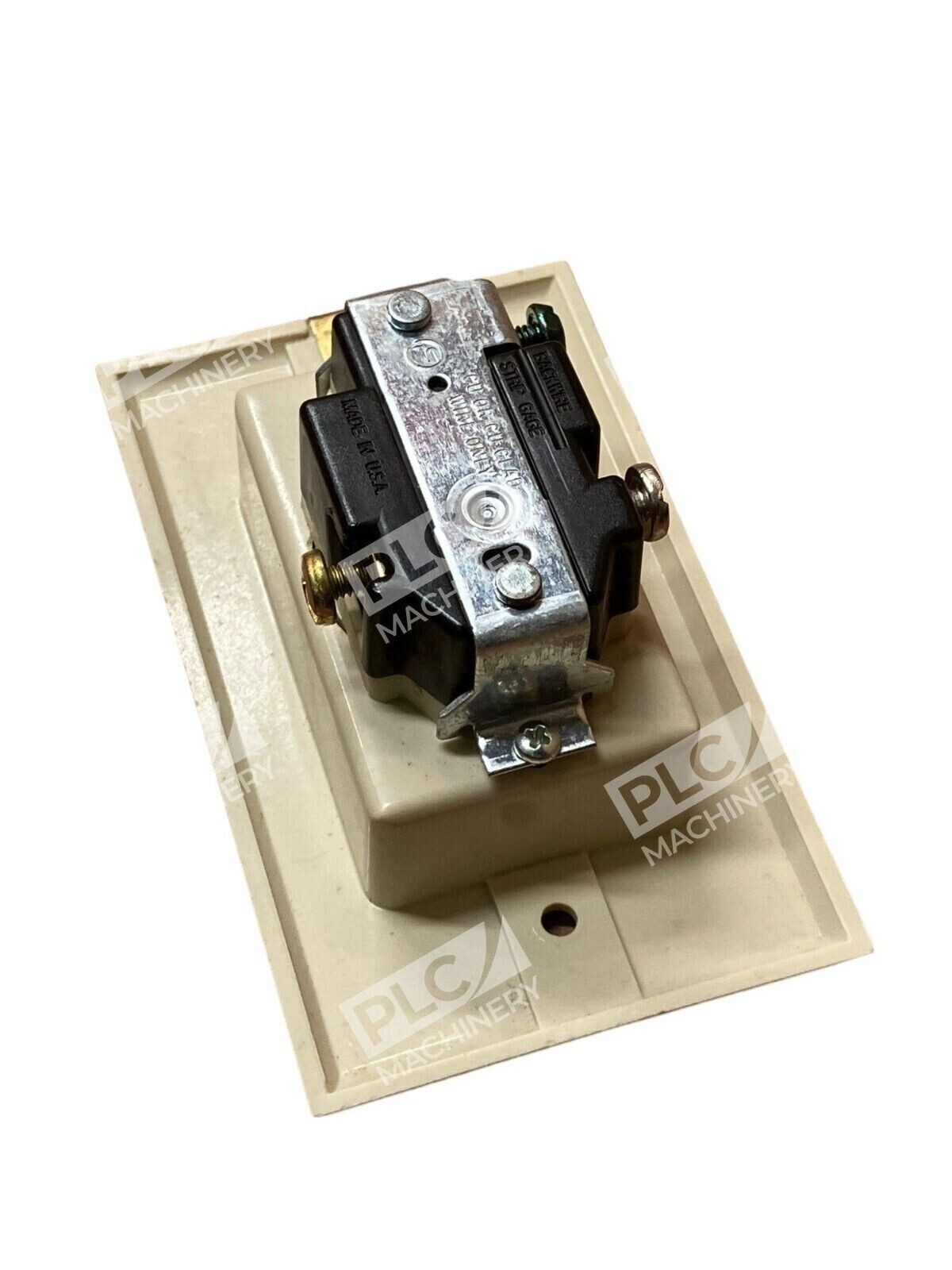

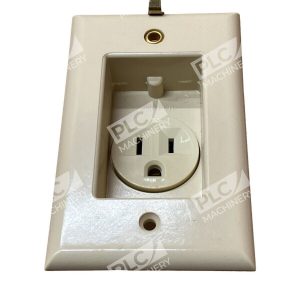

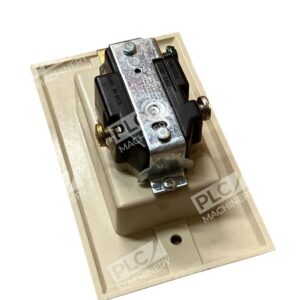

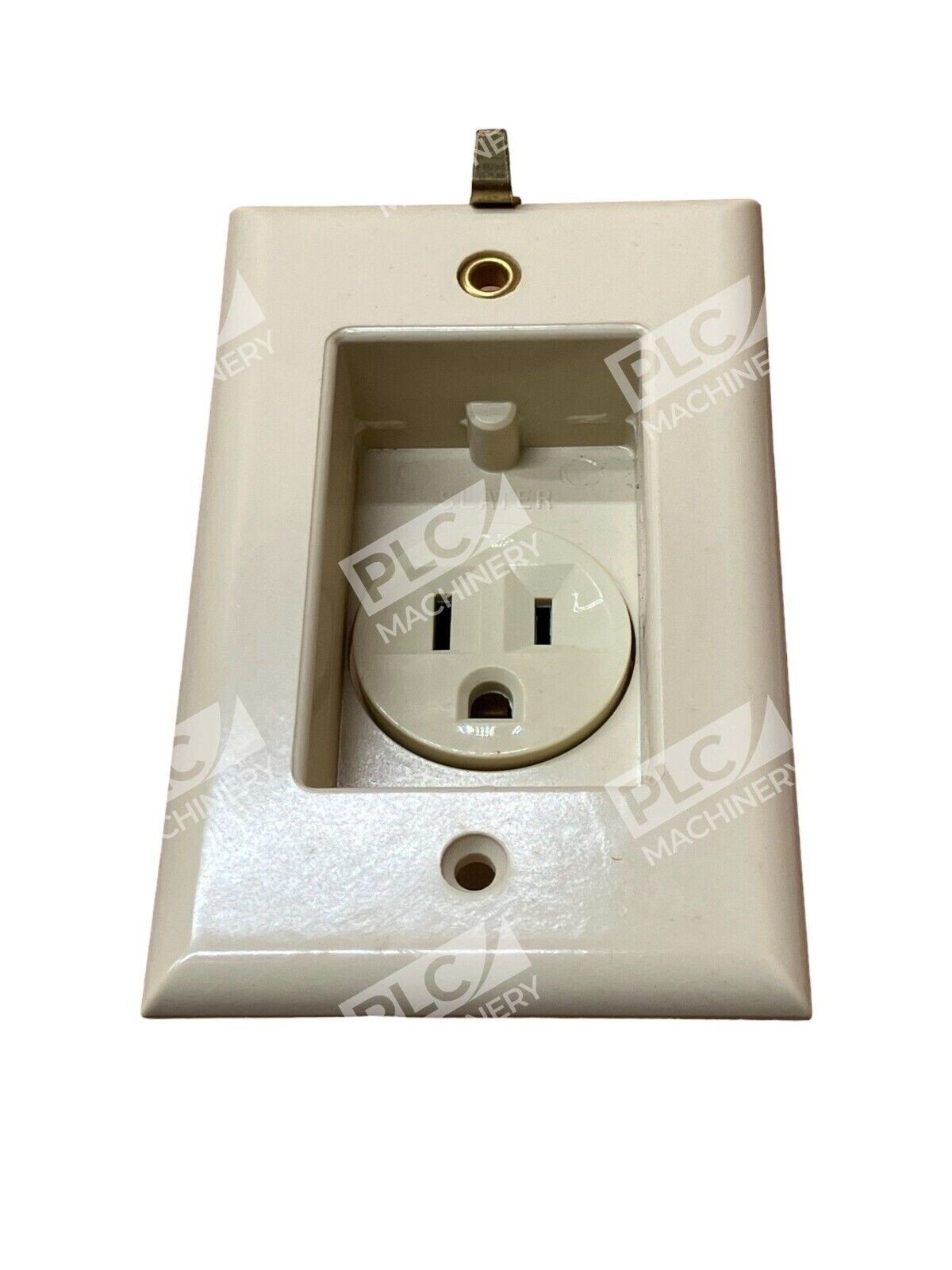

The Pass & Seymour S3713-I is a single recessed clock hanger receptacle designed for general-purpose electrical connectivity. This 15A 125V unit features a smooth wall plate finish in ivory and includes integral grounding for enhanced safety. The clock hanger design allows for recessed mounting in walls, providing a clean, flush aesthetic. Built to specification grade standards, this receptacle is widely used in commercial and residential applications where reliable power distribution is essential.
Key Features
- Single recessed receptacle with smooth wall plate design
- 15A 125V capacity with NEMA 5-15R configuration
- 2-pole, 3-wire grounding system for enhanced electrical safety
- Ivory finish with decorator styling for aesthetic consistency
- Specification grade construction for durability and performance

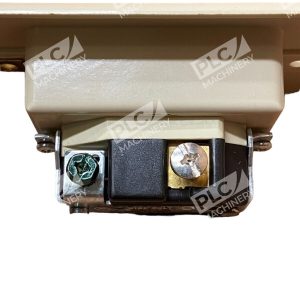

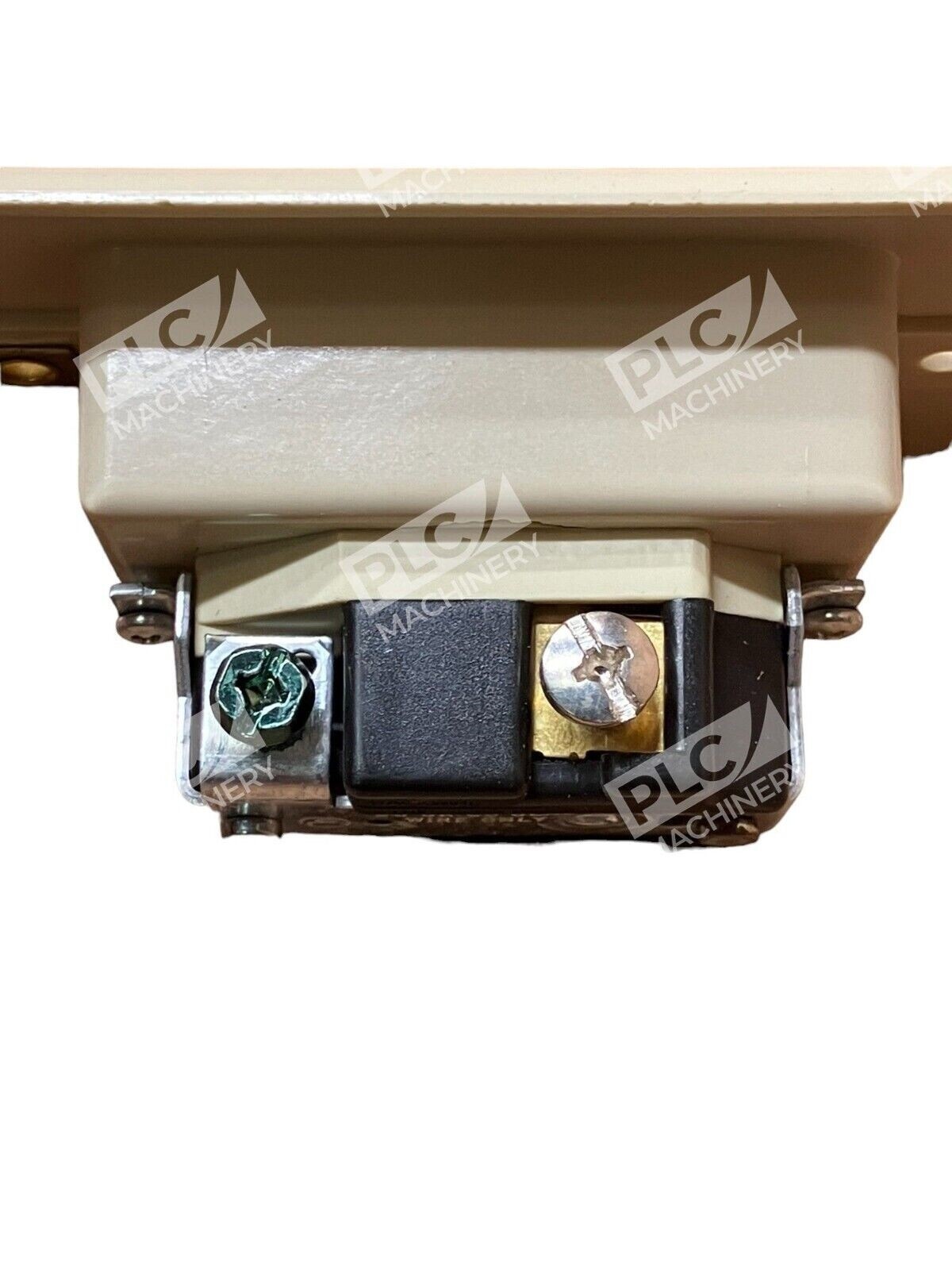

- Wire ground connection with side-wired configuration
- Suitable for both commercial and residential environments
Technical Specifications
- Amperage: 15 Amp
- Voltage: 125 Volt
- Nema Standard: 5-15R
- Pole Configuration: 2 Pole
- Wire Configuration: 3 Wire
- Grounding: Yes (grounded)
- Conductor Size: 4 AWG
- Material: Neoprene
- Finish: Ivory (smooth wall plate)
- Mounting Type: Wall recessed
- Width: 2.74 inches
- Height: 4.478 inches
- UL Listing: cULus Listing #140596
- Country of Origin: Mexico
Typical Applications
The Pass & Seymour S3713-I clock hanger receptacle is ideal for applications requiring compact, recessed wall-mounted power outlets. Common uses include:
- Residential wall outlets for standard appliances and devices
- Commercial spaces requiring code-compliant electrical distribution
- Clock and lighting connections in offices and retail environments
- General-purpose power distribution in facilities and buildings
- Retrofit and new construction electrical installations
Compatibility & Replacements
Compatible With
- Standard 125V AC power systems rated 15A or less
- NEMA 5-15P plugs and compatible electrical devices
- Commercial and residential building electrical infrastructure
- Wall-mounted electrical boxes and conduit systems
- Decorator-style electrical switch and outlet faceplates
Replaces / Drop-In Replacement For
- Other Pass & Seymour single recessed clock hanger receptacles rated 15A 125V
- Legrand-branded equivalent models (Pass & Seymour is a Legrand brand)
- Legacy 15A 125V recessed receptacles in similar form factors
Works With
- Standard NEMA 5-15P straight-blade plugs
- Decorator-style electrical outlet plates and covers
- Smooth wall plate accessories from Pass & Seymour/Legrand
- TP and TPJ series plates (with appropriate dimensions)
- Residential and commercial electrical systems compliant with NEC standards
