Overview

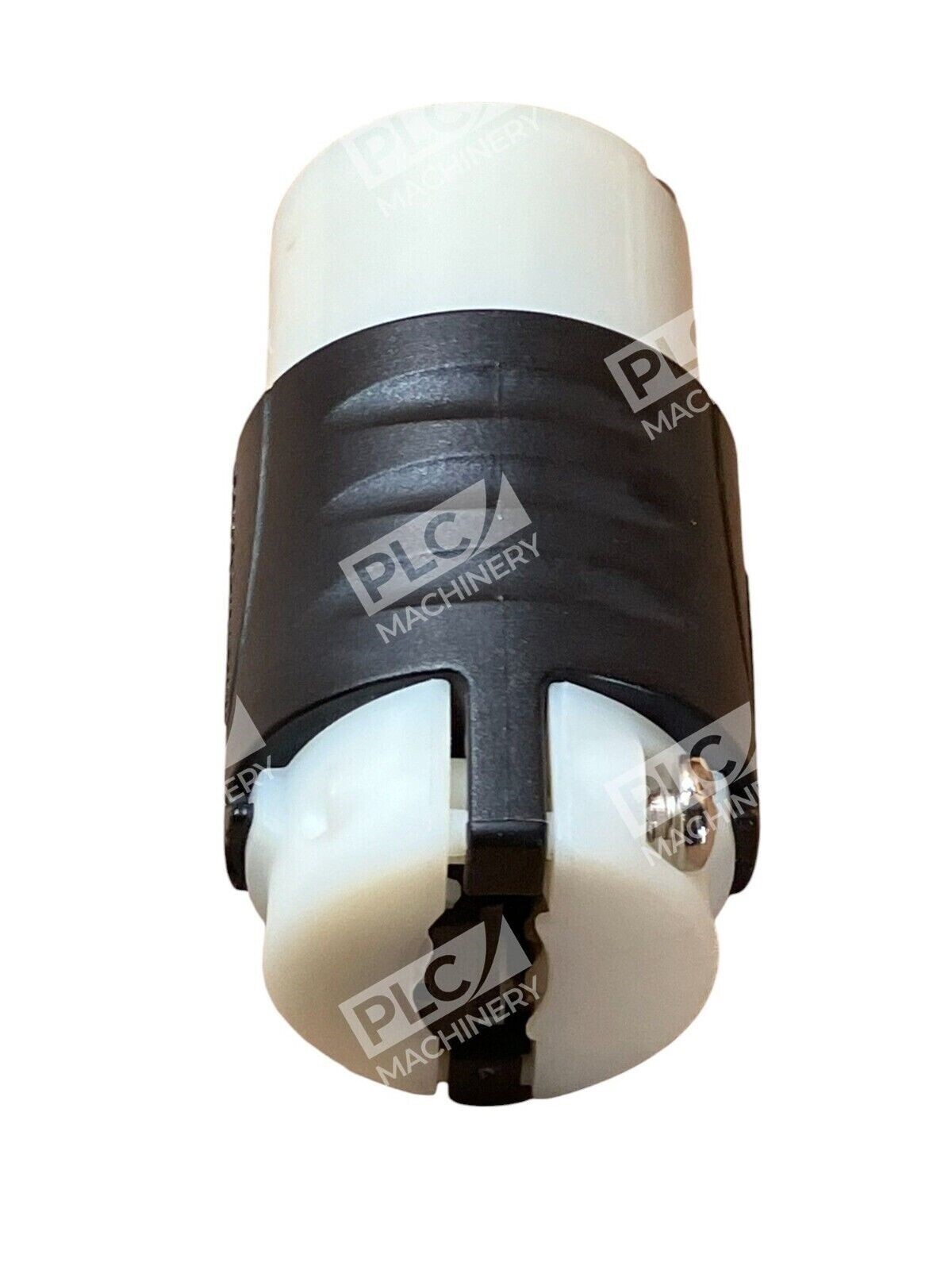

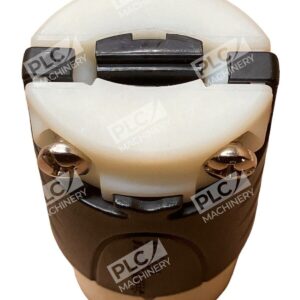

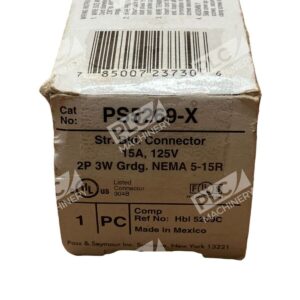

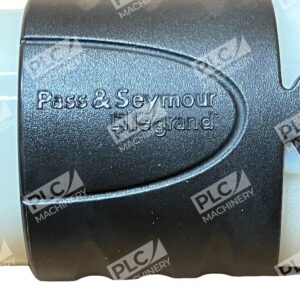

The Pass & Seymour PS5269-X is a commercial-grade straight blade connector from Legrand engineered for extra-hard use applications. Rated at 15 amperes and 125 volts, this 2-pole, 3-wire connector meets NEMA 5-15R standards and features heavy-duty brass alloy blades with nylon housing for impact and chemical resistance. The connector arrives completely wired and ready for immediate installation, significantly reducing setup time on job sites.
Key Features
- Heavy-duty brass alloy blades and contacts resist heat rise and provide excellent conductivity
- All 3-wire terminals located on the same plane allow quick wire termination from any angle
- Cord-grip screws recessed to protect installer against screwdriver head slippage
- Tri-drive assembly screws come backed-out and ready-to-wire for fast setup
- Internal dust shield keeps terminals free of contaminants
- Nylon housing provides durability in harsh industrial environments
Technical Specifications
The PS5269-X delivers reliable performance across a wide operating range with robust construction suitable for heavy-duty commercial and industrial applications.
Typical Applications
This Pass & Seymour PS5269-X connector is ideal for industrial automation, motion control systems, power distribution panels, and portable equipment requiring temporary or permanent connections. Its specification-grade construction makes it suitable for commercial buildings, manufacturing facilities, and any environment demanding extra-hard use reliability. The screw terminal design supports conductor sizes up to 4 AWG, accommodating a range of industrial wiring configurations.
Compatibility & Replacements
Compatible With
- Standard 125V AC power circuits rated 15A or higher
- NEMA 5-15R outlet receptacles
- Industrial power distribution systems and control panels
- Commercial-grade electrical infrastructure
Replaces / Drop-In Replacement For
Verify exact compatibility with your electrical integrator before ordering. The PS5269-X is designed as a direct replacement for other 15A 125V 2-pole 3-wire straight blade connectors meeting NEMA 5-15R specifications.
Works With
- Wire gauges up to 4 AWG
- Cord diameters 0.23 to 0.72 inches
- Industrial control wiring systems
- Portable and stationary equipment
