Overview

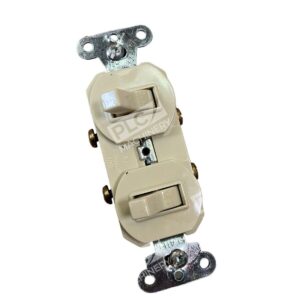

The Pass & Seymour 690-I is a single pole combination device featuring two independent switches in a compact footprint. Rated for 15 amps at 120/277 volts with thermoplastic construction, this switch meets commercial and residential wiring standards. Two devices fit into the space of one, making it an efficient solution for space-constrained installations.
Key Features
- Single pole, 1-pole configuration with non-ground connection type
- Easily accessible break-off separate or common feed
- Long-life red neon lamp in pilot light rated 1/25 watt, 125V
- Two devices fit into the space of one standard wallplate opening
- Toggle-style actuator for reliable switching operation
- Side wire terminal accepts #12 and #14 AWG conductors
Technical Specifications
- Voltage Rating: 120/277 VAC
- Amperage: 15 amps
- Number of Poles: 1 pole
- Switch Configuration: Double (two switches)
- Material: Thermoplastic
- Wire gauge: 4 AWG
- Dimensions: 1.32 inch W x 3.28 inch H x 0.94 inch D
- Mounting: Wall mount with side wire terminal
- Enclosure: NEMA 5-15R
Typical Applications
- Residential and commercial wall switch installations
- Space-limited installations requiring dual switching capability
- Standard electrical construction and renovation projects
- Applications requiring 120/277V rated switching at 15A capacity
Compatibility & Replacements
Compatible With
- Standard US electrical wiring systems (120/277V, 15A circuits)
- NEMA 5-15R compliant installations
- Residential and commercial building electrical codes
- Standard single-gang wallplate openings
Replaces / Drop-In Replacement For
- Other Pass & Seymour 690-series single-pole double switches (690, 690-I, 690-IG variants)
- Standard single-pole double combination switches from compatible manufacturers
Works With
- Standard electrical conduit and wire (12-14 AWG)
- NEMA-compliant wallplates and cover plates
- Residential and commercial electrical distribution systems rated 120/277V
