Overview

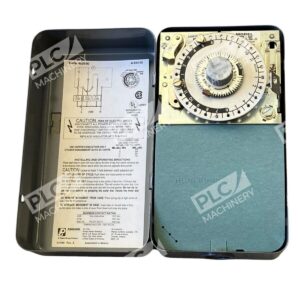

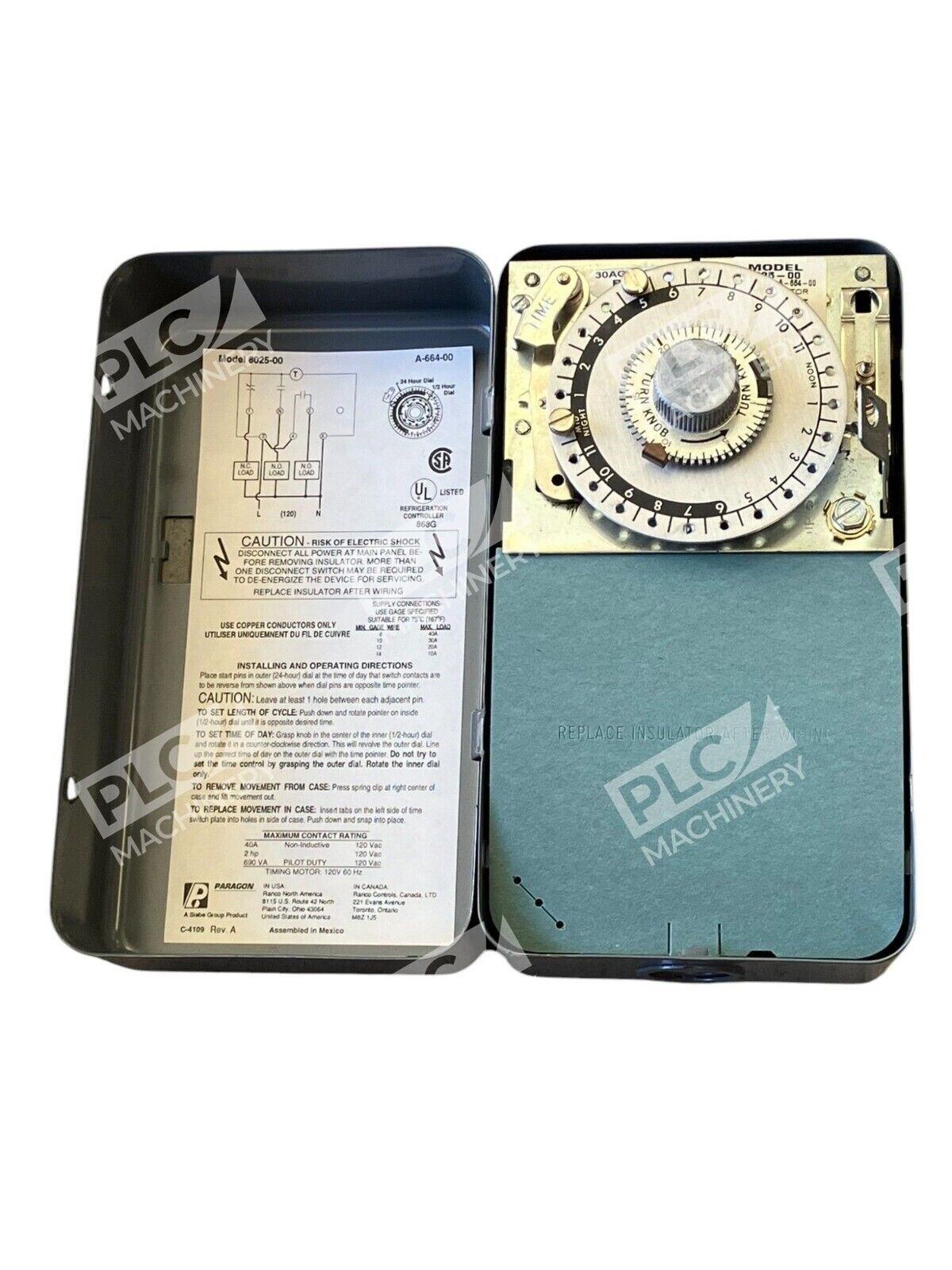

The Paragon 8025-00 timing motor is a motor-driven timing control manufactured by Invensys Paragon for industrial and commercial applications. Operating at 120V 60Hz, this unit provides mechanical timing functionality with adjustable delays from 30 seconds to 27.5 hours, making it suitable for a wide range of control scenarios including HVAC defrost cycles, compressor delay, refrigeration controls, and other sequential automation tasks.
Key Features
- 120V 60Hz rated for North American industrial applications
- Adjustable timing range: 30 seconds to 27.5 hours
- 2NO-1NC (two normally-open, one normally-closed) contact configuration
- Motor-driven mechanical timer with automatic reset capability

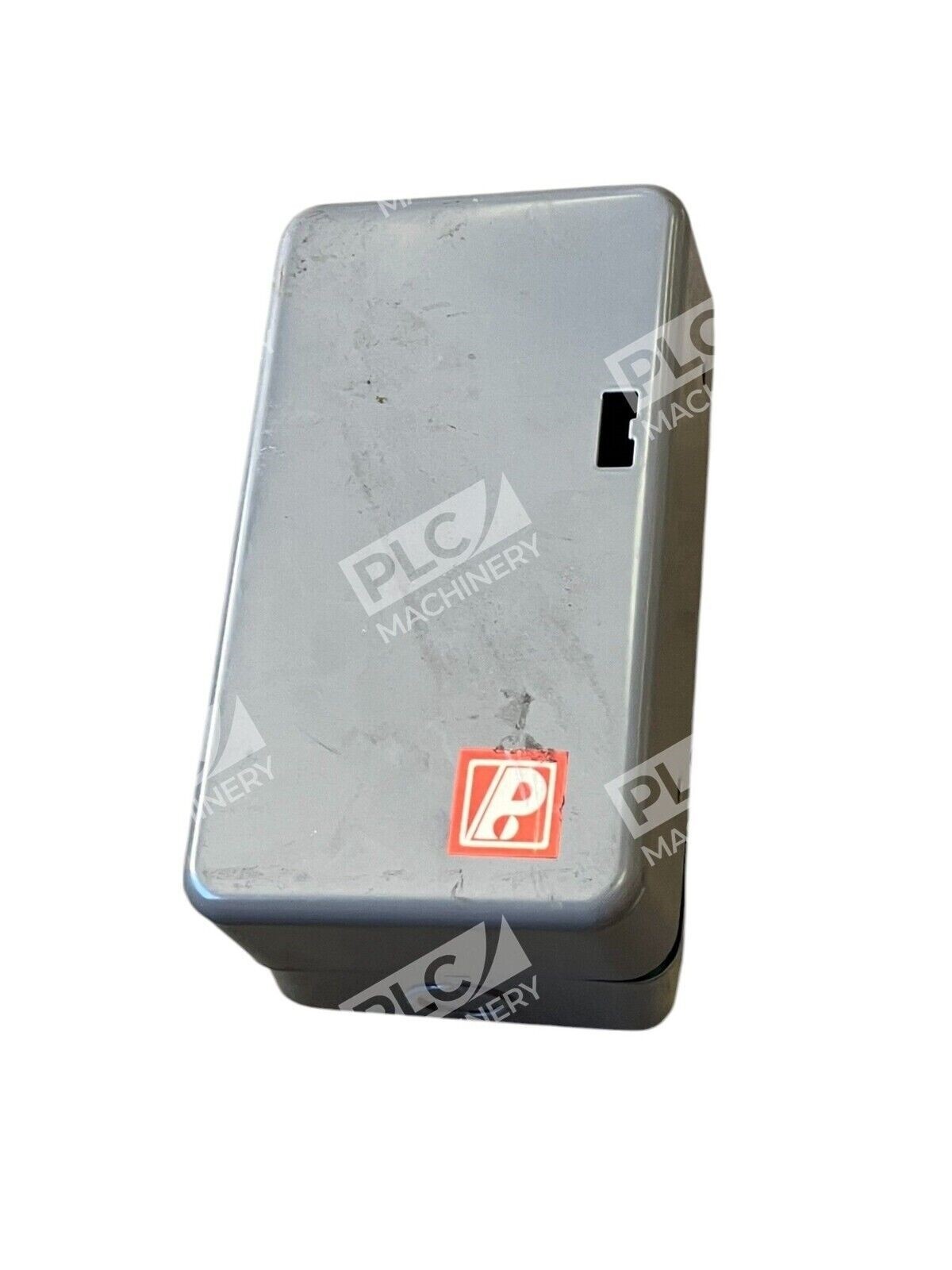

- Compact, durable construction for panel or wall mounting
- Proven Invensys/Paragon design for reliable long-term service
Technical Specifications
- Voltage: 120V AC
- Frequency: 60 Hz

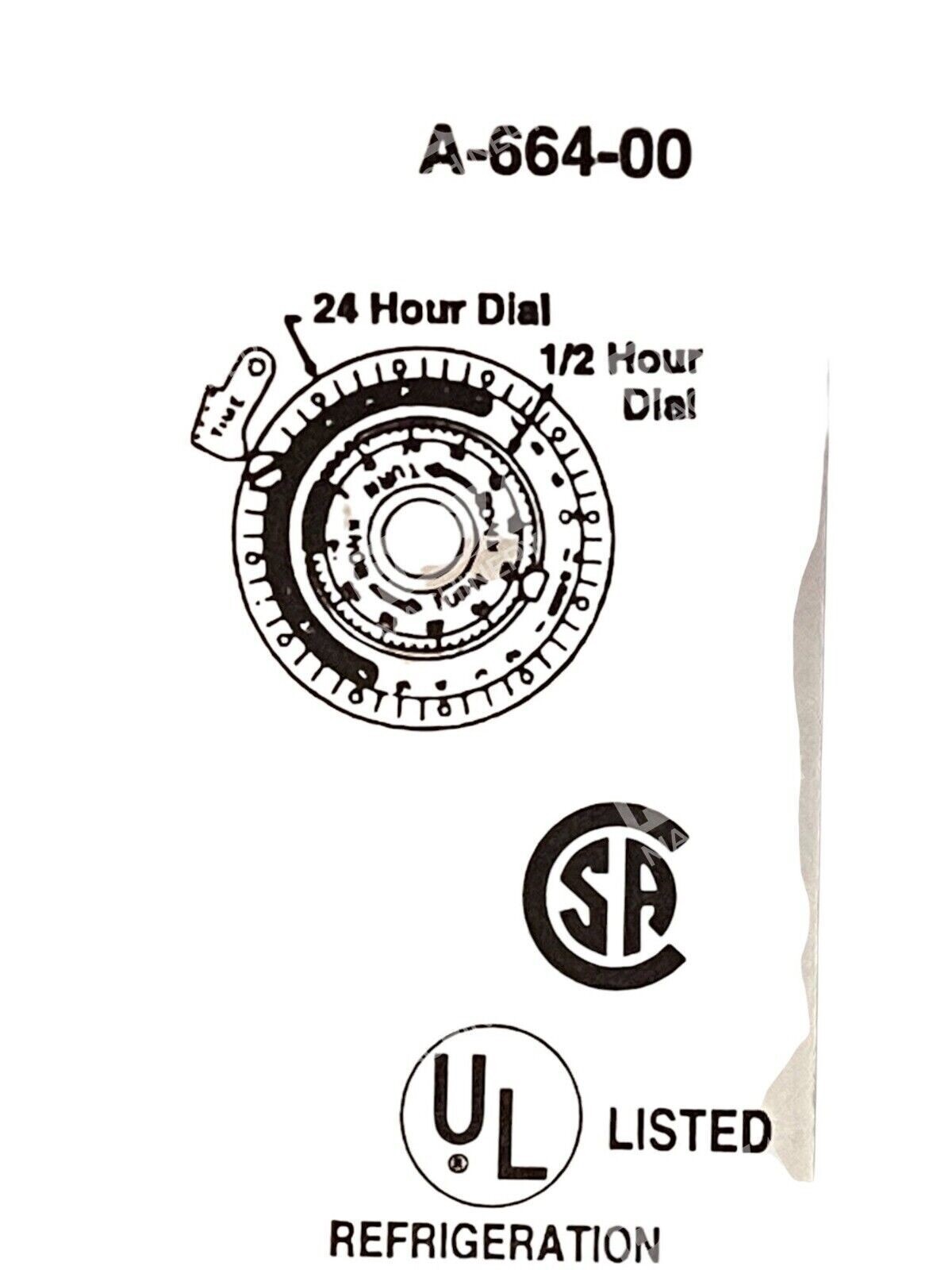

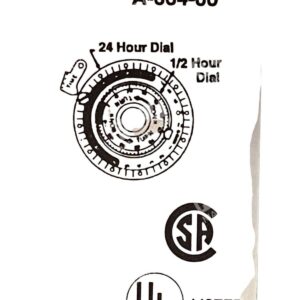

- Timing Range: 30 seconds to 27.5 hours (adjustable dial)

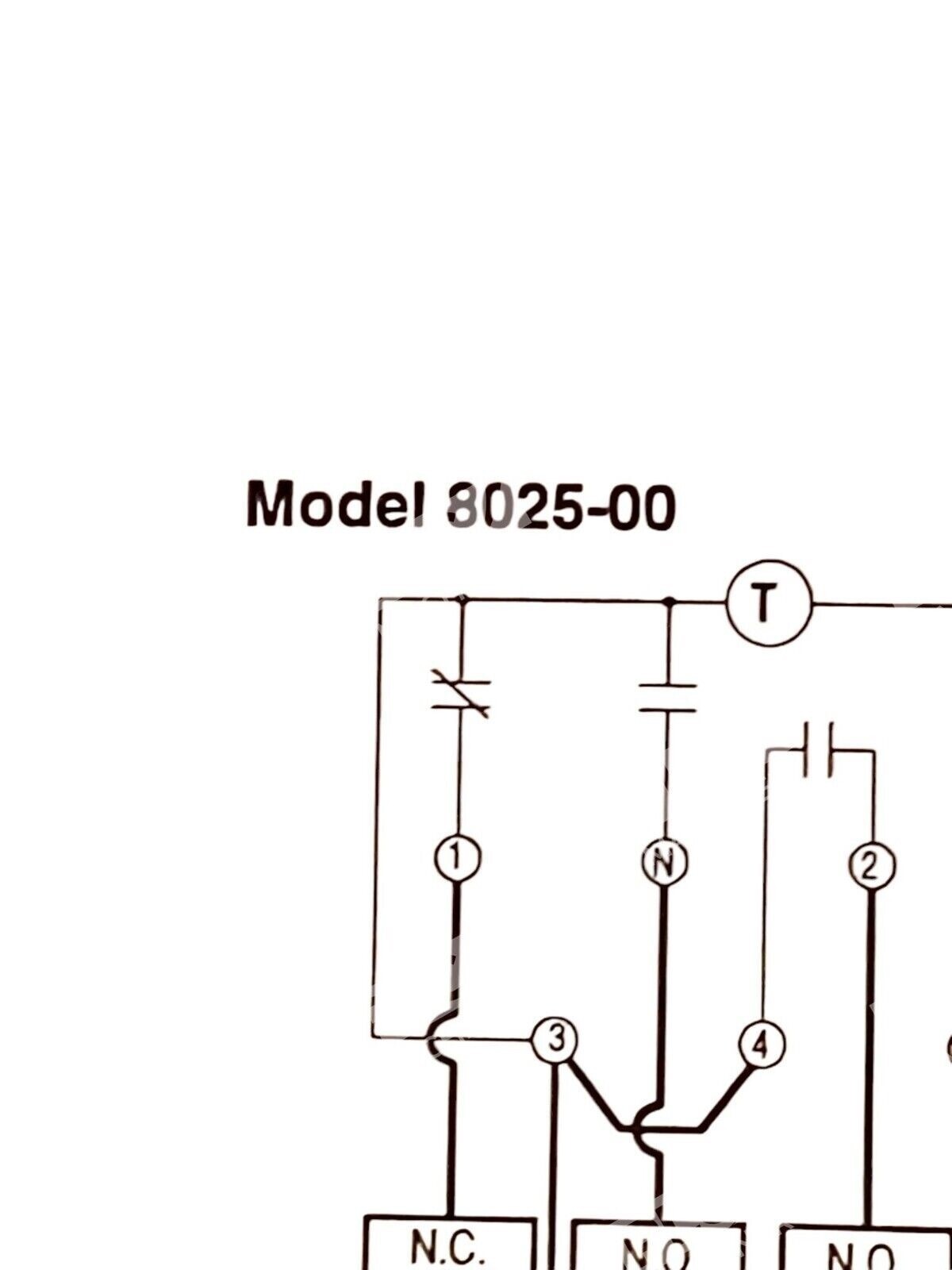

- Contact Configuration: 2NO-1NC
- Weight: 3.0 lbs
- Application: General-purpose timing control, HVAC, refrigeration
- Manufacturer: Invensys Paragon Electric Company

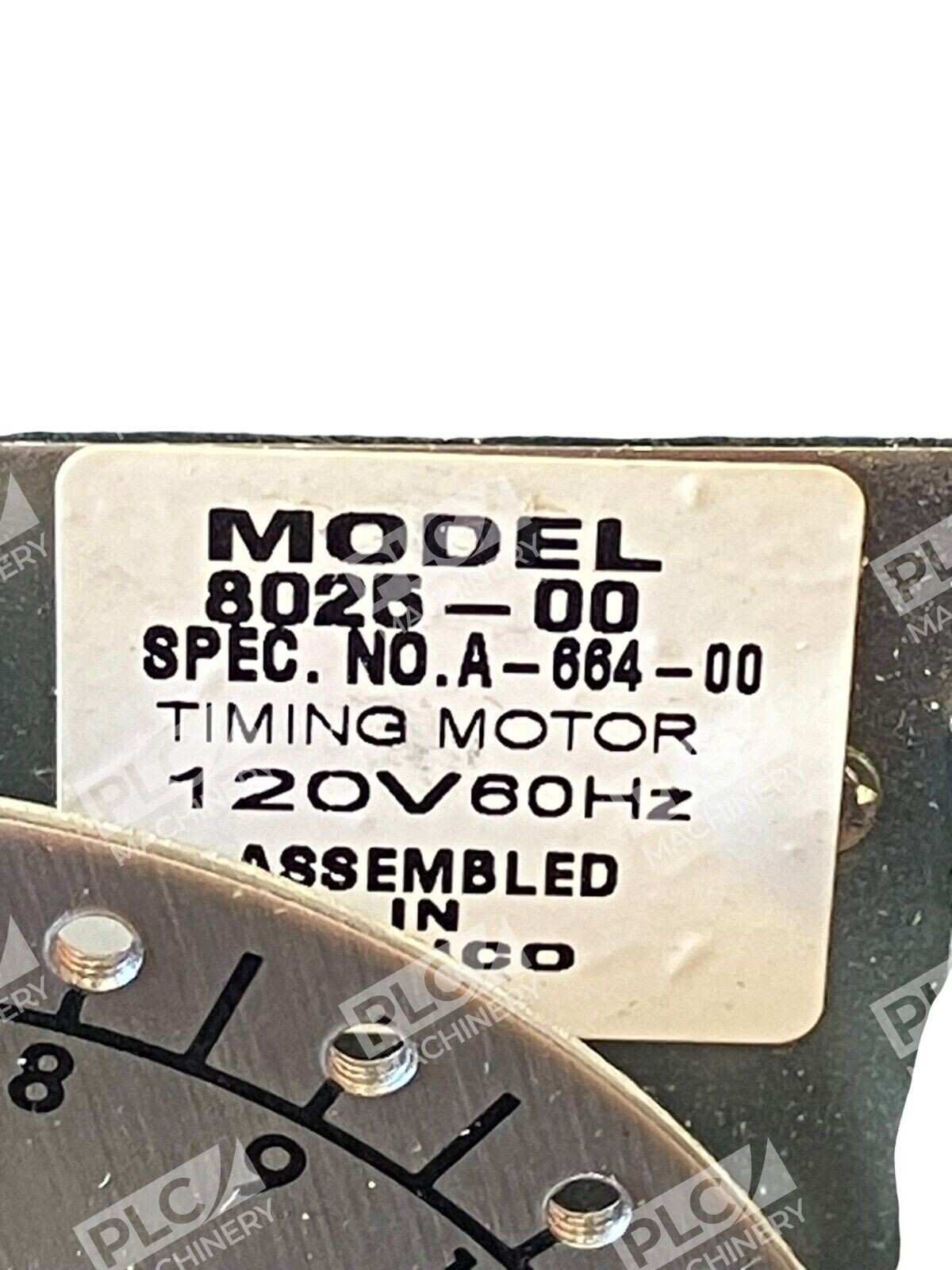

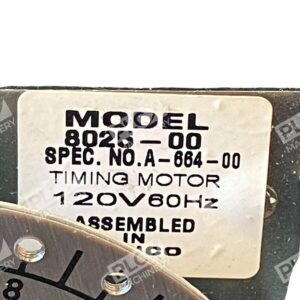

- Part Number: 8025-00 (Spec A-664-00, Module C-4109 Rev A)
Typical Applications
- HVAC defrost timer cycles
- Refrigeration equipment compressor delay and control
- Industrial equipment sequential start/stop sequencing
- Delayed-action controls for solenoids, relays, and contactors
- General automation timing circuits requiring automatic reset
Compatibility & Replacements
Compatible With
- Standard 120V 60Hz industrial control panels
- Electromechanical relay and contactor circuits
- HVAC and refrigeration control systems using timer-driven logic
- 24-hour and longer-duration timing applications with dial adjustment
Replaces / Drop-In Replacement For
- Paragon 632-00 (defrost control version; verify pinout and terminal layout)
- Other Paragon/Invensys motor-driven timing motors in the industrial series
- Verify compatibility with your system integrator before ordering to confirm contact configuration and electrical ratings match your control circuit.
Works With
- Electromechanical control relays and motor starters
- Solenoid valves and pilot-duty loads rated 120V
- Manual and automatic reset timer logic
- Standard industrial wiring and terminal connections
