Overview

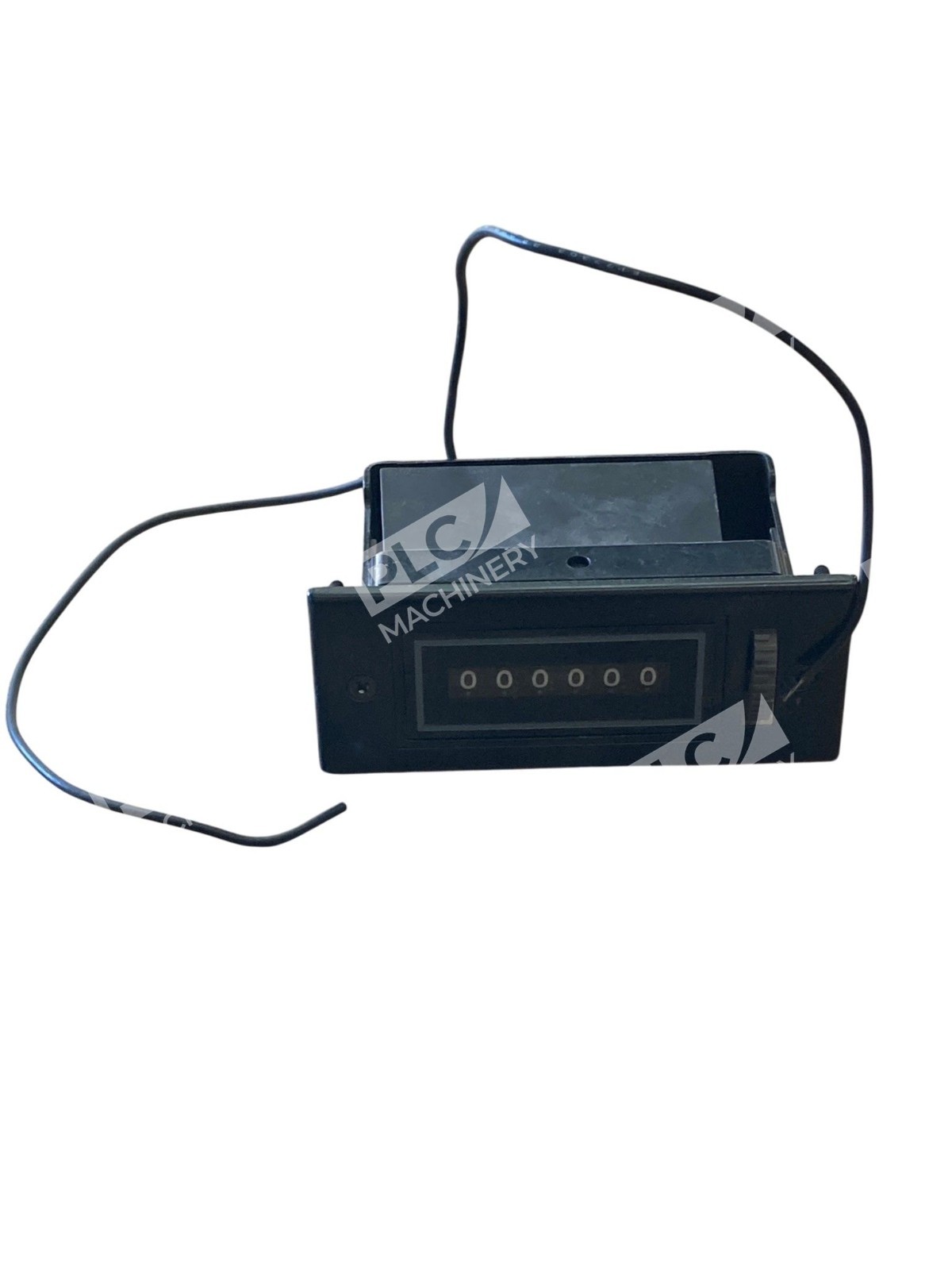

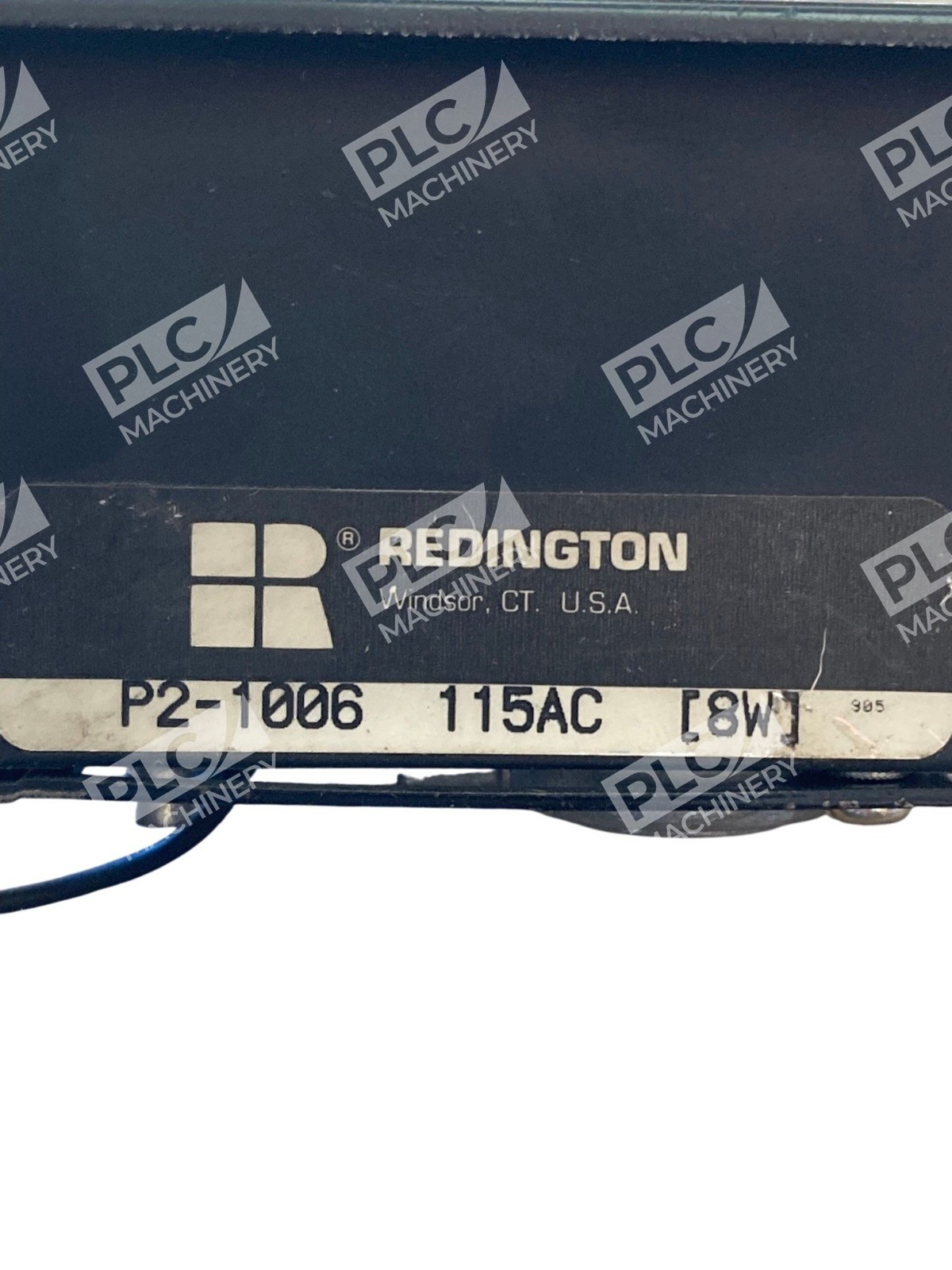

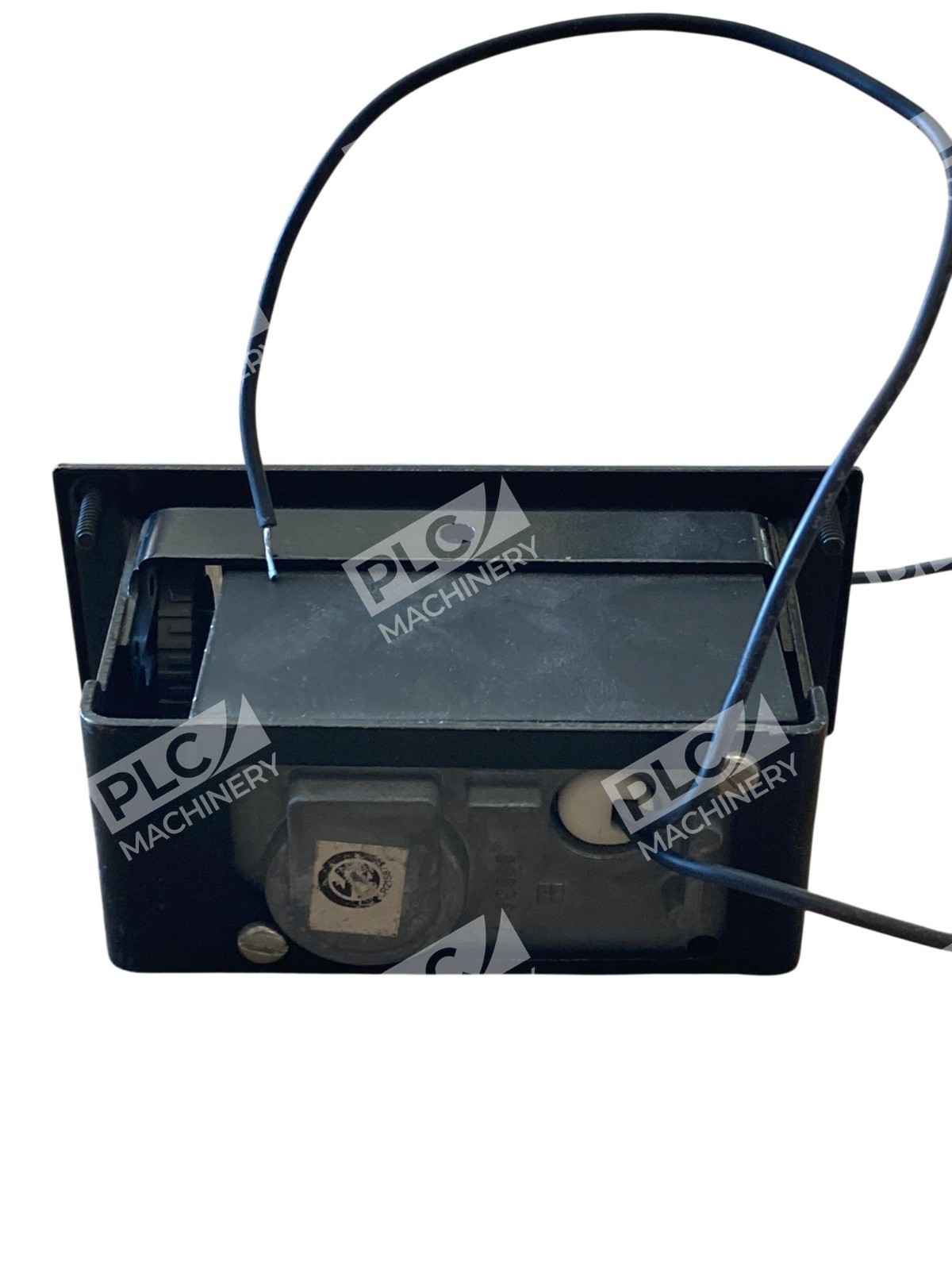

Redington P2-1006 is a durable electromechanical counter designed for precision counting and totalizing in industrial automation control systems. This panel-mount unit delivers reliable counting performance with minimal downtime and no electronic drift—ideal for legacy equipment retrofit or new installation where analog display is required.
Key Features

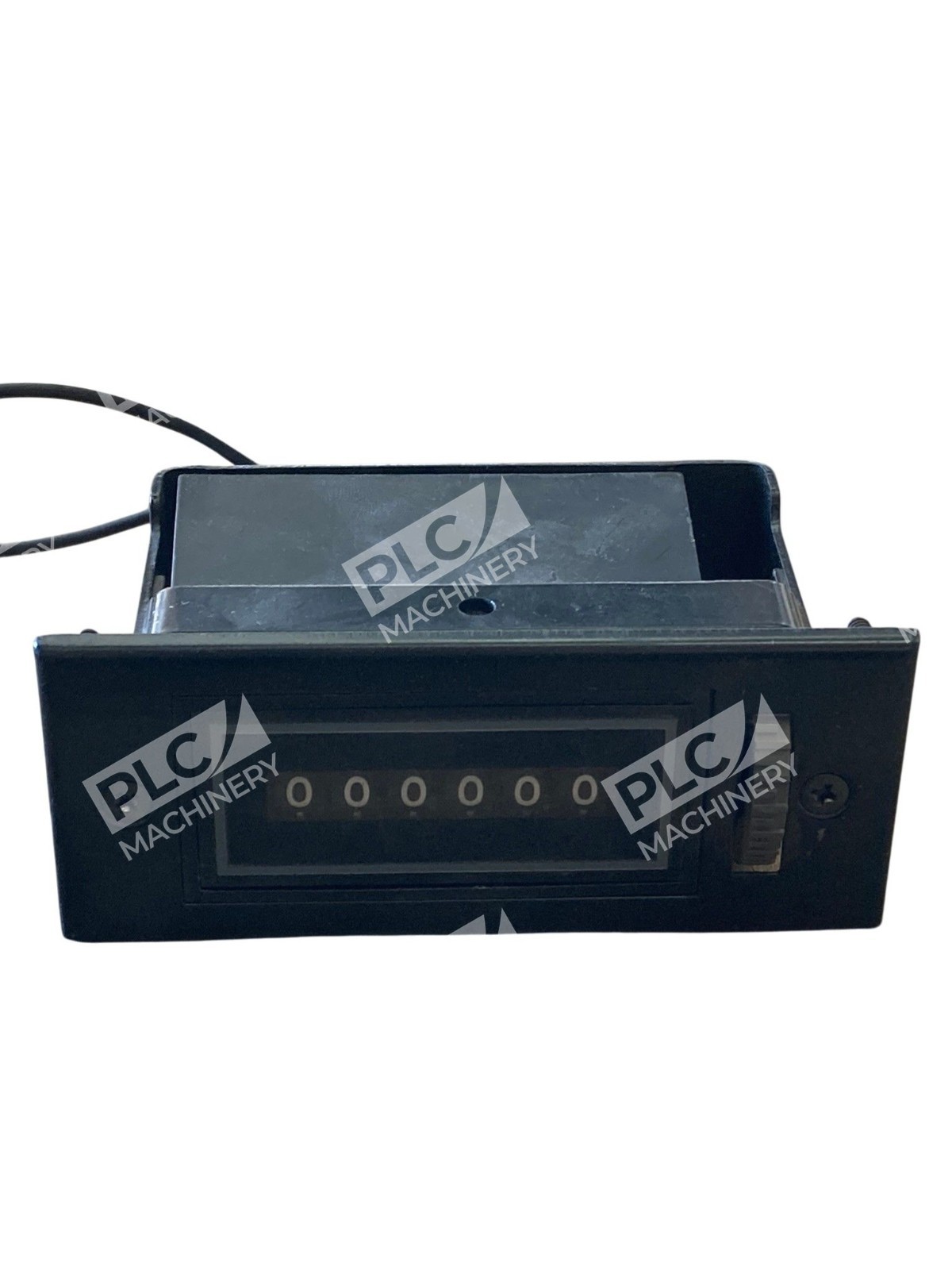

- 6-digit decimal display (white numerals on black background)
- Manual thumb-wheel reset mechanism—no electronic control required
- Counts up to 1,000 pulses per minute (16.6 counts/second)
- Minimum pulse timing: 30 ms on / 30 ms off
- Panel-mount configuration with integral frame
- CE, REACH, RoHS, UKCA, and WEEE compliant
Technical Specifications
- Operating Voltage: 115V AC ±10% (maximum 10V tolerance)
- Power Consumption: 8W
- Display: 6-digit decimal, 0.19 in. white numerals
- Counting Speed: 1,000 counts/minute maximum
- Minimum Pulse Duration: 30 ms on, 30 ms off
- Reset Type: Manual thumb-wheel
- Mounting: Panel front-mount

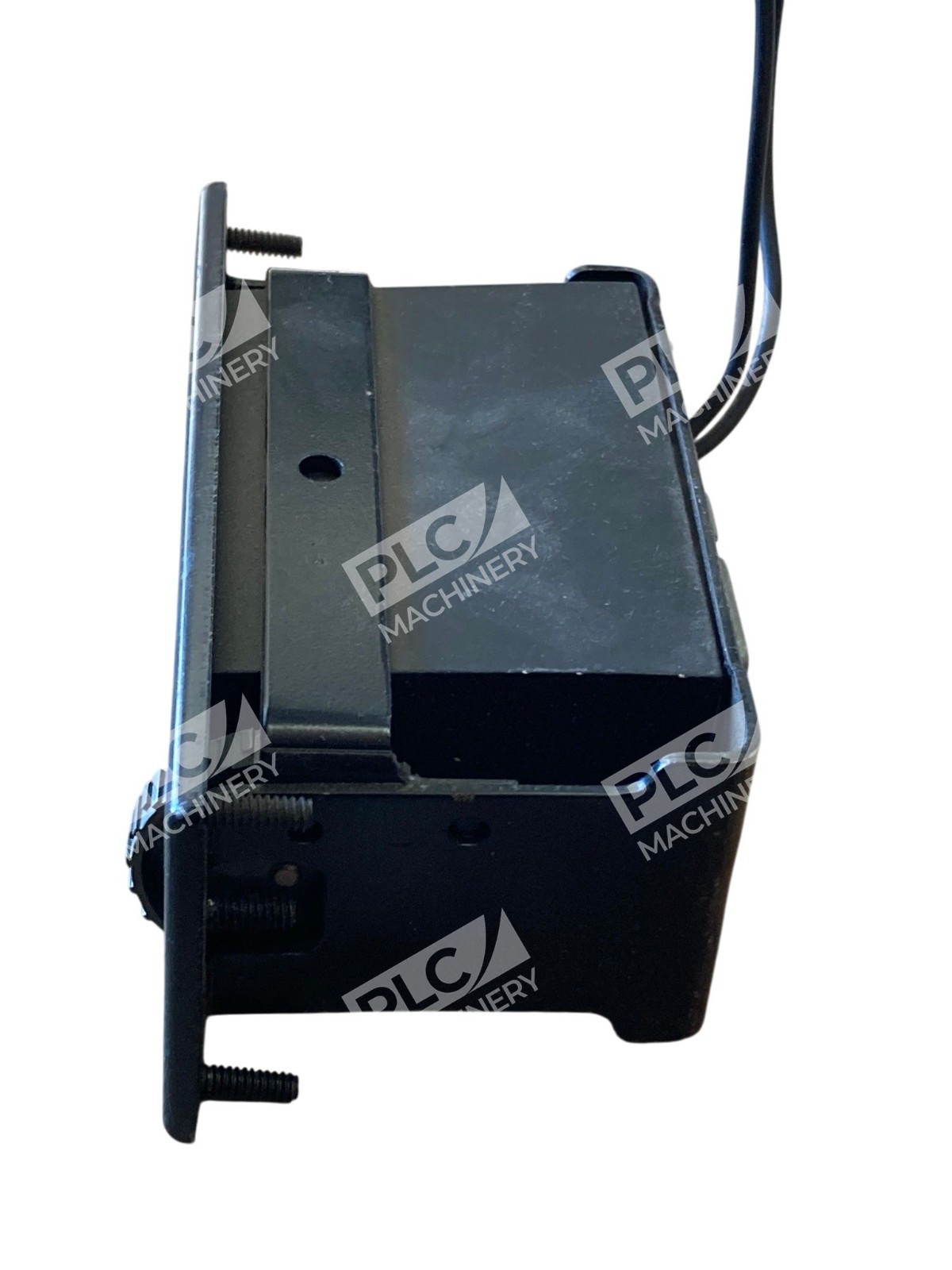

- Dimensions (Panel Mount): W 4.45 in. × H 1.62 in. × D 2.27 in.
- Panel Cutout: 3.85 in. × 1.75 in.
- Weight: 18–22 oz (510–624 g)
- Operating Temperature: −15°F to +140°F (−26°C to +60°C)
- Certifications: UL Recognized, CSA Certified, CE Compliant
Typical Applications
- Production line piece counting and inventory tallying
- Fluid/batch dispenser totalizers (volume or unit count)
- Machine cycle counters for maintenance scheduling
- Conveyor and material handling pulse counting
- Retrofit installations requiring electromechanical reliability
- Systems with minimal electrical infrastructure
Compatibility & Replacements
Compatible With
- Standard AC pulse input controllers (PLC pulse counters, relay logic)
- Industrial automation systems requiring analog counting display
- General-purpose electromechanical control relay circuits
- Any 115V AC single-phase industrial power supply
Replaces / Drop-In Replacement For
- Redington 2-1006 (equivalent base-mount version)
- Original equipment manufacturer (OEM) Redington Model 10 counters
- Legacy electromechanical totalizer modules with similar 115V AC ratings
Works With
- AC pulse relay modules and control logic
- Industrial proximity sensors and reed switch outputs
- Standard 115V AC industrial electrical distribution
- Manual reset systems—no software or HMI programming required
- Frequency range 0–16.6 Hz (counts per second)
