Overview

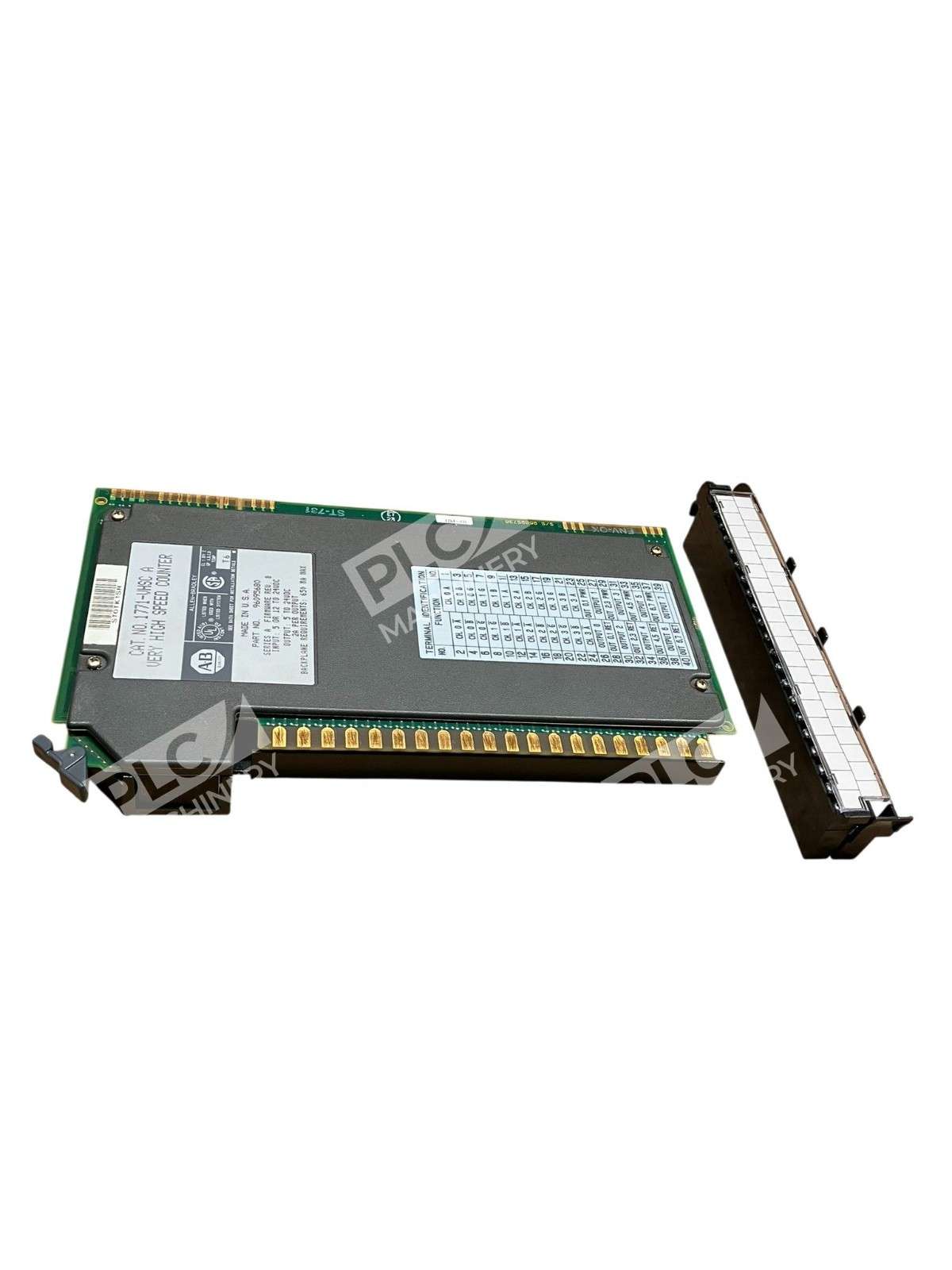

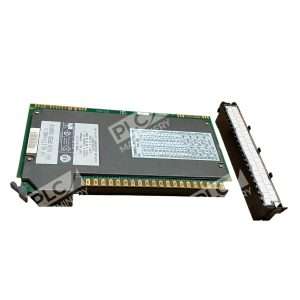

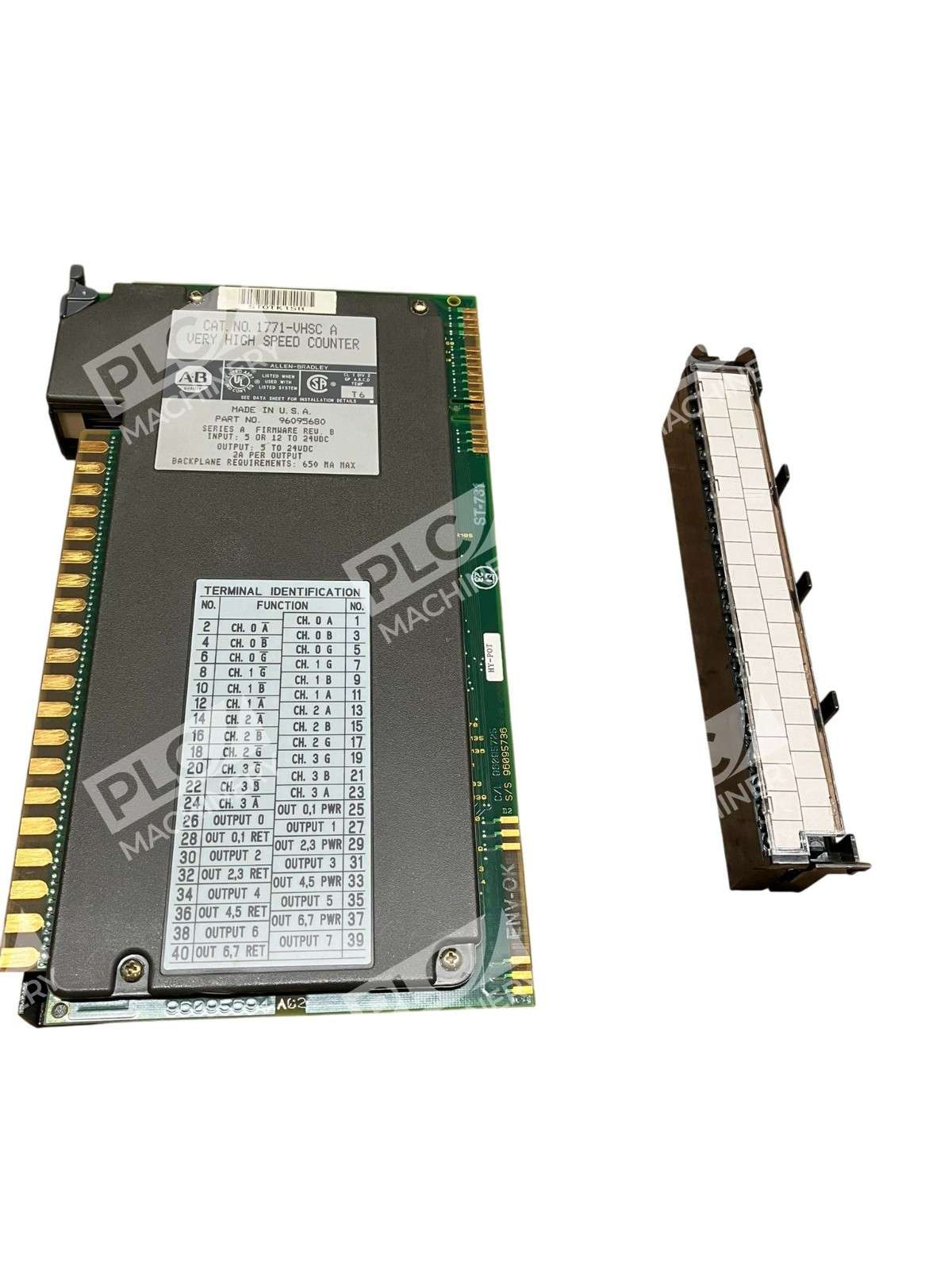

The Allen-Bradley 1771-VHSC is a very high-speed counter (VHSC) module designed for seamless integration into PLC-5 chassis and systems. This module provides precise counting and frequency measurement capabilities for high-speed industrial automation applications. The 1771-VHSC is widely used in motion control, encoder integration, position monitoring, and process synchronization tasks where accurate, real-time count data is critical to system performance.
Key Features
- Four input channels configurable for counter, encoder (X1 and X4), period/rate, and continuous/rate modes, supporting single-phase counter inputs up to 1 MHz and two-phase encoder inputs up to 250 kHz
- Eight digital outputs, isolated in groups of two, with current-sourcing capabilities at 5 to 24V DC (2A maximum per output)
- Compatible with 2-phase encoder mode (X1 and X4) with selectable input frequencies of 250 kHz and 500 kHz in rate/period or rate/measurement mode
- Operates with a backplane current draw of 650 mA and does not require an external power supply
- Provides block transfer programming capabilities that perform interface signals and high-speed counting with any PLC
- Counts pulses from encoders such as Allen-Bradley Bulletin 845, pulse generators, and mechanical limit switches, returning either count or frequency rating in binary or BCD format
Technical Specifications

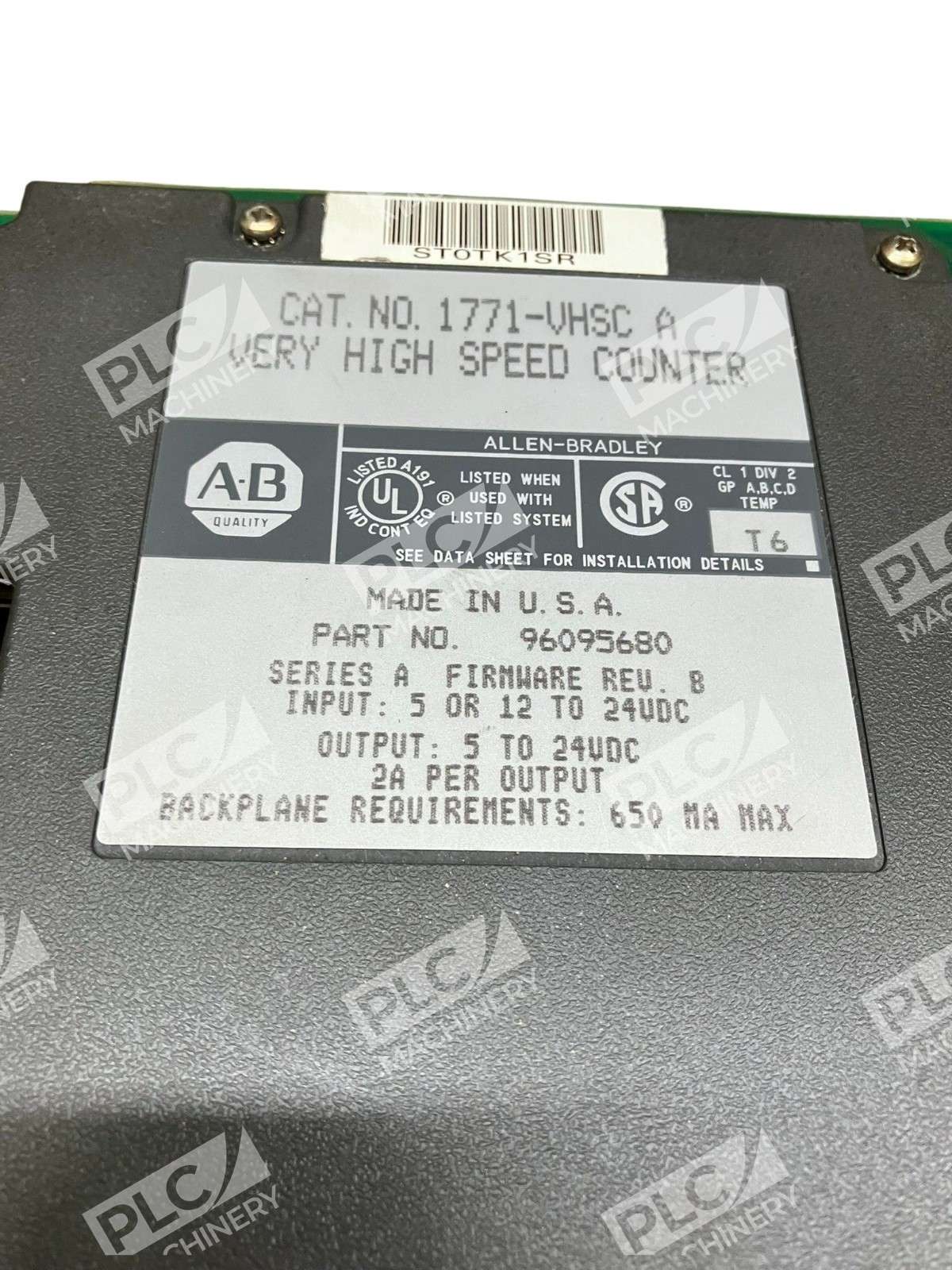

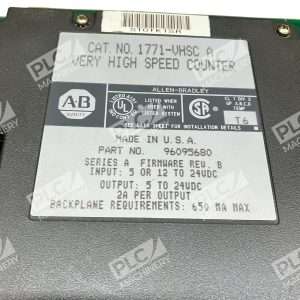

Input voltage ratings are 5 volts DC or 12 to 24 volts DC (user-selectable). The module handles both single-ended and differential inputs across its four channels. Output sourcing is rated at 2A per point (8 points total) at 5–24V DC. Response time is approximately 0.1 millisecond. Operating temperature range is 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). The module is certified to C-TICK, CE, CSA, and UL standards.
Typical Applications
The 1771-VHSC excels in applications requiring rapid pulse capture and frequency measurement, including:
- Encoder-driven motion control and positioning systems
- Totalizing and batch counting in material handling and packaging
- High-speed frequency measurement for process synchronization
- Precision speed monitoring in conveyor and assembly line control
- General-purpose I/O with safety-critical signaling
Compatibility & Replacements
The 1771-VHSC is designed exclusively for PLC-5 chassis and systems and cannot be used in SLC 500, CompactLogix, or ControlLogix platforms. It is a legacy module; Rockwell Automation’s modern equivalent platforms (ControlLogix with specialty I/O or CompactLogix with high-speed modules) offer updated alternatives. When upgrading systems, consult factory documentation or your Rockwell distributor for migration paths. The module’s block-transfer architecture makes it compatible with classic RSLogix 5 programming environments.
