Overview

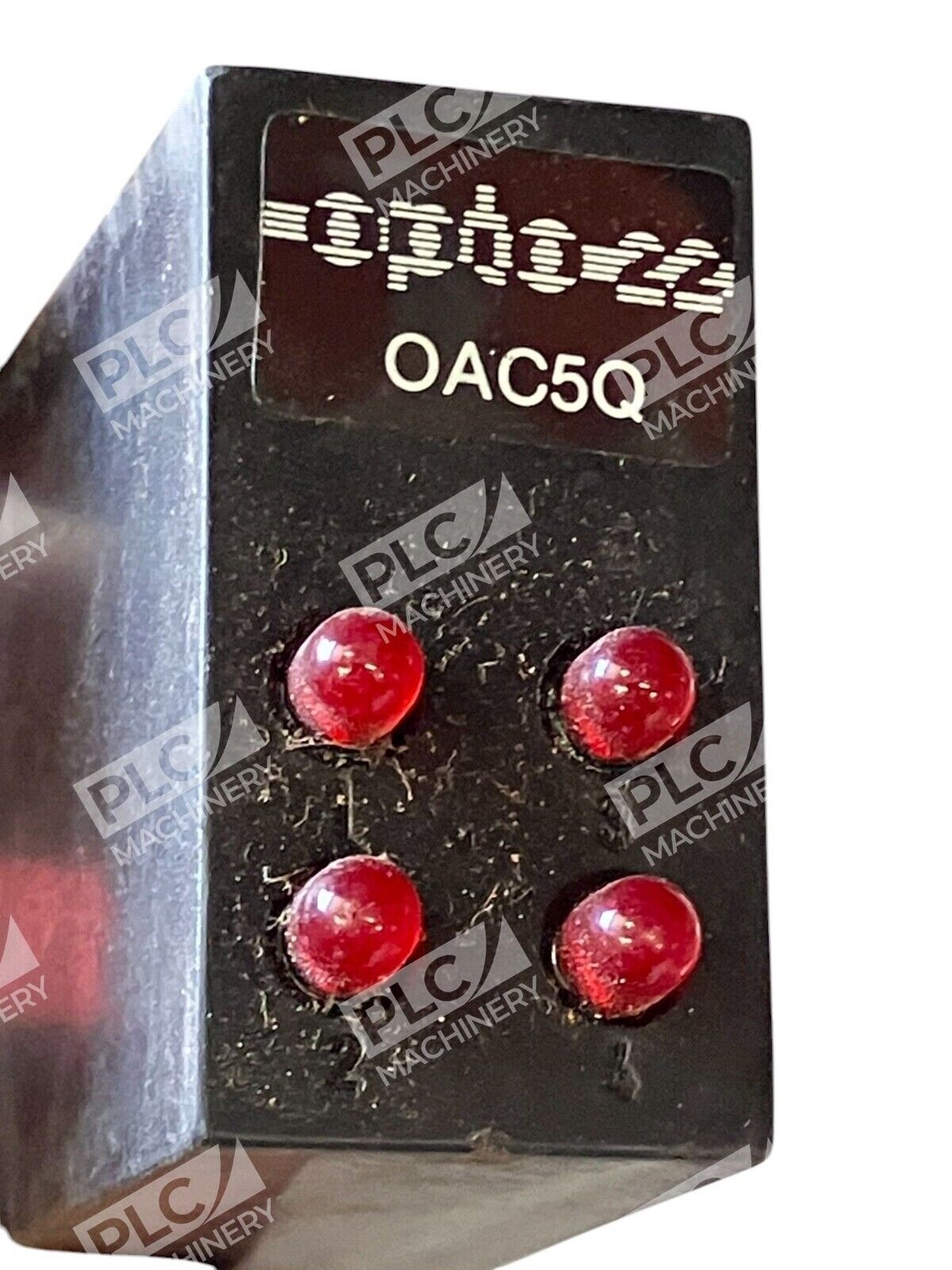

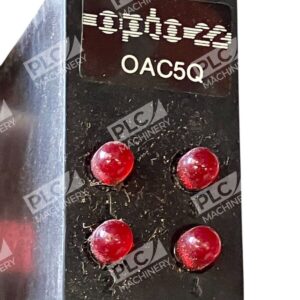

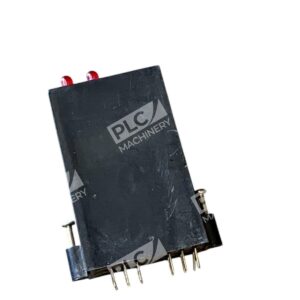

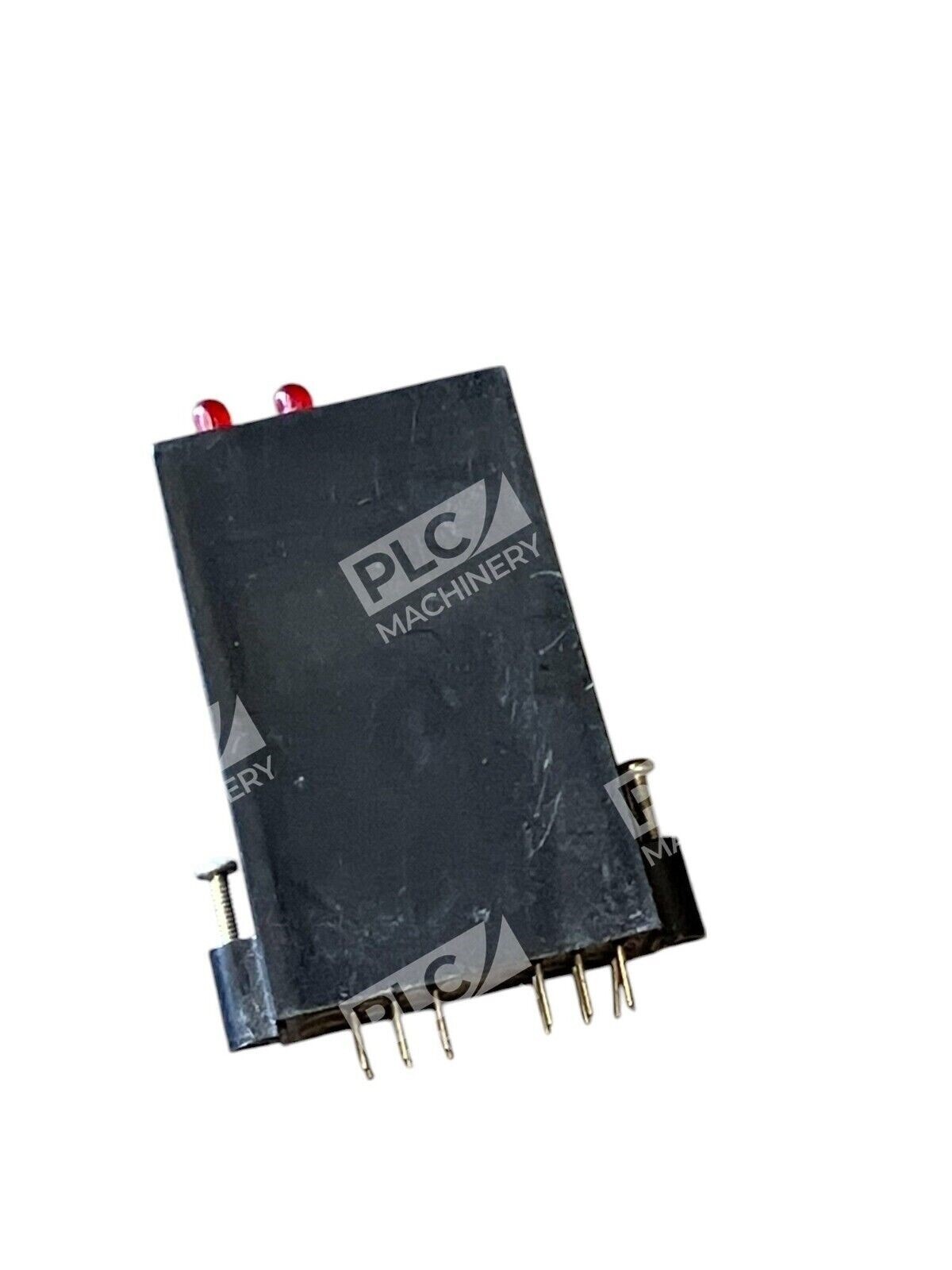

The Opto22 OAC5Q is a 4-channel AC digital output module designed for industrial automation and control applications. This Quad Pak module is engineered to reliably control or switch AC loads ranging from 12 to 280 VAC, making it suitable for a wide variety of industrial equipment and systems. The module operates with a 5 VDC logic level and is housed in a compact Quad Pak format that integrates the equivalent of four single-channel I/O circuits into a single package.
Key Features
- 4-channel AC output capability for controlling loads up to 280 VAC
- Quad Pak design with two independently controllable pairs, each sharing a common connection
- 5 VDC logic level operation for safe, isolated control
- 4000 V (RMS) optical isolation between field devices and control logic
- Mounts directly into Quad Pak I/O mounting racks only (not compatible with single-channel or SNAP racks)
- Compatible with Optomux, Pamux, and Mistic protocol brain boards and mounting racks
Technical Specifications
- Output Voltage Range: 12–280 VAC
- Logic Level: 5 VDC
- Frequency: 60 Hz (standard operation)
- Number of Channels: 4
- Current (Logic Input): 12 mA @ 5 VDC
- Optical Isolation: 4000 V (RMS)
- Configuration: Quad Pak (4 circuits in single package)
- Package Type: Module
Typical Applications
The Opto22 OAC5Q is ideal for industrial automation systems requiring AC output control, including:
- Switching AC loads such as relays, solenoids, and contactors
- Motor starter control and protection circuits
- Heating and HVAC system control
- Indicator lights and signaling lamps
- Industrial motion control and factory automation equipment
- Building automation and lighting control systems
Compatibility & Replacements
Compatible With
- Opto 22 Optomux protocol brain boards and mounting racks
- Opto 22 Pamux protocol systems
- Opto 22 Mistic protocol brain boards
- Quad Pak I/O mounting racks
- Digital I/O Carrier Board (part number OPTO-P1-40P)
- PB16HQ mounting rack
- Raspberry Pi (with appropriate mounting configuration)
- Computer systems with direct cable connection to Quad Pak racks
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering any direct replacement applications.
Works With
- Opto 22 Optomux automation platform
- Opto 22 Pamux control systems
- Opto 22 Mistic protocol devices
- groov EPIC edge controllers (with compatible mounting)
- Quad Pak I/O architecture and protocol
