Overview

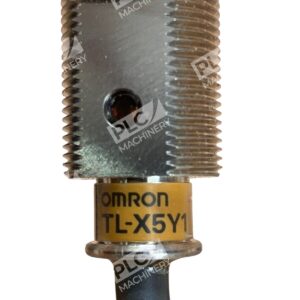

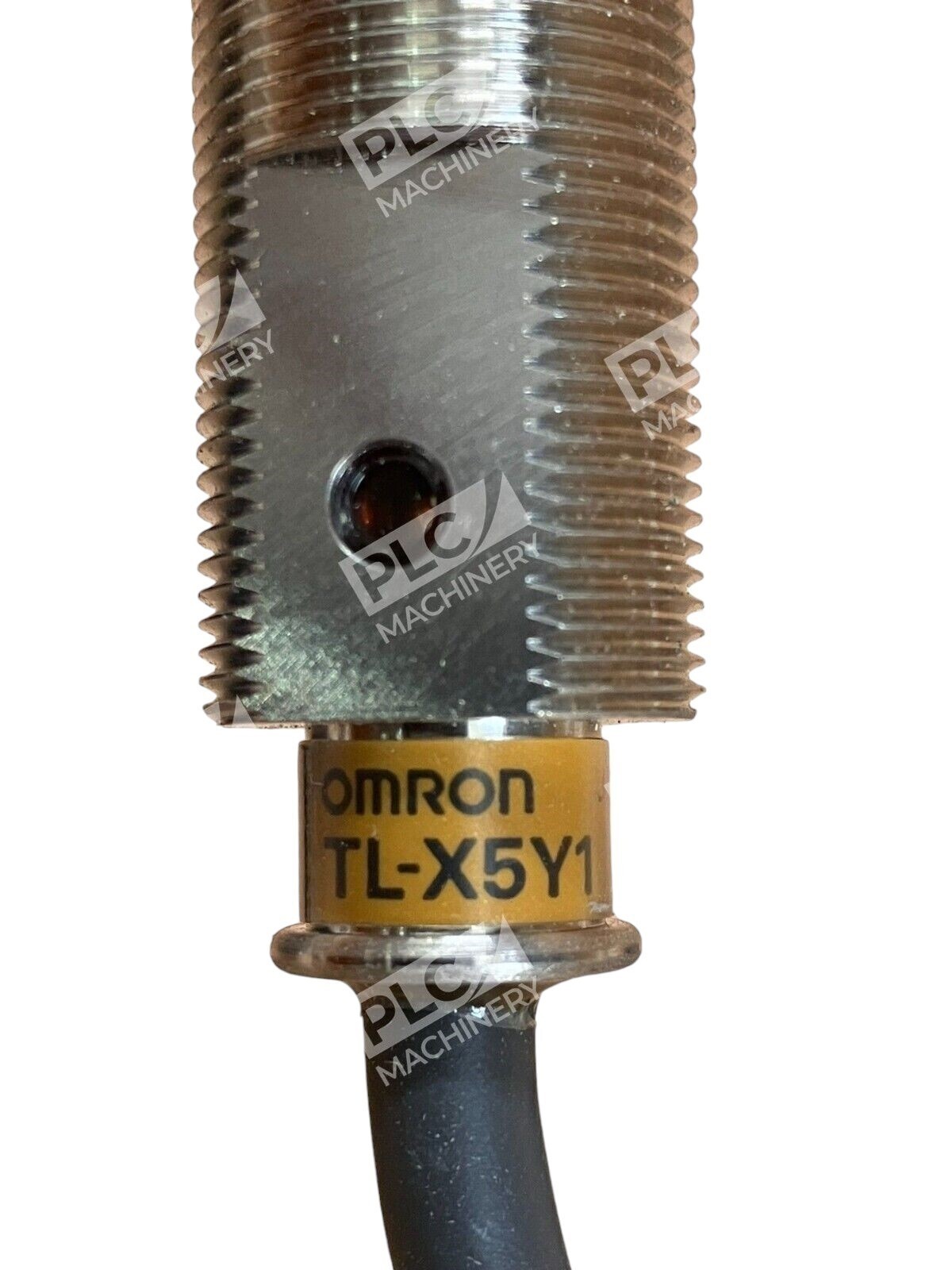

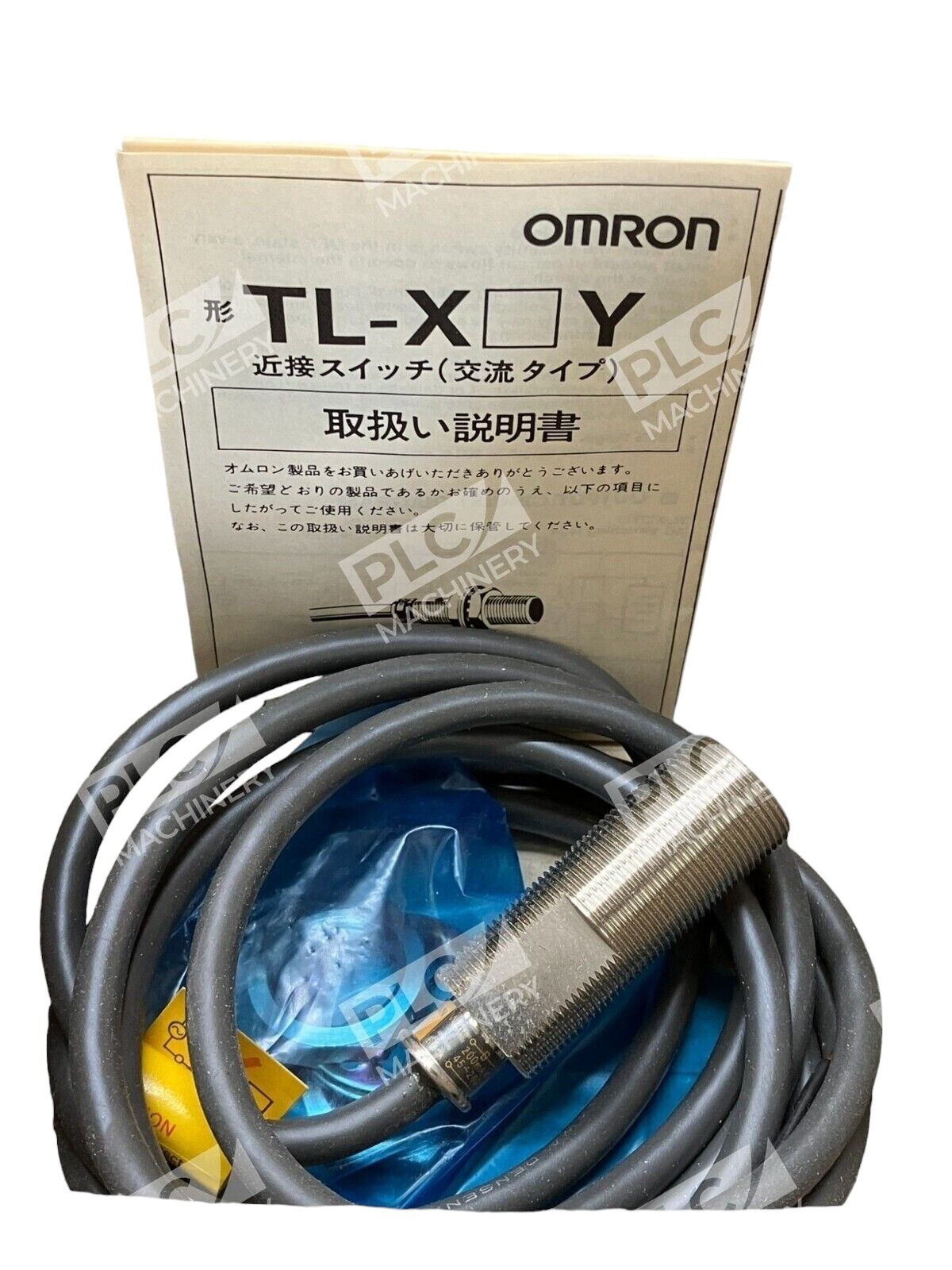

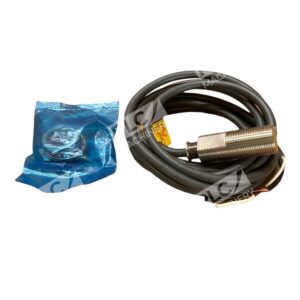

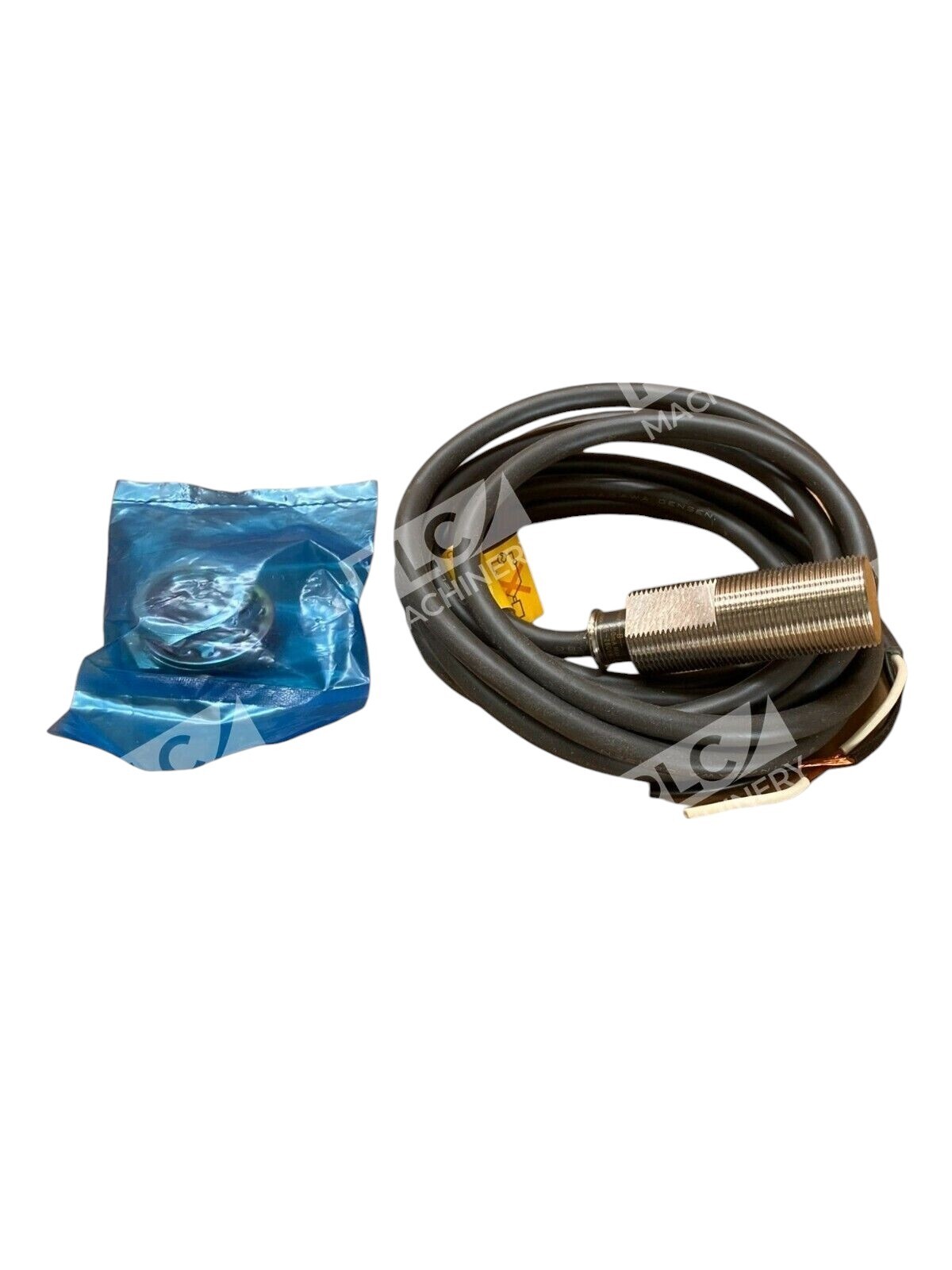

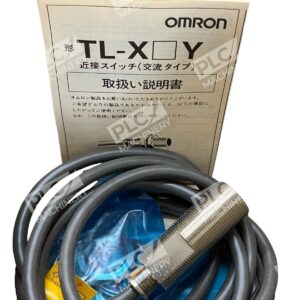

The Omron TL-X5Y1 proximity sensor is a shielded inductive M18 cylindrical sensor designed for reliable object detection in industrial automation, machinery control, and process automation applications. Operating across a wide voltage range of 45–260 VAC, this sensor combines rugged construction with proven performance in demanding environments. The TL-X5Y1 features a 5mm sensing distance, making it suitable for precise positioning and material detection tasks.
Key Features
- Shielded inductive sensor design for mounting in metal environments

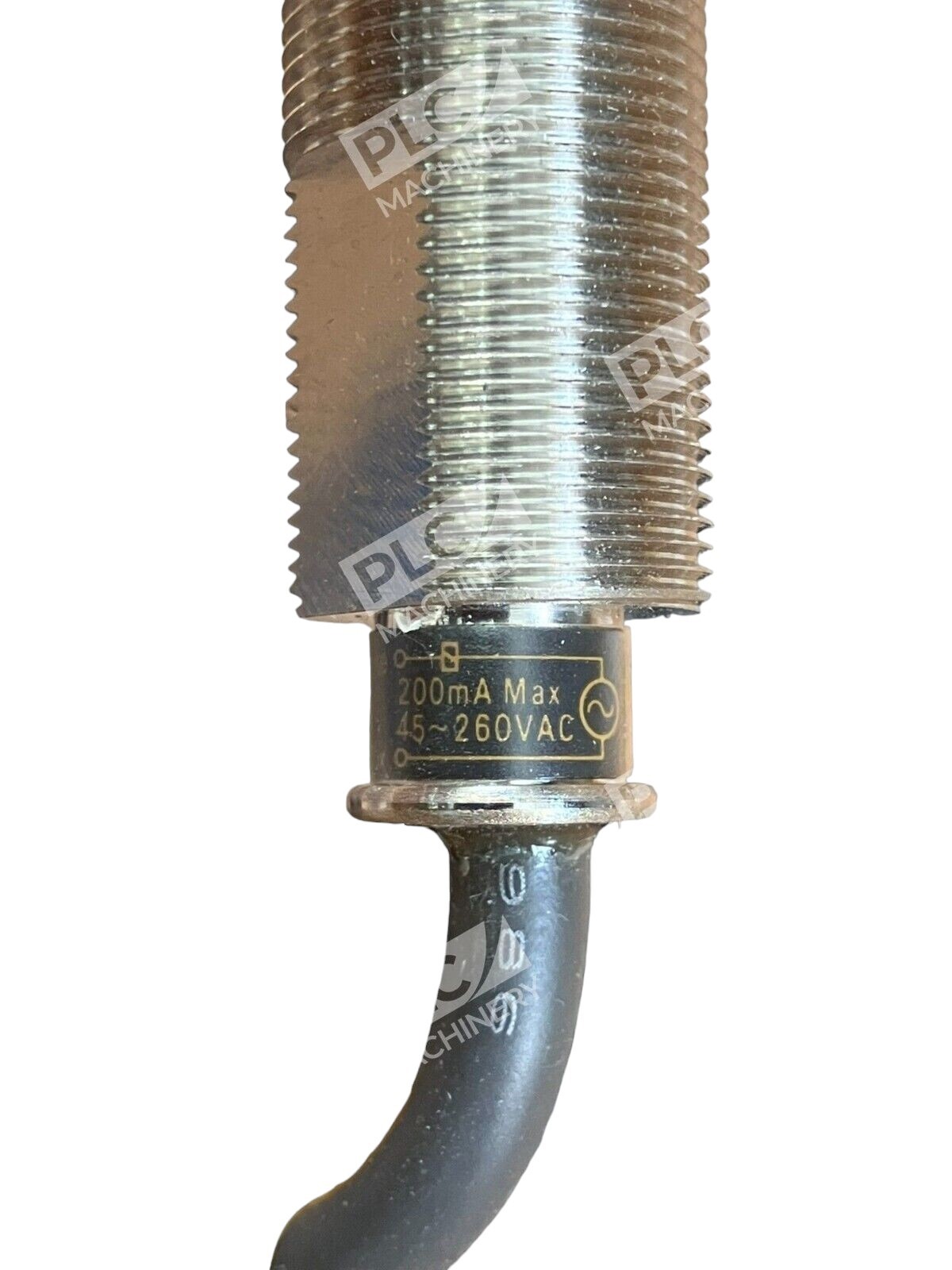

- M18 threaded cylindrical housing with nickel-plated brass body
- 5mm sensing distance with adjustable detection window
- AC 2-wire operation with normally open (NO) output
- Wide supply voltage range: 45–260 VAC (supports 120V, 220V, 240V)
- IP67 protection rating for wet/humid industrial settings
- 25 Hz maximum switching frequency
- Operating temperature range: −40 to +85 °C
- Surge suppressor integrated for electrical noise protection
Technical Specifications
| Specification | Value |
| Part Number | TL-X5Y1 / E2E-X5Y1-US (variant) |
| Sensor Type | Inductive Proximity Switch |
| Housing Style | M18 Threaded Cylindrical (Shielded) |
| Housing Material | Nickel-plated Brass; PBT Polymer Sensing Surface |
| Sensing Distance | 5 mm (0–4 mm adjustable) |
| Supply Voltage (AC) | 45–260 VAC (120/220/240 VAC compatible) |
| Output Current | 200 mA maximum |
| Output Type | Normally Open (NO), AC 2-wire, polarized |
| Switching Frequency | 25 Hz maximum |
| Protection Rating | IP67 (immersion resistant) |
| Operating Temperature | −40 to +85 °C |

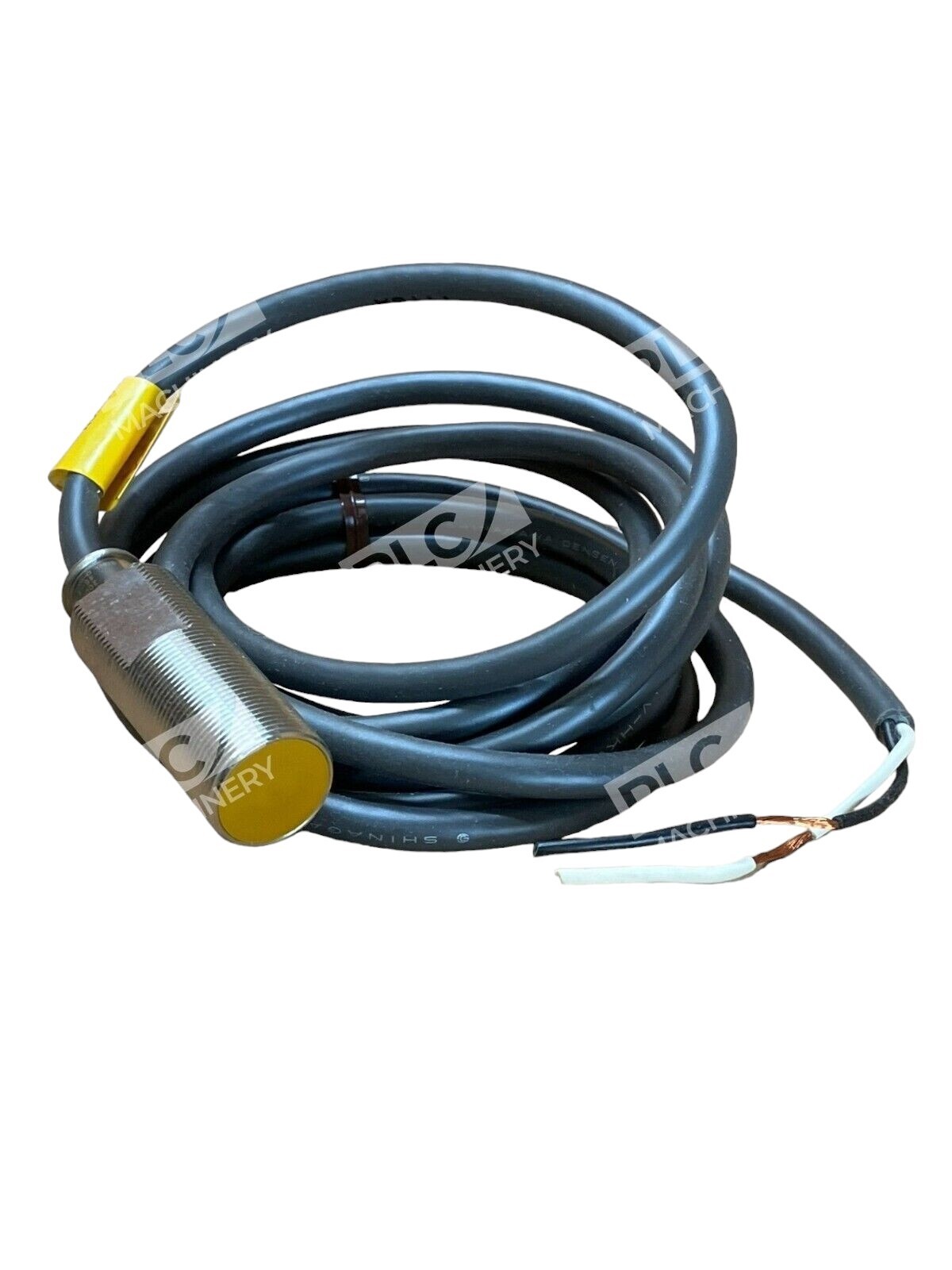

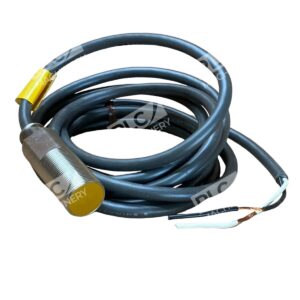

| Cable Option | 2 m pre-wired cable (TL-X5Y1-GL variant) |
| Approvals | UL, CENELEC, IEC certified |
Typical Applications
- Machine Tool Control: Position sensing and tool change detection on CNC machines, mills, and lathes
- Conveyor Systems: Package detection, positioning, and sorting on automated conveyors
- Assembly Automation: Part presence verification and alignment on robotic assembly lines
- Packing & Material Handling: Box and pallet detection for palletizers and packaging equipment
- Process Automation: Level detection, door/gate position sensing, and actuator feedback
- Food & Beverage: Container detection and filling-line control (IP67 rated for washdown environments)
Compatibility & Replacements
Compatible With
- Allen-Bradley PLC and industrial controllers (via discrete input modules)
- Siemens S7-1200, S7-1500, and legacy S7-300/400 systems
- Mitsubishi FX and Q-series PLCs
- Omron CP/CJ/NX series controllers
- Standard 24–240 VAC industrial control circuits
- Any PLC with dry-contact input capability
Replaces / Drop-In Replacement For
- Omron E2E-X5Y1 series (same physical and electrical characteristics)
- Omron TL-X5Y1-GL (pre-wired variant with 2 m cable)
- Omron TL-X5Y1-M4L (24–240 VAC variant)
- Omron TL-X5Y1-52 (120 VAC fixed-voltage variant)
- Generic M18 inductive proximity sensors rated 5 mm range and AC 2-wire output
Works With
- Studio 5000 / Allen-Bradley legacy systems (discrete I/O programming)
- TIA Portal (Siemens) — basic digital input modules
- Mitsubishi GX Works software — standard input modules
- Omron Sysmac Studio — native compatibility
- EtherNet/IP, PROFINET, CC-Link networks (via gateway or I/O module)
- Hardwired 120/220/240 VAC control circuits (no special communication required)
