Overview

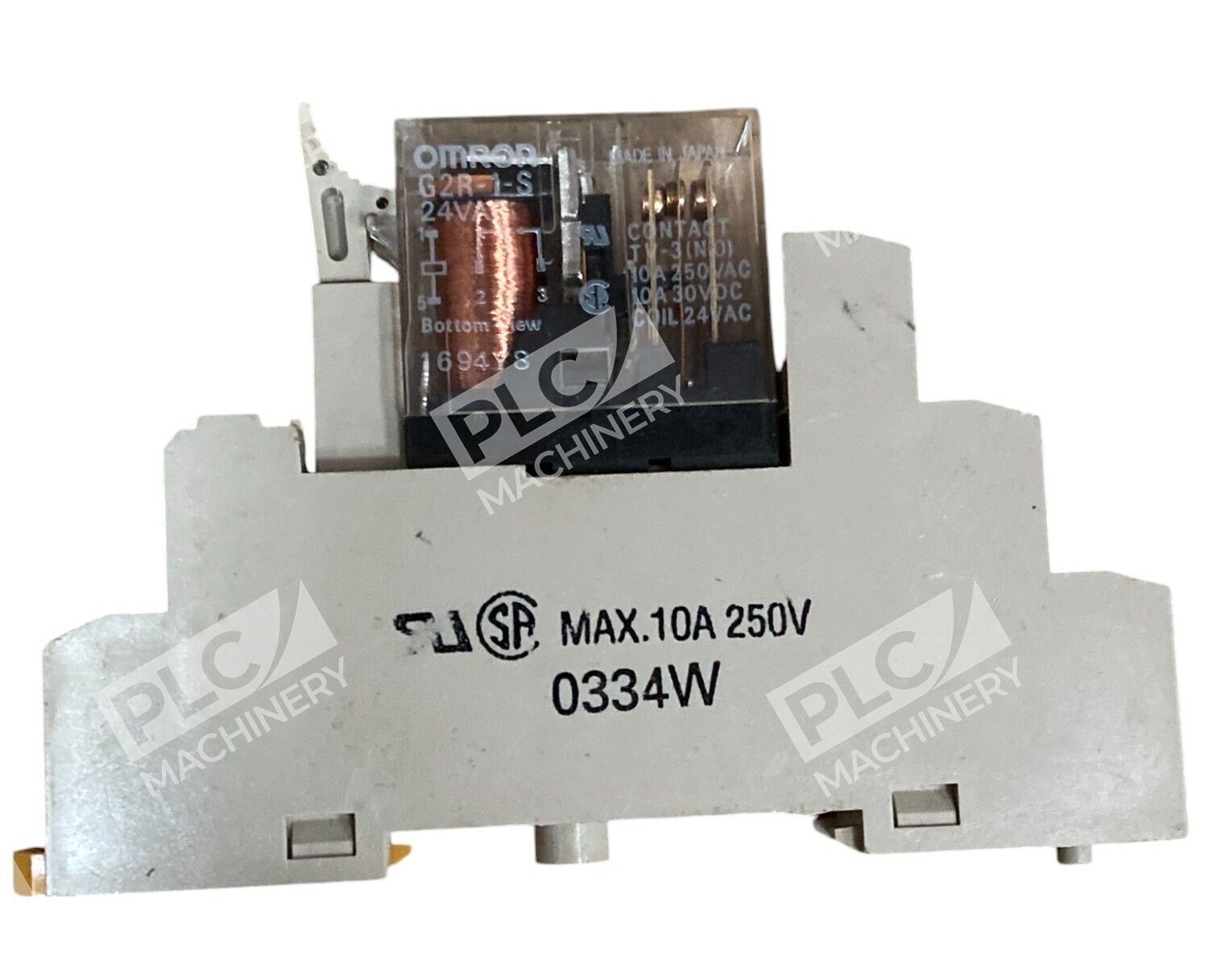

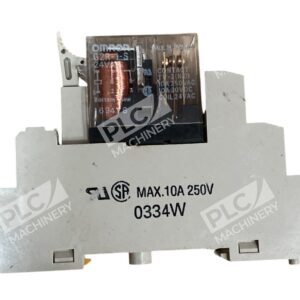

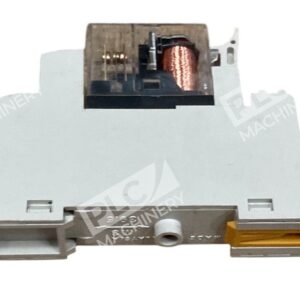

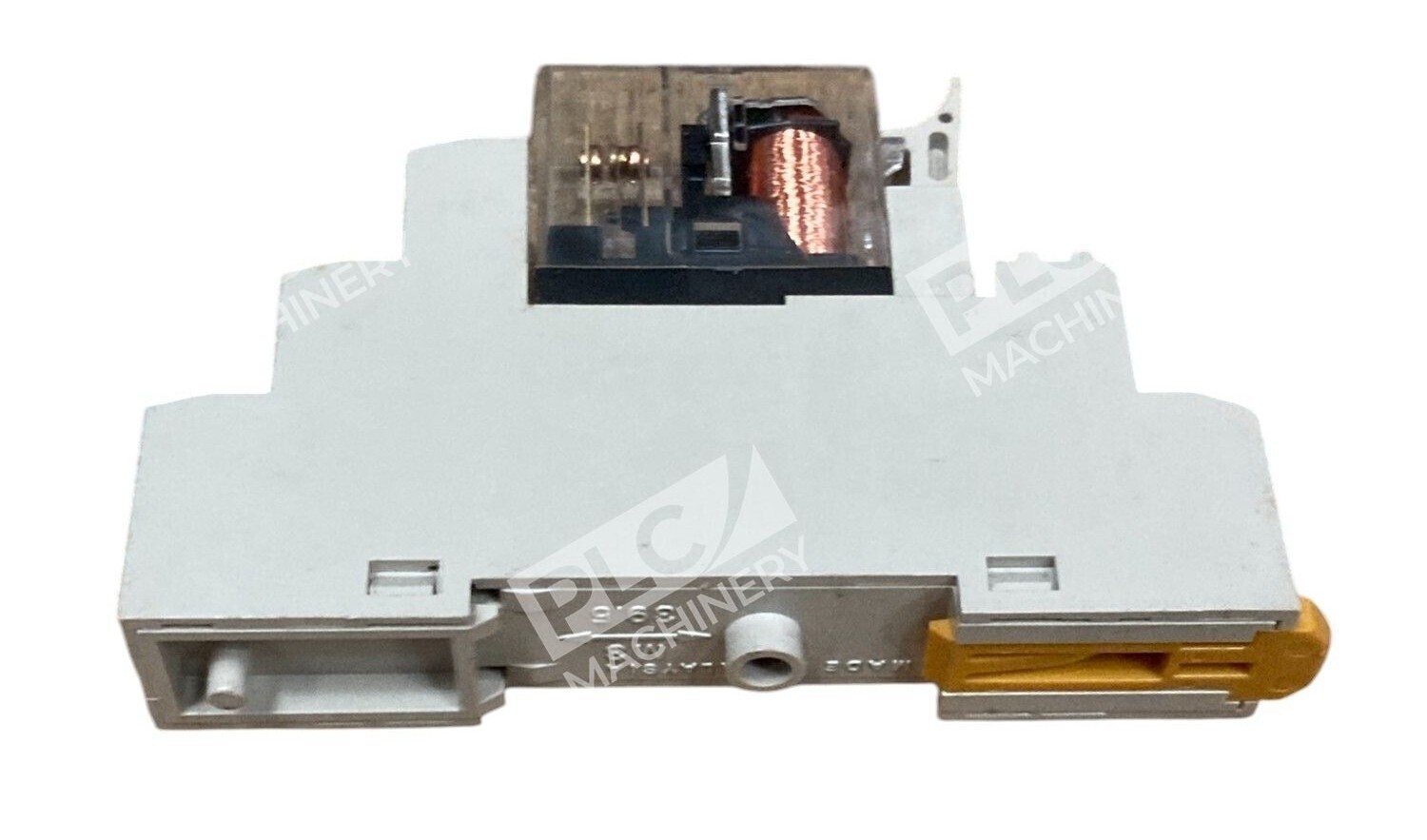

The Omron G2R-1-S relay is a space-saving, general-purpose plug-in relay with single-pole double-throw (SPDT) contact configuration. This slim relay reduces wiring work when combined with the P2RF socket, making it ideal for fast installation and replacement in industrial automation and machinery control panels. The relay carries CE Marking certification for European industrial compliance and supports multiple AC and DC coil voltage options.
Key Features
- SPDT Contact Form: Single-pole double-throw switching for versatile on/off and changeover control
- Plug-in Socket Design: Mounts directly into compatible P2RF-@-E, P2RF-@-S and P2RF-@-PU socket bases—no rewiring required for replacement
- Slim Profile: Space-efficient construction fits compact control panel layouts
- Wide Coil Voltage Range: AC 24, 48, 110, 120, 230, 240 V or DC 6, 12, 24, 48 V options
- AgCdO Contact Material: Silver-cadmium oxide contacts deliver reliable electrical performance in general-purpose switching
- CE Marked: Certified for European industrial equipment standards
Technical Specifications
- Contact Rating: 10 A at 250 VAC
- Contact Form: SPDT (1 pole, 2 throw)
- Contact Material: AgCdO (Silver Cadmium Oxide)
- Relay Type: General-purpose, non-latching
- Mounting Style: Socket-based (requires compatible P2RF socket)
- Coil Voltage—AC: 24, 48, 110, 120, 230, 240 V
- Coil Voltage—DC: 6, 12, 24, 48 V
- Series: Omron G2R general-purpose relay
- Certifications: CE Marked
Typical Applications
- Industrial machinery control and automation circuits
- HVAC system switching and sequencing
- Motor control circuits (contactors and auxiliary circuits)
- Lighting and power distribution panel switching
- Equipment protection and alarm circuits
- Building management and control systems
Compatibility & Replacements
Compatible With
- Omron P2RF-05-E, P2RF-05-S, and P2RF-05-PU socket bases
- Standard industrial DIN rail mounting systems
- AC and DC control circuits rated for SPDT switching
- Omron slim relay architecture and panel designs
Replaces / Drop-In Replacement For
- Direct replacement for other Omron G2R-1-S units with matching coil voltage
- Compatible with legacy G2RS relay designs that use standard Omron sockets
- Important: Verify coil voltage specification (AC or DC) before ordering to ensure correct replacement
Works With
- Omron P2RF socket series (P2RF-05-E, P2RF-05-S, P2RF-05-PU)
- Omron DIN rail mounting systems and track solutions
- Standard hardwired relay logic circuits (no software programming required)
- Industrial automation control panels with socket-based relay architecture
