Overview

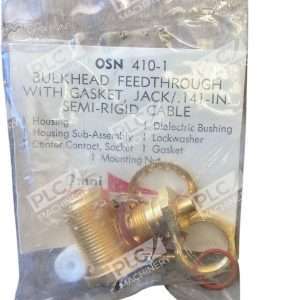

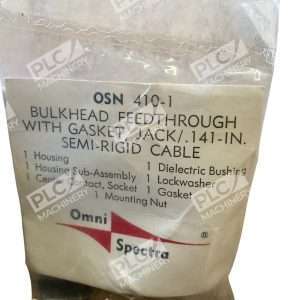

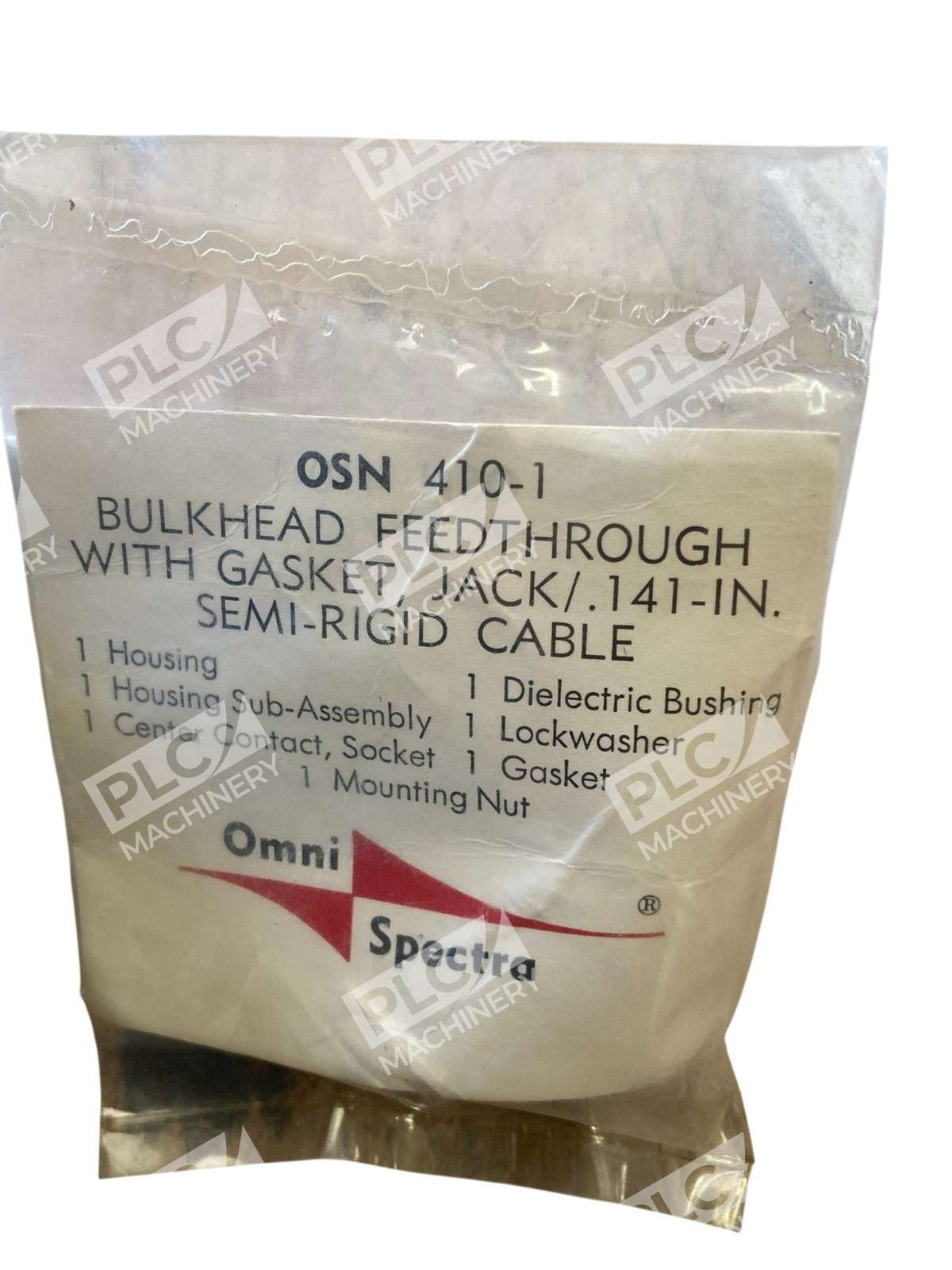

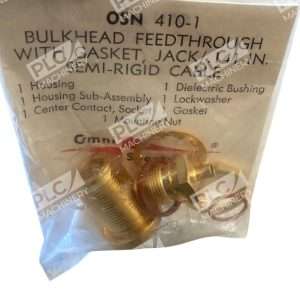

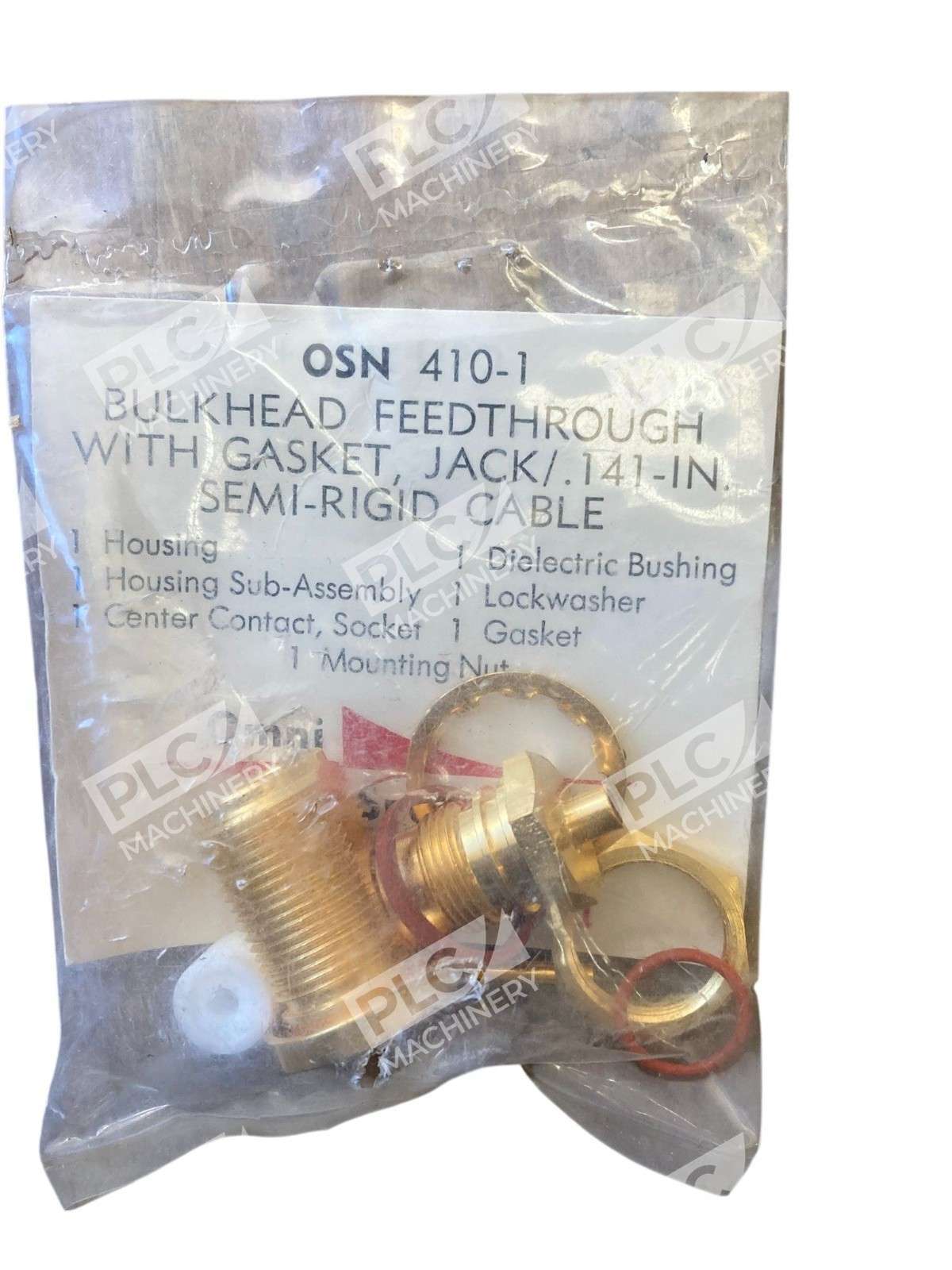

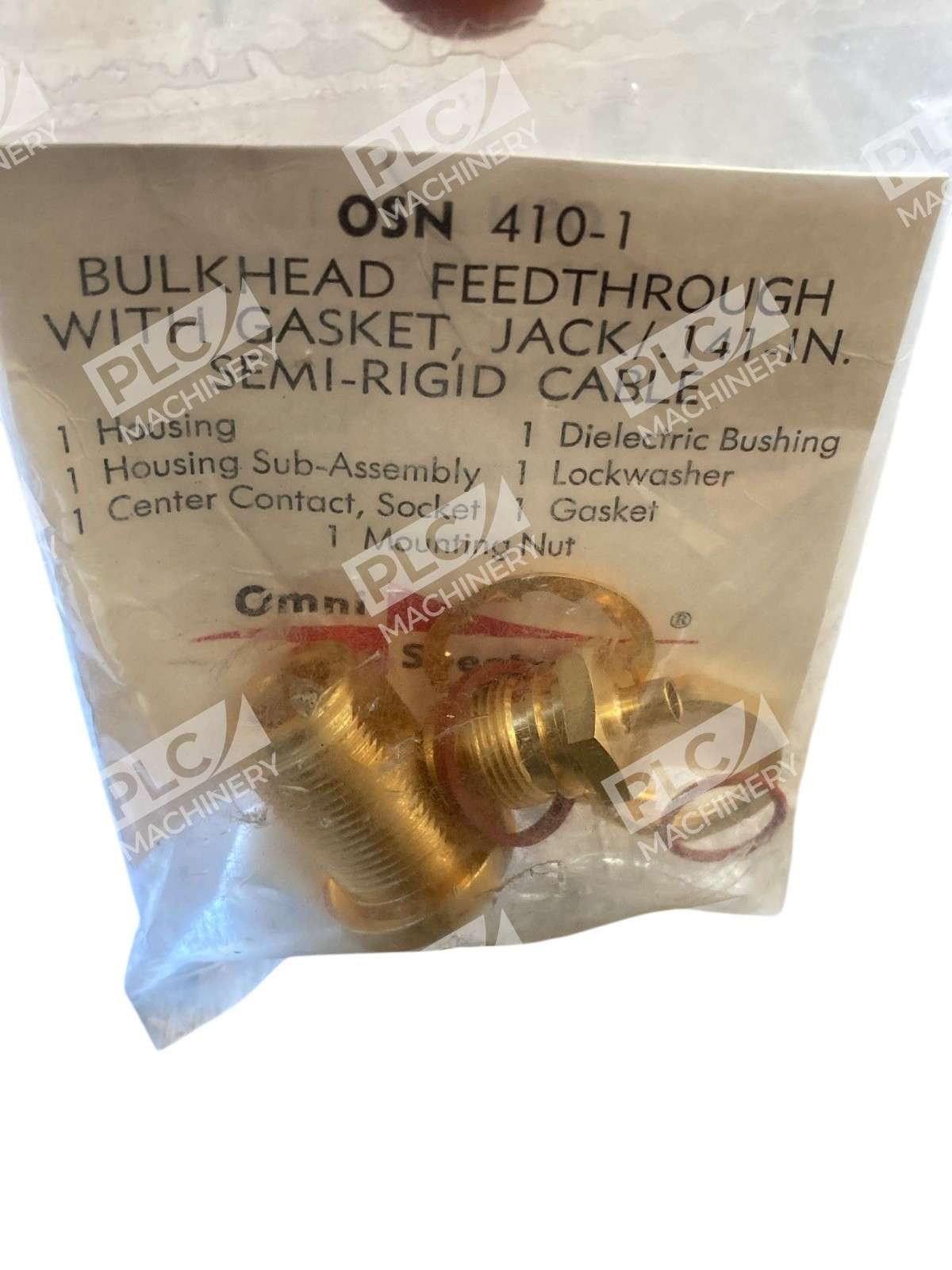

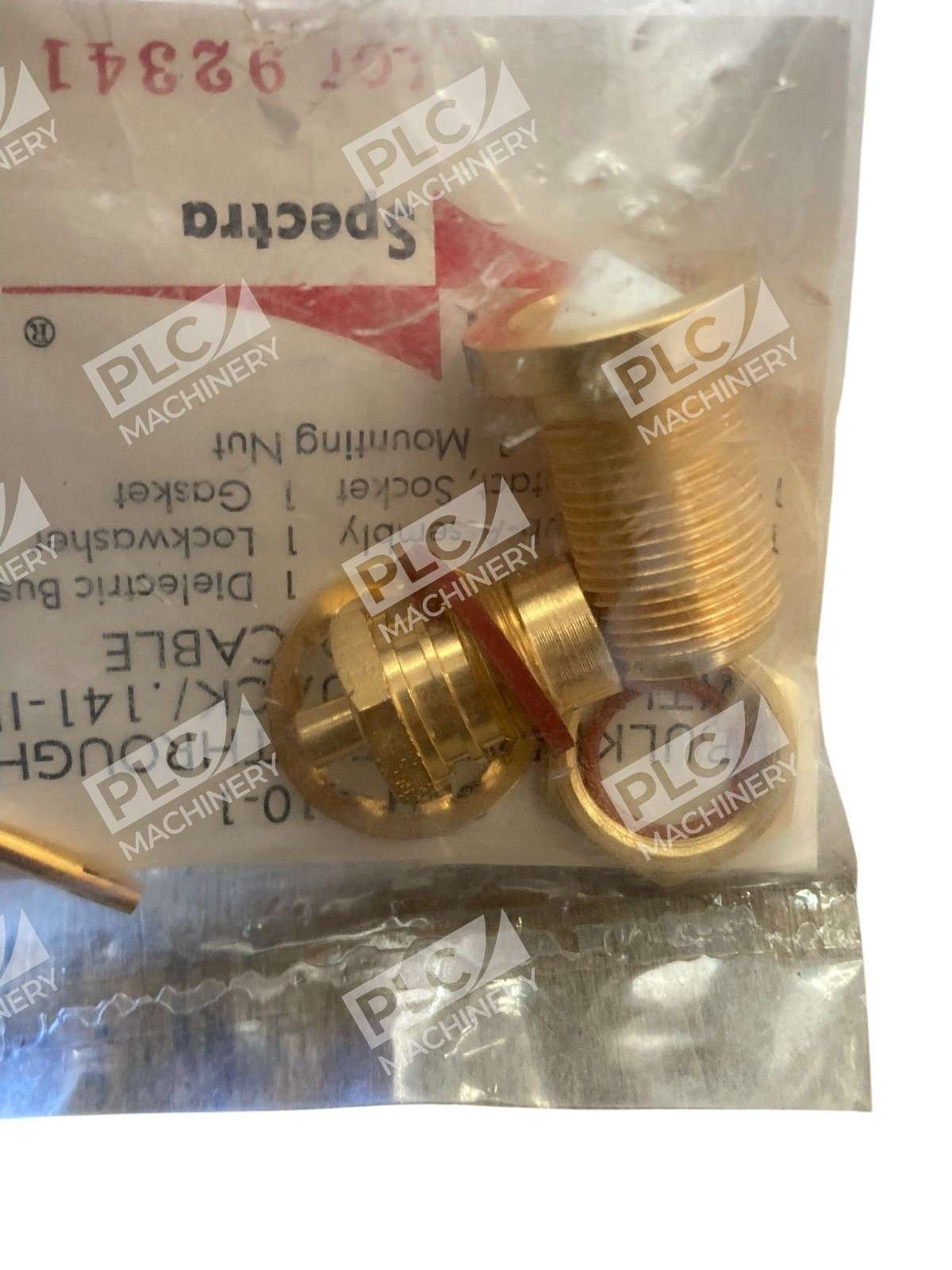

The Omni Spectra OSN 410-1 is a bulkhead feedthrough jack connector engineered for .141″ semi-rigid RF cable applications. This connector features a panel-mount (bulkhead) design that allows flush installation through equipment enclosures, with direct solder attachment to the cable center and outer conductors. Omni Spectra RF connectors are designed to deliver reliable high-frequency signal integrity in demanding industrial and telecommunications applications.
Key Features
- Bulkhead feedthrough design for panel-mount installation
- Compatible with .141 inch semi-rigid RF cable
- Direct solder attachment to center and outer conductors
- Compact form factor for space-constrained applications
- Industrial-grade construction for reliable RF transmission
Technical Specifications
The OSN 410-1 is part of the Omni Spectra OSN connector family, which includes similar models offering high-frequency RF connectivity. Related OSN series models (such as OSN 402-1) are rated for frequencies up to 18 GHz, though specific frequency rating for the OSN 410-1 should be verified with the manufacturer or detailed product documentation. The .141″ semi-rigid cable specification ensures compatibility with standard aerospace and telecommunications RF cable standards.
Typical Applications
- Telecommunications equipment and RF systems
- Aerospace and defense RF assemblies
- Test and measurement instrumentation
- Microwave and high-frequency signal distribution
- Panel-mount RF connector installations
Compatibility & Replacements
Compatible With
- .141 inch semi-rigid RF cable
- Panel enclosure thickness up to standard specifications
- Direct solder attachment to 50 Ohm RF systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment documentation before ordering, as RF connector replacement requires impedance matching and frequency rating confirmation.
Works With
- Omni Spectra OSN series RF connectors and adapters
- Standard .141″ semi-rigid cable assemblies
- RF systems and instruments requiring 50 Ohm coaxial connectivity
- Panel-mount RF applications in industrial and aerospace environments
