Overview

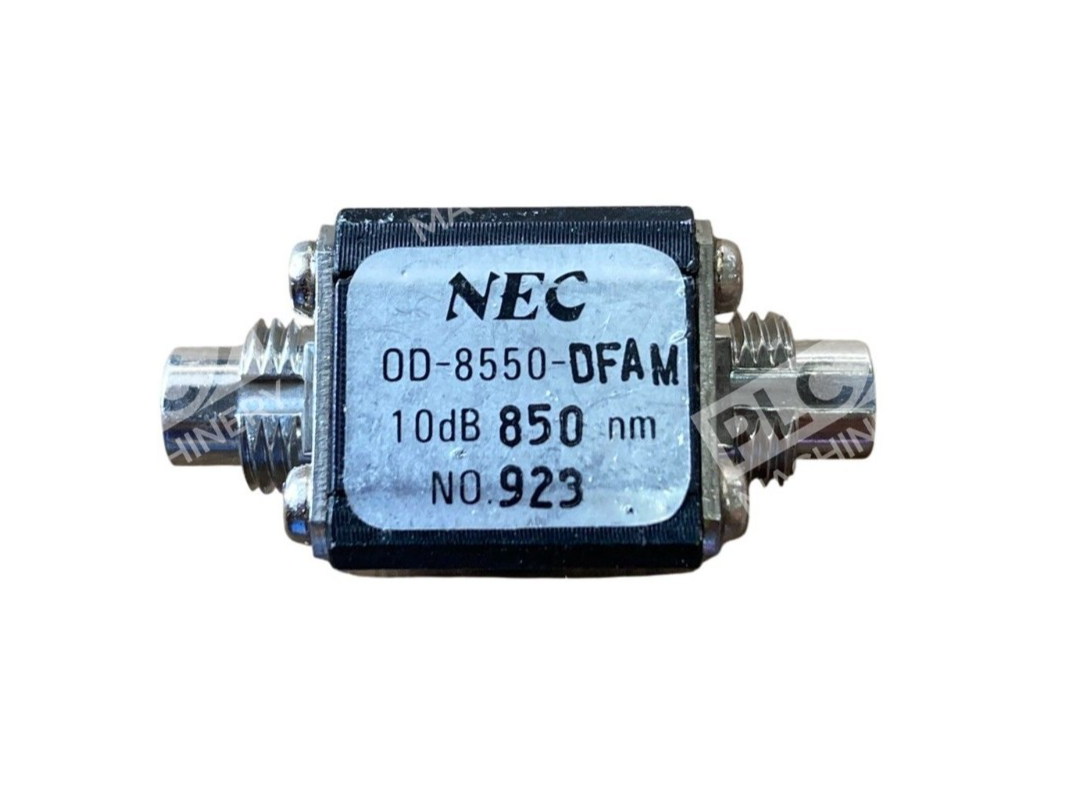

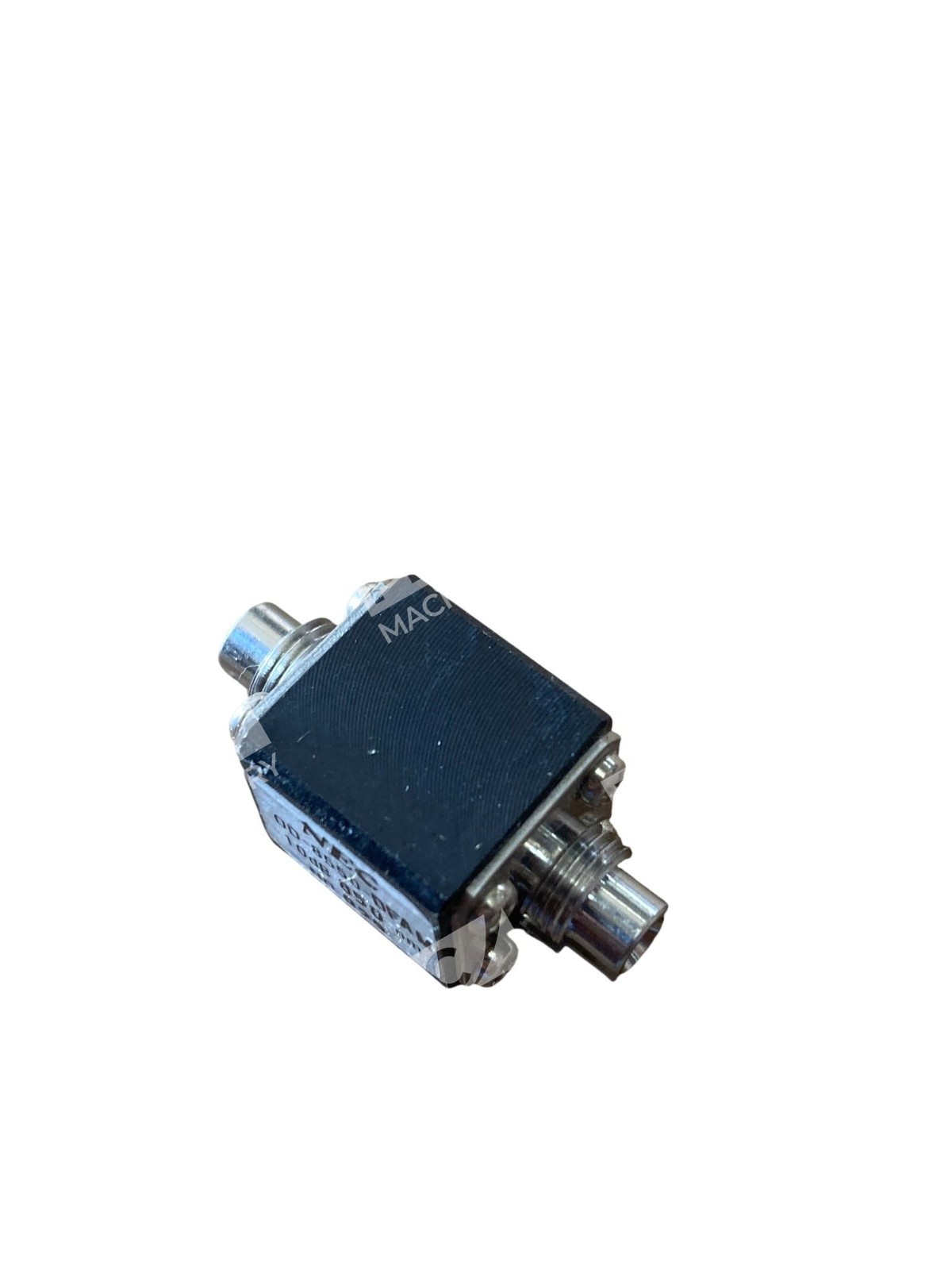

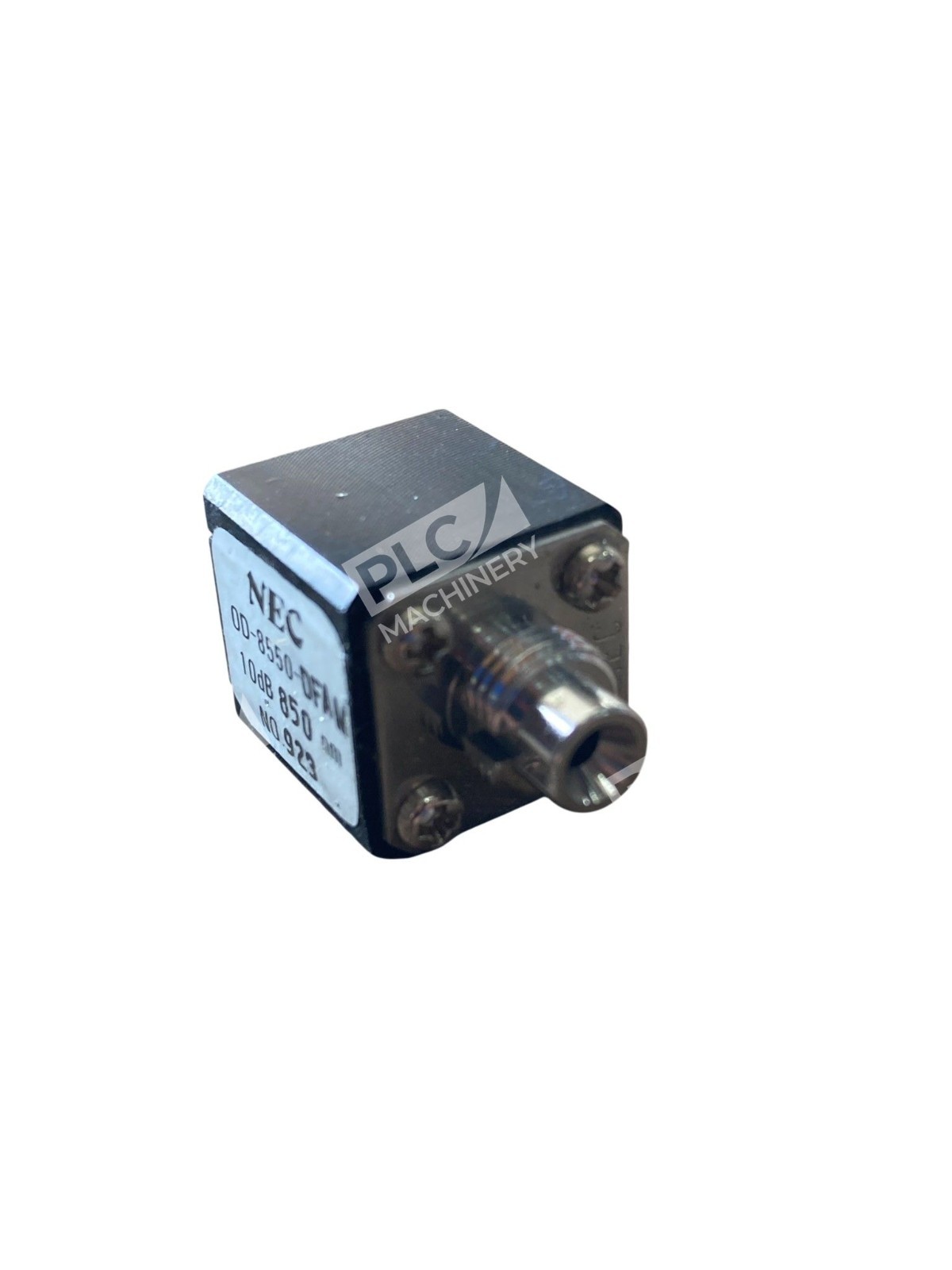

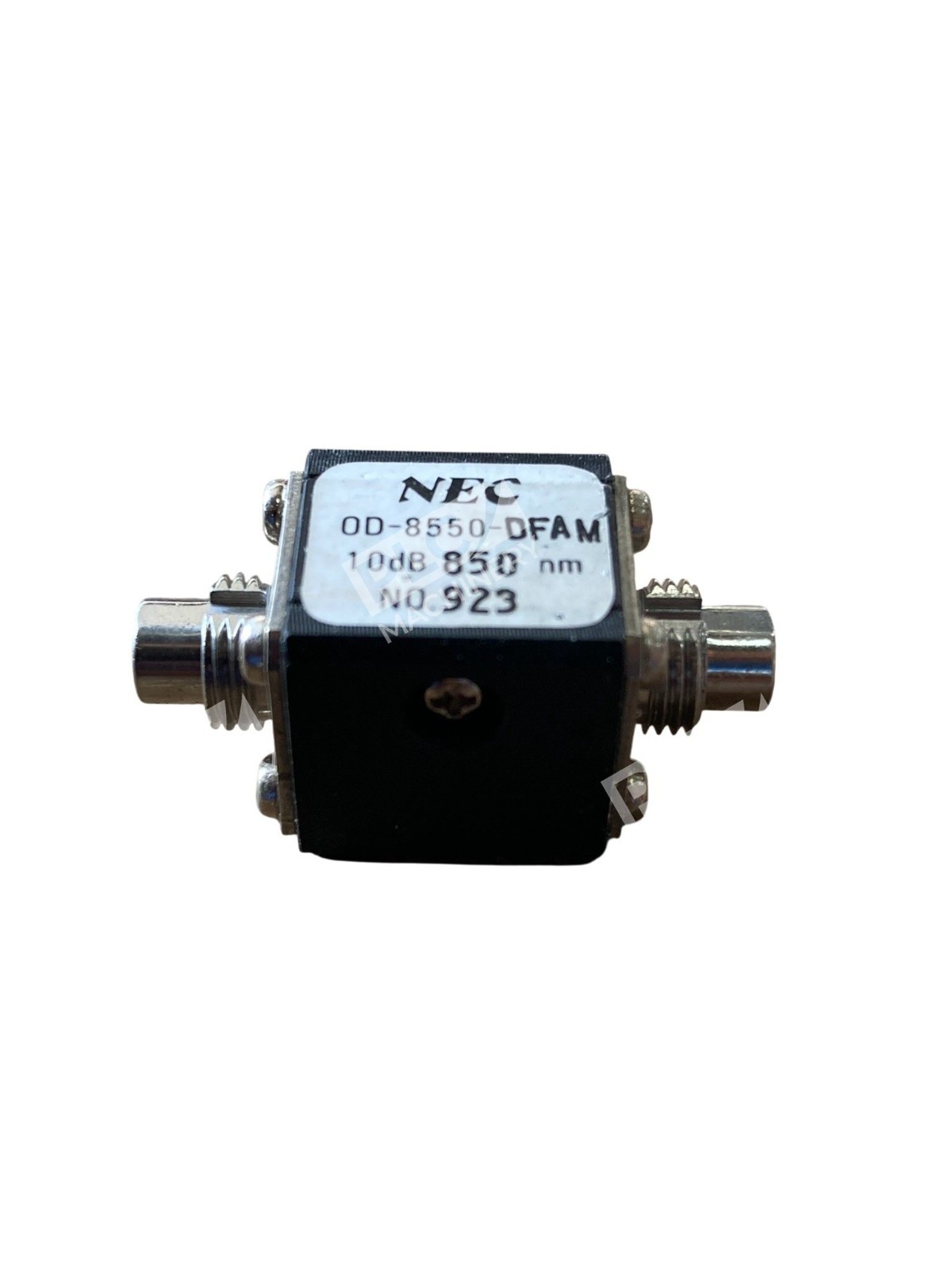

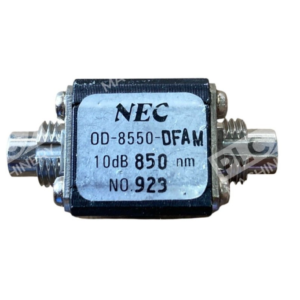

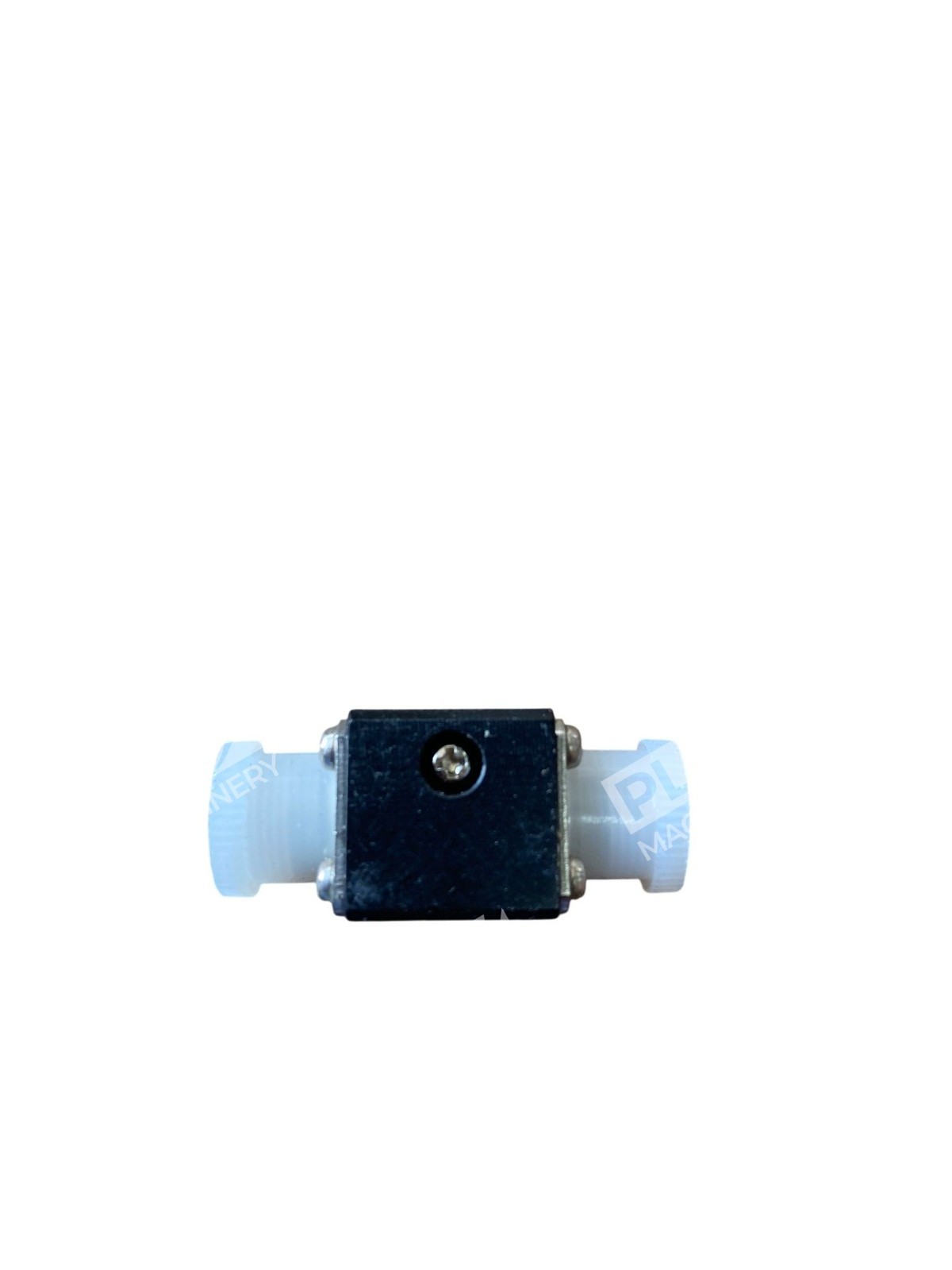

The NEC OD-8550-DFAM is a fixed fiber optic attenuator engineered for precision signal management in 850nm optical networks. This compact, in-line attenuator features an integrated 10dB attenuation value that reduces optical signal power in a controlled, repeatable manner. With dual LC connectors, the OD-8550-DFAM integrates seamlessly into existing multimode fiber installations, making it ideal for laboratory testing, system calibration, and production network environments where signal levels must be optimized for receiver sensitivity and dynamic range.
Key Features
- Fixed 10dB attenuation for stable, repeatable signal control
- 850nm wavelength operation for multimode fiber networks
- Dual LC connectors for secure, low-loss mating
- In-line plug attenuator design for easy installation
- Compact form factor suitable for rack, panel, or field deployment
- Prevents receiver saturation and signal distortion in high-power applications
Technical Specifications
- Attenuation Value: 10 dB
- Wavelength: 850 nm
- Connector Type: LC/PC (both ends)
- Fiber Type: Multimode
- Operating Temperature: 0°C to 50°C (typical)
- Storage Temperature: -20°C to 70°C (typical)
- Form Factor: In-line fixed attenuator
- Insertion Loss: ≤ 1.0 dB (typical)
Typical Applications
- Optical power management in LAN and WAN environments
- Receiver sensitivity optimization and overload protection
- Signal level calibration during network testing and commissioning
- Data center and campus network installations
- Lab equipment and measurement system integration
- Fiber-to-the-desk (FTTD) installations
Compatibility & Replacements
Compatible With
- Multimode fiber optic networks operating at 850nm
- Standard LC-to-LC fiber patch cables and jumpers
- Gigabit Ethernet (1000BASE-SX) over multimode fiber
- Fast Ethernet (100BASE-FX) optical systems
- High-speed data transmission equipment with LC connectors
- Optical network test and measurement equipment
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The NEC OD-8550-DFAM is designed as a direct replacement for equivalent 10dB 850nm LC connector attenuators in multimode fiber installations. Confirm mechanical fit and optical specifications with existing equipment before installation.
Works With
- LC/PC connector-based optical systems
- Multimode fiber (MMF) patch panels and cross-connect systems
- Optical network analyzers and power meters
- Gigabit Ethernet physical layer transceivers (SFP, GBIC)
- Fiber-based audio and video signal distribution
- Industrial and commercial optical network deployments
