Overview

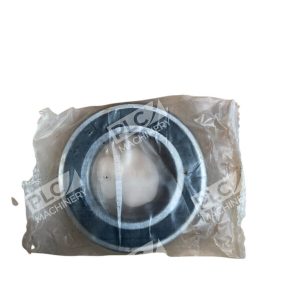

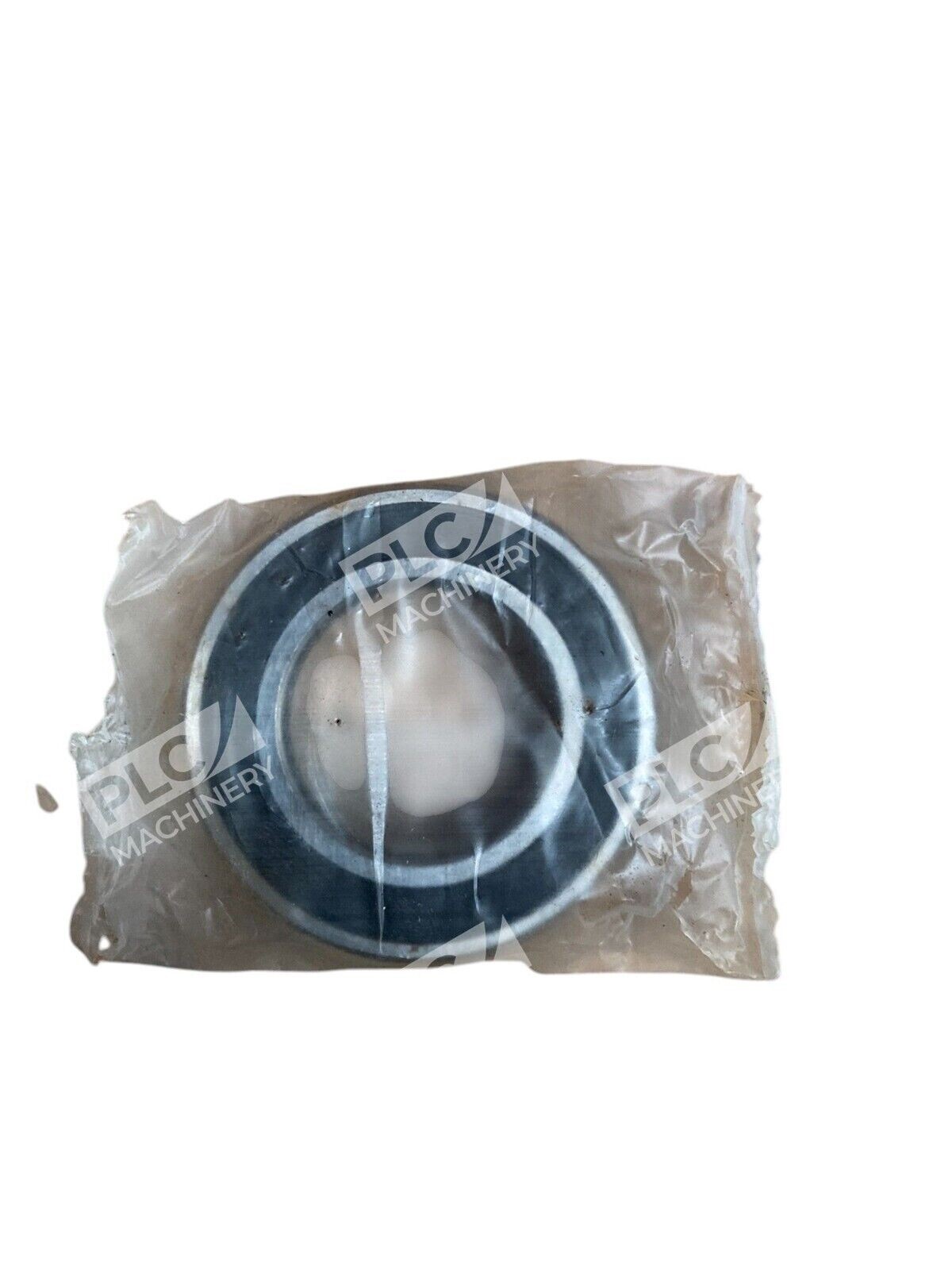

The NTN 6006LLBC3/L627 is a single-row deep groove radial ball bearing engineered for precision motion control and power transmission in industrial machinery. This sealed bearing combines reliable performance with low-maintenance operation, making it ideal for motors, pumps, fans, and general industrial equipment operating at moderate speeds.
Key Features
- Double sealed design with non-contact rubber seals for extended grease retention
- Pressed steel cage for durability and consistent ball spacing
- High-carbon chrome steel construction for corrosion resistance
- Factory-fresh, new in box condition
- Low noise operation suitable for precision applications
- Wide operating temperature range accommodates diverse environments
Technical Specifications
The NTN 6006LLBC3/L627 meets industry standards for dimensional accuracy and load capacity. Dimensions are 30mm bore diameter × 55mm outside diameter × 13mm width. Dynamic load capacity is 2,970 lb (13.2 kN), while static load capacity is 1,860 lb (8.3 kN). The bearing operates from -20°F to 250°F (-29°C to 121°C), making it suitable for both ambient and slightly elevated temperature environments.
Typical Applications
- Electric motors and fractional horsepower motors
- Industrial pumps and centrifugal equipment
- HVAC and ventilation fans
- Conveyors and material handling systems
- Small gearboxes and speed reducers
- Machine tool spindle supports and auxiliary drives
Compatibility & Replacements
Compatible With
- Standard 30mm shaft and housing bore applications
- General-purpose electric motors (fractional to low HP)
- ISO 6000 series mounting dimensions
- Standard grease lubrication systems
Replaces / Drop-In Replacement For
- NTN 6006LLBC3/EM (identical bearing with different seal designation)
- NTN 6006 series variants with sealed configurations
Works With
- Lithium and polyurea grease types (typical industry standards)
- Shaft and housing tolerances per ISO 286
- Equipment designed for 30mm radial ball bearings in the 6000 series family
