<h2>Overview</h2>

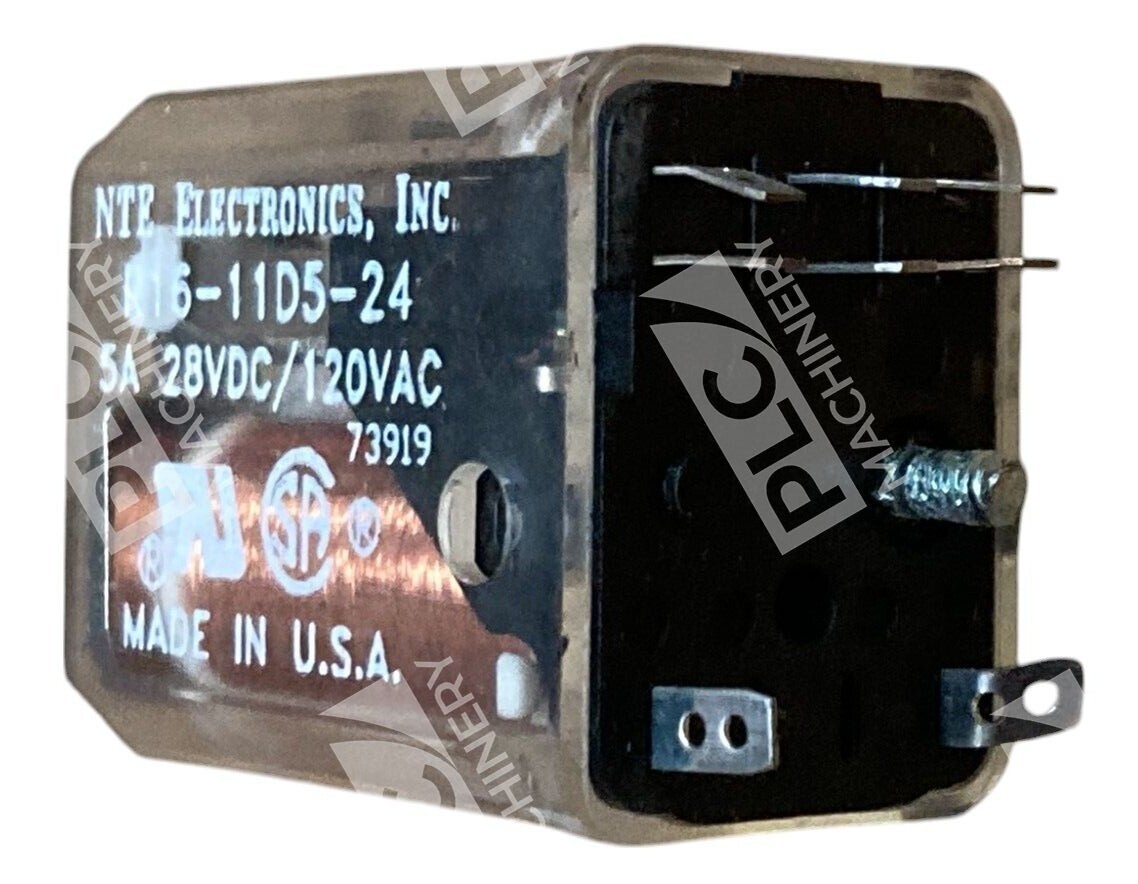

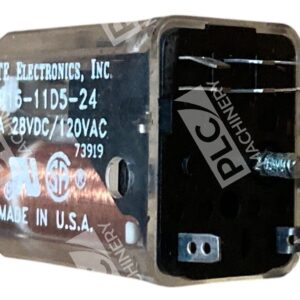

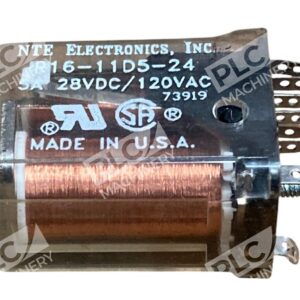

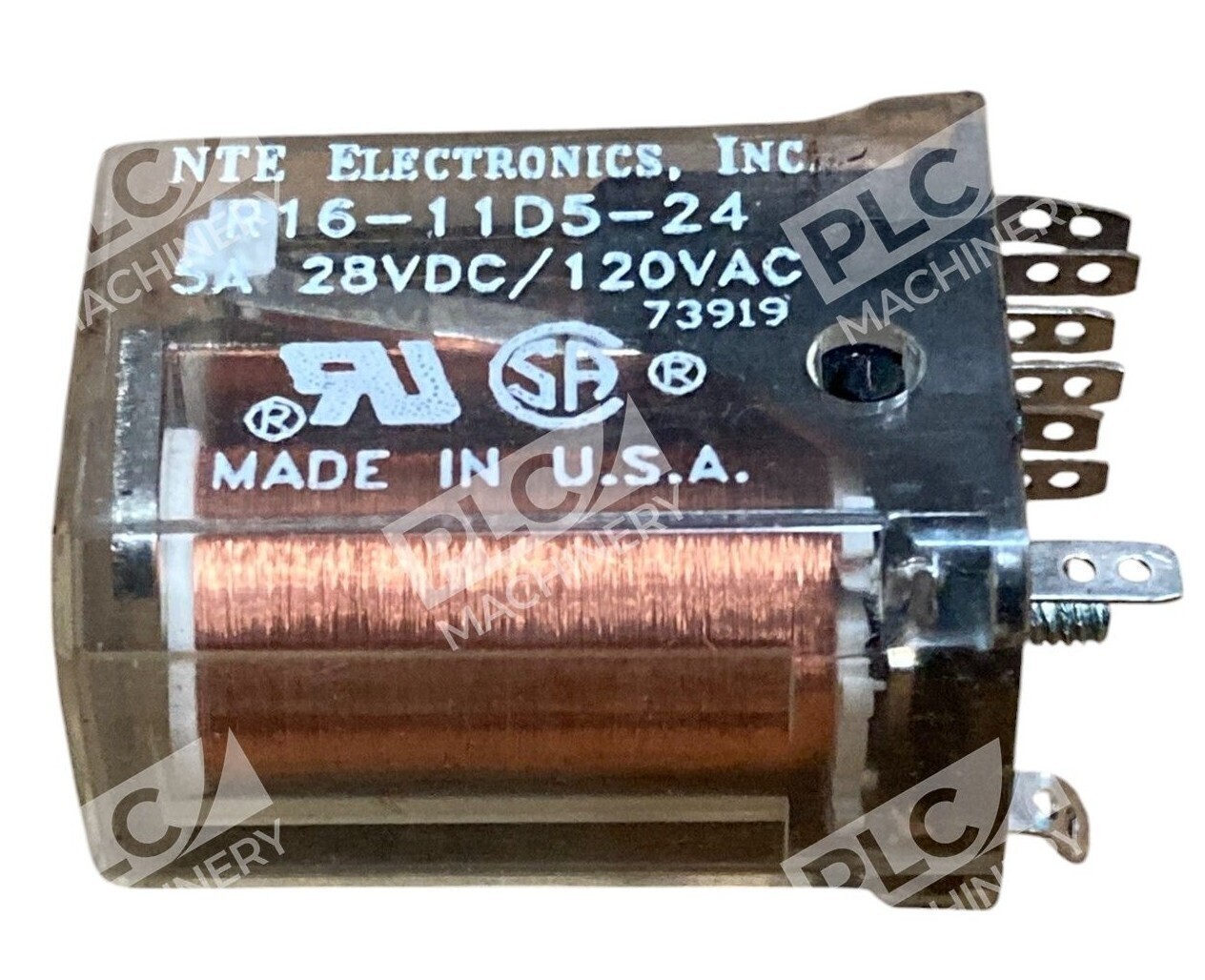

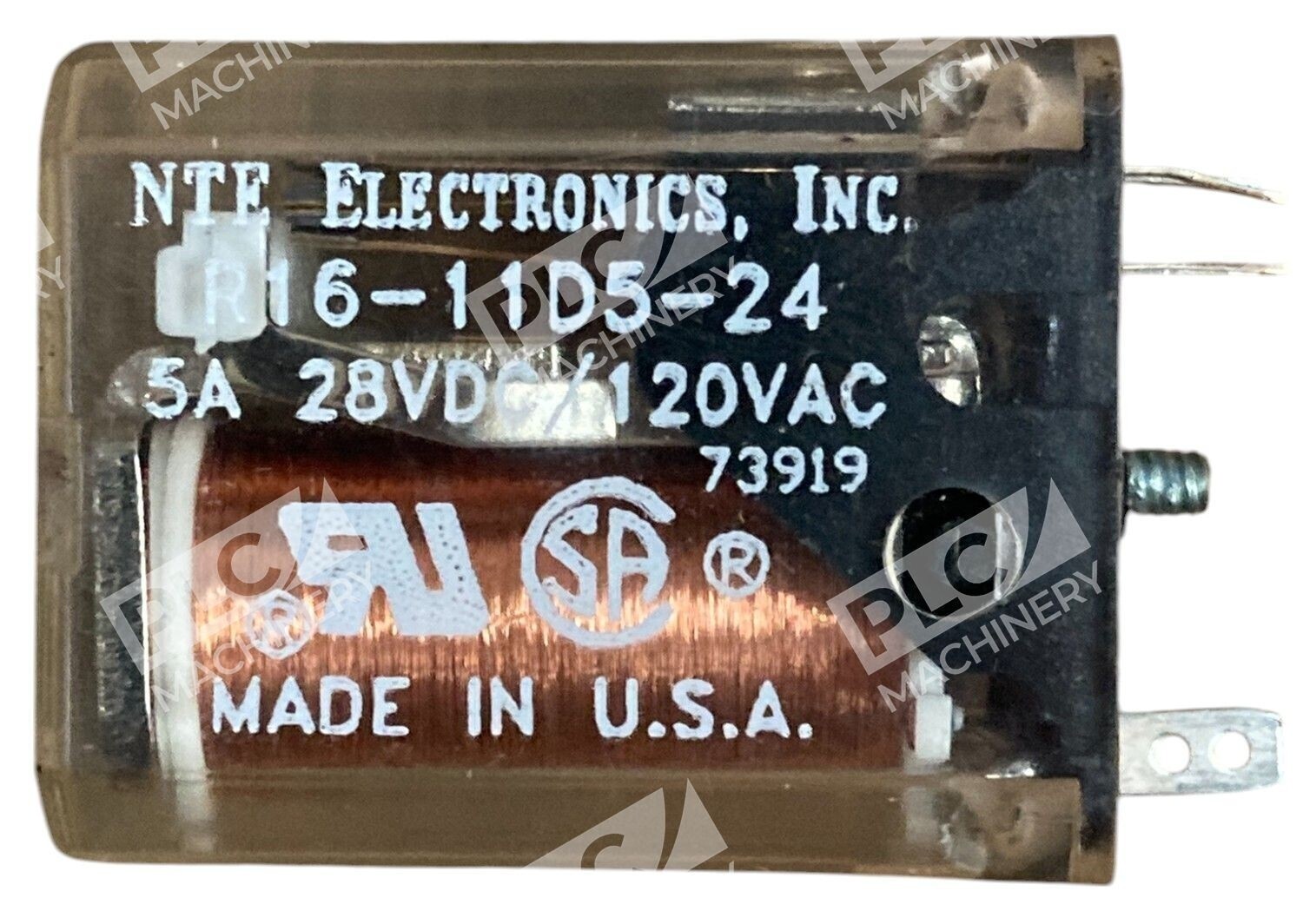

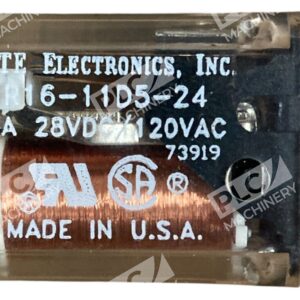

<p>The <strong>NTE R16-11D5-24 relay</strong> is a general purpose DPDT (double pole double throw) electromagnetic relay designed for switching and control applications. With a 24VDC coil voltage and 5-amp contact rating, this relay delivers reliable performance across industrial equipment, HVAC systems, lighting controls, and process automation. The compact 8-pin “small ice cube” form factor and combination plug-in/solder terminals make it an ideal replacement or upgrade for legacy and modern systems alike.</p>
<h2>Key Features</h2>
<ul>
<li>24VDC coil voltage with standard contact current rating of 5 amps</li>
<li>Double pole double throw (DPDT) switching configuration for flexible circuit control</li>
<li>8-pin small ice cube style form factor for standard socket mounting</li>
<li>Combination plug-in and solder lug terminals for fast installation and secure connections</li>
<li>Copper contact material ensures low resistance and long operational life</li>
<li>RoHS compliant for environmental and regulatory compliance</li>
</ul>
<h2>Technical Specifications</h2>
<ul>
<li><strong>Coil Voltage:</strong> 24VDC</li>
<li><strong>Contact Rating:</strong> 5A (continuous)</li>
<li><strong>Contact Configuration:</strong> DPDT (2 poles, 2 throws per pole)</li>
<li><strong>Contact Material:</strong> Copper alloy</li>
<li><strong>Form Factor:</strong> 8-pin small ice cube</li>
<li><strong>Terminals:</strong> Combination plug-in/solder lug</li>
<li><strong>Contact Voltage:</strong> 120VAC</li>
<li><strong>RoHS Compliant:</strong> Yes</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>Industrial equipment switching and motor control circuits</li>
<li>HVAC systems and thermostat relay replacement</li>
<li>Lighting control and dimmer circuits</li>
<li>Programmable logic controller (PLC) output modules and signal relay modules</li>
<li>Commercial refrigeration and process automation equipment</li>
<li>Alarm, security, and notification systems</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Standard 8-pin ice cube relay sockets and bases</li>
<li>Industrial control panels and relay racks</li>
<li>24VDC power supplies and control systems</li>
<li>PLC output relay modules and analog I/O cards</li>
<li>Crossover relay applications and legacy equipment upgrades</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>NTE R16-11D5 series (various voltage ratings)</li>
<li>Generic 8-pin DPDT 24VDC 5A ice cube relays from other manufacturers</li>
</ul>
<h3>Works With</h3>
<ul>
<li>24VDC control circuits and switching applications</li>
<li>Discrete logic and hardwired automation systems</li>
<li>Relay-based motor starters and contactor controls</li>
<li>Standard industrial relay testing and troubleshooting tools</li>
</ul>
