Overview

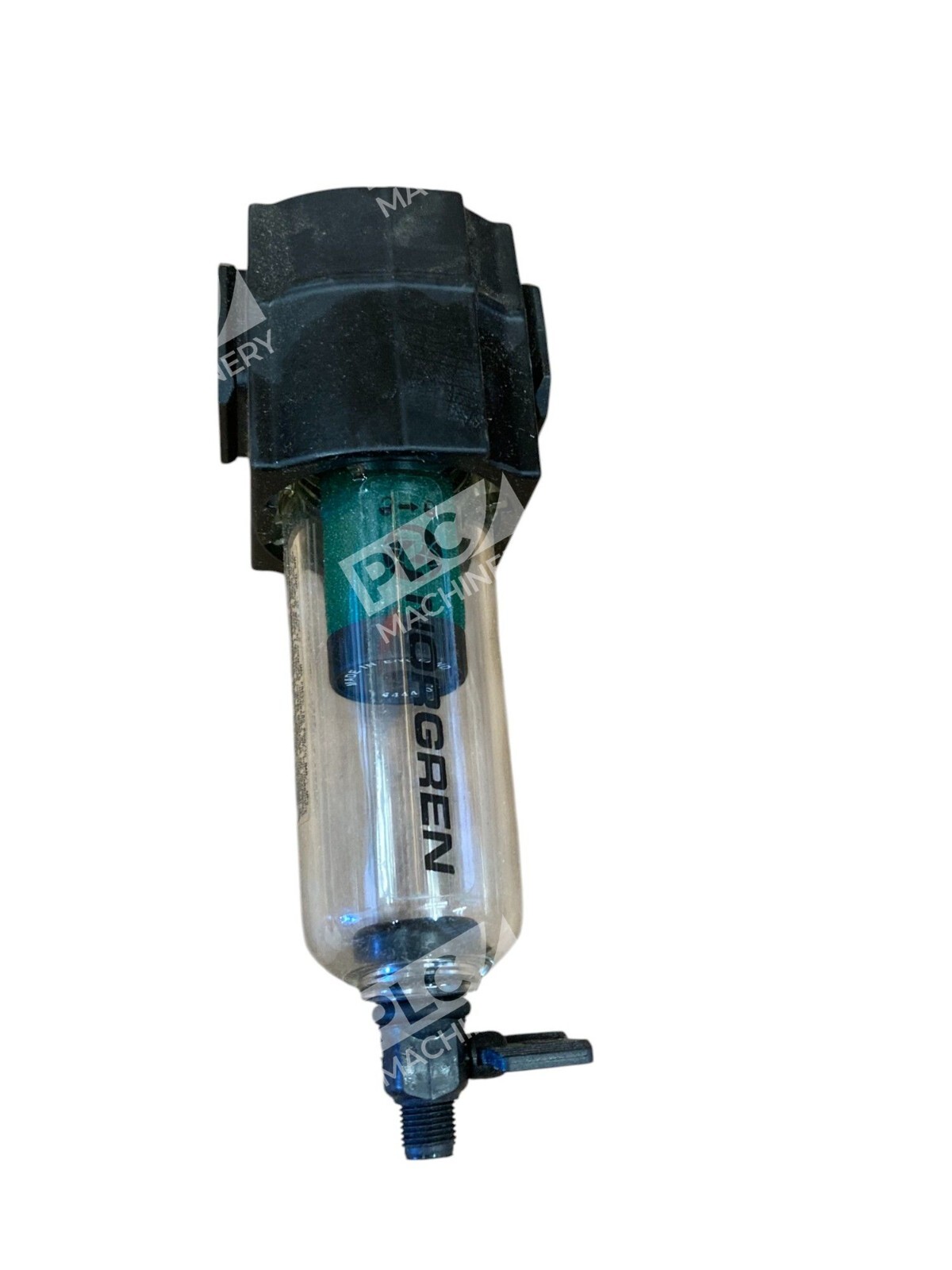

The Norgren F73C-2AN-QT0 is a modular coalescing filter from Norgren’s Excelon line, designed for oil removal in compressed air and pneumatic systems. This unit delivers 0.01µm filtration performance with a transparent polycarbonate bowl, manual drain valve, and 1/4 NPT female threaded connections. Maximum rated pressure is 150 PSIG (10 bar), making it suitable for standard industrial pneumatic applications.
Key Features
- High-efficiency coalescing element removes oil aerosol, water, and particulate down to 0.01µm
- Modular Excelon design allows inline or cartridge-style installation with quick-release bayonet bowl for fast element replacement

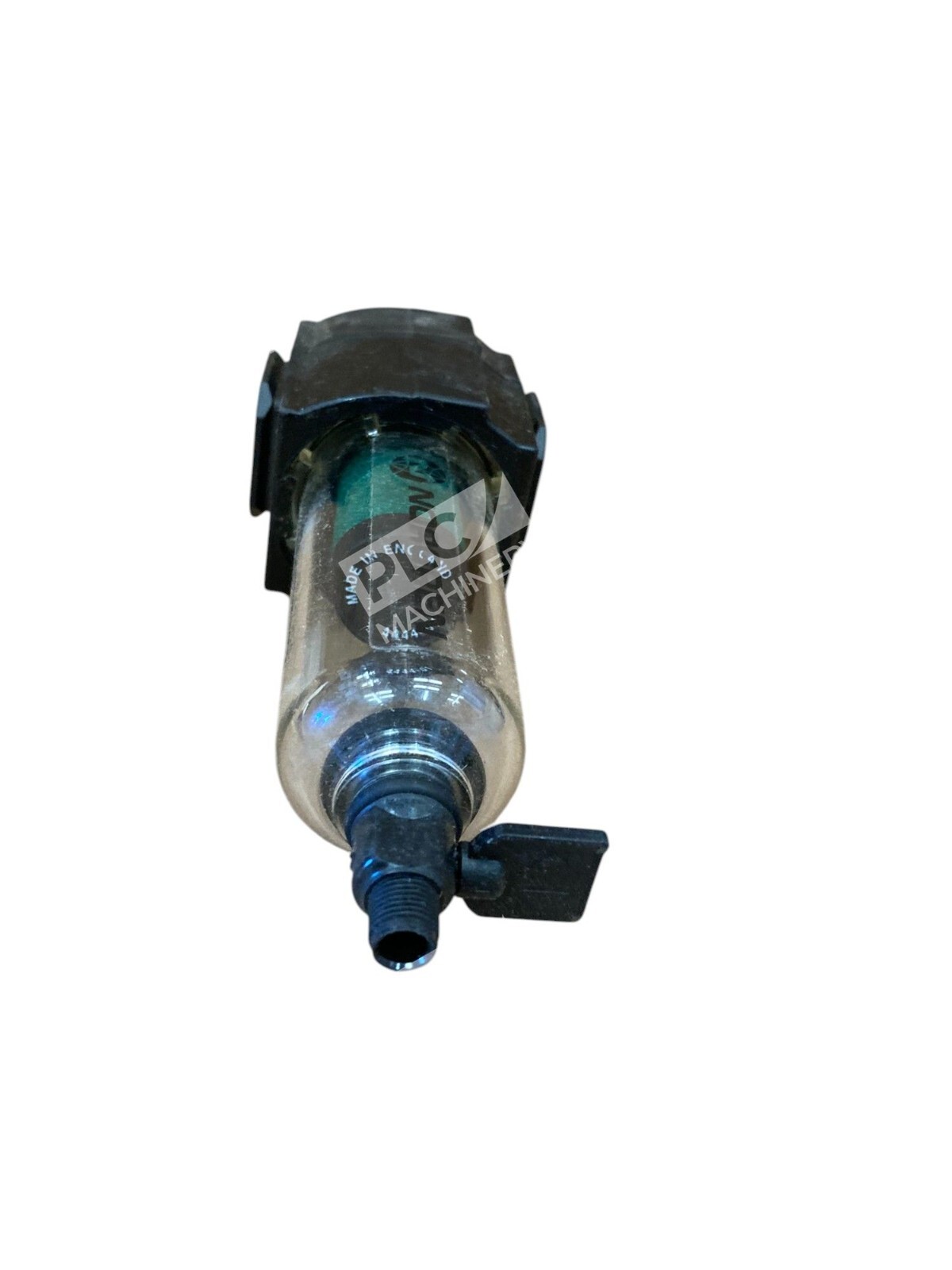

- Transparent polycarbonate bowl with manual drain for easy visual inspection and maintenance
- 1/4 NPT female inlet and outlet ports for direct plumbing compatibility
- Aluminum die-cast housing for corrosion resistance and durability
- Synthetic fiber and polyurethane foam filter element for reliable performance
Technical Specifications
Performance & Pressure: 150 PSIG (10 bar) maximum operating pressure; 0.01µm coalescing filtration efficiency
Connections: 1/4 NPT female (inlet and outlet)
Bowl Material: Polycarbonate (transparent), manual drain
Housing: Aluminum die-cast
Filter Element: Synthetic fiber and polyurethane foam
Bowl Capacity: Transparent design for oil level monitoring
Series: Excelon F73C (Puraire)
Typical Applications
- Compressed air drying and oil removal in manufacturing and assembly lines
- Pneumatic tool supply (impacts, grinders, nail guns)
- Instrument air conditioning for control valves and pilot circuits
- Laboratory and medical gas preparation systems
- Food and beverage processing air supply conditioning
Compatibility & Replacements
Compatible With
- Norgren Excelon modular filter/regulator/lubricator (FRL) systems
- Standard pneumatic and compressed air distribution networks rated for 150 PSIG
- 1/4 NPT threaded piping and fittings (SAE standard)
- ISO 4401 sandwich and subplate mounting configurations (with appropriate adapters)
- Manual and automatic drain valve cartridges within the F73C series
Replaces / Drop-In Replacement For
- F73C-2AN-QD0 (manual drain version with metric indicator)
- F73C-2AN-AD0 (automatic drain variant)
- Other Norgren F73 and F72 series coalescing elements with equivalent 1/4 NPT connections
Works With
- Norgren Excelon FRL modular components (filters, regulators, lubricators)
- ISO 4401-05 sandwich plate systems
- Compressed air supply systems rated ASME/ANSI B4.1
- Pneumatic control circuits and instrumentation air
