Overview

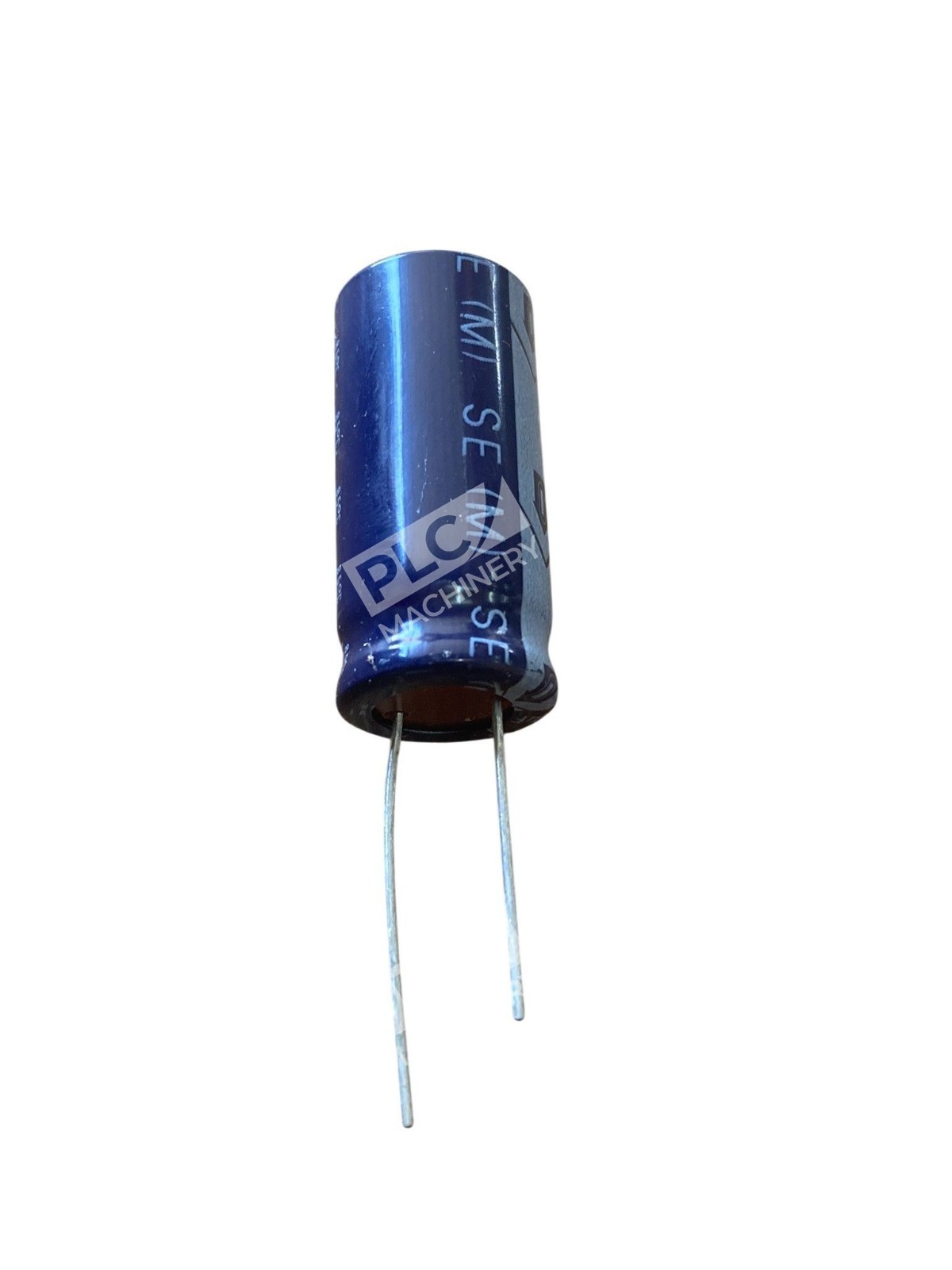

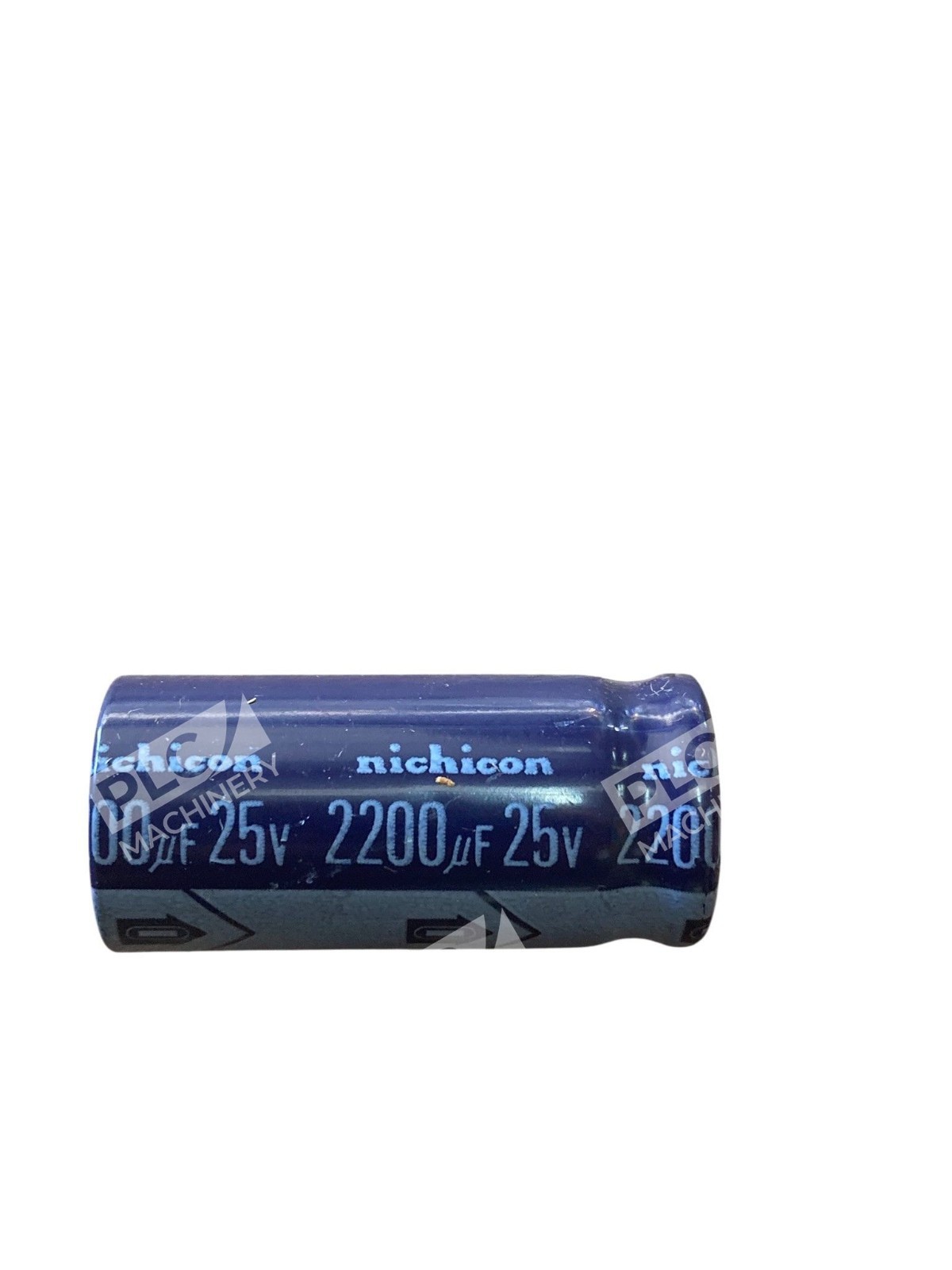

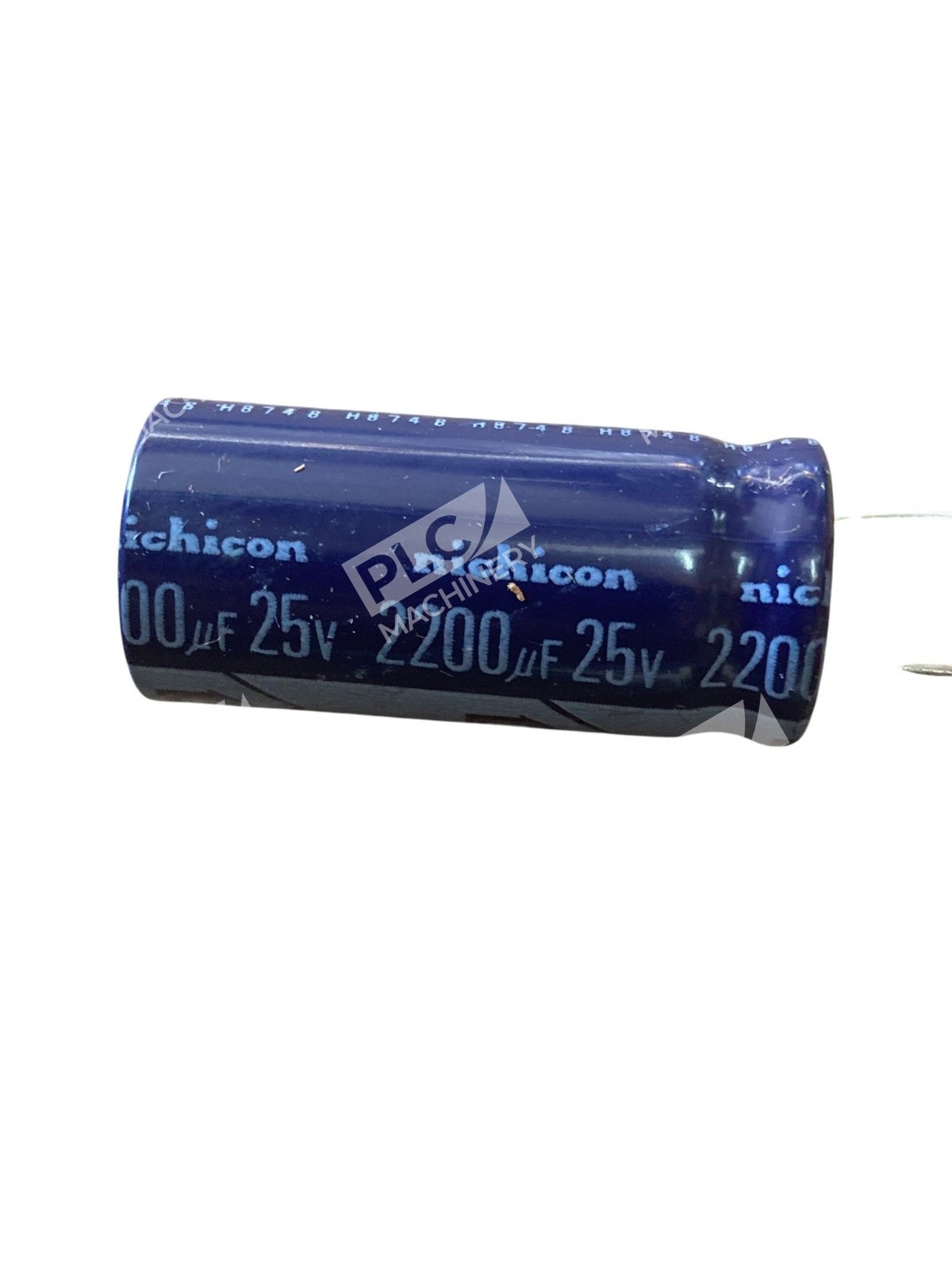

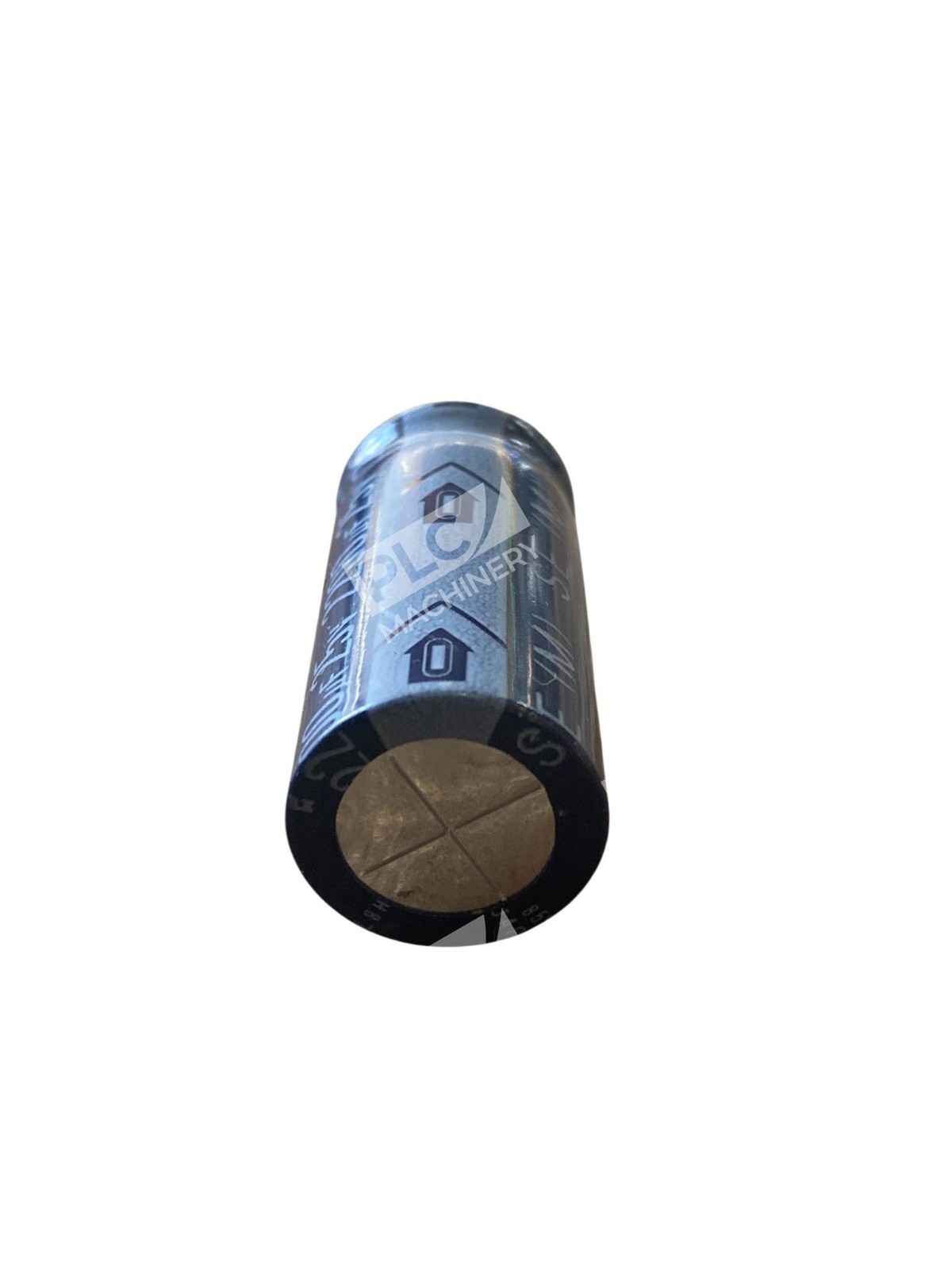

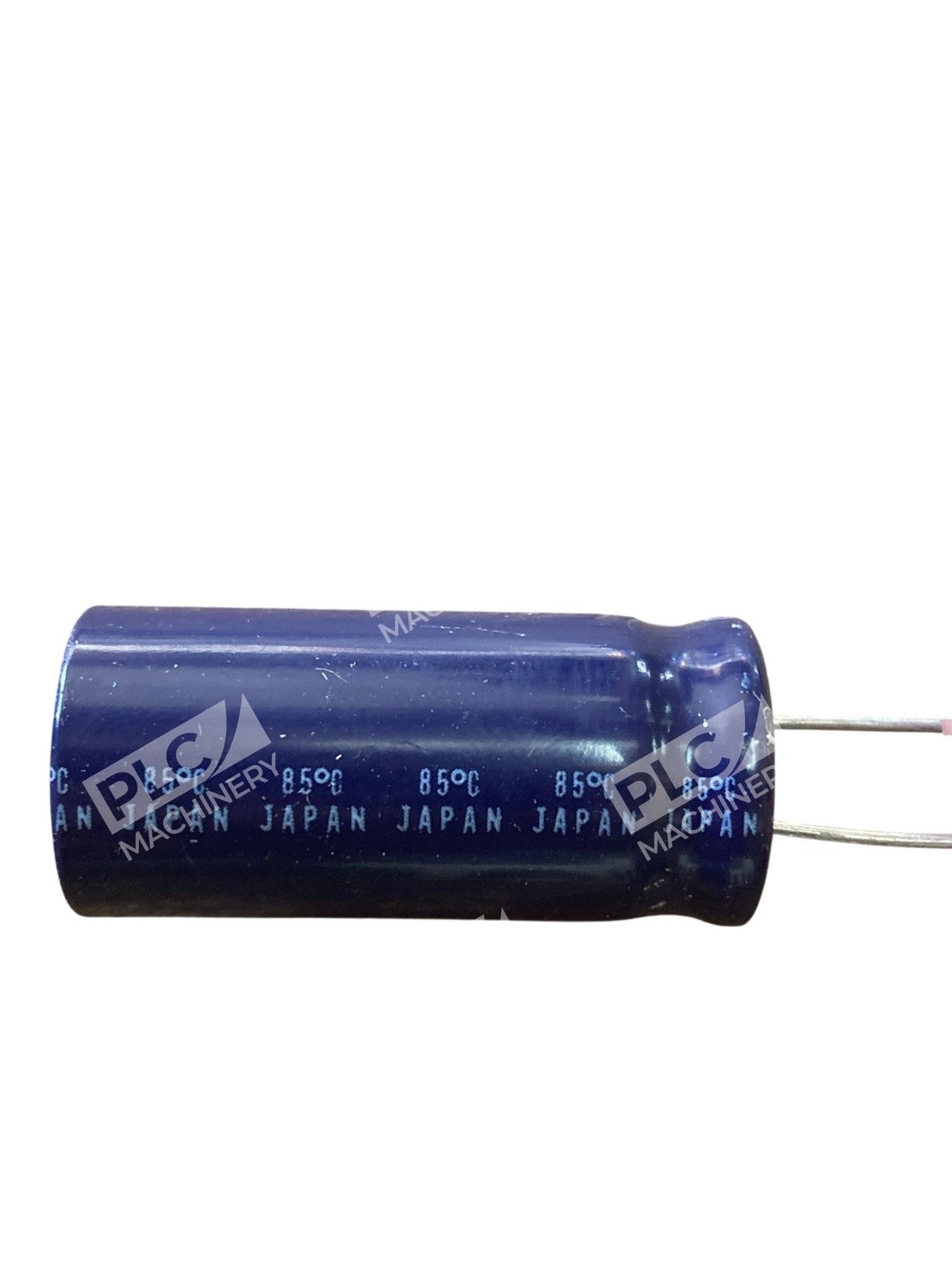

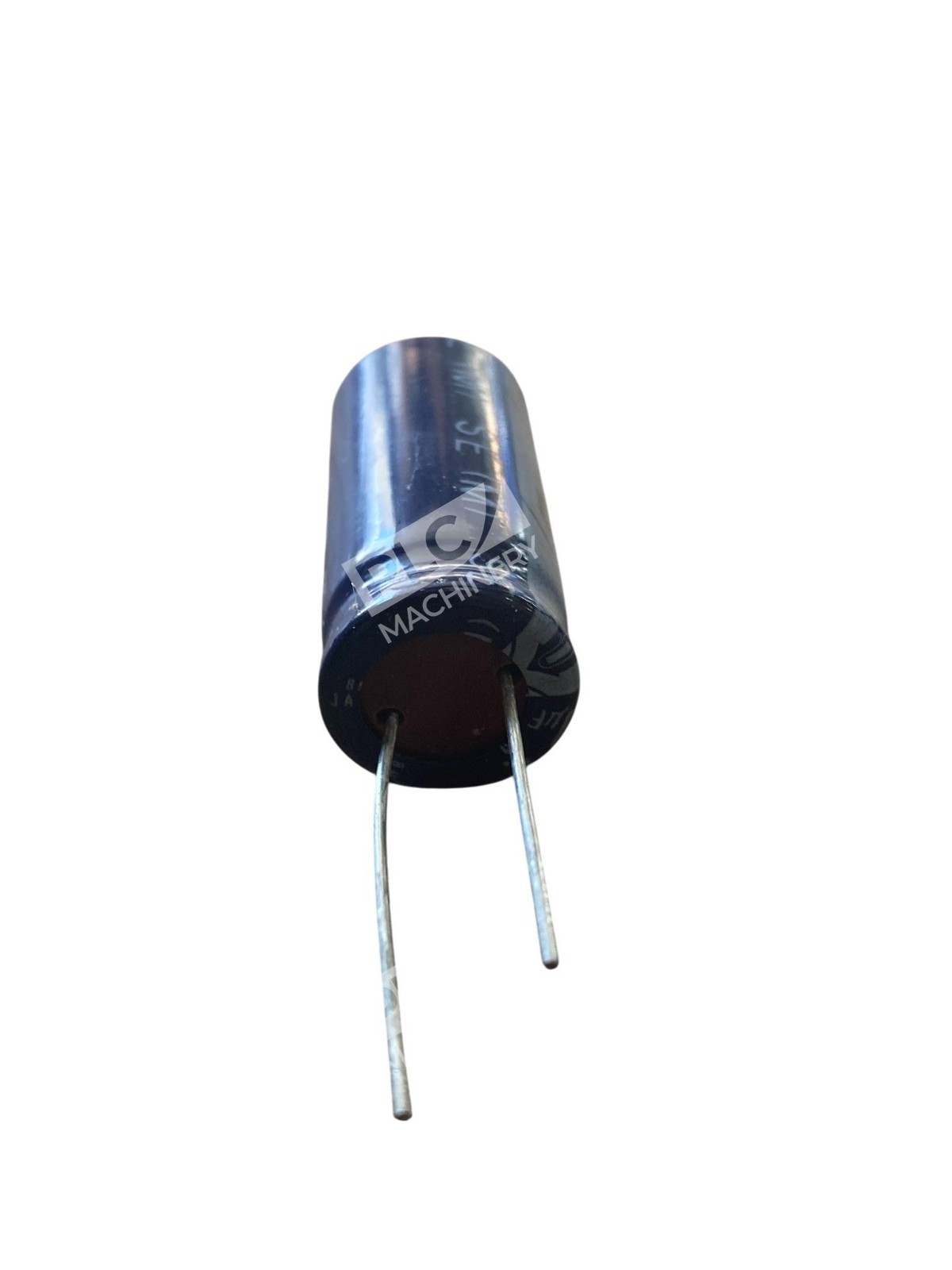

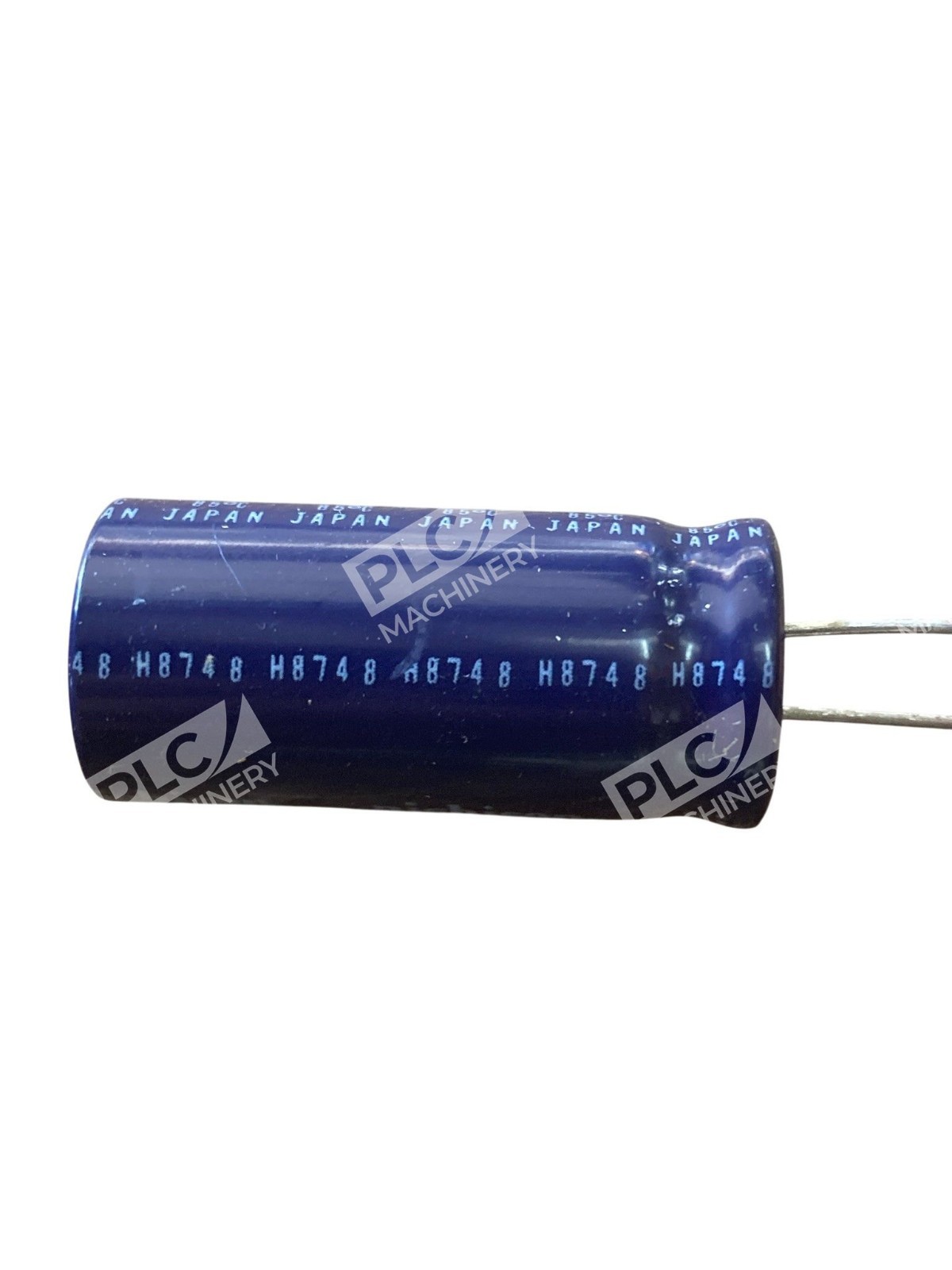

The Nichicon 2200µF 25V capacitor is a high-performance aluminum electrolytic capacitor engineered for audio and general-purpose power supply applications. With a radial termination style and proven reliability, this capacitor delivers stable performance in demanding electronic circuits. Nichicon’s reputation for quality electrolytic capacitors makes this unit a trusted choice for engineers and technicians worldwide.
Key Features
- 2200µF capacitance with 25V DC rating
- ±20% tolerance — standard tight tolerance for audio-grade performance
- Radial leads — easy PCB mounting in standard through-hole designs
- Extended operating temperature range — suitable for diverse environmental conditions
- RoHS compliant — meets modern environmental and regulatory standards
- Anti-solvent construction — durable design for reliable soldering
Technical Specifications
- Capacitance: 2200 µF
- Voltage Rating: 25 VDC
- Termination Style: Radial
- Tolerance: ±20%
- Diameter: 12.5 mm
- Height/Length: 25 mm
- Lead Pitch: 5 mm
- Operating Temperature Range: −40°C to +85°C
- Ripple Current: 1550 mArms
- Endurance Rating: 2000 hours at 105°C
- Technology: Aluminum Electrolytic
- Compliance: RoHS compliant
Typical Applications
- Audio equipment power supplies and decoupling circuits
- Switching power supply filtering
- Signal processing and amplifier circuits
- Industrial control and instrumentation systems
- General-purpose DC power conditioning
Compatibility & Replacements
Compatible With
- Standard through-hole PCB designs with 5 mm lead pitch
- Audio amplifier and hi-fi equipment circuits
- Industrial power supply modules
- General electronic equipment requiring 25V rail filtering
Replaces / Drop-In Replacement For
- Nichicon FW series 2200µF 25V
- Nichicon KW series 2200µF 25V
- Other 2200µF 25V electrolytic capacitors with matching pin configuration
Works With
- Standard PCB assembly processes
- Wave soldering and hand soldering techniques
- Through-hole automated component insertion equipment
- General-purpose circuit design tools and CAD software
