Overview

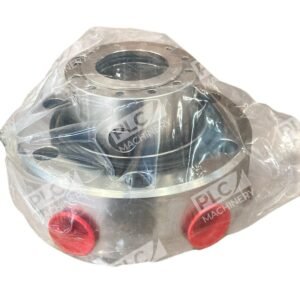

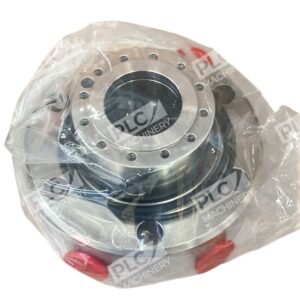

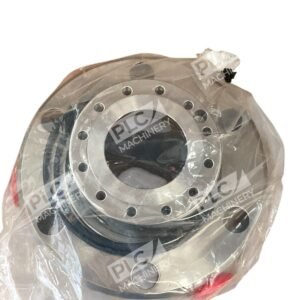

The John Crane 8B1-SN-TB1300-01 is a cartridge-style mechanical seal assembly engineered for 2-1/4″ shaft applications. This Type 8B1 seal cartridge combines a self-contained mechanical seal, gland housing, and pre-aligned components into a single, ready-to-install unit. The cartridge design eliminates manual alignment requirements and reduces installation errors, making it ideal for maintenance teams and system integrators working with centrifugal pumps and rotating equipment.
Key Features
- Pre-assembled cartridge design for simplified installation and minimal alignment errors
- Compatible with standard 2-1/4″ shaft diameter pump applications
- John Crane engineering ensures durability and reliable performance
- Self-contained unit reduces field assembly complexity
- Designed for effective leakage prevention in pump and rotating equipment
Technical Specifications
- Manufacturer: John Crane Inc.
- Part Number: 8B1-SN-TB1300-01
- Type: Type 8B1 Cartridge Mechanical Seal
- Shaft Size: 2-1/4 inches (57.15 mm)
- Configuration: Cartridge assembly (pre-aligned)
- Application: Centrifugal pumps, rotating equipment
- Design: Balanced, multiple spring design typical of John Crane cartridge seals
Typical Applications
The John Crane Type 8B1 cartridge seal is widely used in:
- Centrifugal pump sealing systems
- Water and fluid transfer equipment
- Industrial rotating machinery requiring reliable shaft sealing
- OEM pump manufacturers and retrofit installations
- Maintenance and repair of existing pump assemblies
Compatibility & Replacements
Compatible With
- Pumps designed for Type 8B1 cartridge seal systems
- Standard 2-1/4″ shaft diameter pump housings
- John Crane seal gland and pump adapter configurations
- Centrifugal pump manufacturers using Type 8B1 specifications
Replaces / Drop-In Replacement For
- Original John Crane Type 8B1 cartridge seal assemblies
- Equivalent OEM seal cartridges for 2-1/4″ shaft applications
- Verify exact pump model compatibility with your equipment documentation before ordering
Works With
- Standard pump gland assemblies rated for Type 8B1 cartridge seals
- Pump housings designed for 2-1/4″ shaft sealing cartridges
- Rotating equipment following API 610 or equivalent pump standards
