Overview

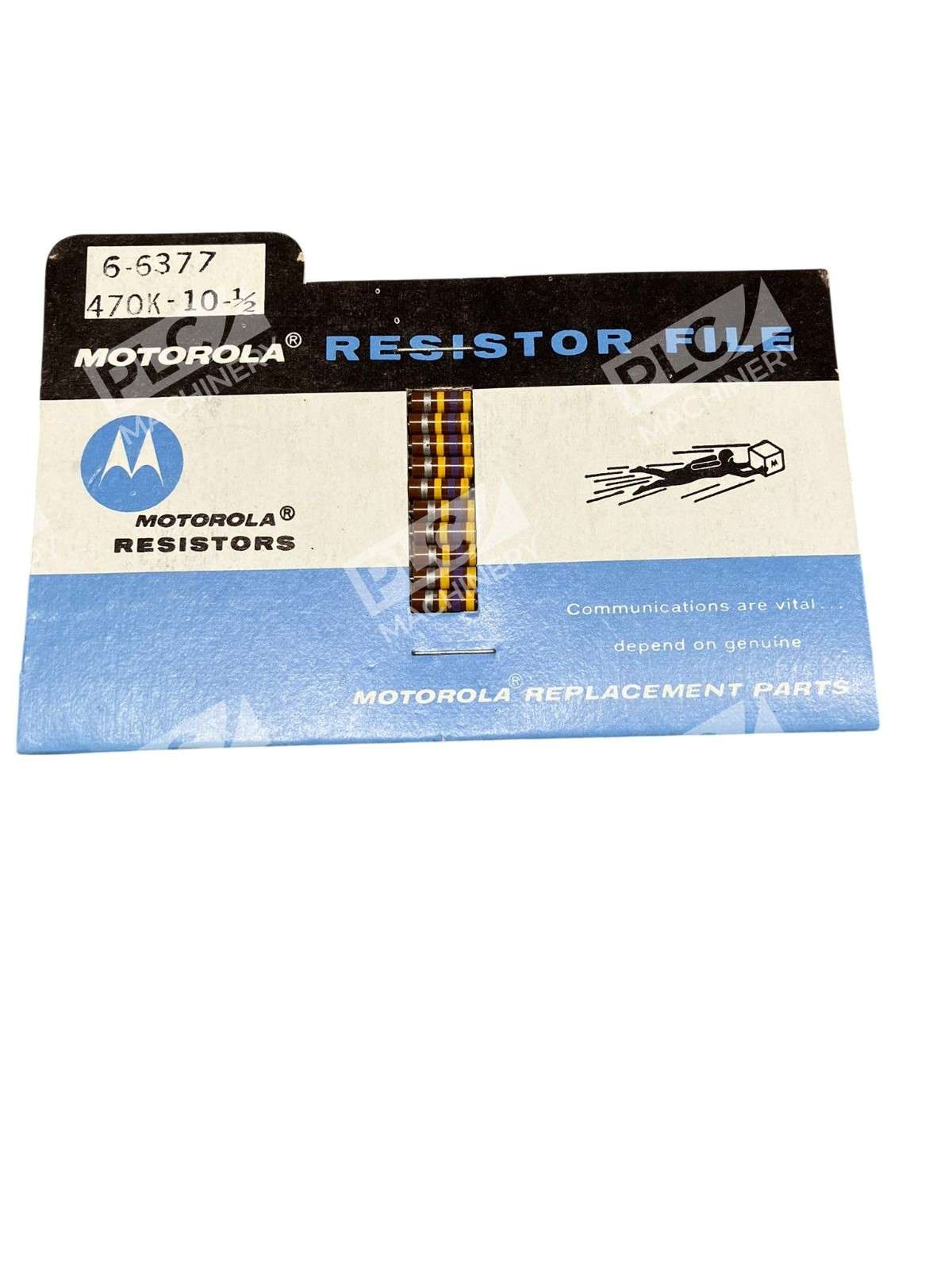

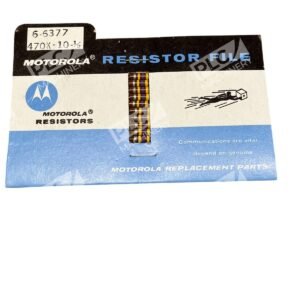

The Motorola 6-6377 470KΩ 0.5W ±10% carbon composition resistor is a vintage electronic component suited for restoration, repair, and original equipment applications. Carbon composition resistors deliver excellent pulse handling and are preferred in audio circuits, vintage instrumentation, and specialized industrial applications where their frequency response characteristics provide measurable advantages over modern carbon film alternatives.
Key Features
- Resistance value: 470 kilohms
- Power rating: 0.5 watts
- Tolerance: ±10%
- Technology: Carbon composition (not carbon film)

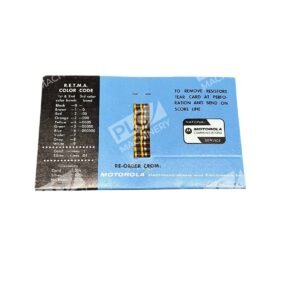

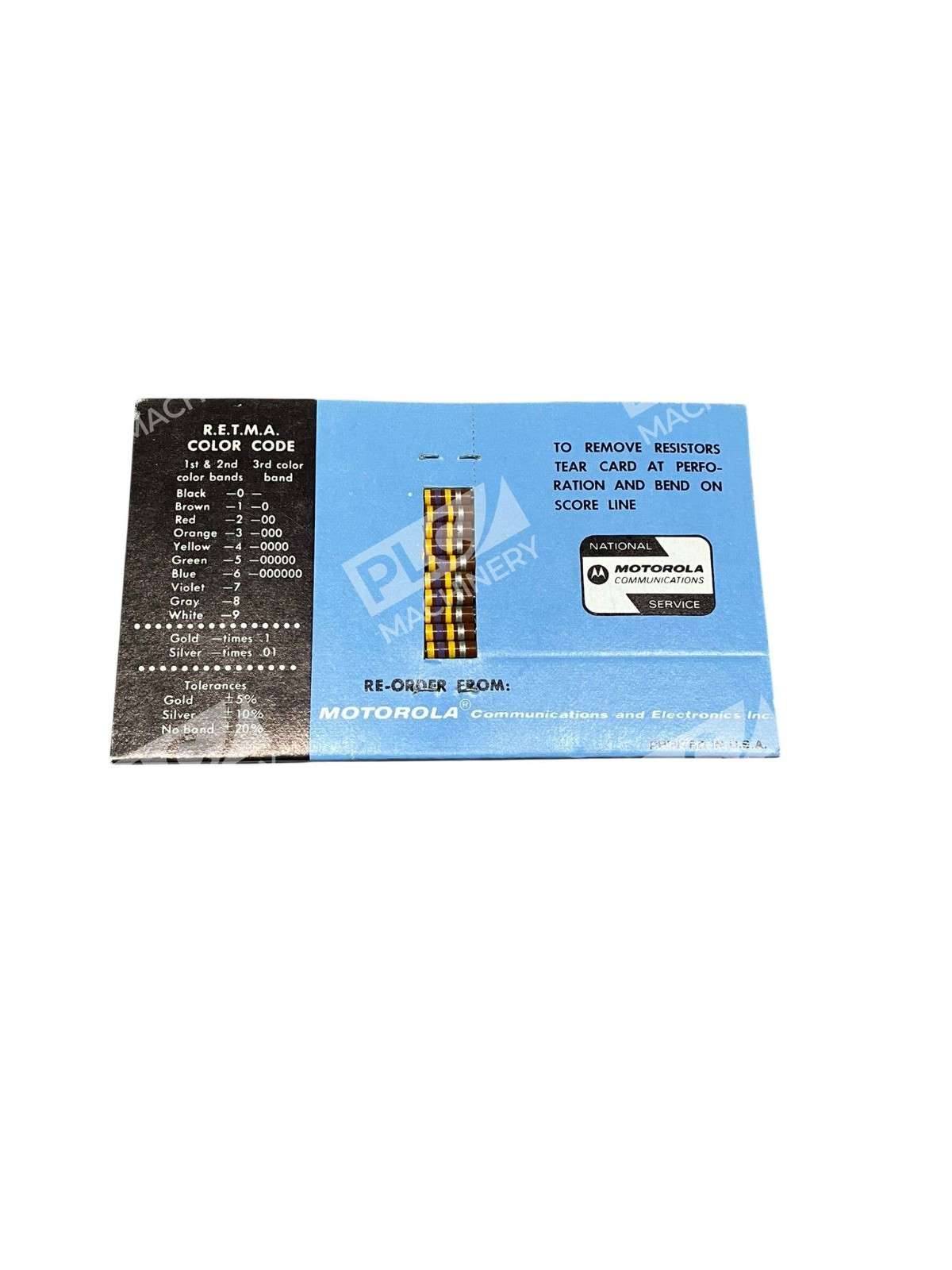

- Condition: New in original box
- Vintage Motorola manufacture
Technical Specifications
Carbon composition resistors in this class typically operate across a wide temperature range. The 470KΩ rating provides mid-range impedance suitable for both analog and control circuits. The 0.5W power rating accommodates moderate current loads, while ±10% tolerance meets historical industrial and consumer equipment standards.
Typical Applications
- Tube amplifier bias and coupling circuits
- Vintage radio and test equipment restoration
- Industrial control and instrumentation
- Audio preamp and power amp networks
- Telephone exchange and telecommunications equipment
- Original equipment replacement for 1960s–1980s gear
Compatibility & Replacements
Compatible With
- Vintage Motorola equipment and systems
- Mid-frequency audio circuits (1 kHz–100 kHz)
- DC bias and coupling applications
- Standard through-hole PCB layouts
- Axial-lead component assemblies
Replaces / Drop-In Replacement For
The 6-6377 designates Motorola’s own vintage part number. Original equipment manufacturers may have used alternate resistor sources; verify compatibility with your specific application before ordering. No direct modern equivalent exists with identical electrical characteristics, as carbon composition technology is largely superseded by carbon film and metal film alternatives.
Works With
- Any through-hole PCB or tube socket assembly
- Hand-wired point-to-point circuits
- Standard solder-based assembly methods (lead-based or lead-free)
- Vintage and modern soldering equipment
