Overview

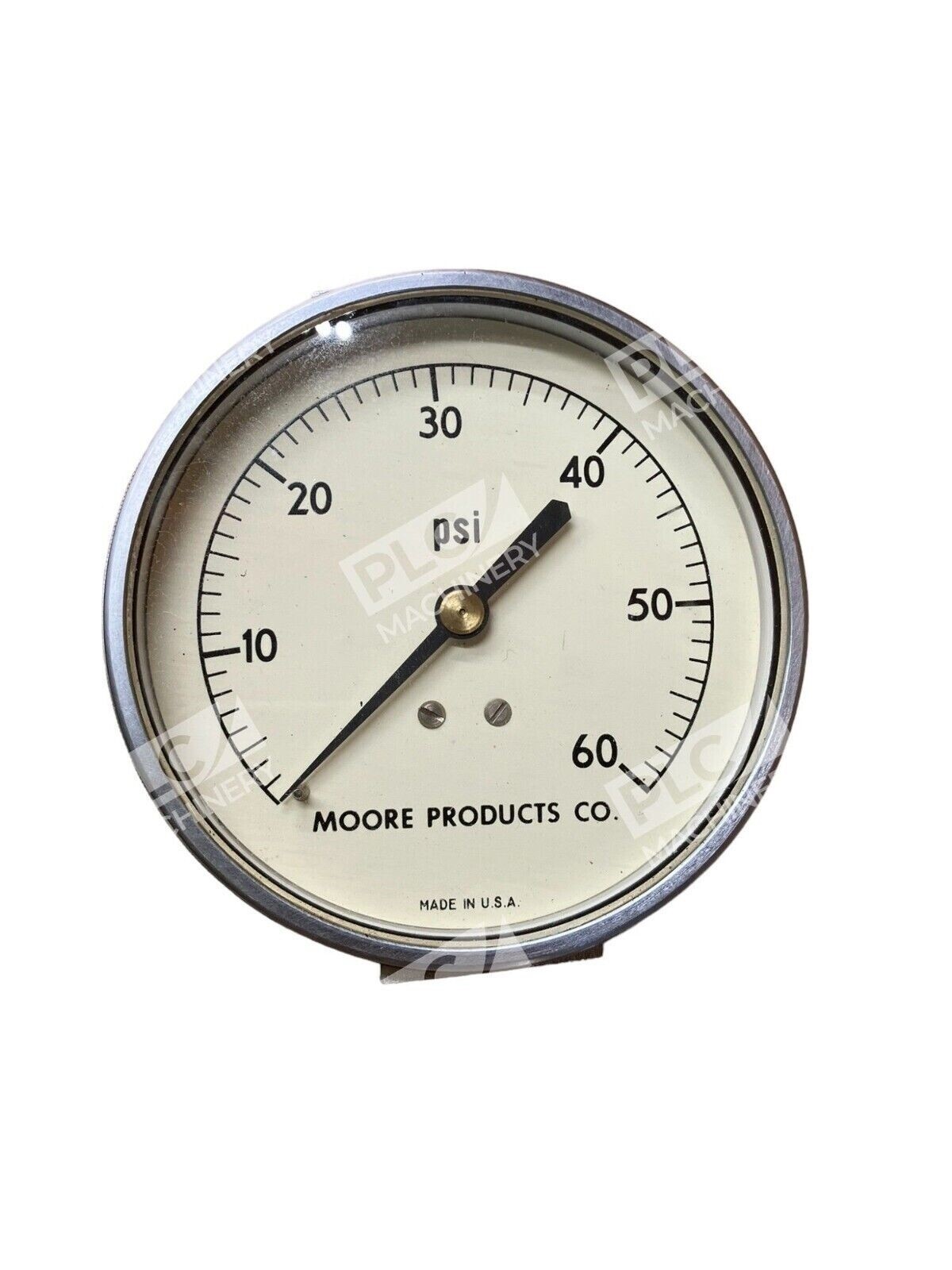

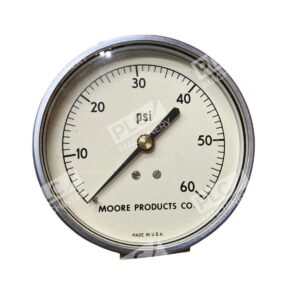

The Moore Receiver Gauge 0-60 PSI is a precision pressure measurement instrument engineered for critical monitoring in pneumatic, hydraulic, pump, and plumbing systems. Built by Moore Products, a trusted name in industrial instrumentation, this gauge provides reliable, accurate pressure readings across a 0–60 PSI operating range. Whether you’re diagnosing system pressure, monitoring compressor discharge, or maintaining receiver tank integrity, this gauge delivers dependable performance for maintenance technicians and system integrators.
Key Features
- Pressure range: 0–60 PSI for mid-range pneumatic and hydraulic applications
- Brass movement and bronze Bourdon tube for durability and accuracy
- ¼” NPT back-mount connection for standard industrial installation
- Easy-to-read dial with clear labeling (psi/kPa dual scale)
- Compact 2-inch diameter dial face for space-constrained installations
- Acrylic window protects dial from contaminants and UV exposure
- Black ABS protective case for drop-resistance and long service life
Technical Specifications
- Pressure Range: 0–60 PSI
- Dial Diameter: 2 inches
- Connection: ¼” NPT back mount
- Movement: Brass Bourdon tube
- Accuracy: ASME/ANSI B40.1 Grade B (±3% at full range)
- Window Material: Acrylic snap-in
- Pointer: Black-enameled aluminum
- Dial Scale: Dual scale (psi/kPa)
- Housing Material: Black ABS plastic
- Operating Temperature Range: 0–170°F (typical for brass instruments)
- Liquid Fill: Optional glycerin fill (reduces vibration shock)
- Media Compatibility: Air, gas, oil, water, and non-corrosive fluids
- Manufacturer: Moore Products
- Condition: New – Open Box
Typical Applications
The Moore Receiver Gauge 0-60 PSI suits a wide range of industrial and commercial settings:
- Pneumatic Systems: Monitor air compressor discharge, receiver tank, and branch line pressure
- Hydraulic Systems: Check circuit pressure in small pumps, accumulators, and manifolds
- Plumbing & Water Systems: Verify domestic water pressure, well pump discharge, and pressure tank levels
- Manufacturing & Automation: Diagnose air cylinder actuation problems and solenoid valve performance
- HVAC & Refrigeration: Measure system pressure during maintenance and troubleshooting
- Equipment Maintenance: Perform routine pressure checks on portable tools and pneumatic equipment
Compatibility & Replacements
Compatible With
- Standard ¼” NPT male threaded connections (universal industrial standard)
- Pneumatic systems (air compressors, receiver tanks, regulators)
- Hydraulic circuits (small pumps, accumulators, manifolds)
- Plumbing pressure monitoring (domestic water supply, wells)
- Any system using 0–60 PSI measurement range
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This unit is a direct replacement for Moore Products receiver gauges in the same pressure range with identical ¼” NPT connections.
Works With
- Pressure regulators (any ¼” NPT threaded inlet)
- Receiver tanks and accumulators
- Pressure switches (side-by-side or manifold mounting)
- Pneumatic and hydraulic control panels
- Compressor discharge and branch line plumbing
