Overview

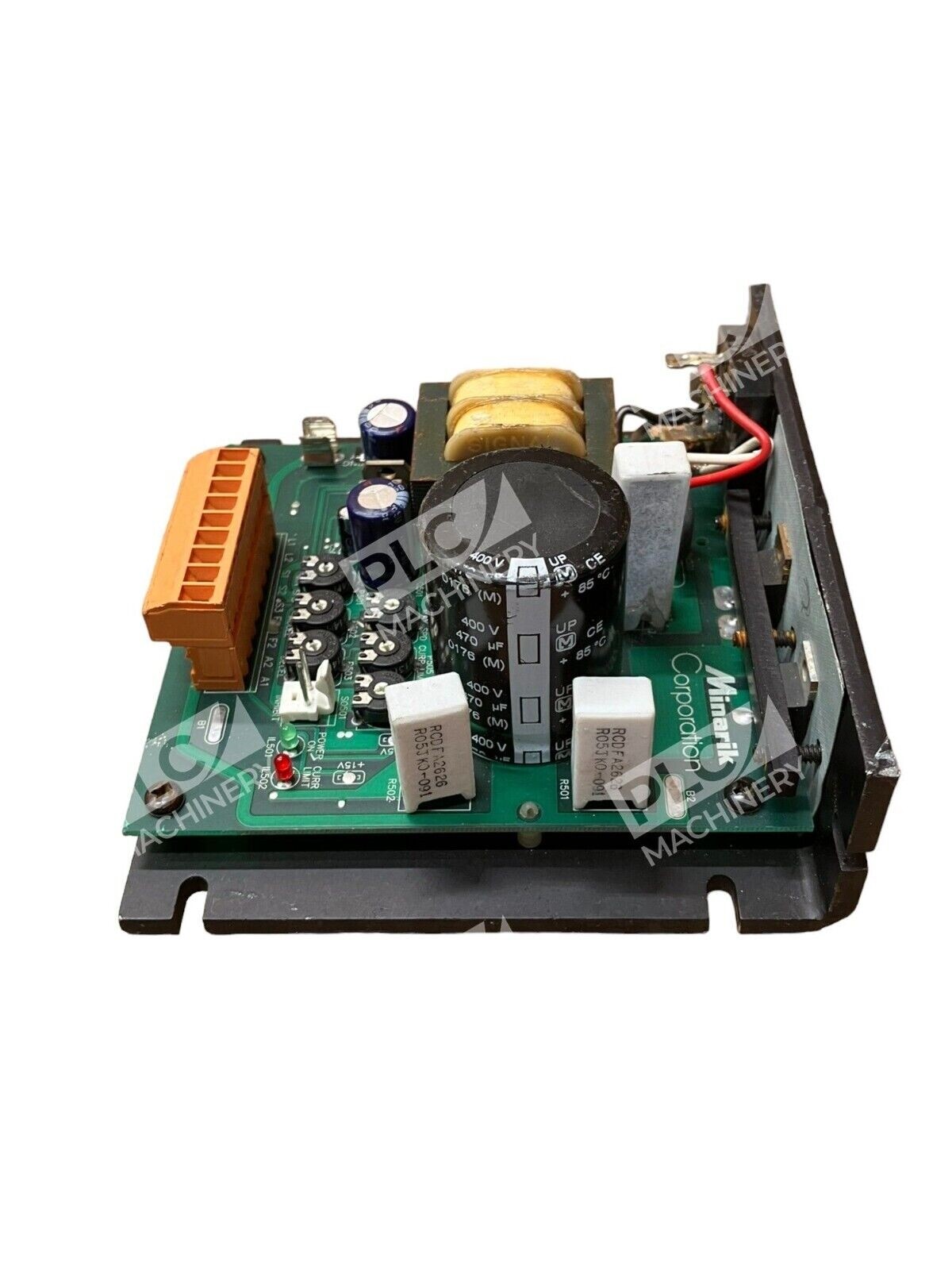

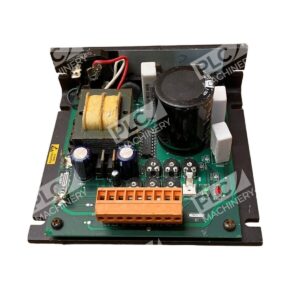

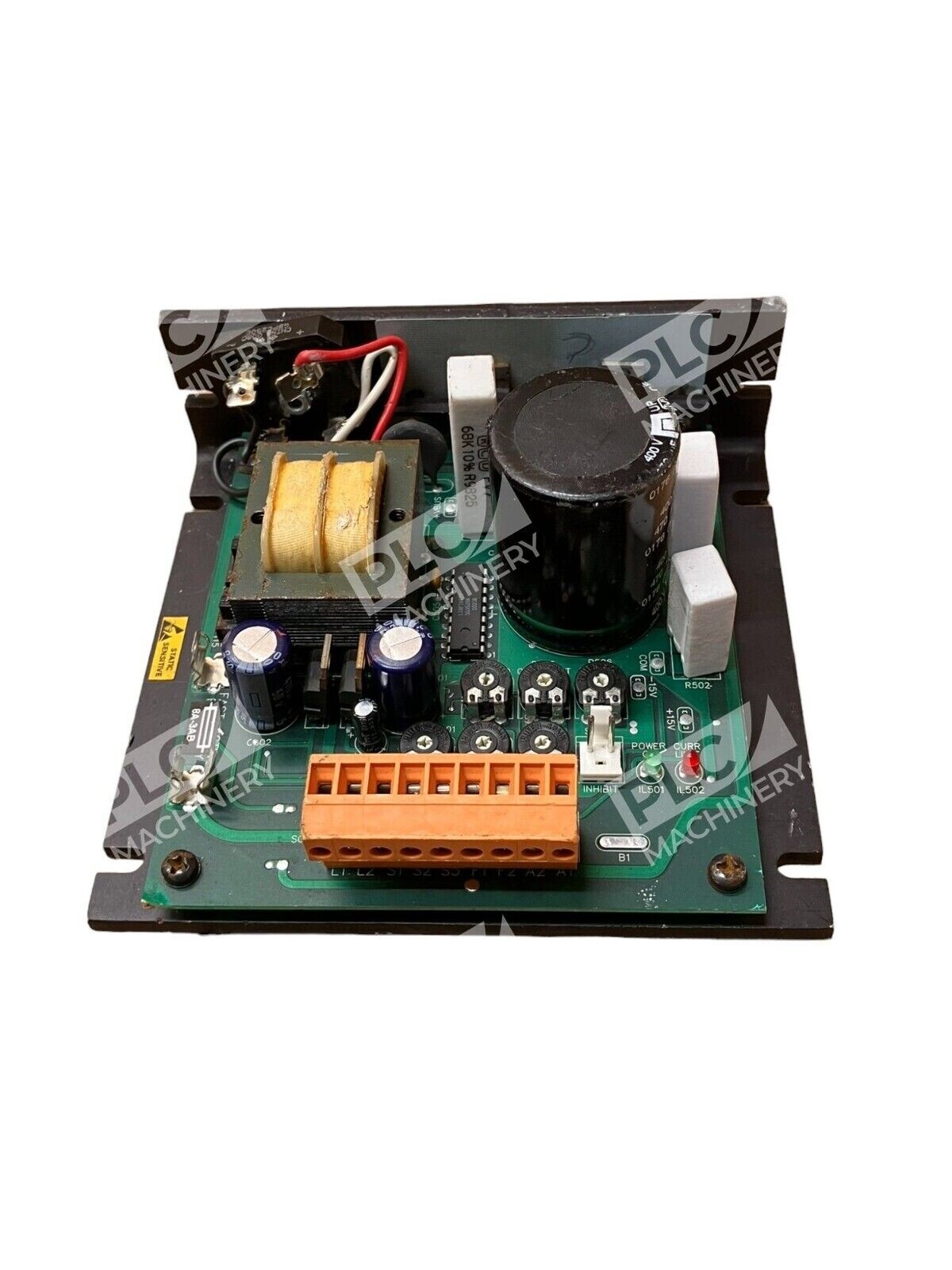

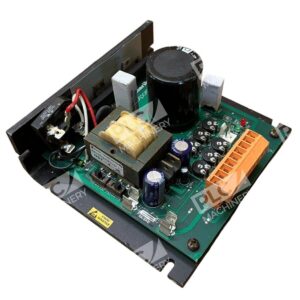

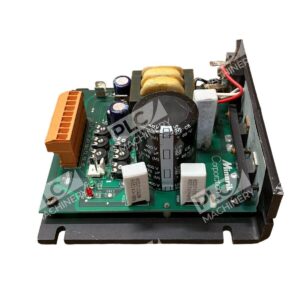

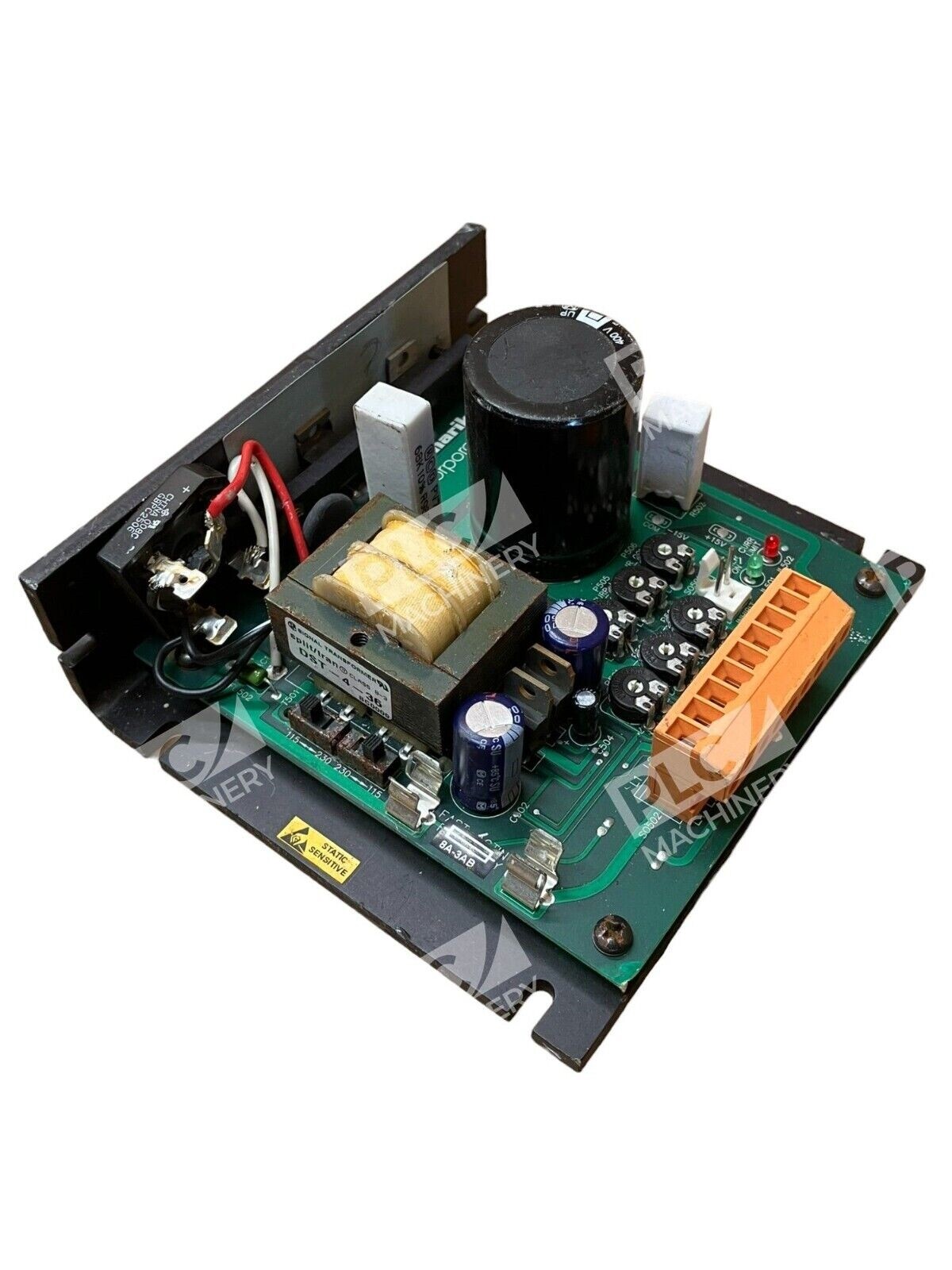

The Minarik XL3025A-Q-0581 is a filtered pulse-width-modulated (PWM) variable speed DC motor drive designed to deliver exceptional motor control performance. This drive outputs nearly pure DC power to brush-type motors, providing smooth acceleration, deceleration, and precise speed regulation. Built for reliable industrial automation applications, the XL3025A-Q-0581 is a compact, field-proven controller in the Minarik XL Series product line.
Key Features
- Filtered PWM technology for clean DC output to brush-type motors
- Dual voltage input: 115/230 VAC selectable operation
- Smooth variable speed control with stable motor performance
- Compact DIN-rail or surface-mount form factor
- 8-amp line fuse protection for circuit safety
- 50/60 Hz frequency compatible for global applications
Technical Specifications
- Input Voltage: 115/230 VAC (selectable)
- Frequency: 50/60 Hz
- Line Fuse: 8 amp, 3 AB
- Control Type: Pulse-width-modulated (PWM)
- Motor Type: DC brush motors
- Series: XL Series (Minarik)
- Dimensions: 6 x 6 x 3 inches
- Weight: 5 lbs
Typical Applications
- Industrial conveyor belt speed control
- Fan and blower motor regulation
- Pump speed adjustment for hydraulic systems
- Printing equipment motor control
- Material handling and automation systems
- Laboratory and testing equipment
Compatibility & Replacements
Compatible With
- DC brush-type motors (all horsepower ratings supported by 115/230 VAC input)
- Industrial control panels and cabinets
- DIN-rail or surface-mounted automation systems
- Standard single-phase AC power supplies (115 VAC or 230 VAC)
Replaces / Drop-In Replacement For
- Minarik XL3025A-Q (base model, similar specifications)
- Verify compatibility with your specific motor voltage and horsepower requirements before ordering
Works With
- AC supply voltage networks (115/230 VAC, 50/60 Hz)
- Standard industrial motor wiring practices
- Analog speed potentiometer control input
- External control systems and programmable logic controllers (PLC integration via relay contacts)
