Overview

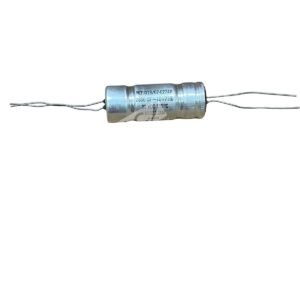

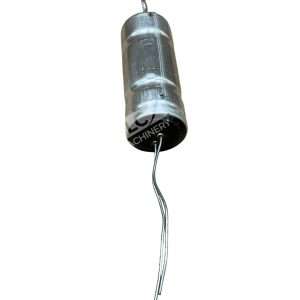

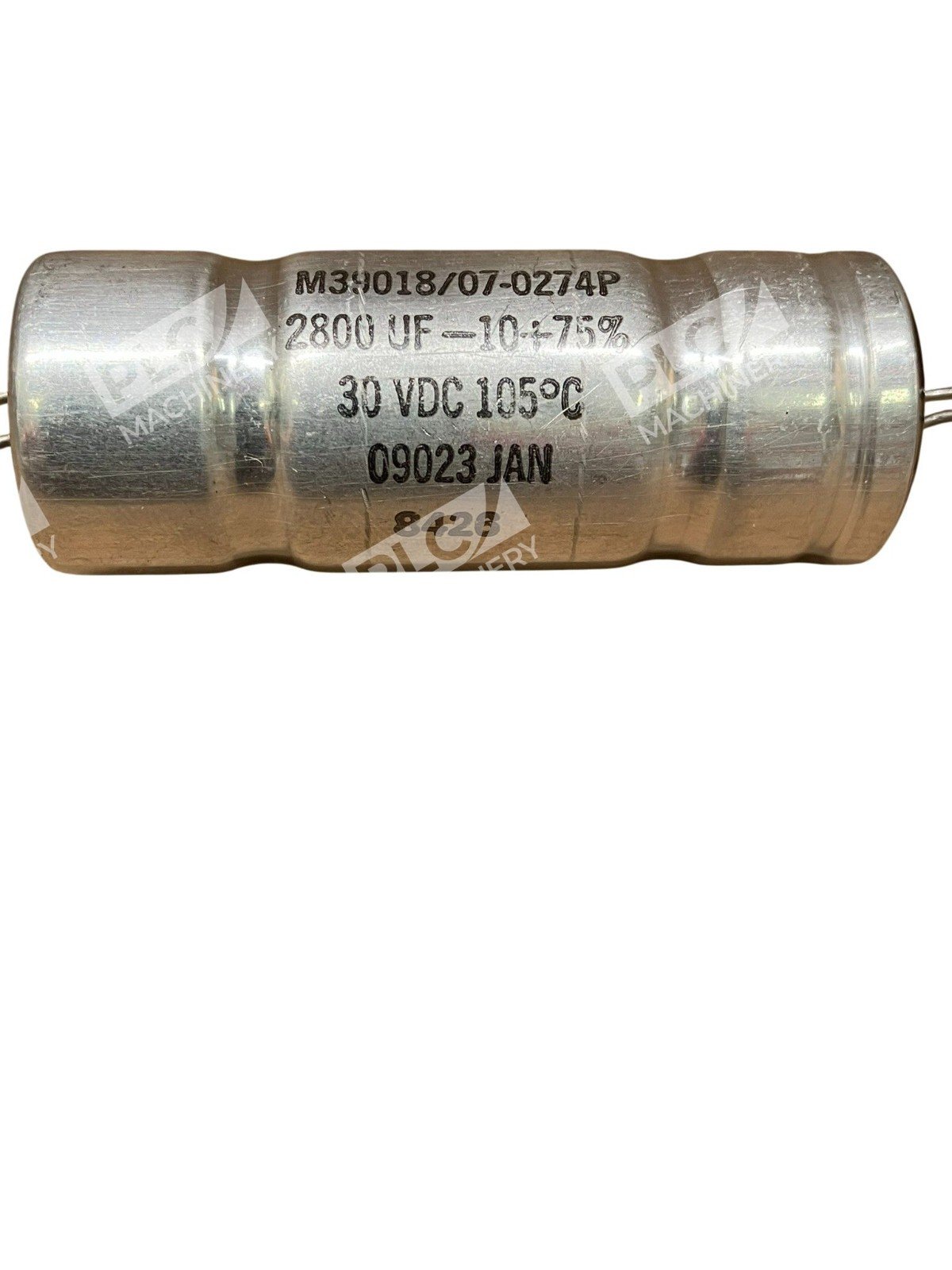

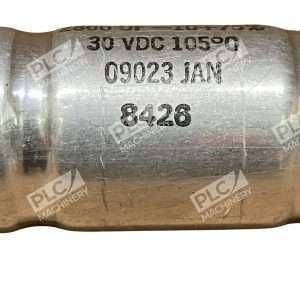

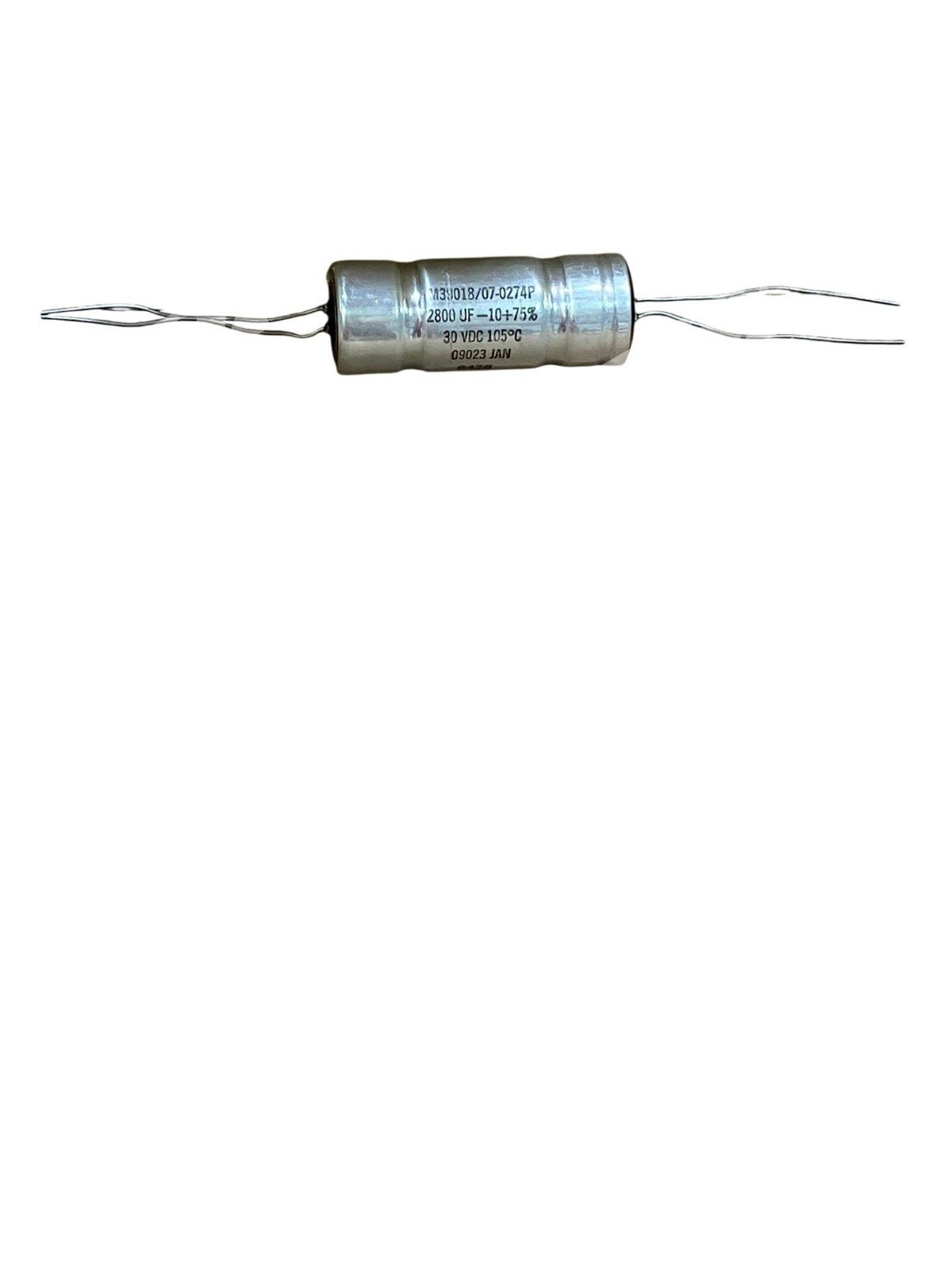

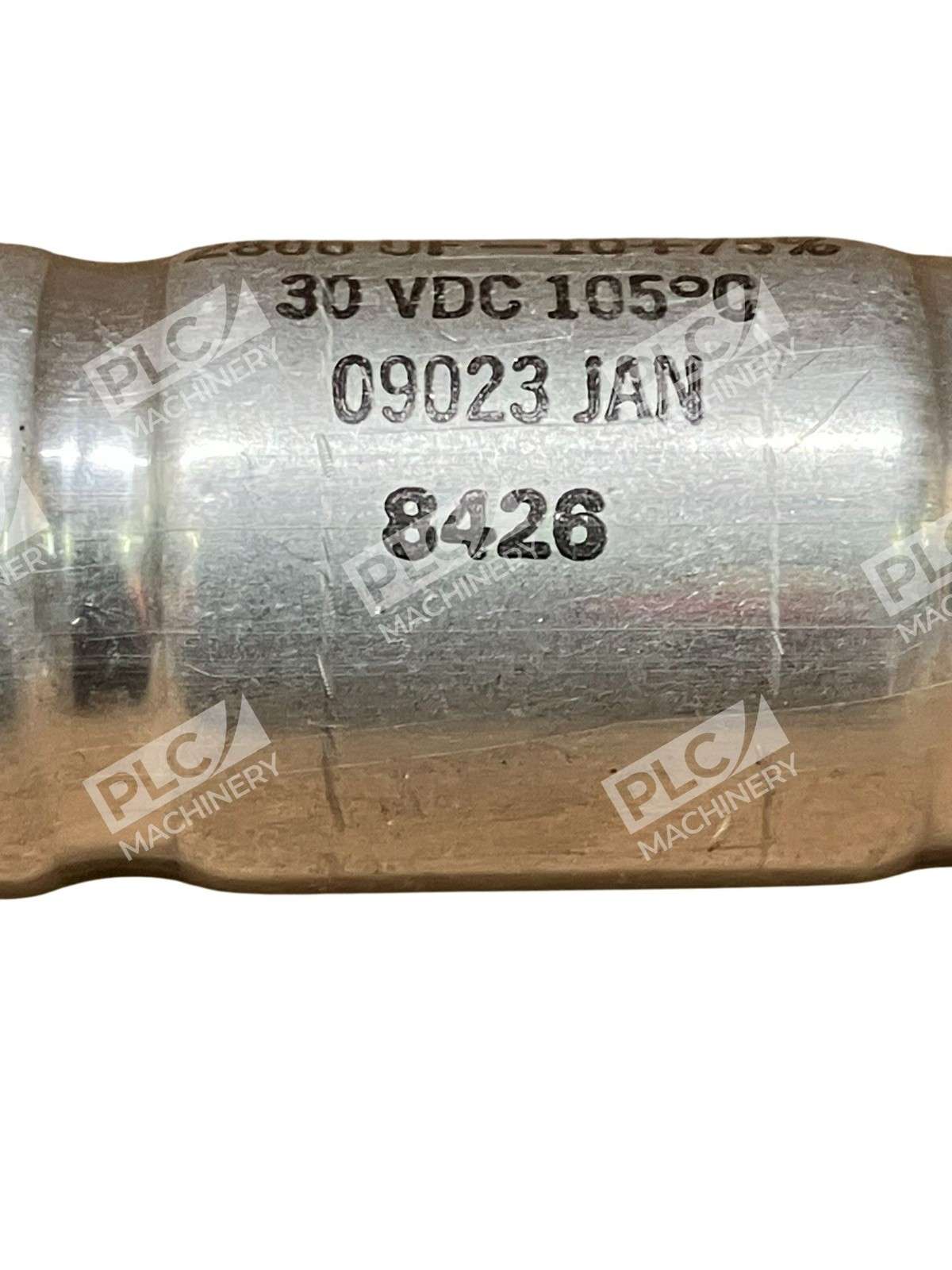

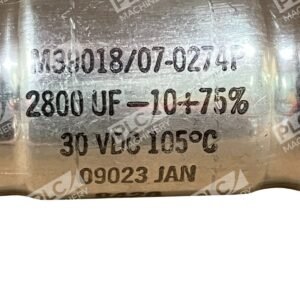

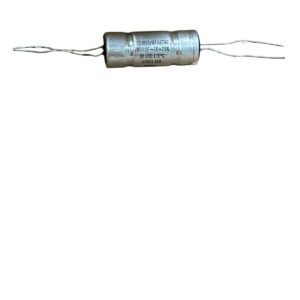

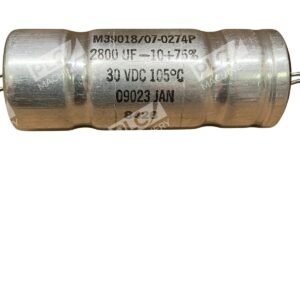

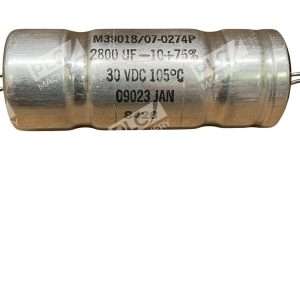

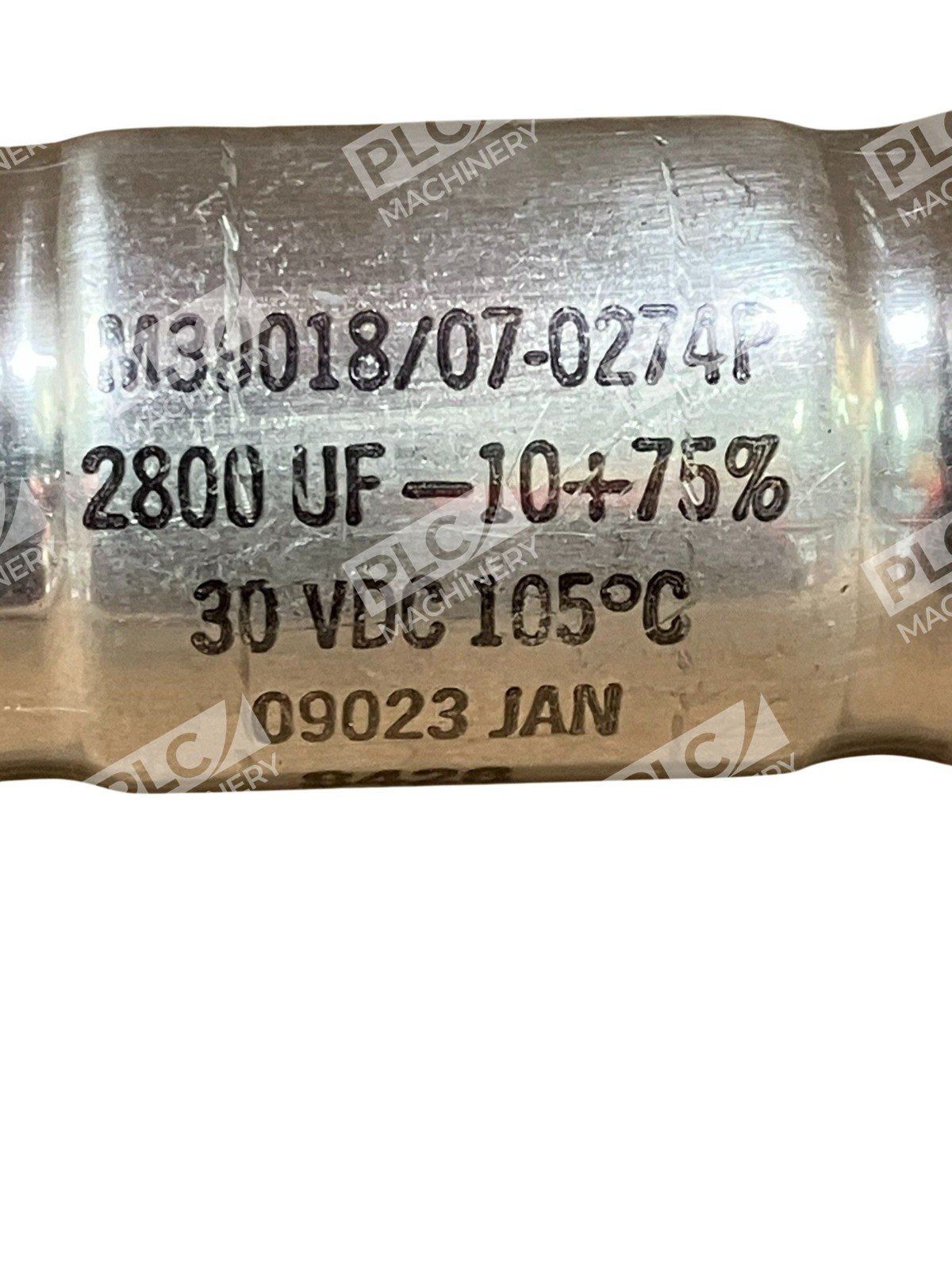

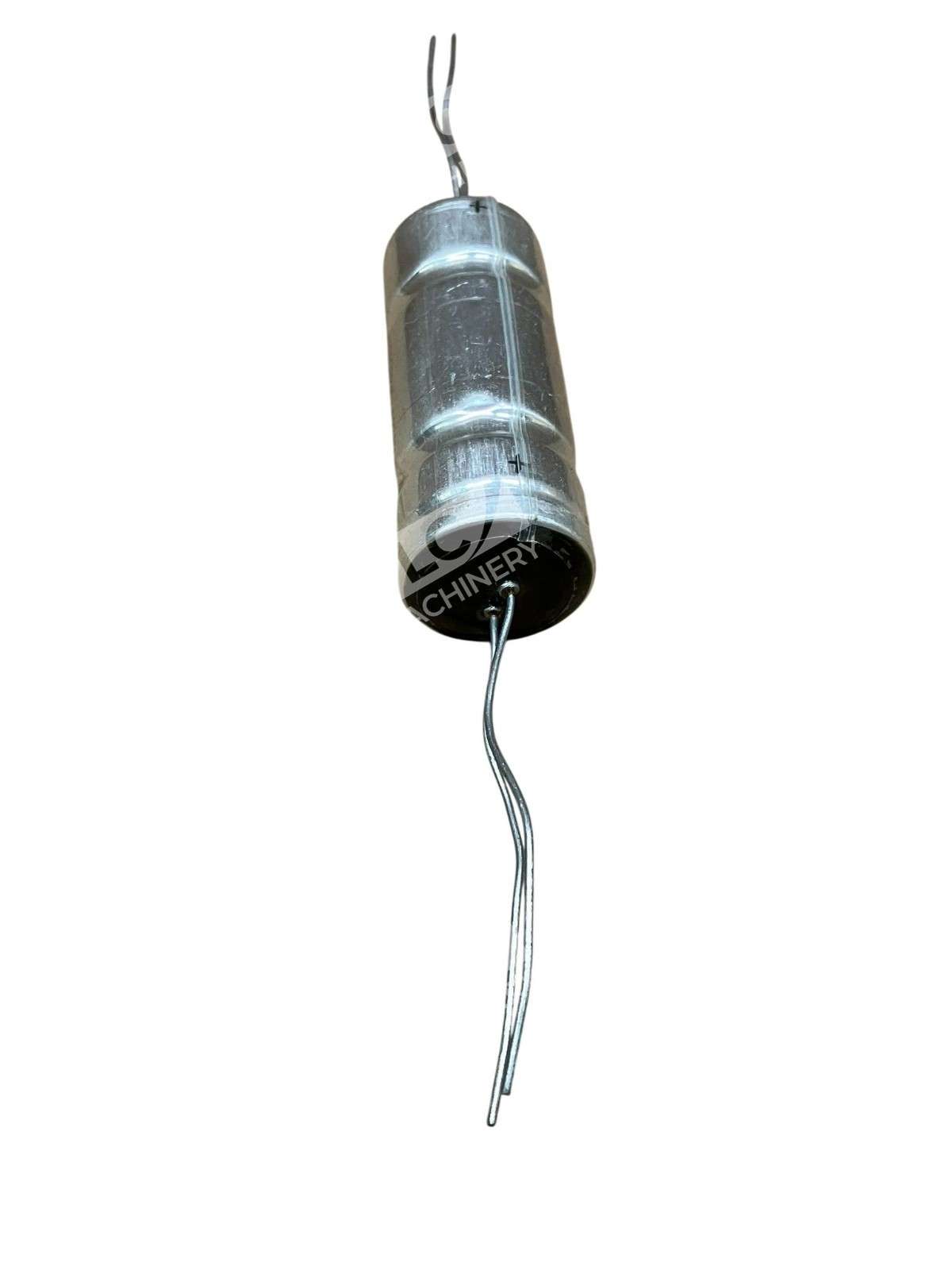

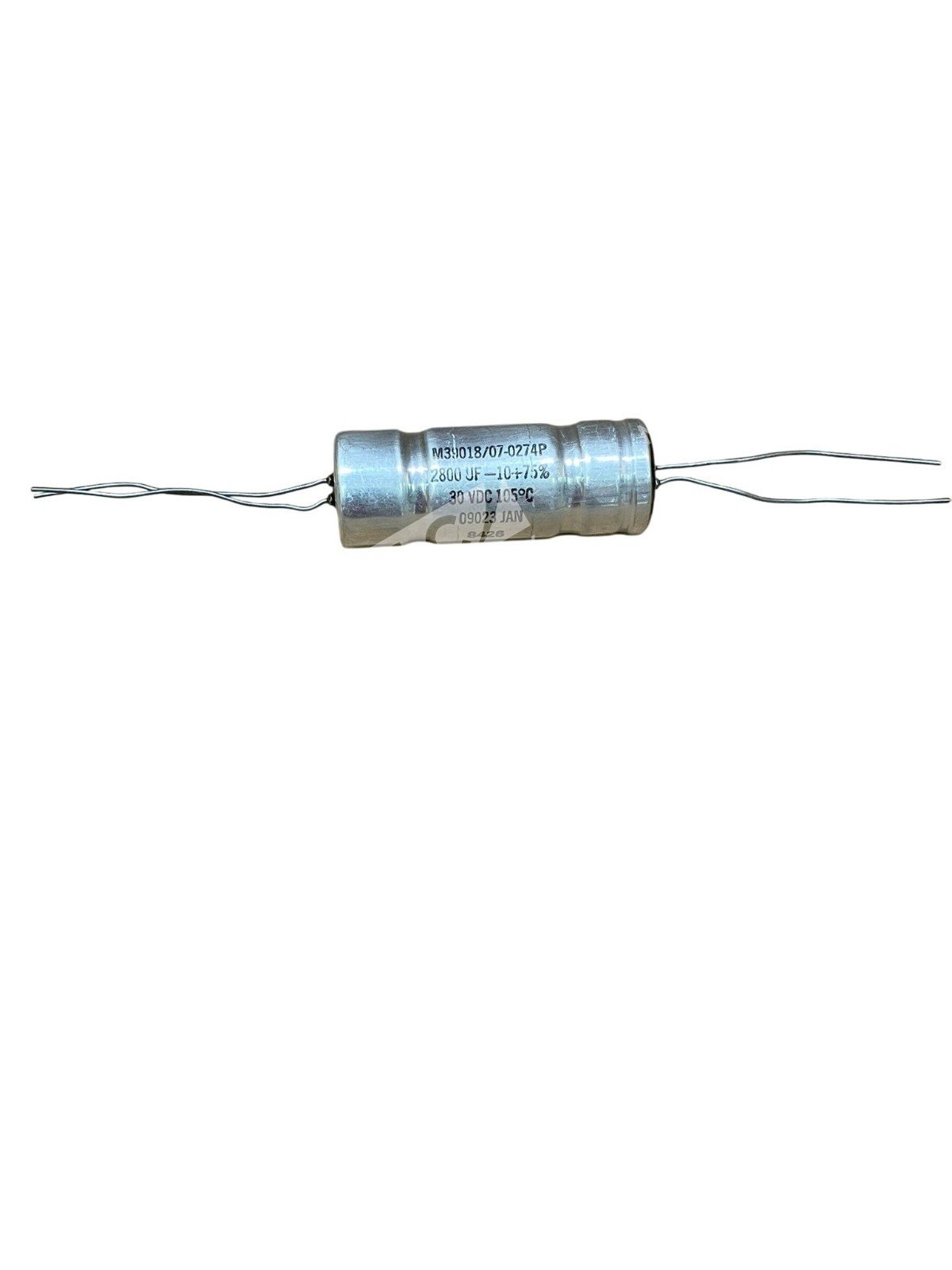

The M39018/07-0274P is a military-specification aluminum electrolytic capacitor rated for 2800µF capacitance at 30V DC. Built to meet MIL-SPEC requirements, this component is engineered for reliability in aerospace, defense, and industrial control systems where high capacitance storage and stable performance are critical. The axial-lead configuration enables straightforward integration into PCB assemblies and equipment retrofits.
Key Features
- 2800µF capacitance at 30V DC rating
- Military specification (M39018) construction and performance
- Aluminum electrolytic design for high capacitance density
- Axial lead configuration for standard PCB mounting
- Shrink-wrapped insulation sleeve for component protection
- Suitable for aerospace, defense, and industrial electronics
Technical Specifications
The following specifications are based on the MIL-SPEC M39018 standard and manufacturer data:
- Capacitance: 2800µF
- Voltage Rating: 30V DC
- Case Style: Aluminum, axial leads
- Lead Type: Axial (two ends)
- Insulation: Shrink-wrapped sleeve
- Standard: MIL-SPEC M39018
- Applications: Military, aerospace, industrial electronics
Typical Applications
The M39018/07-0274P is commonly found in:
- Aerospace and defense electronics systems
- Military power supplies and charge storage
- Industrial control equipment
- Retrofit and repair of legacy military equipment
- High-reliability filter circuits requiring large capacitance values
- Energy storage and power conditioning modules
Compatibility & Replacements
Compatible With
- MIL-SPEC M39018 aluminum electrolytic capacitor slot designs
- 30V DC power supply circuits and filter networks
- Aerospace and military equipment following M39018 specifications
- Industrial control systems with equivalent voltage and capacitance requirements
Replaces / Drop-In Replacement For
The M39018/07-0274P directly replaces other M39018 series components with identical capacitance (2800µF) and voltage (30V) ratings. Verify compatibility with your system integrator or original equipment documentation before ordering, as axial-lead spacing and physical dimensions may vary across manufacturers.
Works With
- MIL-SPEC military-grade power supply assemblies
- Aerospace avionics and control systems
- Industrial test and measurement equipment
- Legacy and vintage military electronic systems
- Custom retrofit and repair assemblies
