Overview

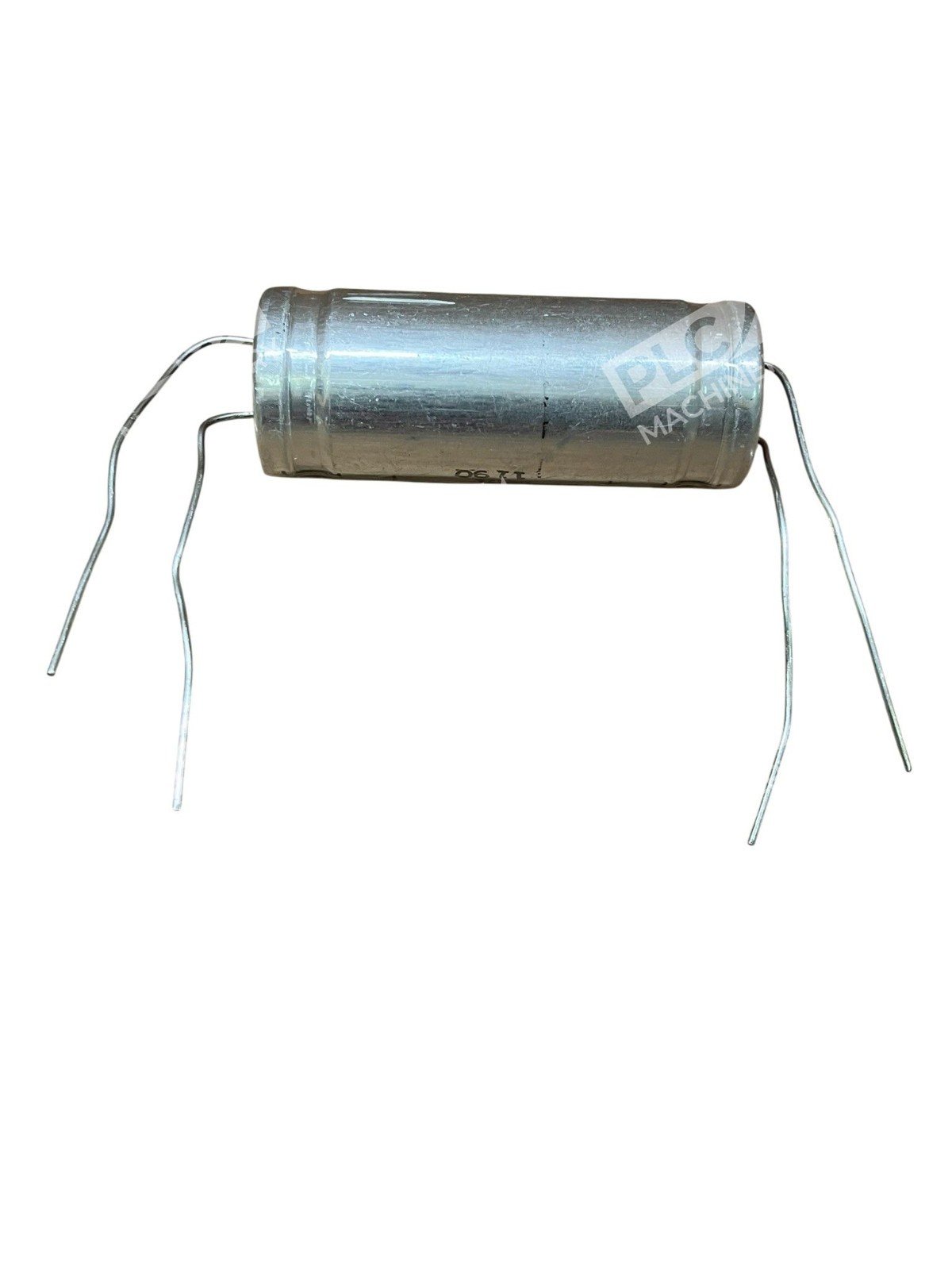

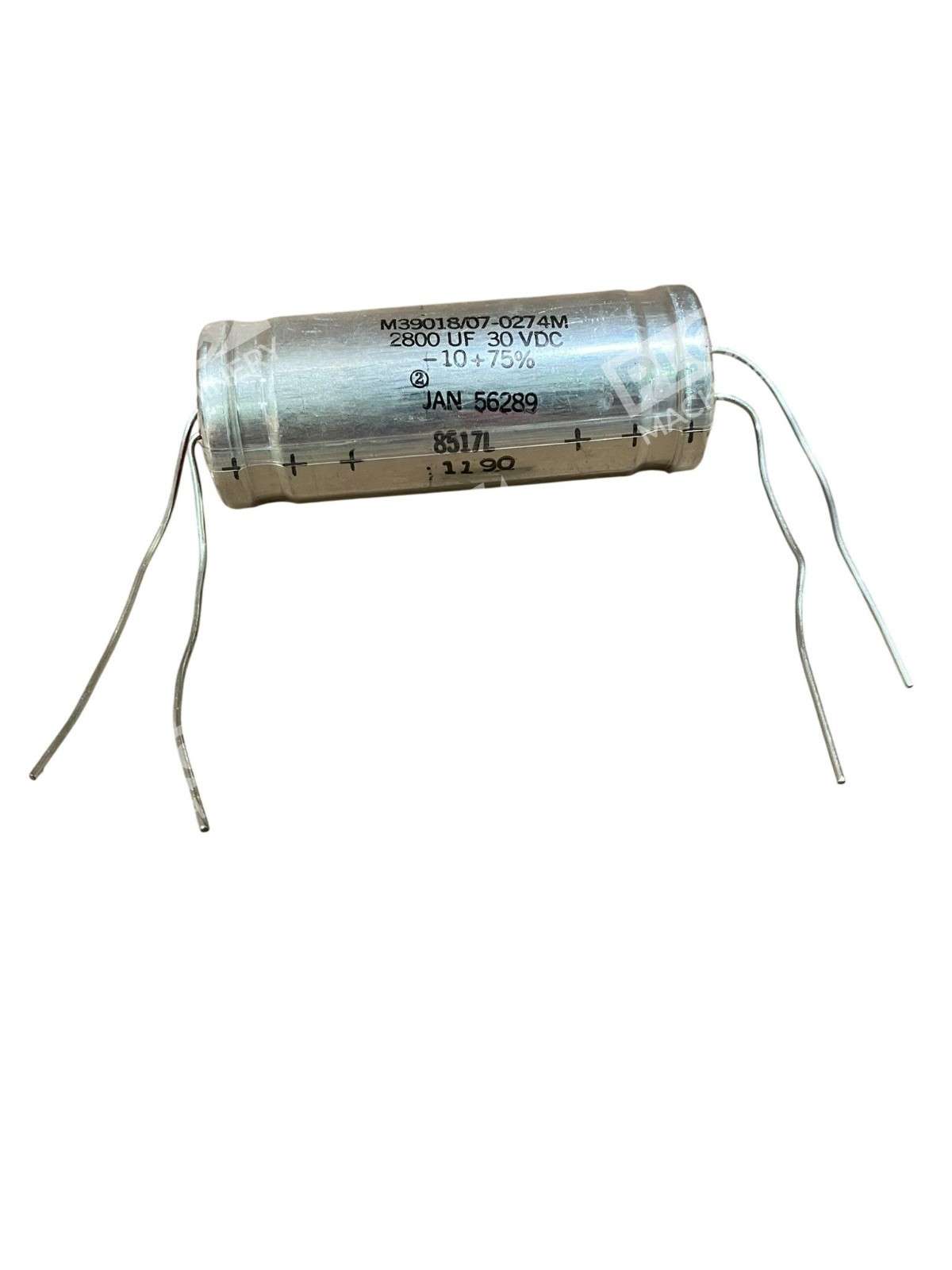

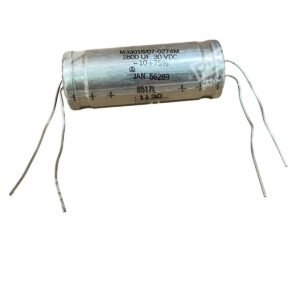

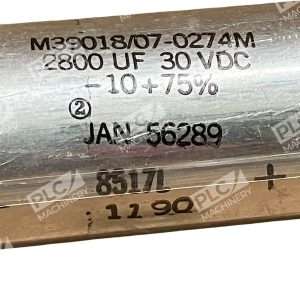

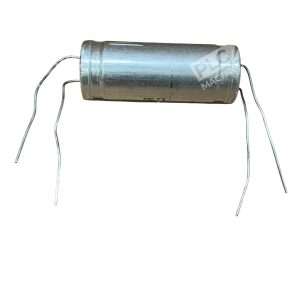

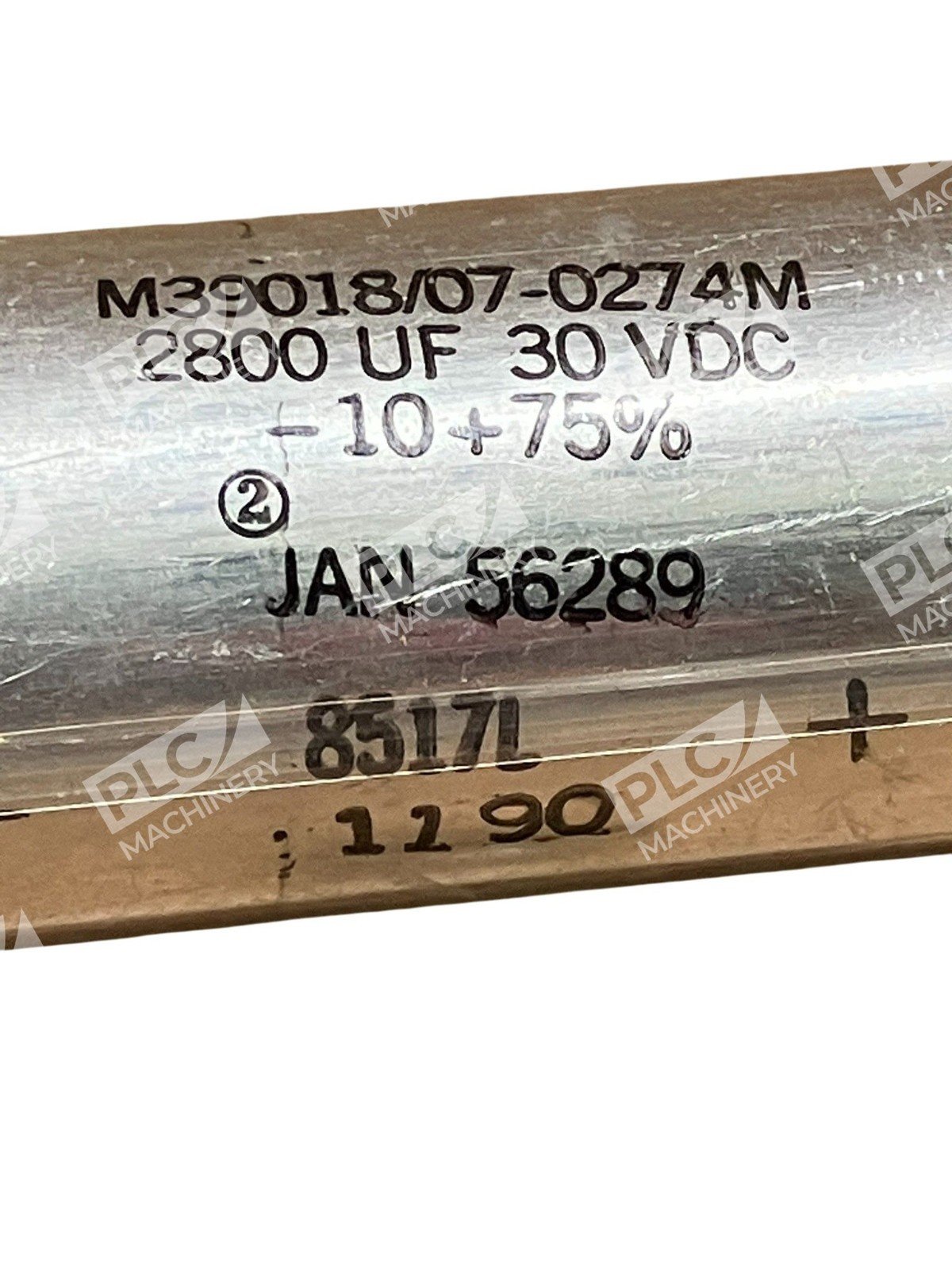

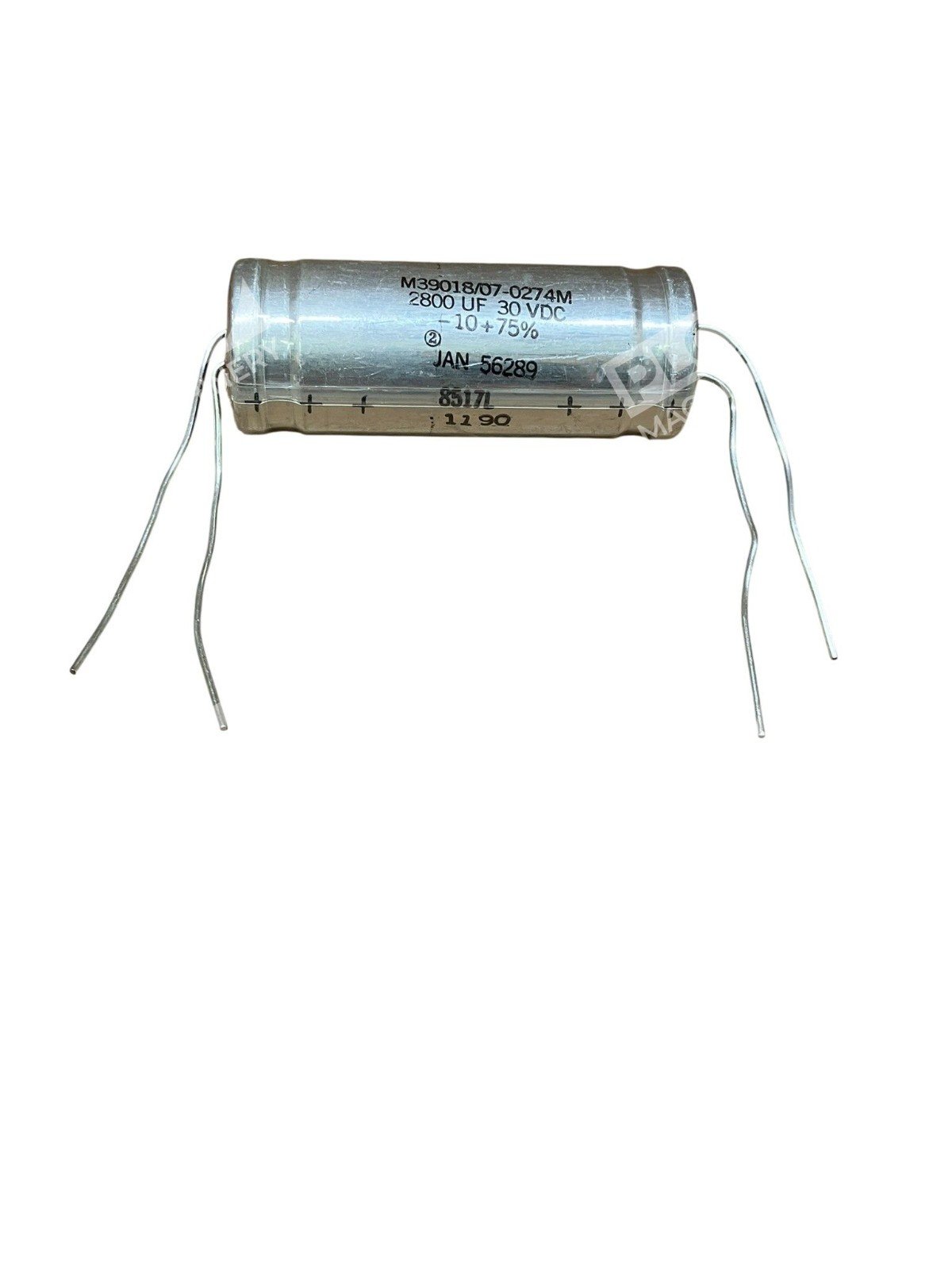

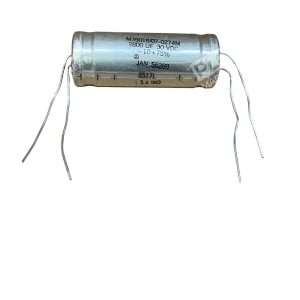

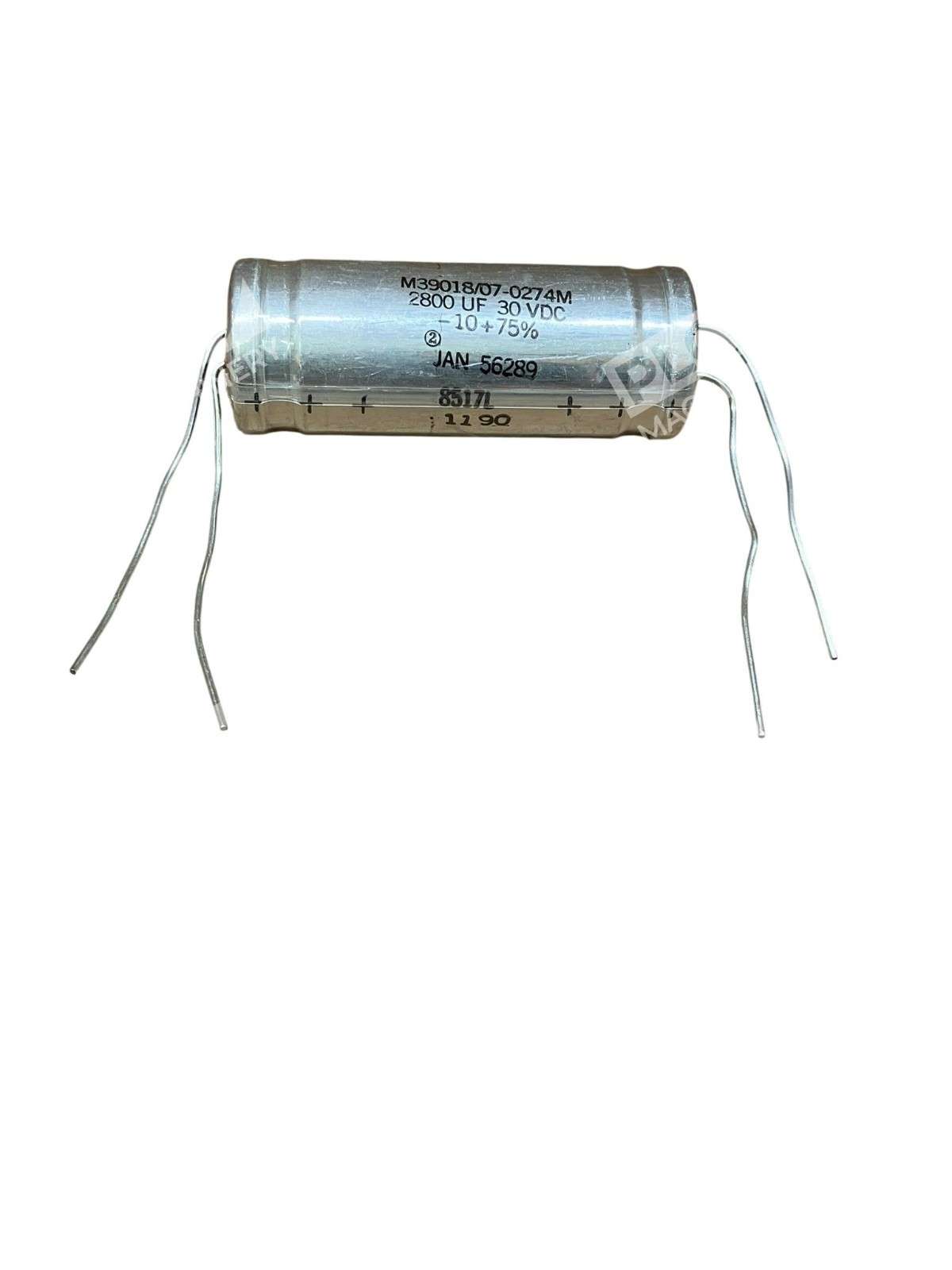

The M39018/07-0274M capacitor is a military-grade aluminum electrolytic component meeting stringent DoD specifications. With a capacitance of 2800µF and voltage rating of 30V, this CUR19-style, 4-terminal device delivers the high reliability demanded by aerospace, defense, and industrial control systems. Built to withstand extended temperature ranges and demanding operating conditions, the M39018/07-0274M is suitable for filtering, energy storage, and signal coupling applications where failure is not an option.
Key Features
- Military-specification design meeting DoD standards
- 4-terminal tubular axial lead configuration for robust interconnection
- Wide operating temperature range of -55°C to +105°C
- High capacitance density: 2800µF at 30V rating
- CUR19 form factor ensures space-efficient placement
- Proven performance in aerospace, defense, and industrial equipment
Technical Specifications
- Capacitance: 2800µF
- Voltage Rating: 30V DC
- Form Factor: CUR19 (4-terminal tubular axial lead)
- Operating Temperature Range: -55°C to +105°C
- Type: Aluminum electrolytic
- Specification: MIL-Spec M39018/07
- Terminals: 4-terminal
- Style: Tubular axial lead
Typical Applications
- Power supply filtering in military and aerospace systems
- Energy storage in industrial control circuits
- Signal coupling in communication equipment
- Voltage ripple reduction in high-reliability systems
- Retrofit and repair of legacy aerospace platforms
- Defense electronics requiring proven component lineage
Compatibility & Replacements
Compatible With
- Military and aerospace power supply designs
- Industrial control systems requiring MIL-Spec components
- Defense electronics platforms and subsystems
- Legacy equipment supporting M39018/07 series capacitors
Replaces / Drop-In Replacement For
- Original equipment manufacturer (OEM) applications calling for M39018/07-0274M
- Other M39018/07 variants with matching voltage and capacitance ratings
- Verify pinout and lead configuration before substitution
Works With
- Power supply circuits and filtering applications
- Standard PCB assembly processes
- Axial lead soldering equipment
- Printed circuit boards designed for CUR19 footprints
