Overview

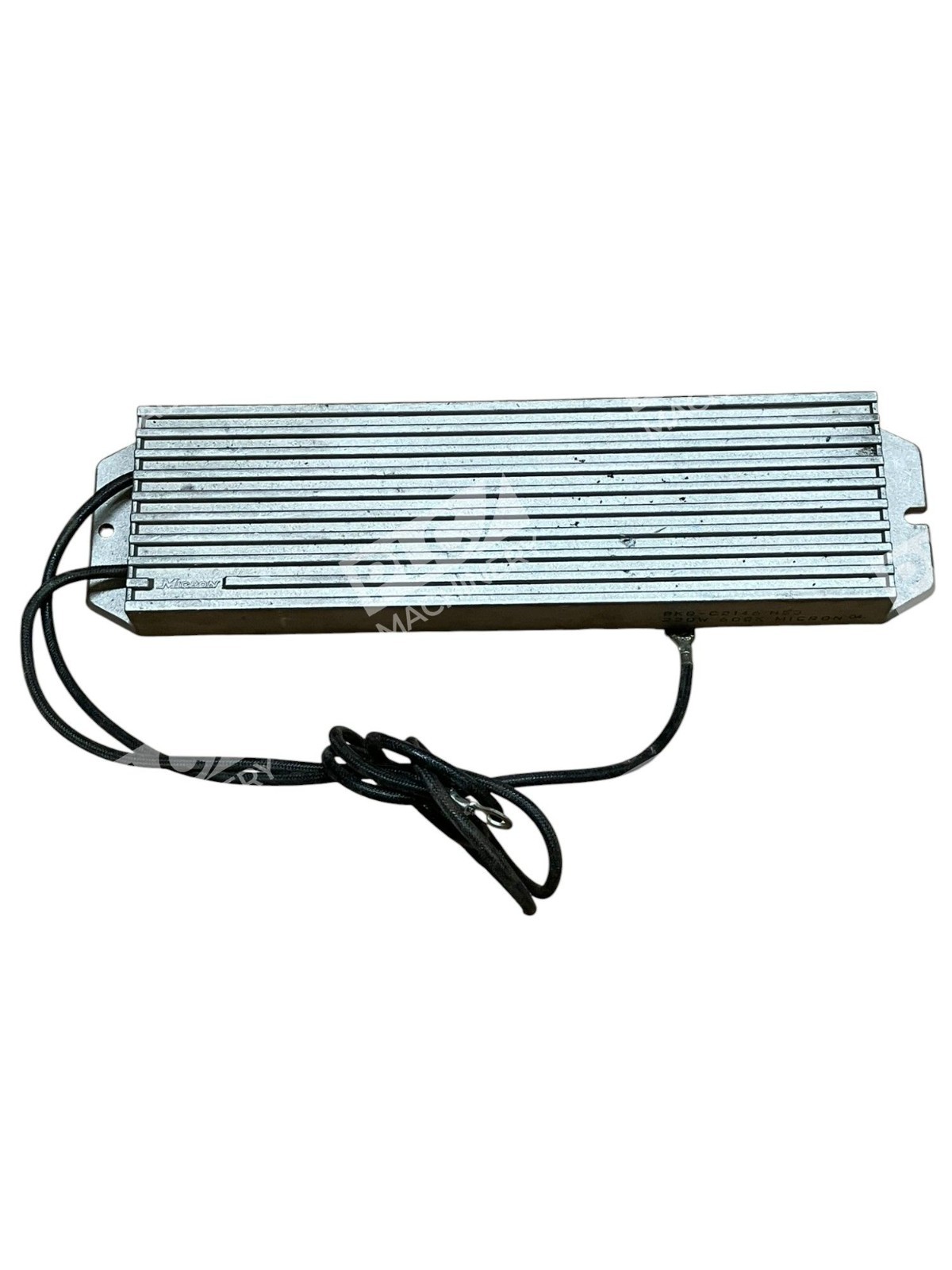

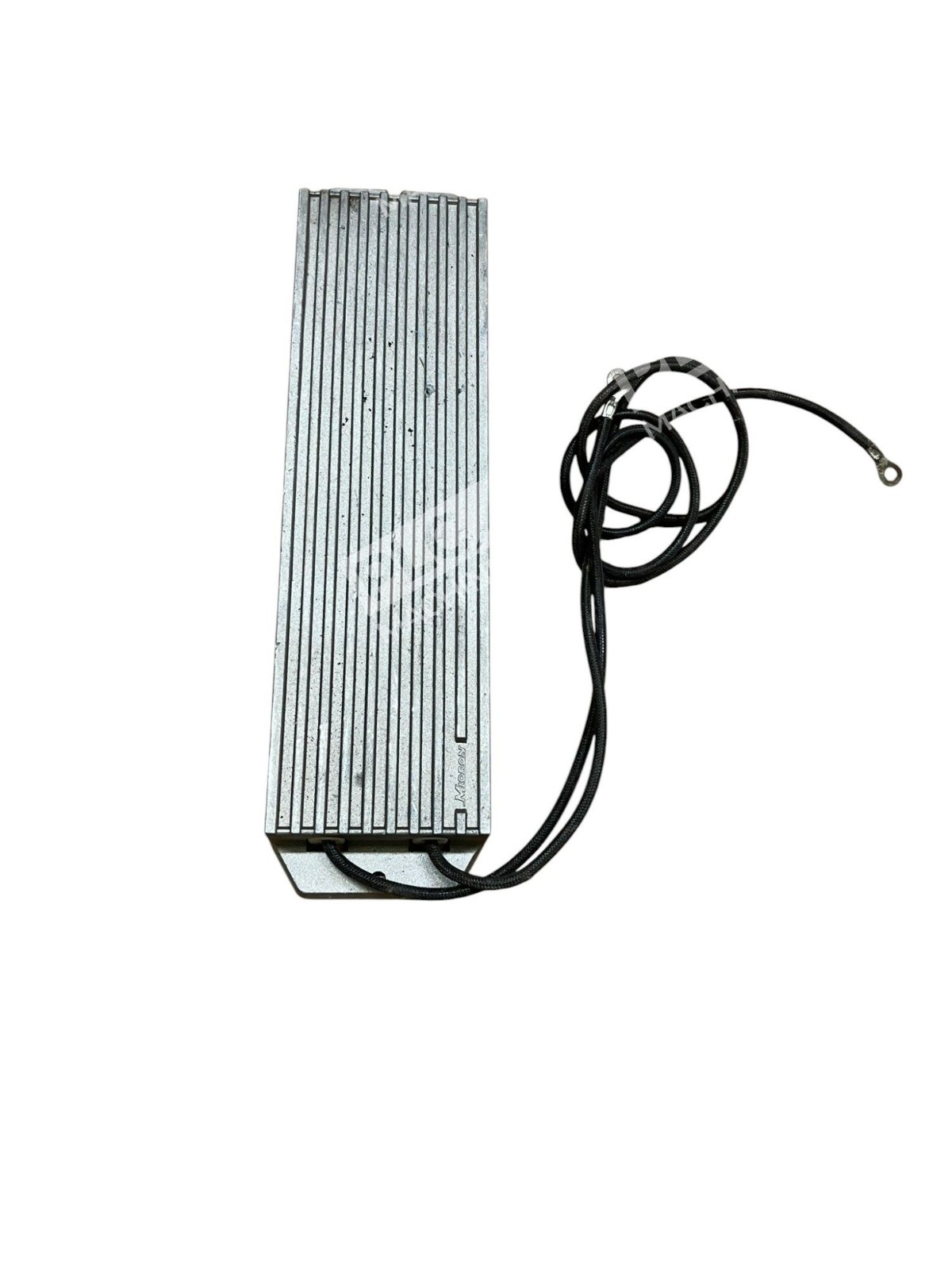

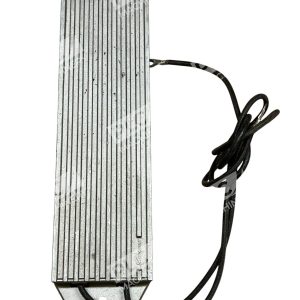

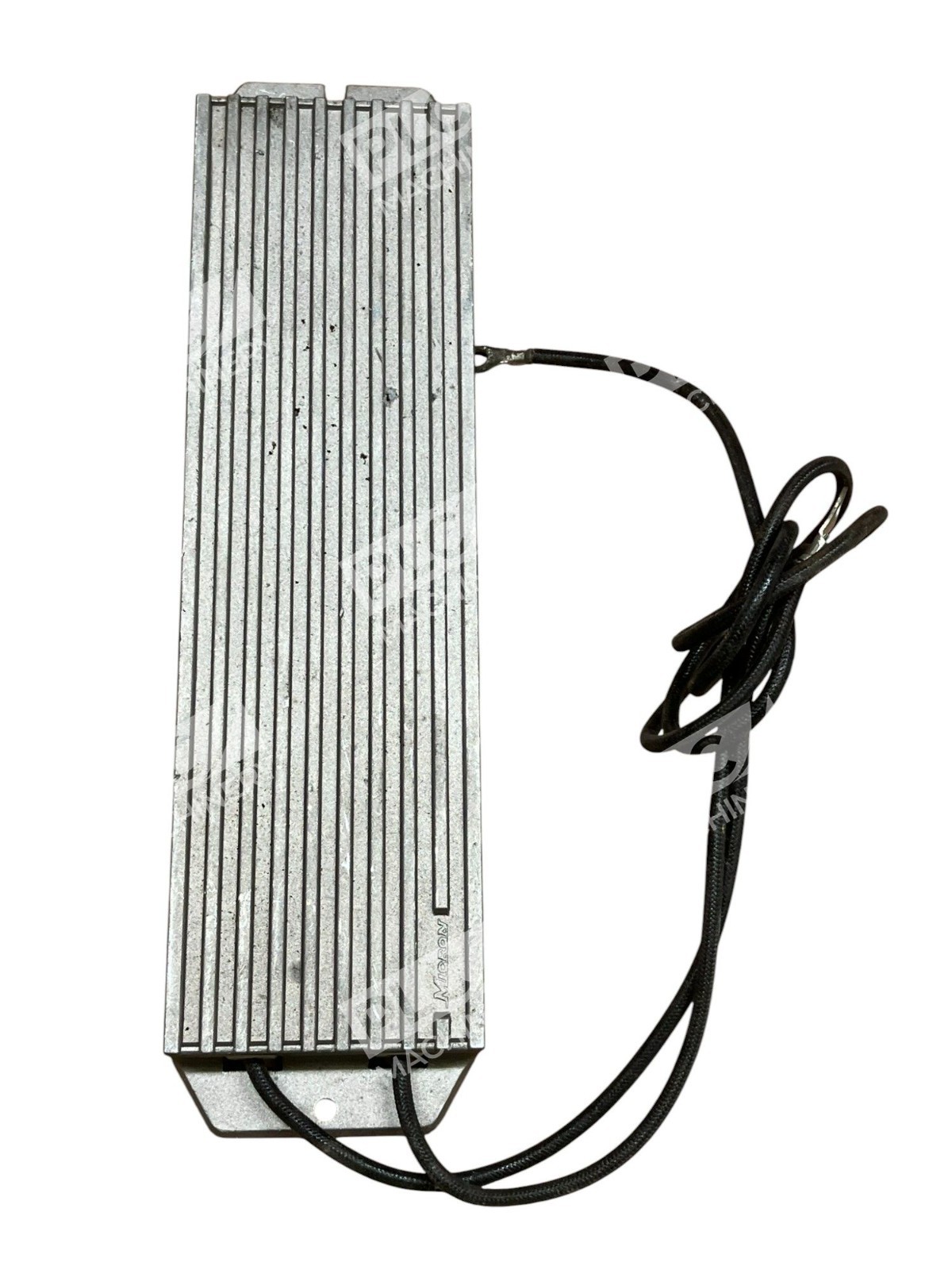

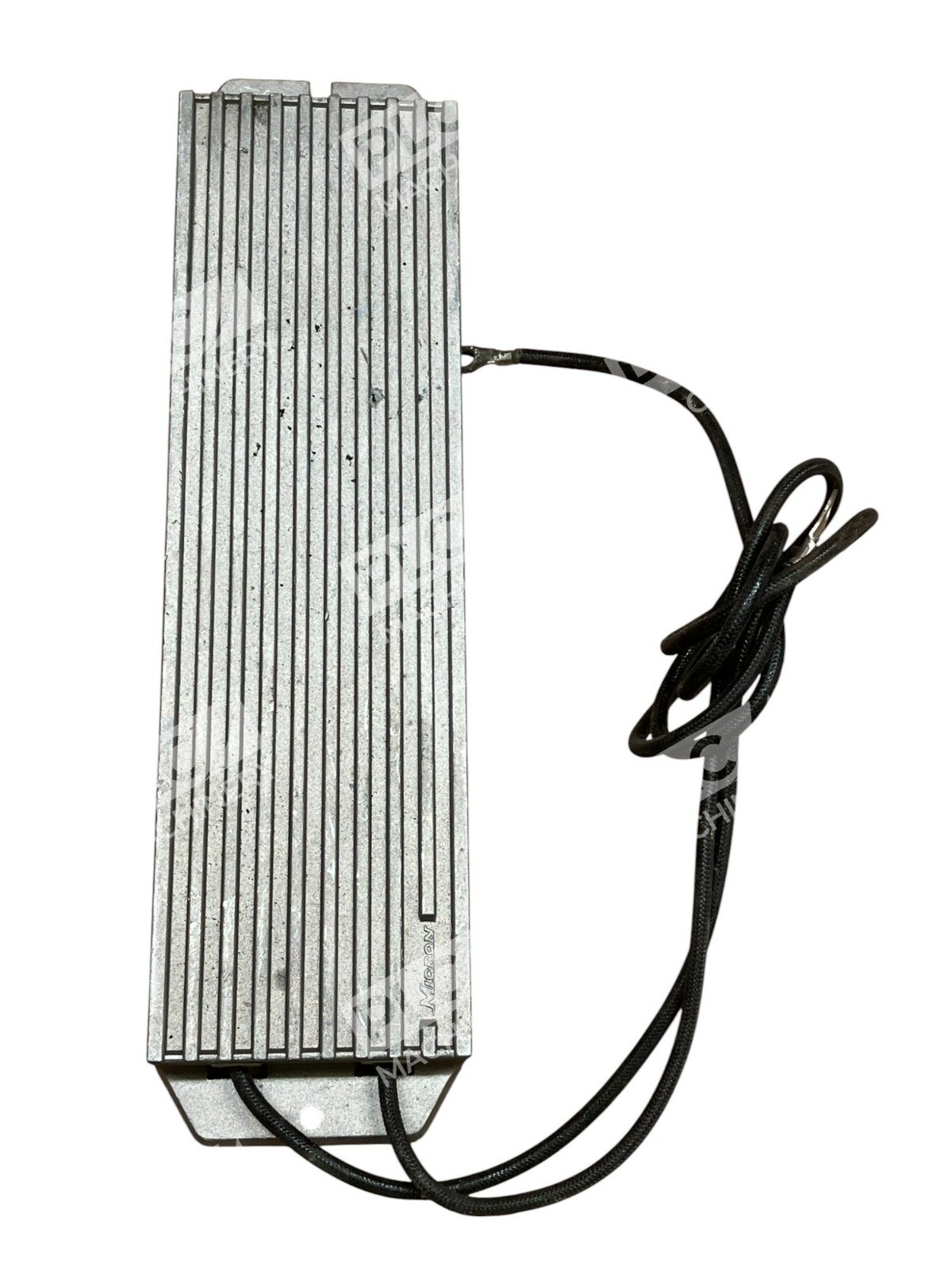

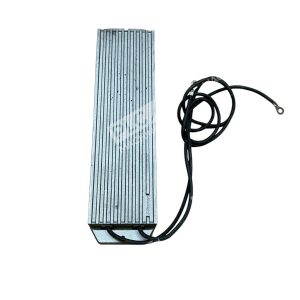

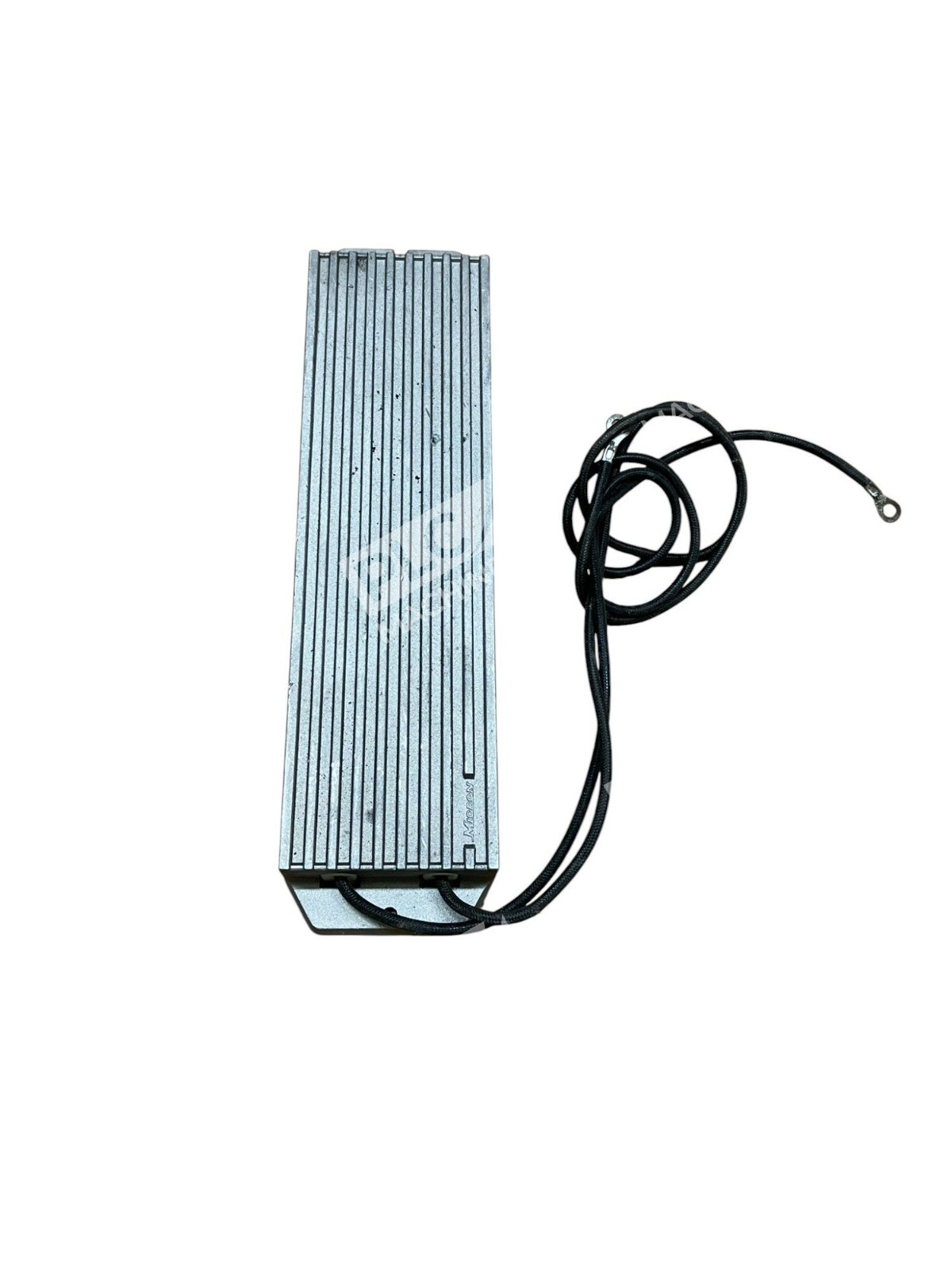

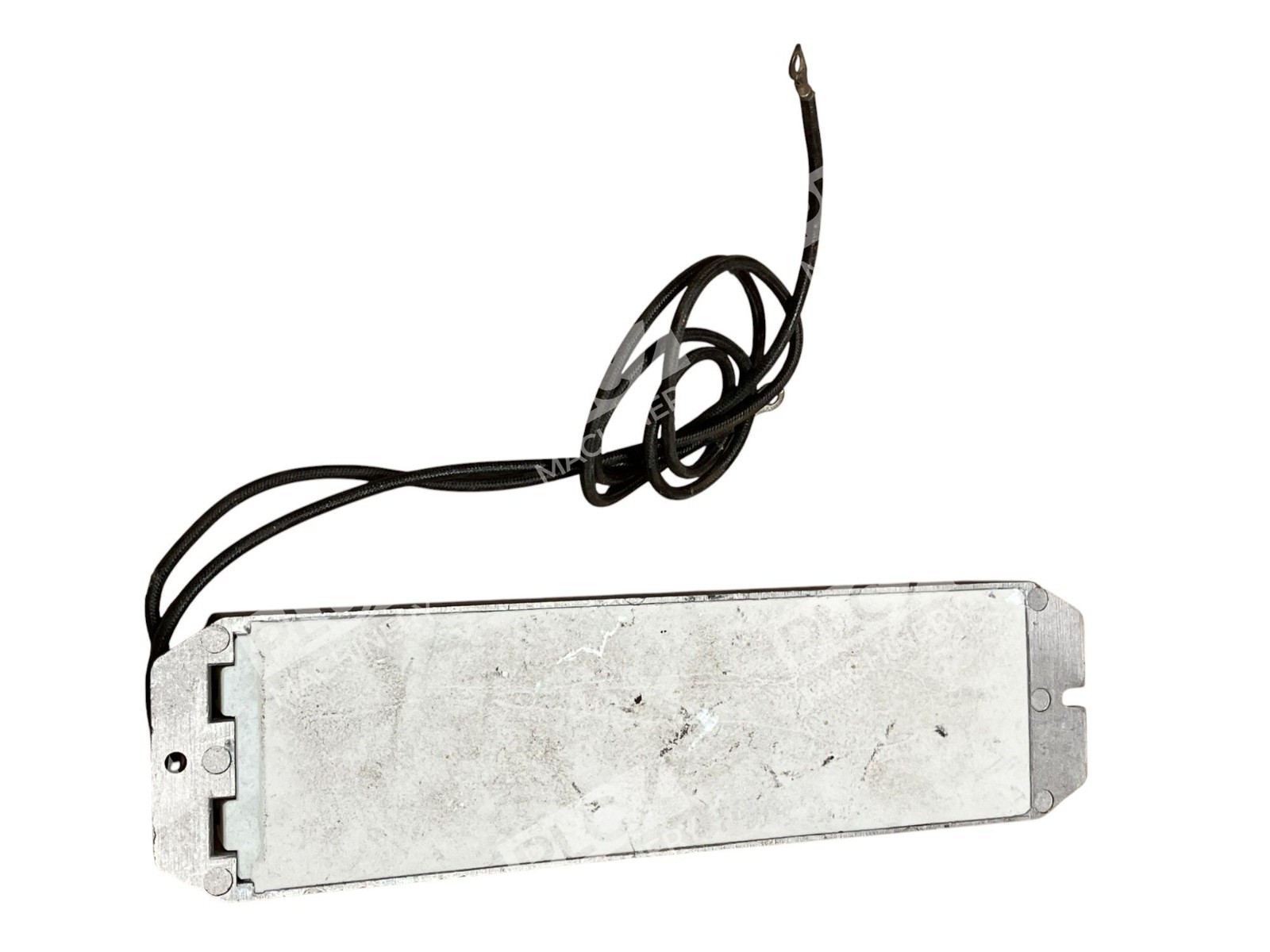

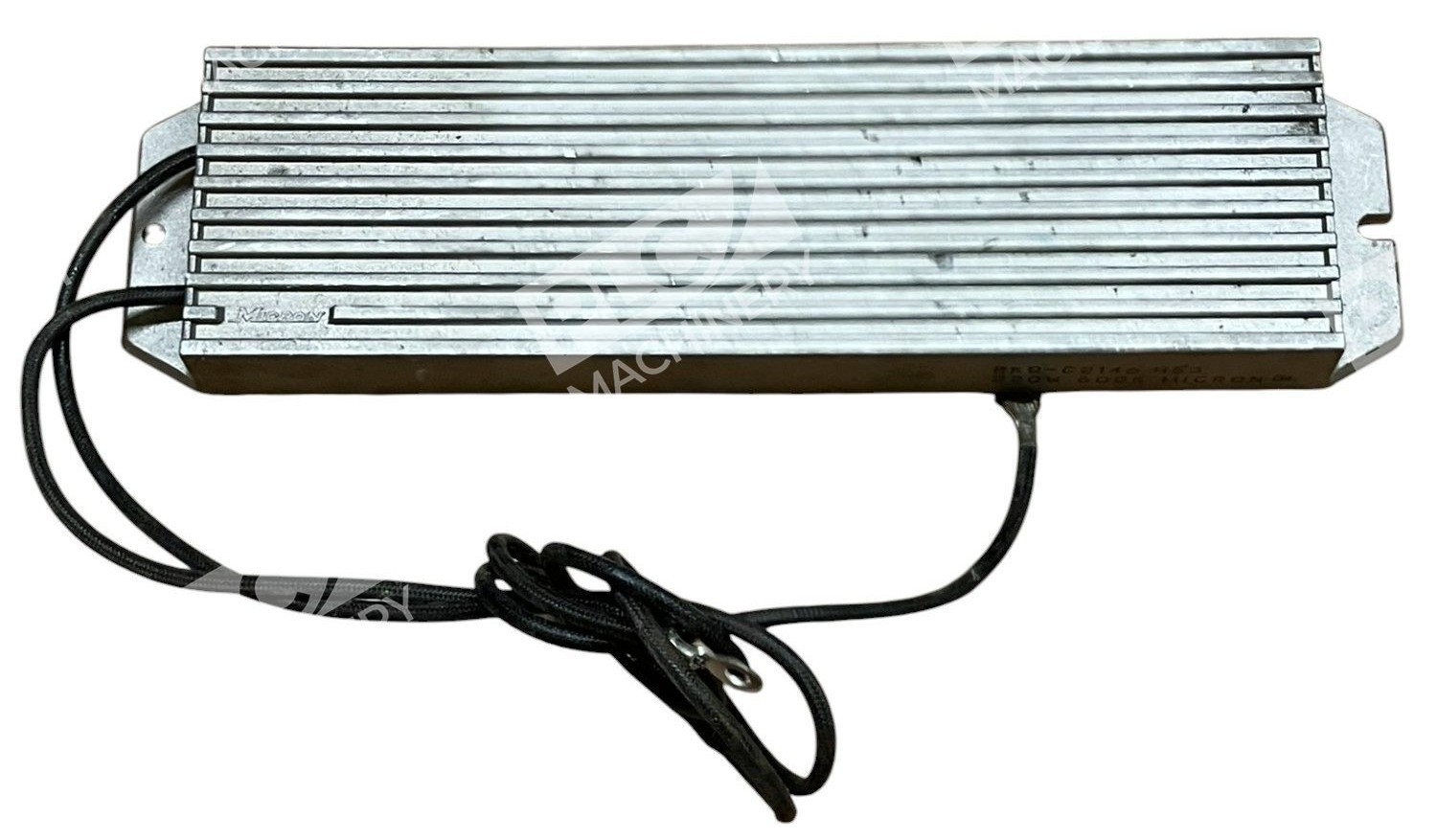

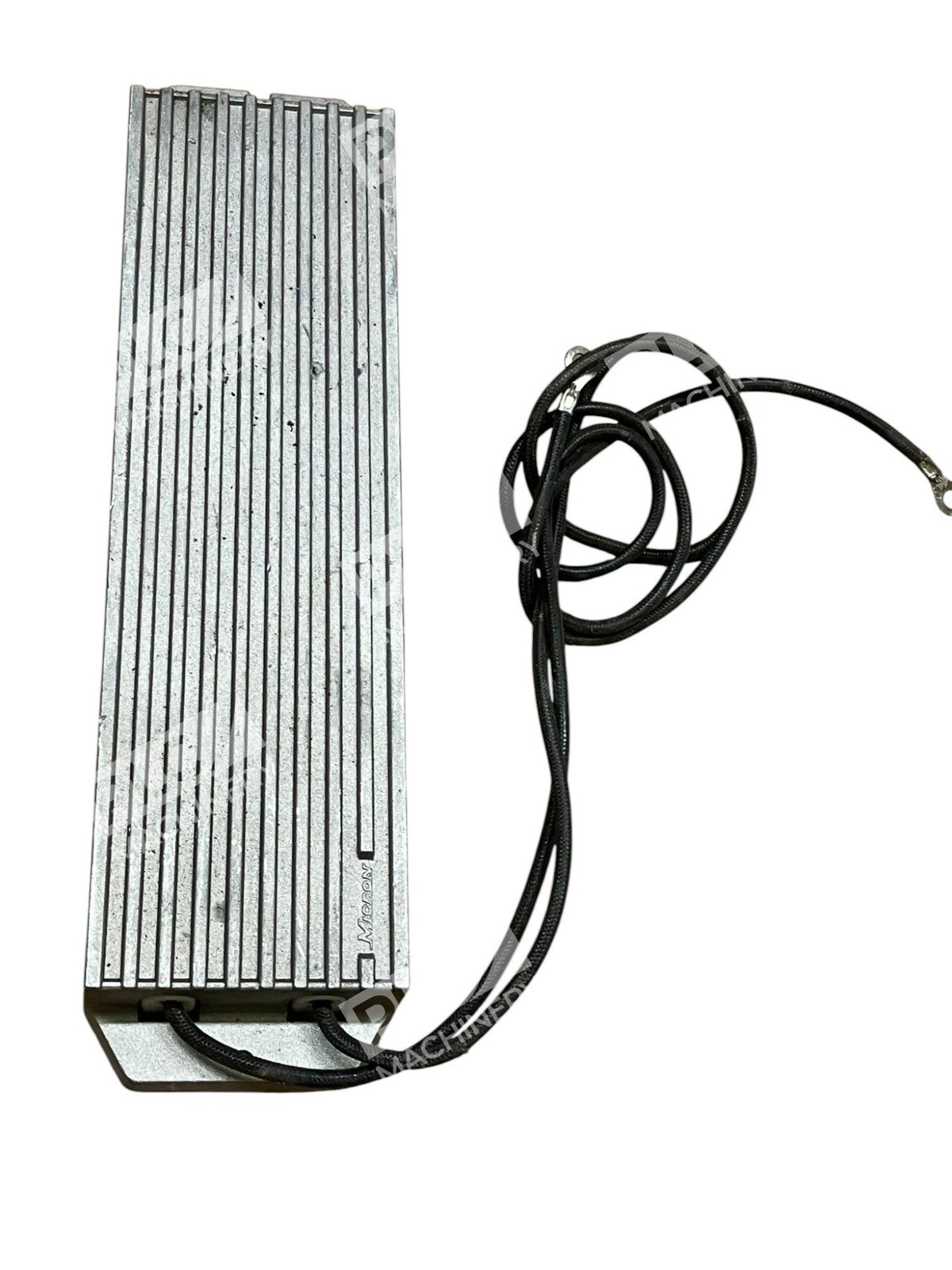

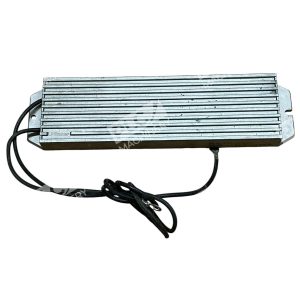

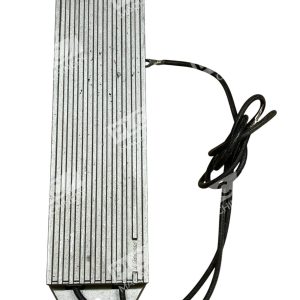

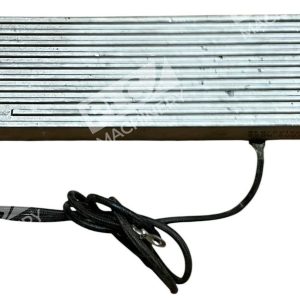

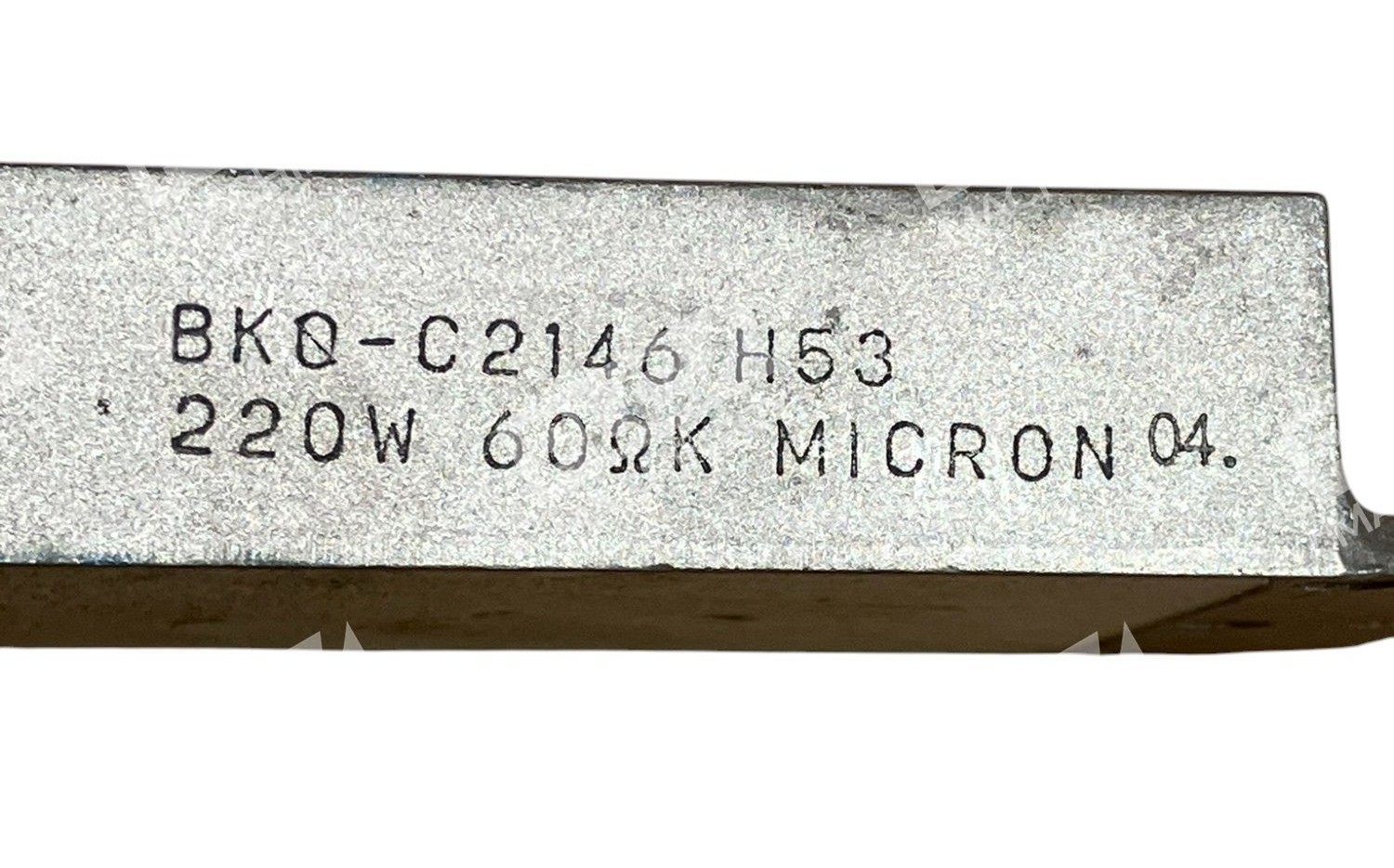

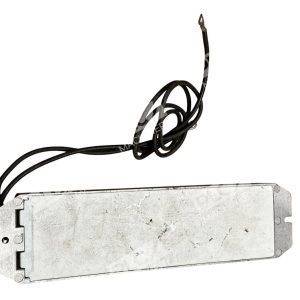

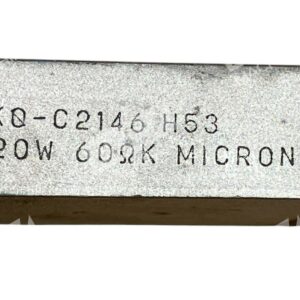

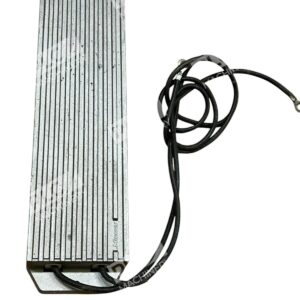

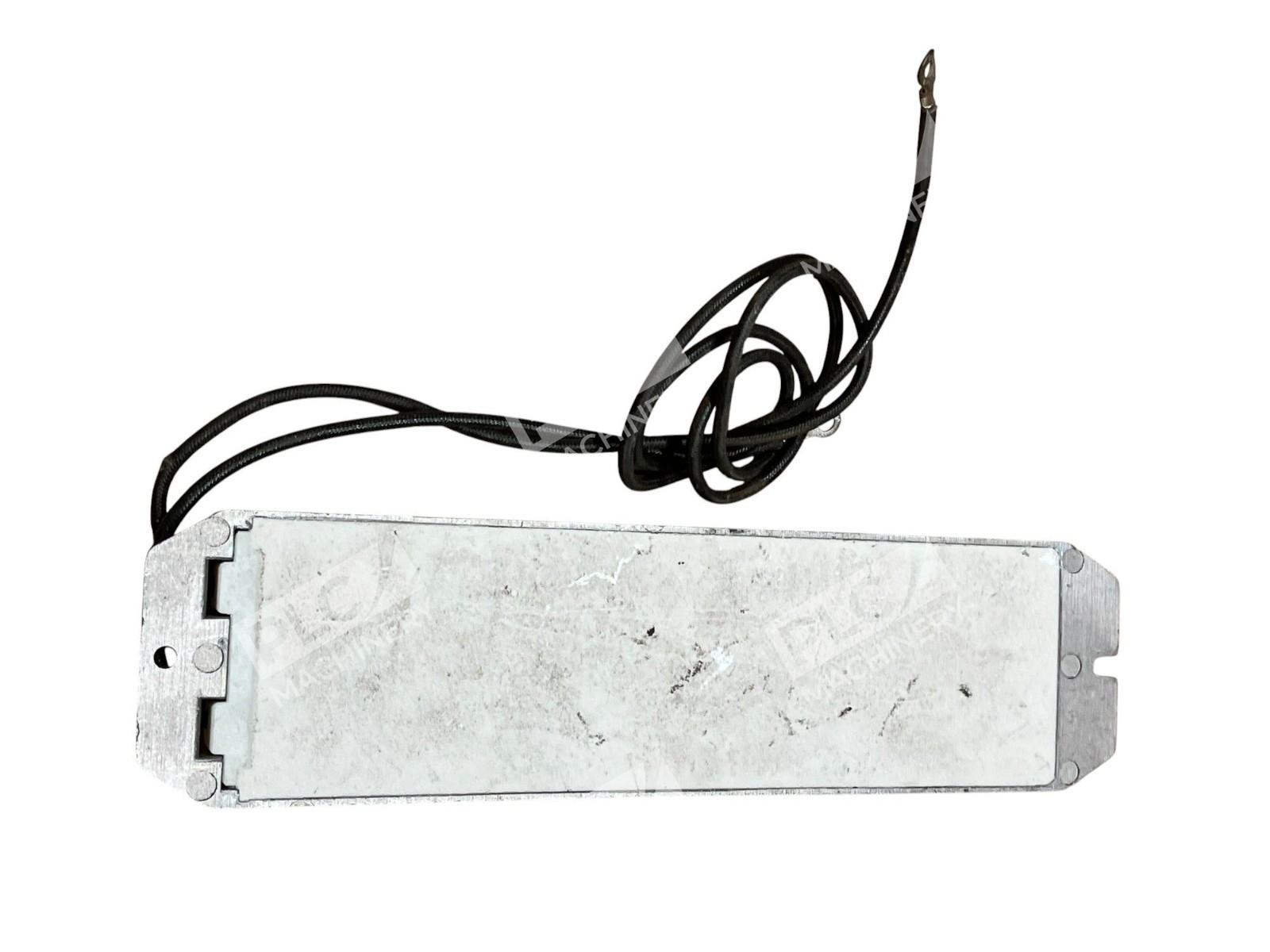

The MF Power Resistors BK0-C2146 H53 is a heavy-duty fixed resistor engineered for demanding industrial applications requiring precise power dissipation and current control. With a power rating of 220W and resistance value of 60 Ohms, this unit delivers reliable performance in braking circuits, load banks, and dynamic braking systems. The BK0-C2146 is part of MF Power Resistors’ established lineup of wire-wound power resistors, trusted for their durability and thermal stability in continuous-duty applications.
Key Features
- 220W power rating for high-current dissipation
- 60 Ohm resistance value, suitable for motor braking and regenerative systems
- Wire-wound construction for reliable thermal performance
- Industrial-grade design for manufacturing, materials handling, and automotive applications
- Compact form factor enabling efficient mounting in control cabinets
- Proven reliability in variable frequency drive (VFD) braking circuits
Technical Specifications
This resistor is designed to handle the thermal demands of industrial drive systems, dissipating excess energy during motor deceleration and emergency stop scenarios. The 60 Ohm rating is standard for many mid-range VFD braking applications where proportional control and energy absorption are critical.
Typical Applications
- VFD dynamic braking resistors
- Motor soft-starters and reduced-voltage starters
- Load banks and power distribution testing
- Industrial machinery deceleration circuits
- Automotive and materials-handling equipment braking systems
Compatibility & Replacements
Compatible With
- Allen-Bradley PowerFlex VFD series (select models)
- Siemens MICROMASTER and SINAMICS drives
- Mitsubishi FR-A series inverters
- Schneider Electric Altivar variable frequency drives
- ABB ACS series frequency converters
- General-purpose braking circuits requiring 60 Ohm resistive loads
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The BK0-C2146 is a discontinued/surplus model; check OEM documentation or contact technical support to confirm direct replacement applicability with your drive model.
Works With
- EtherNet/IP networks (if integrated into larger control systems)
- PROFINET-enabled automation systems
- Standard 3-phase power distribution systems
- DC link braking circuits in frequency converters
