Overview

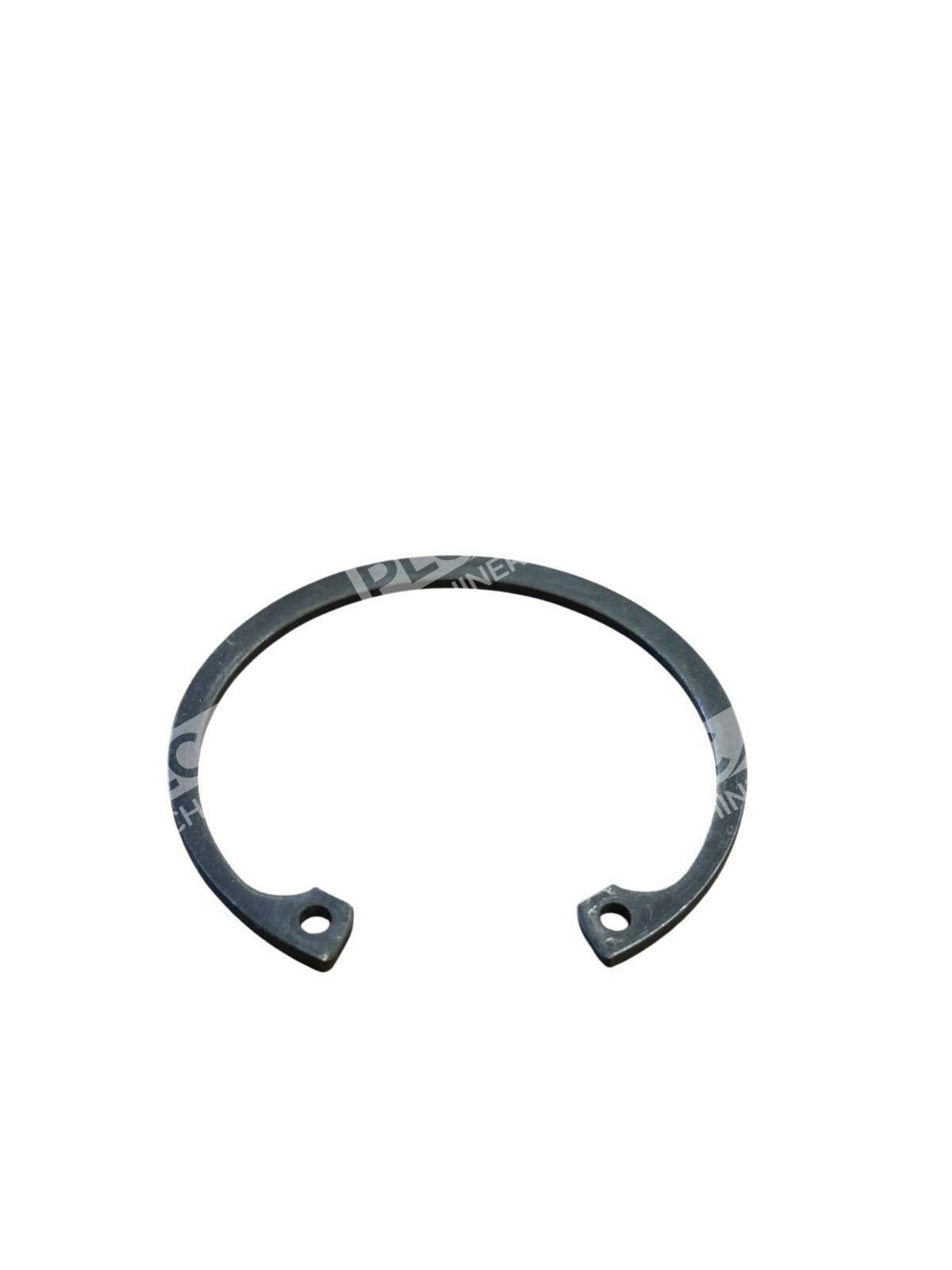

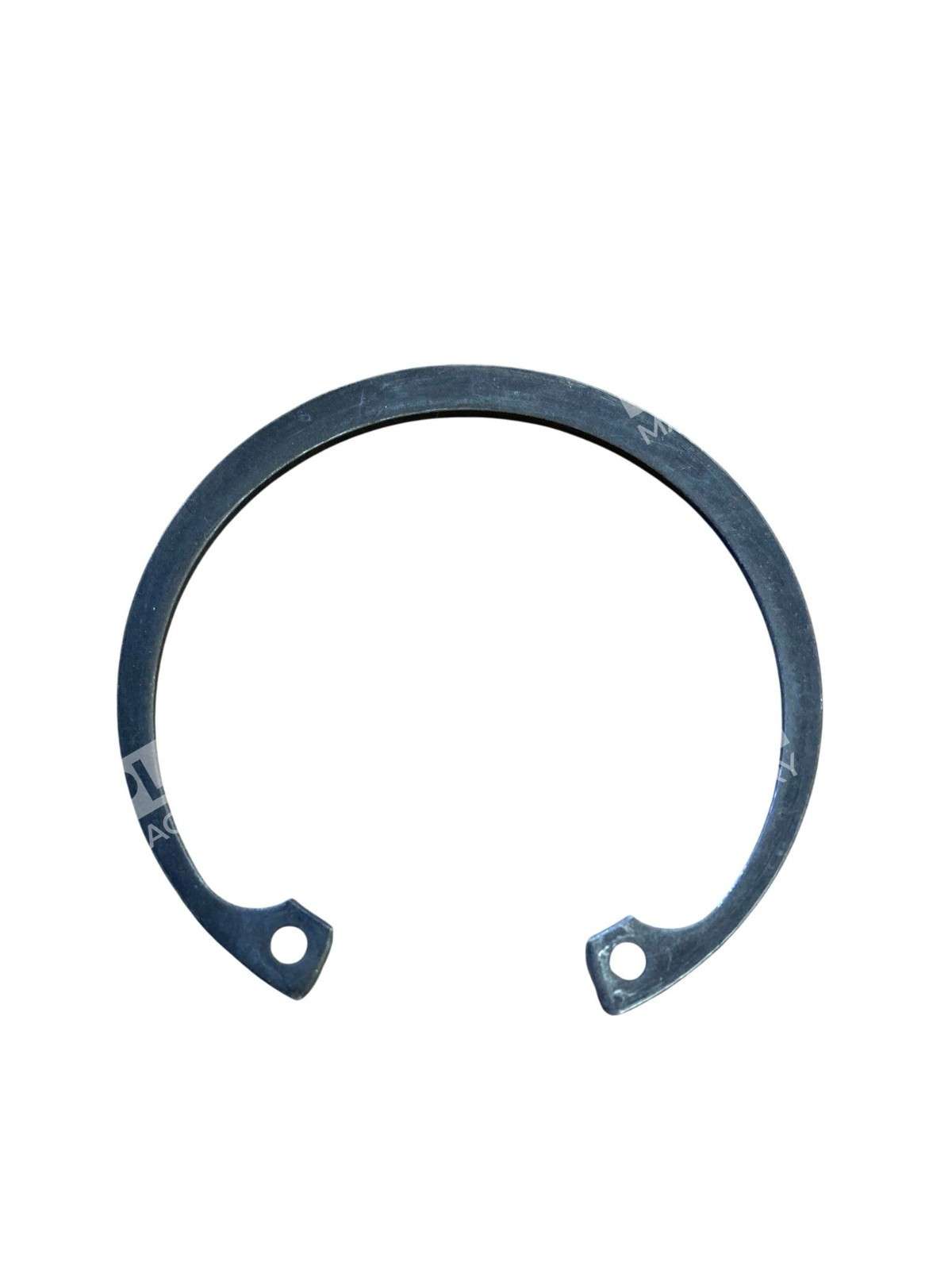

The Rotor Clip HO-193ST PA is a tapered-section internal circlip engineered for precision bore retention in motors, pumps, gearboxes, and other rotating equipment. This snap ring is designed to install into a housing groove and prevent axial movement of components along the bore. The HO-193ST PA model represents Rotor Clip’s quality standard for internal retaining rings used across industrial machinery, automotive, and fluid power applications.
Key Features
- Carbon steel construction with black phosphate finish for corrosion resistance
- 0.062″ thickness with tapered section design for secure seating
- Axially assembled internal circlip with protruding shoulder for positive retention
- Suitable for high-speed and dynamic load applications
- Drop-in replacement across equivalent bore sizes in Rotor Clip HO series
Technical Specifications
- Bore Diameter: 1.94″ (1-15/16″)
- Thickness: 0.062″
- Material: Carbon Steel (SAE 1060–1090)
- Finish: Black Phosphate
- Ring Type: Internal Circlip (Tapered Section)
- Design Standard: Rotor Clip HO Series
- Installation Method: Axially assembled groove installation

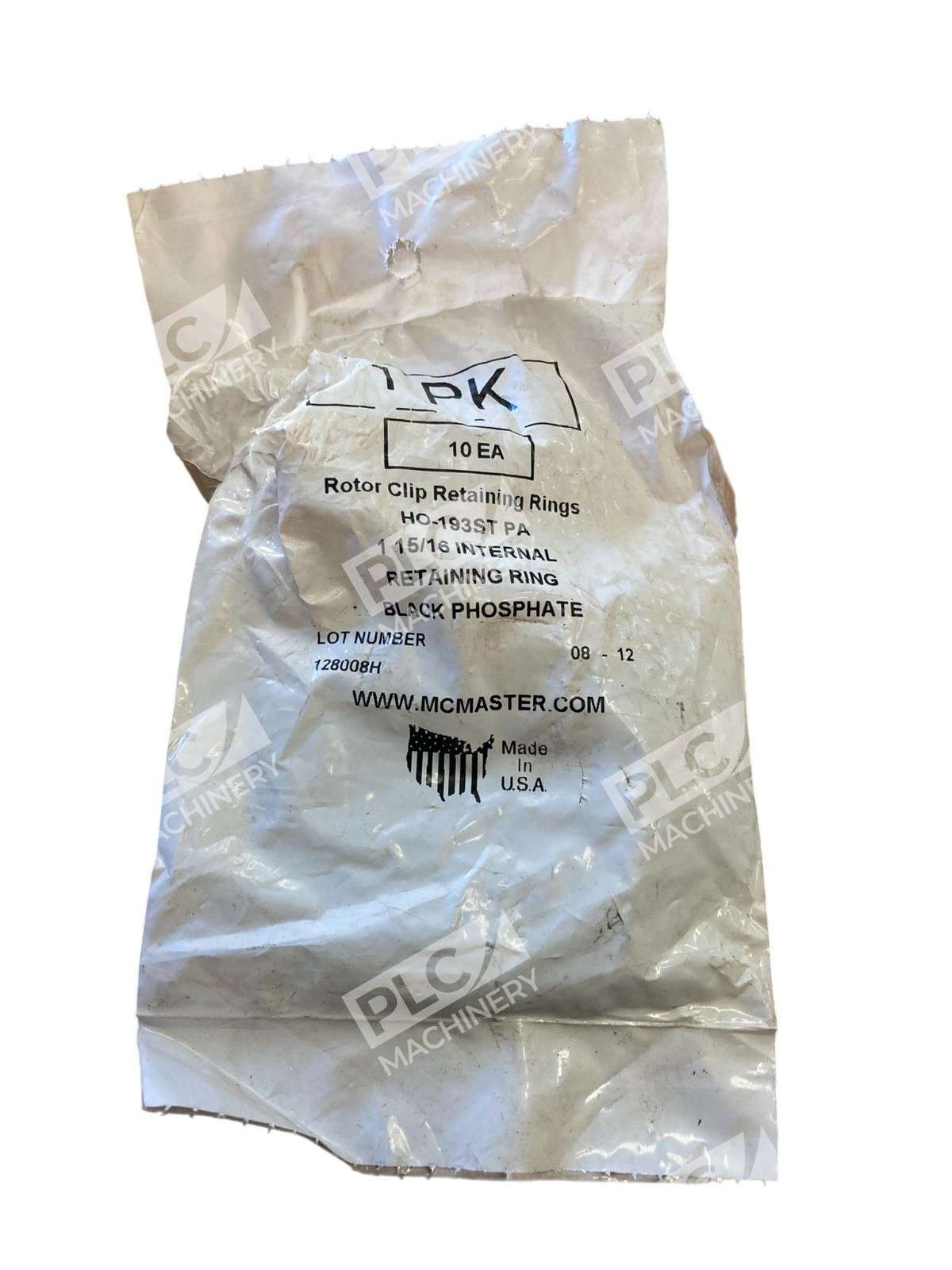

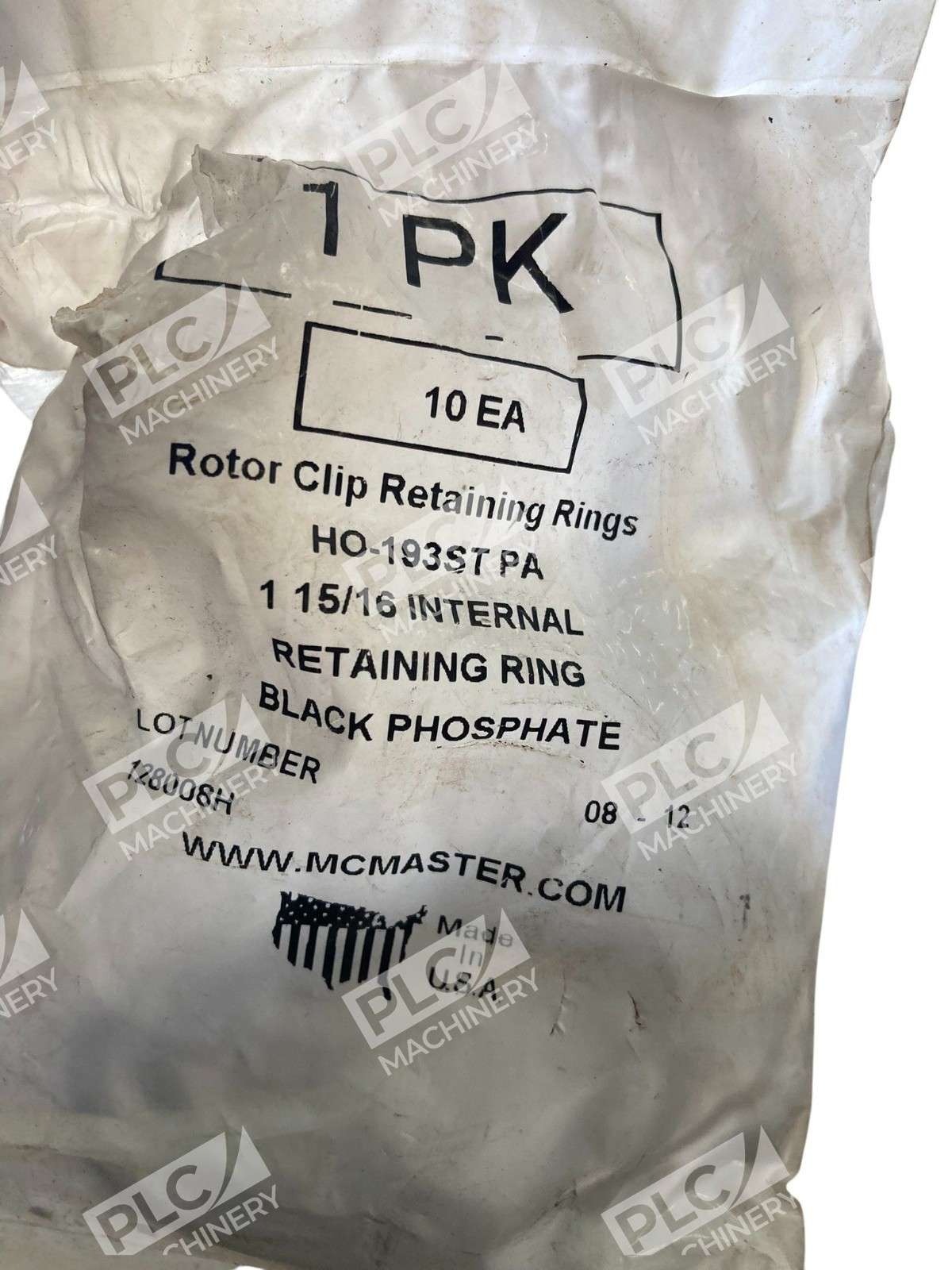

- Condition: New in Box
- Quantity per Unit: 1
Typical Applications
- Electric motor and turbine shaft sealing and retention
- Centrifugal pump bearing housings and impeller retention
- Gearbox and transmission shaft end-play elimination
- Industrial blower and fan bearing assemblies
- Hydraulic and pneumatic equipment component retention
- Bearing preload and axial location in precision machinery
Compatibility & Replacements
Compatible With
- 1.94″ (1-15/16″) bore housings and shafts
- Standard groove dimensions per Rotor Clip HO series specifications
- Industrial bearing assemblies rated for internal circlip retention
- OEM equipment using equivalent tapered-section snap rings
Replaces / Drop-In Replacement For
- Original Rotor Clip HO-193ST PA units
- Equivalent 1.94″ bore internal retaining rings with matching groove geometry
Works With
- Standard groove installation tools and removal tools
- Bearing housings and shaft bores requiring internal circlip retention
- Industrial maintenance and OEM assembly workflows
- High-speed equipment requiring positive axial component location
