Overview
The Marsh Bellofram 0–160 PSI pressure gauge is a proven general-service instrument for monitoring pressure in pneumatic, hydraulic, and fluid systems. With a range of 0–160 psig (0–1100 kPa), this dual-scale gauge delivers the accuracy and durability required in industrial plants, manufacturing facilities, and equipment repair shops.
Key Features

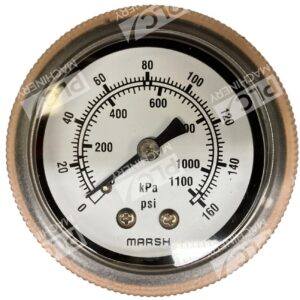

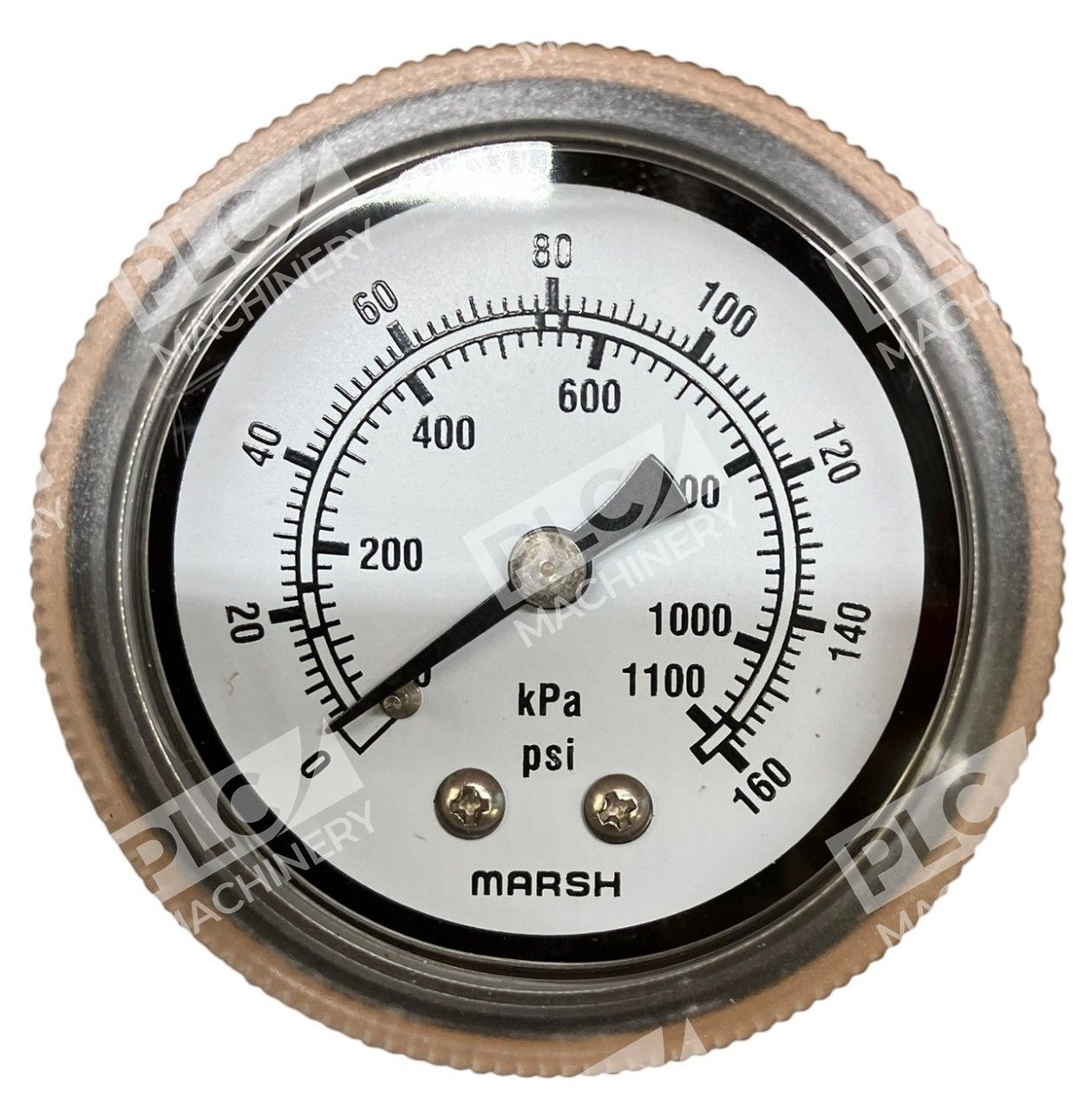

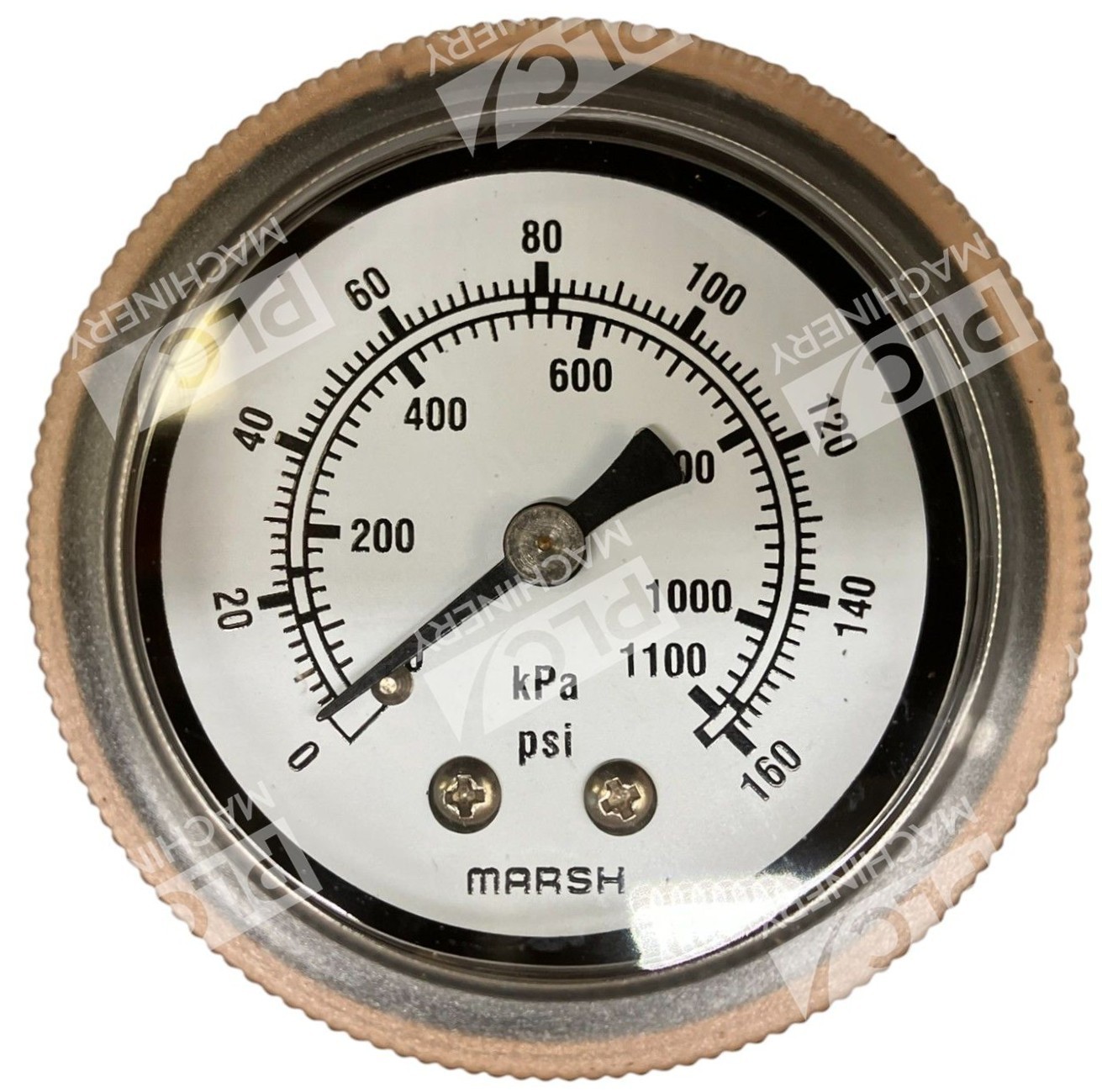

- Dual Scale Display: Ranges include 0–160 psig (0–1100 kPa)
- Reliable Accuracy: ASME Grade B accuracy (±3/2/3%) for dependable readings
- Rugged Construction: Steel case with acrylic window, designed for noncorrosive media

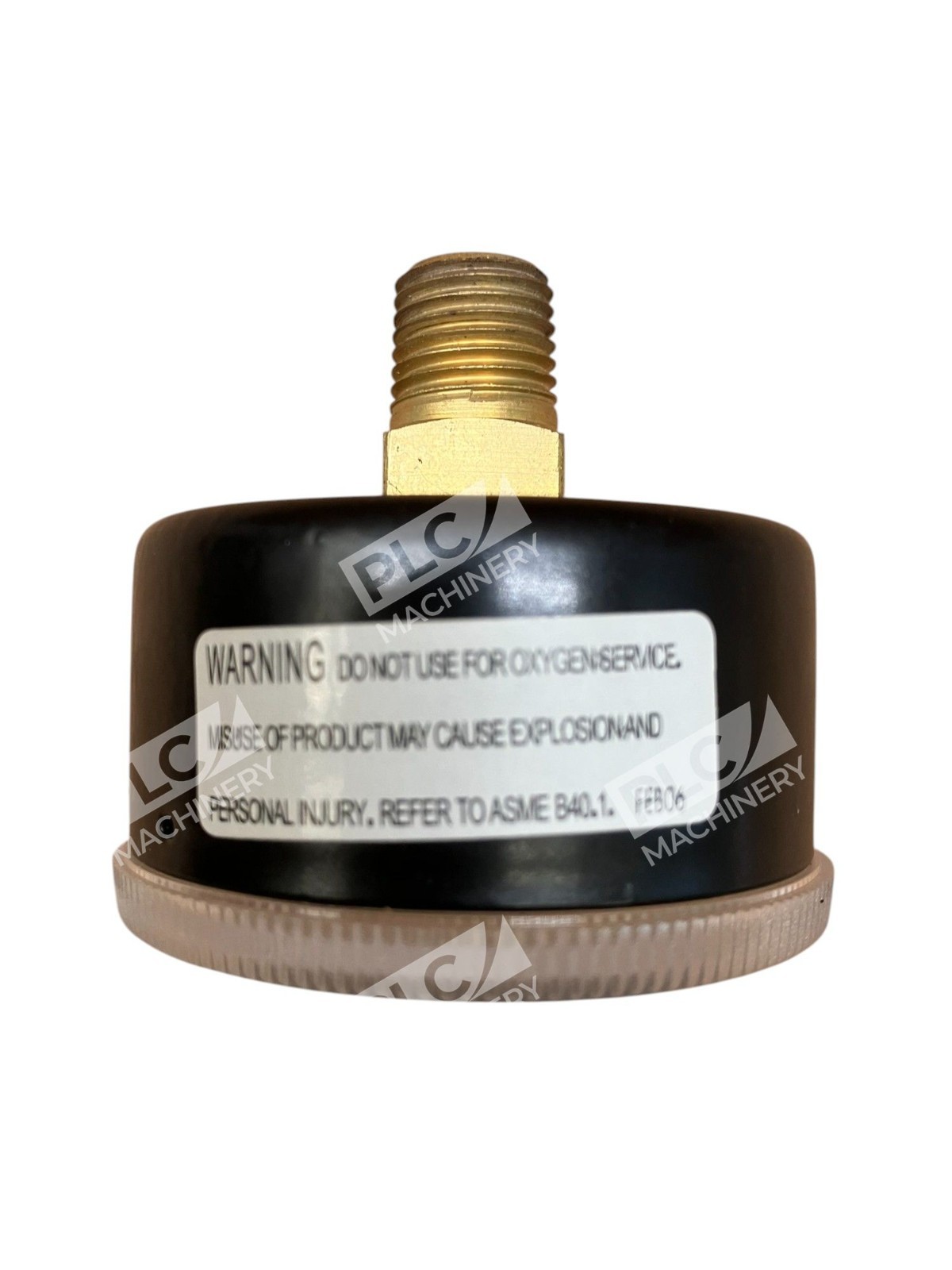

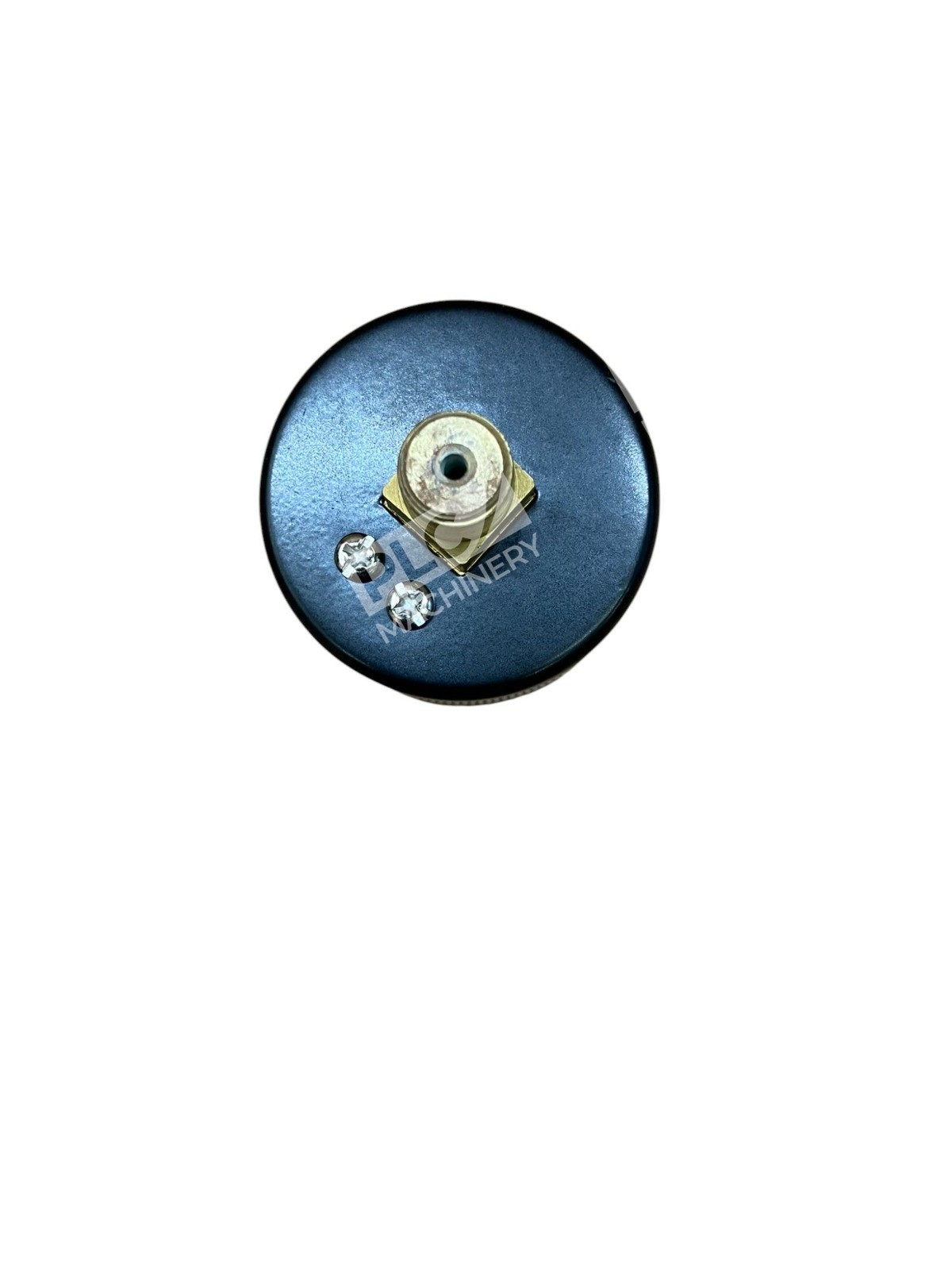

- Standard Connection: 1/4″ NPT center back mount for easy system integration
- Wide Media Compatibility: Suitable for use with water, oil, air, gas or other noncorrosive media
- Low Maintenance: Economical and compact design for cost-effective monitoring
Technical Specifications
- Measuring Range: 0–160 PSI (0–1100 kPa)
- Dial Size: 2.0 inch (50.8 mm)
- Accuracy: ±3/2/3% (ASME Grade B)
- Connection: 1/4″ NPT bottom center mount
- Case Material: Black-painted steel
- Window: Acrylic
- Wetted Materials: Copper alloy
- Scale Markings: Dual scale (PSI and kPa)
- Applications: Air, water, oil, non-corrosive gases
Typical Applications
Typical applications include refineries, chemical plants, offshore platforms, oil rigs, marine applications, general industrial application and OEM processes. Additional uses include:
- Pneumatic system monitoring and maintenance
- Hydraulic equipment pressure verification
- Water treatment facilities and pump stations
- Manufacturing equipment setup and diagnostics
- General industrial pressure point monitoring
Compatibility & Replacements
Compatible With
- Standard industrial pneumatic systems (air compressors, regulators, valves)
- Hydraulic lines and manifolds with 1/4″ NPT ports
- Water supply and treatment systems
- Oil circulation systems (non-corrosive media only)
- Marsh Bellofram pressure regulators and control devices
Replaces / Drop-In Replacement For
This gauge is dimensionally and functionally compatible with other 2″ dial, 1/4″ NPT bottom-mount 0–160 PSI general-service gauges from the Marsh Bellofram line, including legacy steel-case models in the same range. Verify mounting orientation and port location with your system integrator before ordering.
Works With
- Marsh Bellofram Type 10 and Type 41 pressure regulators
- Standard 1/4″ NPT pneumatic and hydraulic quick-connect systems
- Manual or automated process control systems requiring pressure feedback
- Calibration stands, test benches, and diagnostic equipment
