Overview

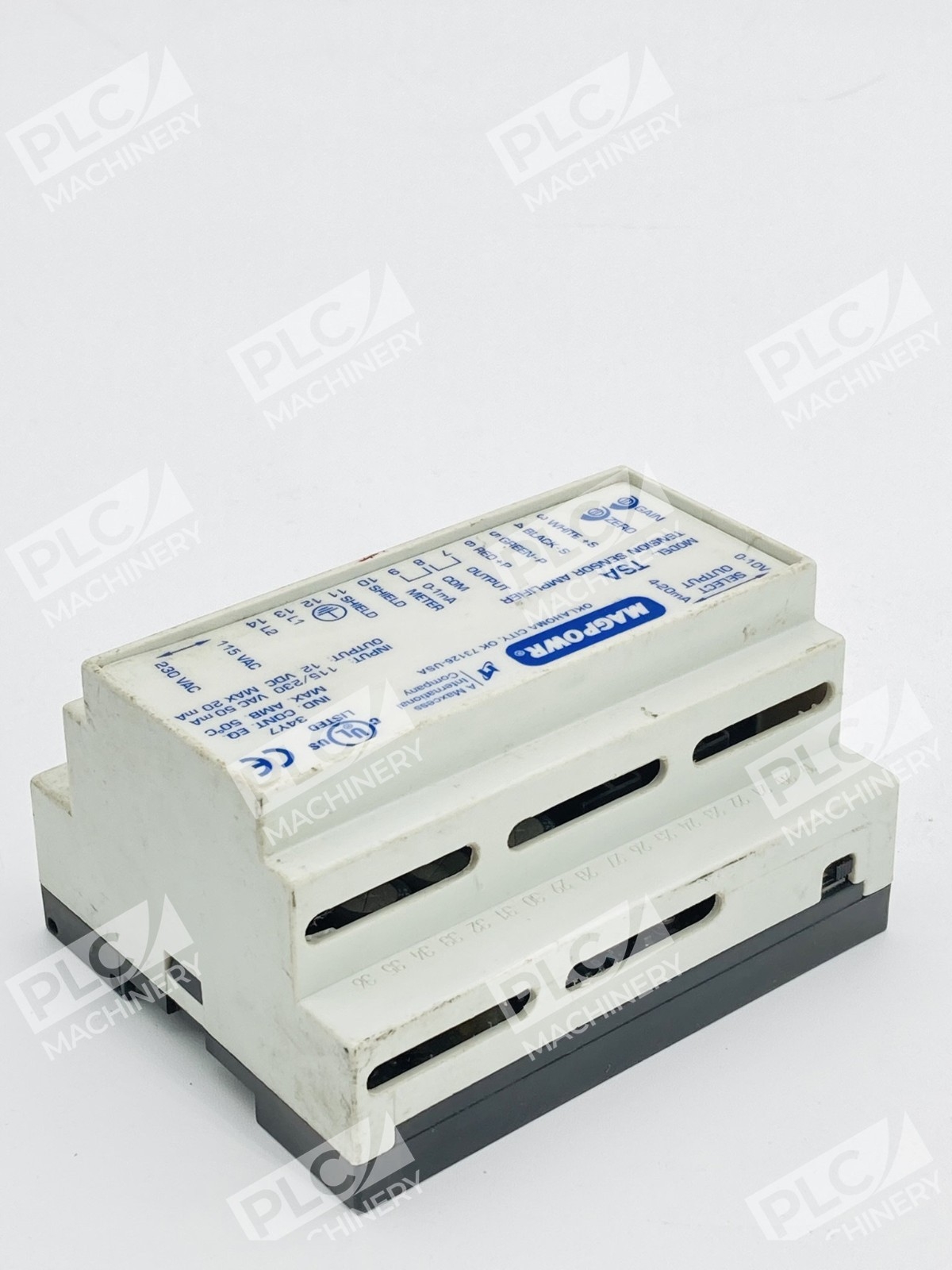

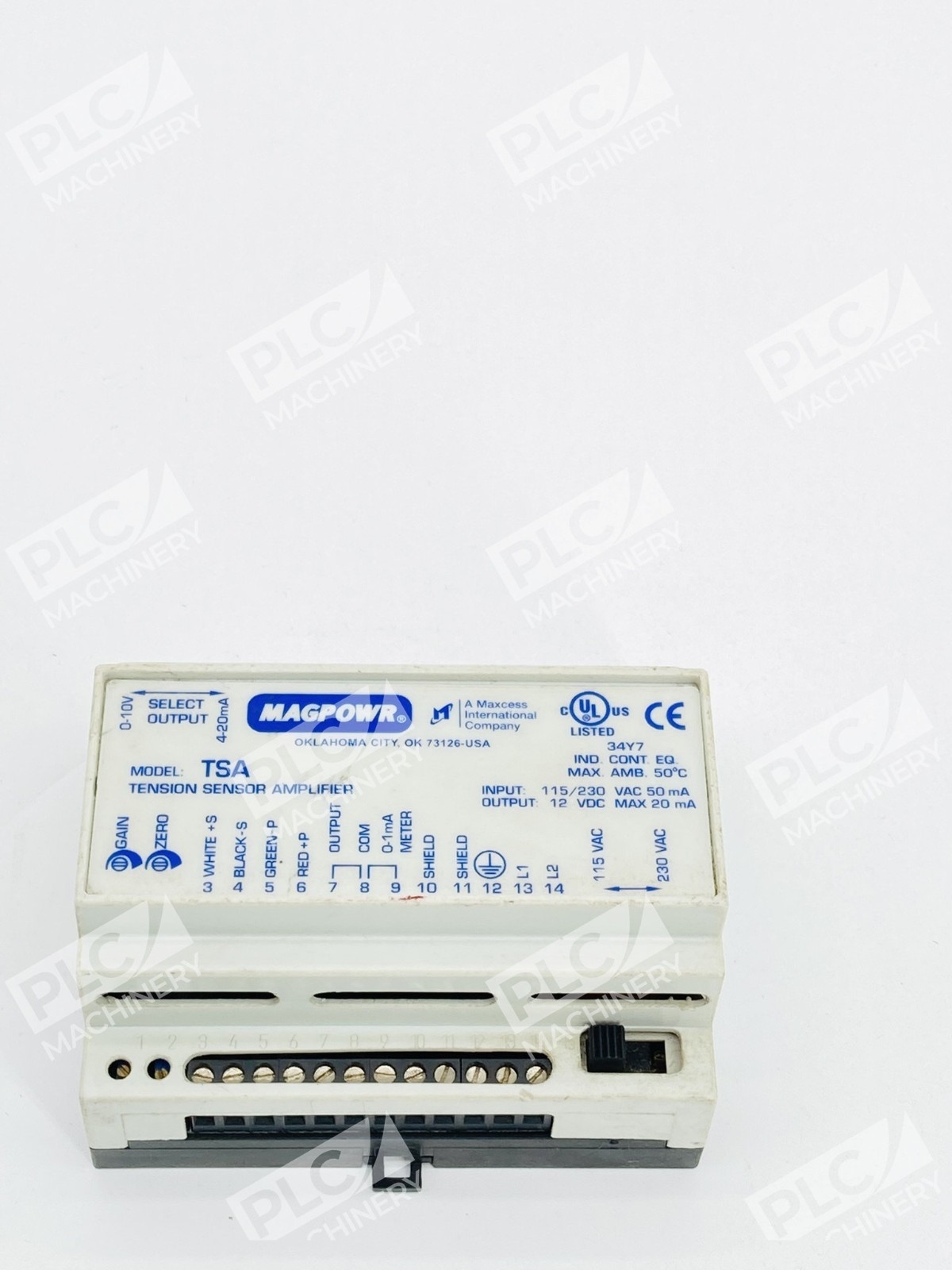

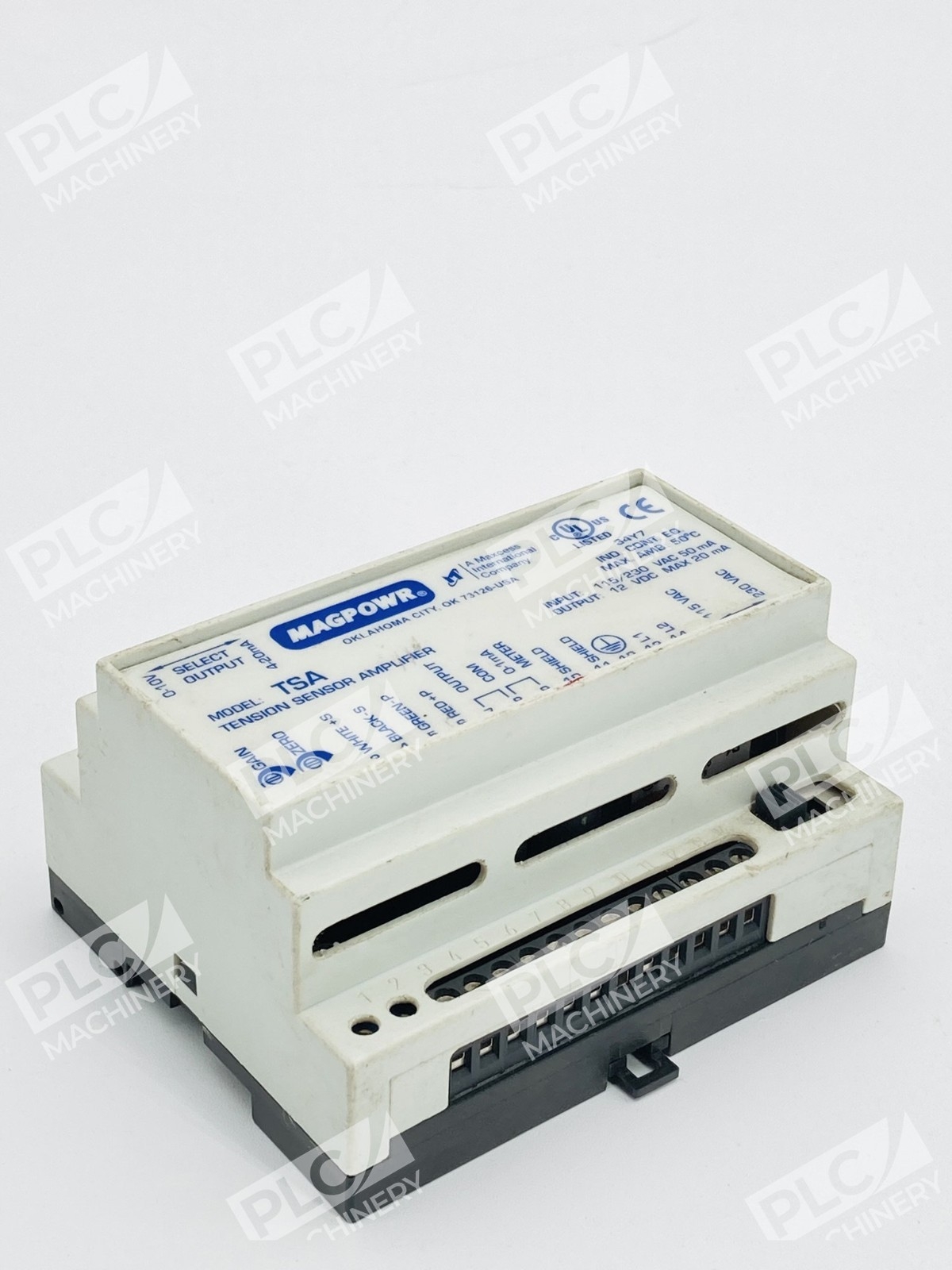

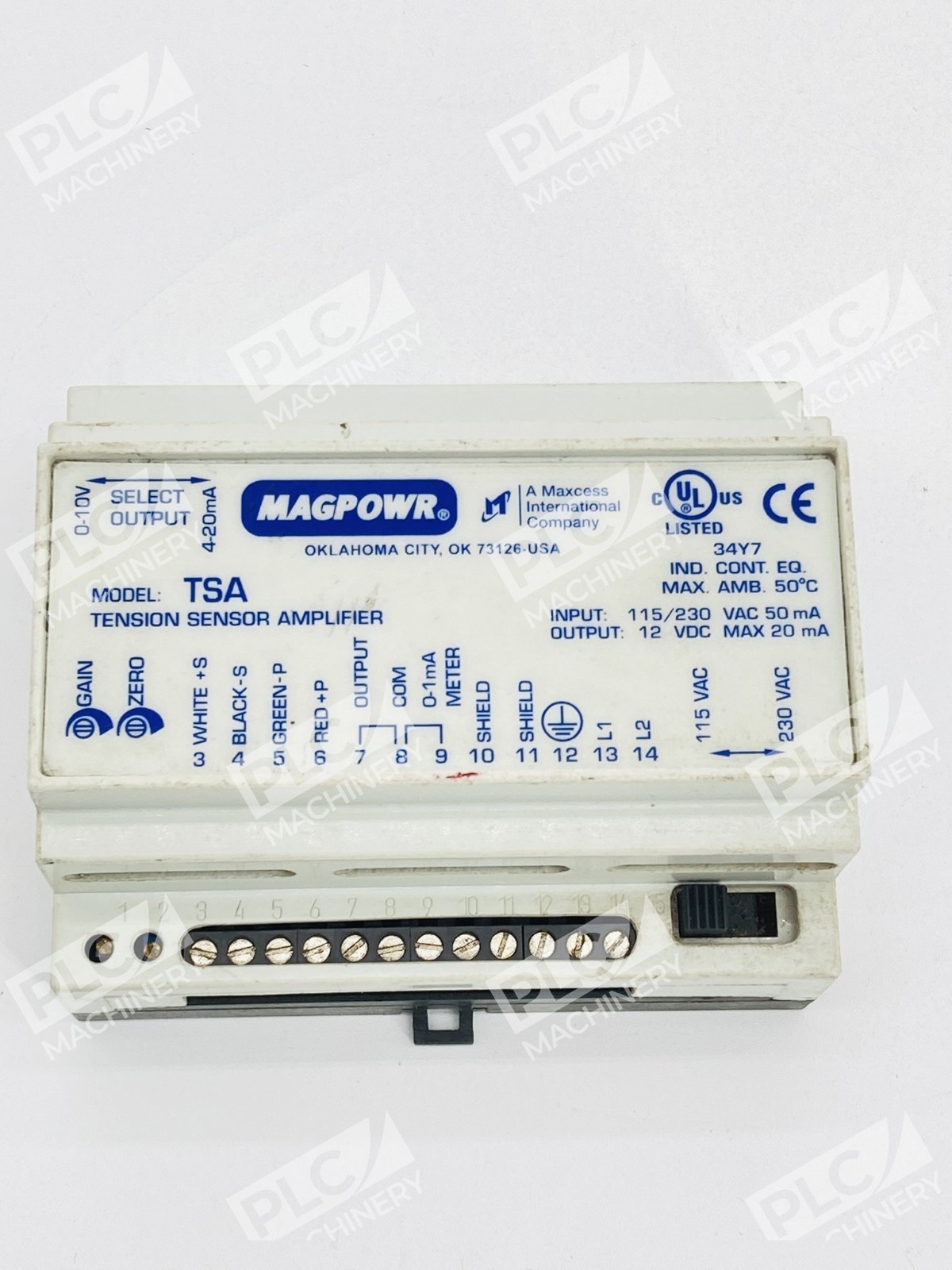

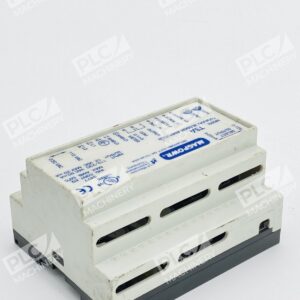

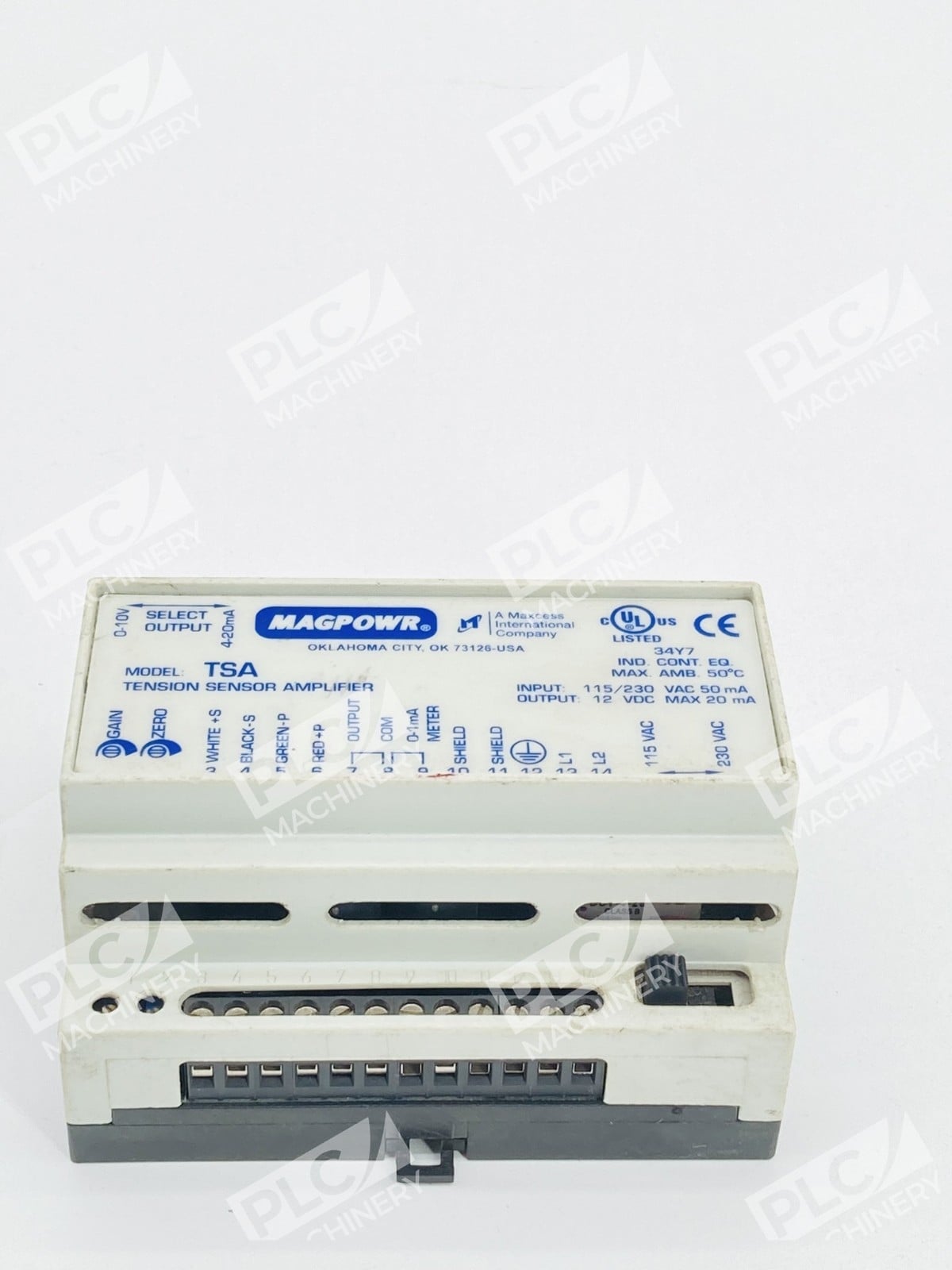

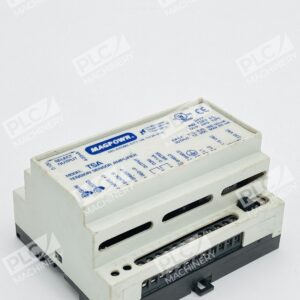

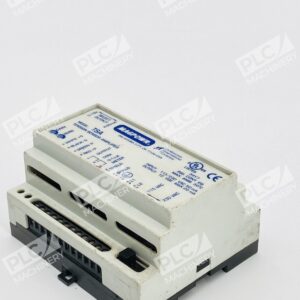

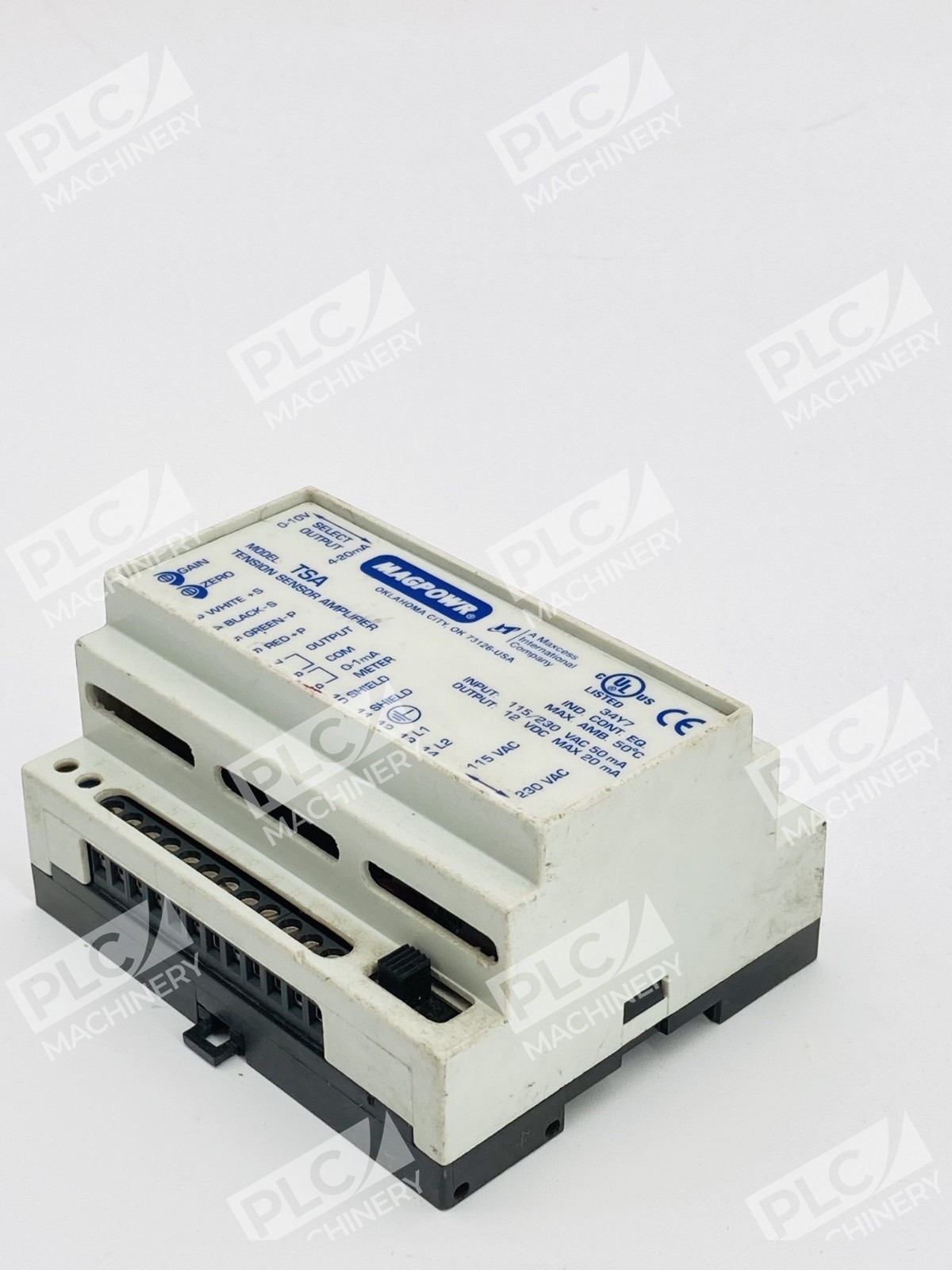

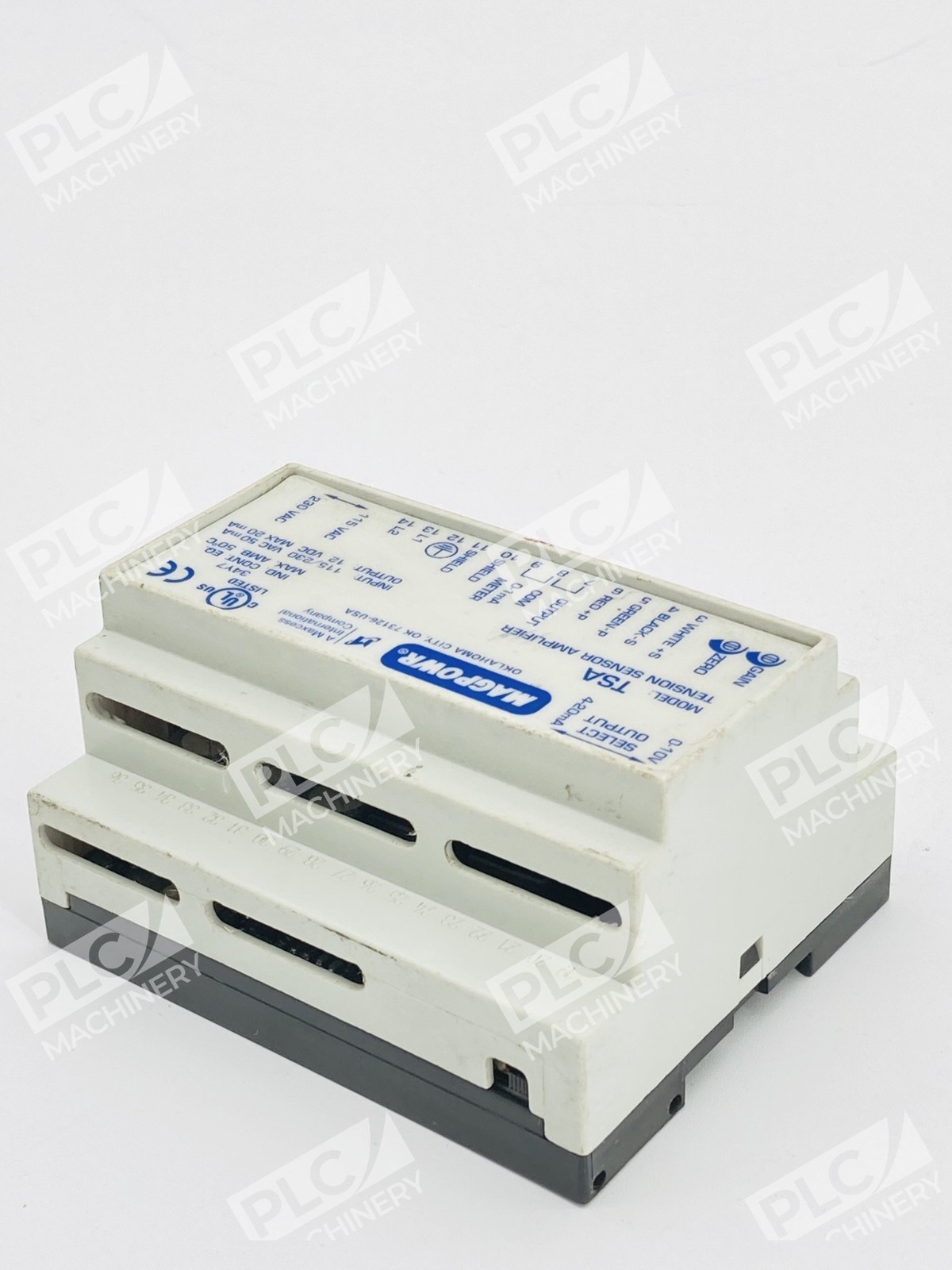

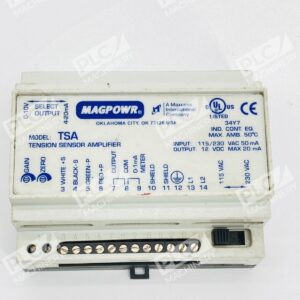

The Magpowr TSA Tension Sensor Amplifier is a compact, DIN rail-mounted load cell amplifier designed for precision tension measurement and control. The TSA converts input signals from full-bridge or half-bridge tension sensors into standard industrial output signals, providing real-time feedback for automated web tension applications. With selectable 0–10 VDC or 4–20 mADC outputs, the TSA integrates seamlessly with PLCs, drives, and control systems used in printing, converting, packaging, and material handling.
Key Features
- Dual output formats: 0–10 VDC or 4–20 mADC for flexible integration
- 8:1 gain control range for adaptable sensor calibration
- 50% tare adjustment to zero out pre-tension or load offsets
- Internal excitation supply: 10 VDC or 5 VDC for both full-bridge and half-bridge sensors
- Minimal drift and excellent linearity for accurate tension control
- Compact DIN rail enclosure—fits restricted mounting spaces
- UL and CE approved for industrial compliance
Technical Specifications
- Input Power: 115/230 VAC, 50 mA
- Output Voltage: 12 VDC maximum, 20 mA
- Output Signals: 0–10 VDC or 4–20 mADC (selectable)
- Excitation Supply: 10 VDC or 5 VDC (switchable for full/half-bridge sensors)
- Gain Adjustment: 8:1 calibration range
- Tare Adjustment: 50% of sensor rating

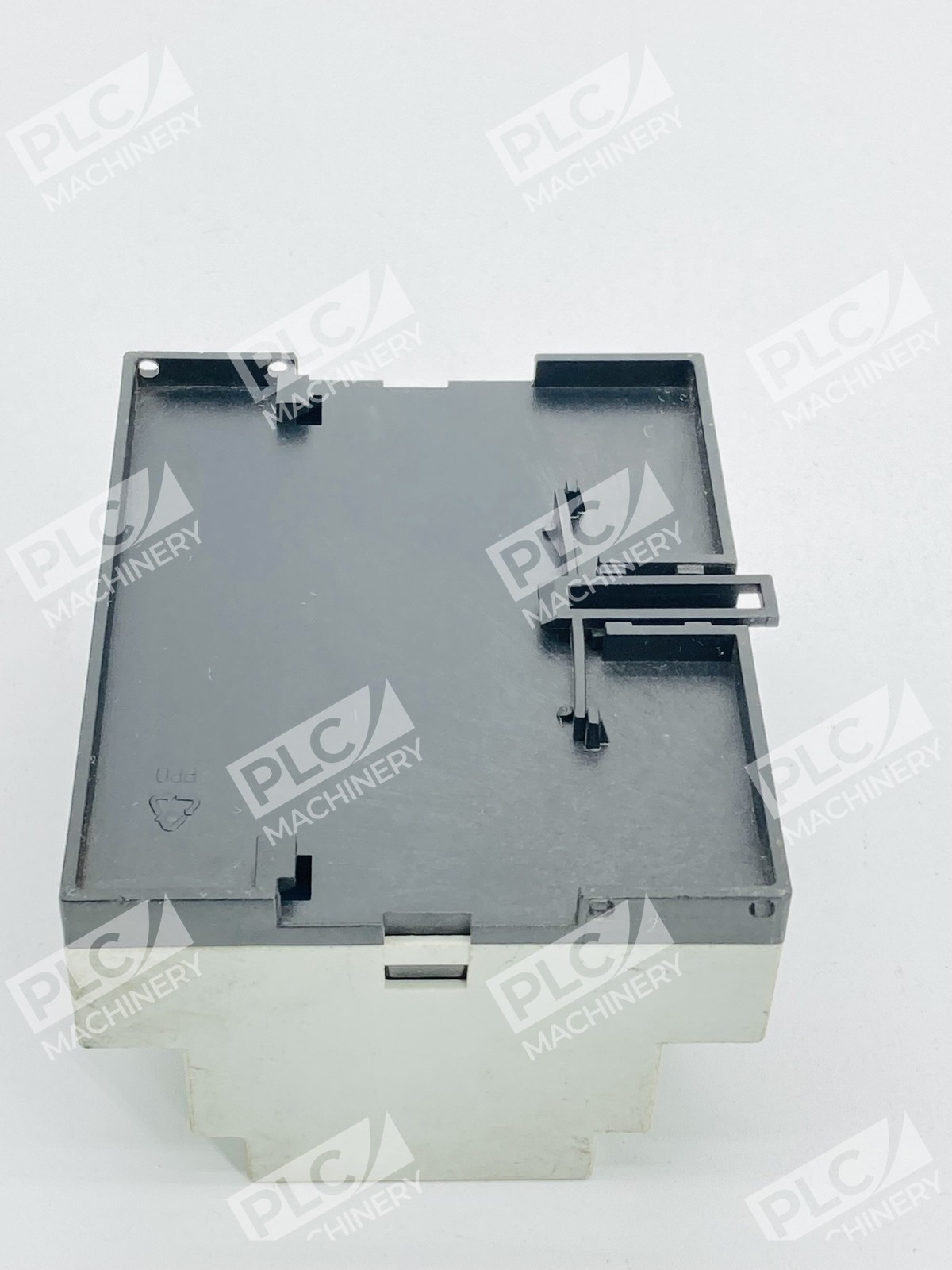

- Mounting: DIN rail (simplicity and compact footprint)
- Terminal Configuration: 12 + 2 screw terminals
- Certifications: UL and CE approved
- Model Number: TSA
- Manufacturer: Magpowr (Magnetic Power Systems Inc.)
Typical Applications
- Web tension control in printing and converting machinery
- Paper, film, and foil processing plants
- Unwind/rewind tension monitoring systems
- Packaging equipment and label applicators
- Material handling and conveyor systems with load feedback
- Industrial automation requiring proportional tension control
Compatibility & Replacements
Compatible With
- Magpowr full-bridge and half-bridge load cells (21 mV standard)
- 500 mV tension sensors (with jumper modification)
- Any PLC or control system accepting 0–10 VDC or 4–20 mA input
- Industrial SCADA and HMI platforms
- Analog signal conditioning equipment
Replaces / Drop-In Replacement For
- Direct replacement for Magpowr TSA units in existing tension control installations
- Compatible with legacy web tension systems using 0–10V or 4–20mA feedback
- Verify compatibility with your system integrator before ordering to confirm sensor bridge type (21 mV vs. 500 mV).
Works With
- Standard industrial analog input modules (4–20 mA, 0–10 VDC)
- Allen-Bradley CompactLogix, ControlLogix, and MicroLogix controllers
- Siemens S7-1200, S7-1500, and STEP 7 environments
- Analog data acquisition systems and process monitoring equipment
- Any control device with voltage or current input capability
