Overview

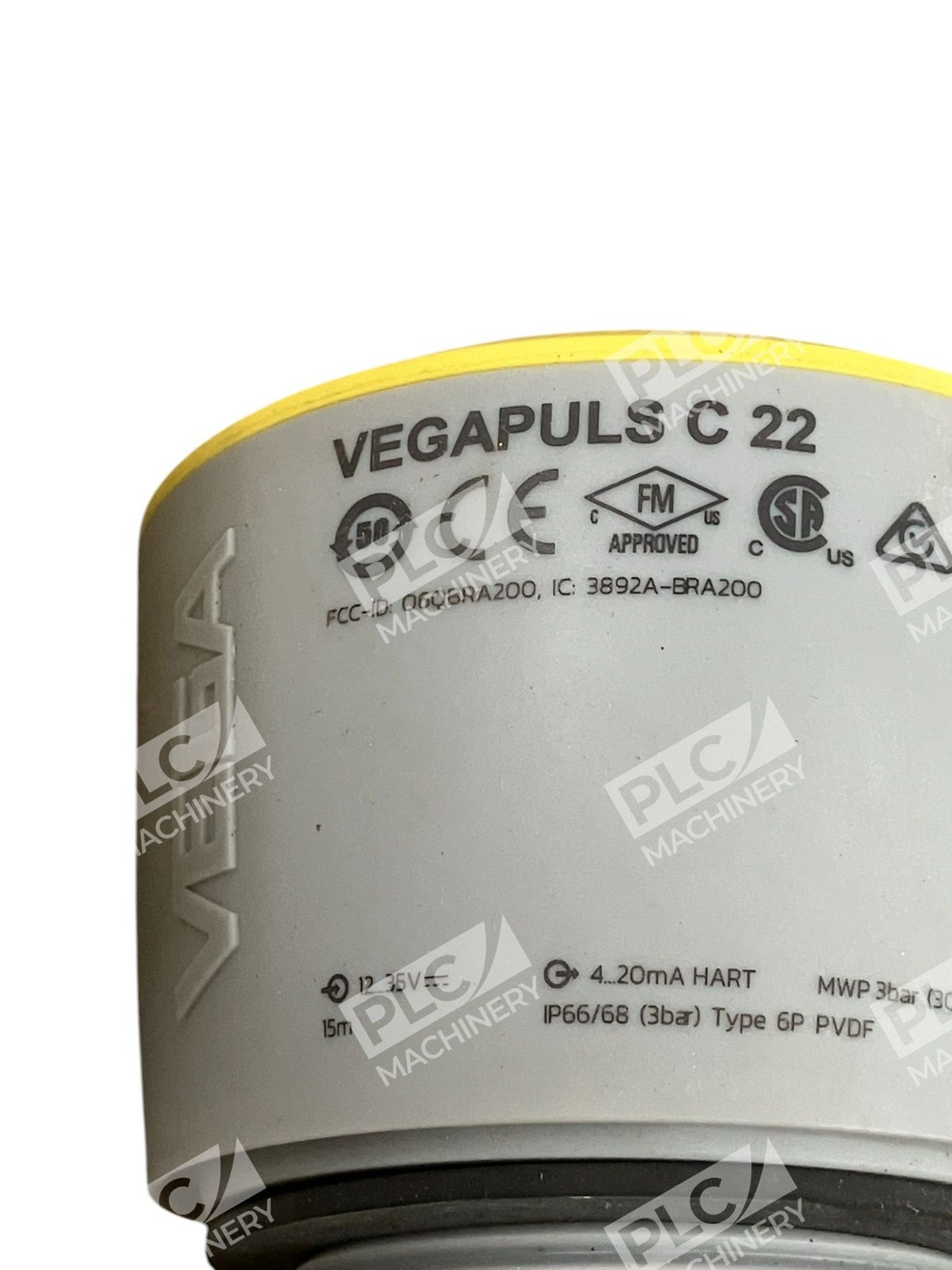

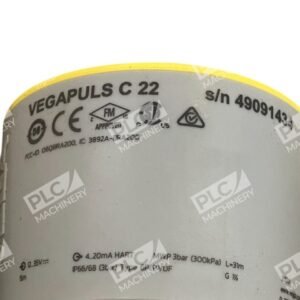

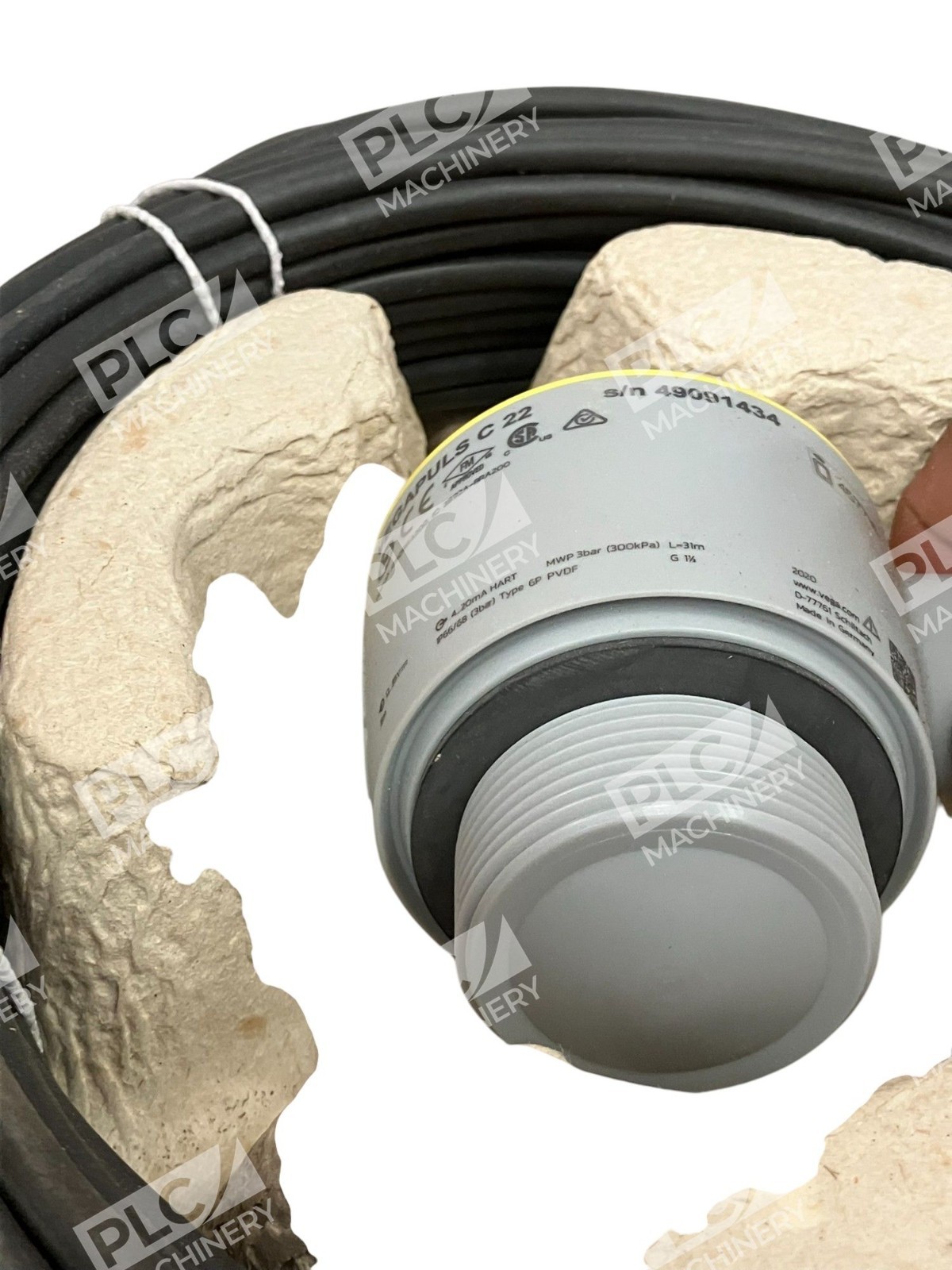

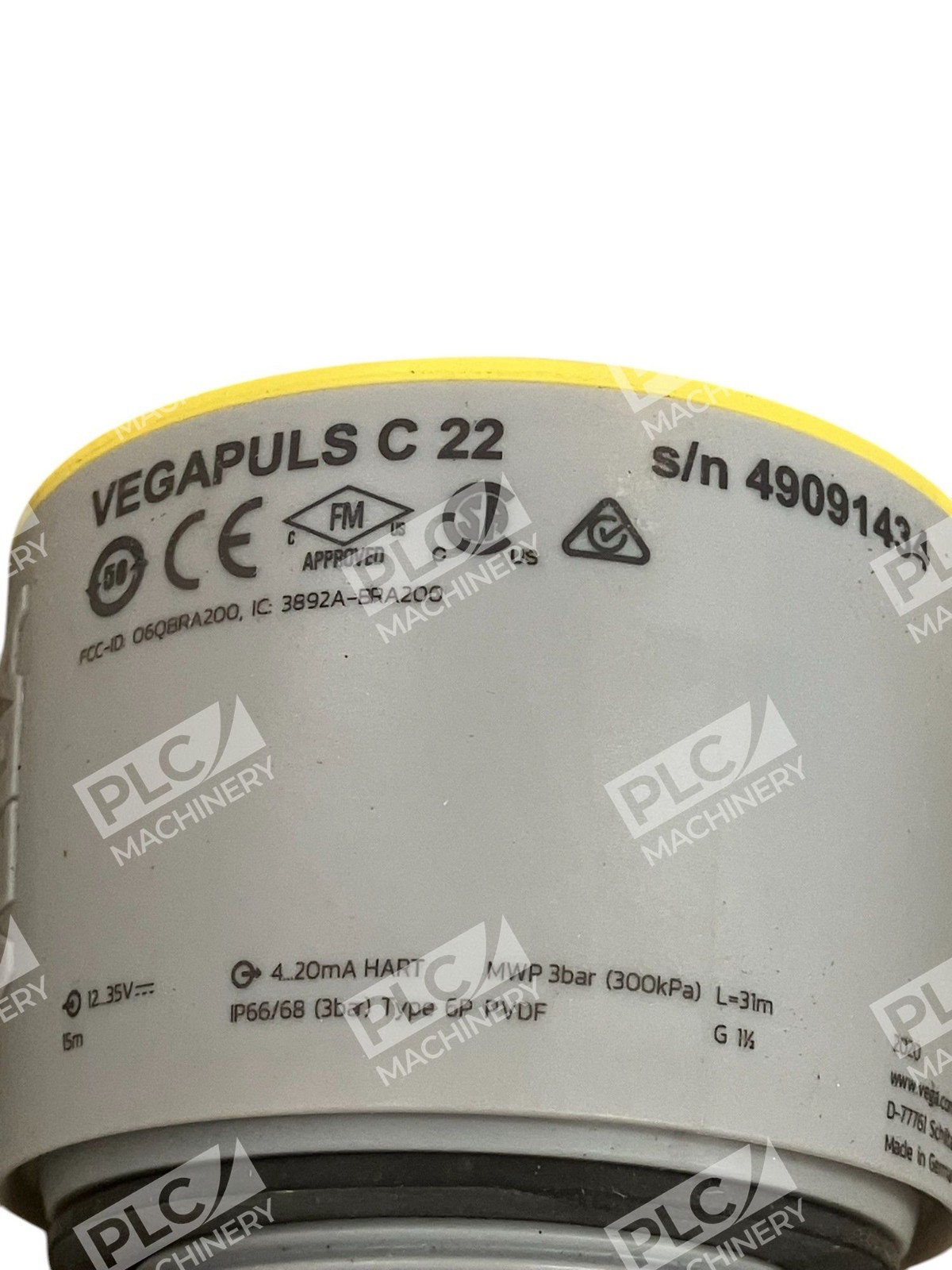

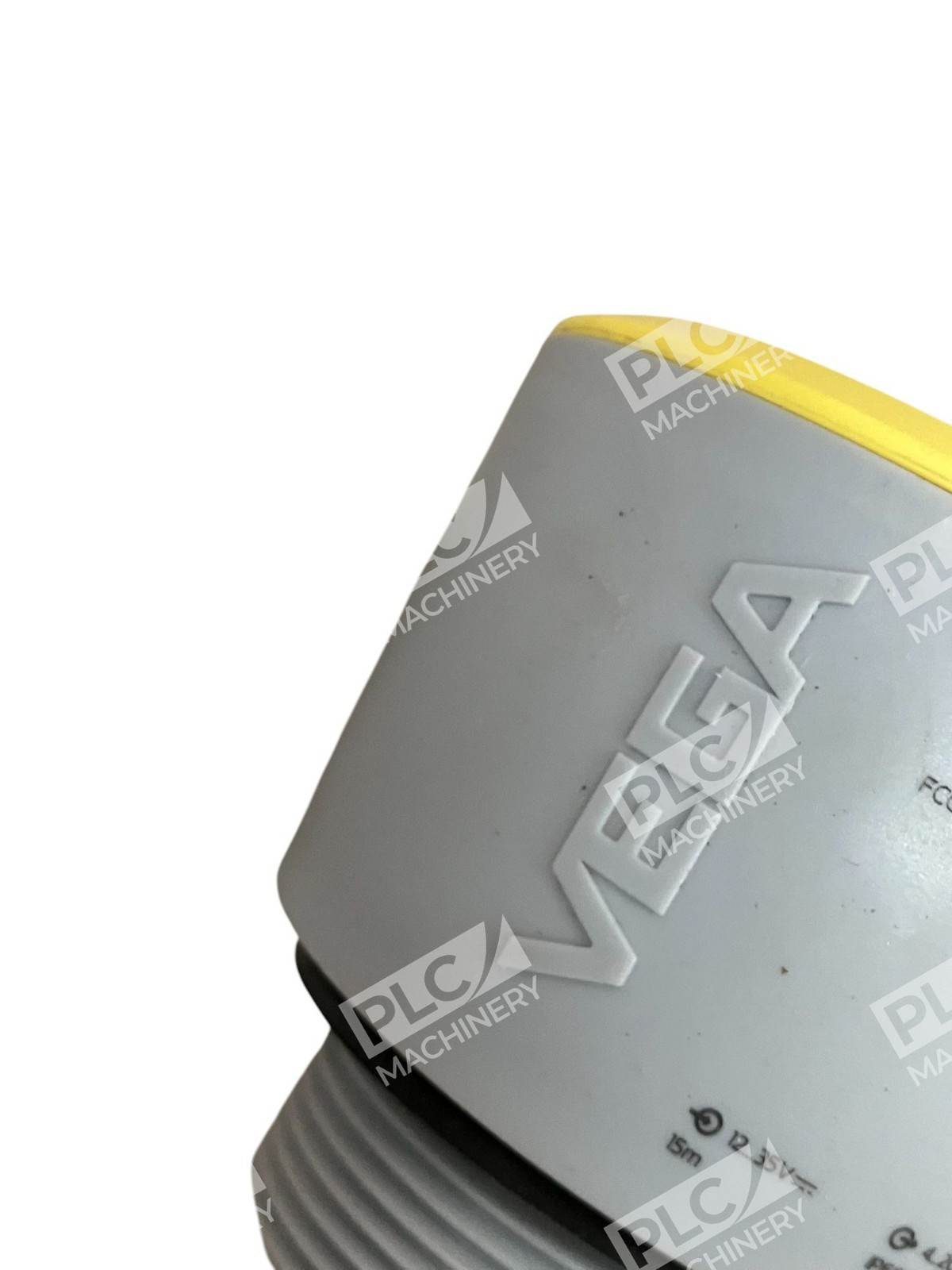

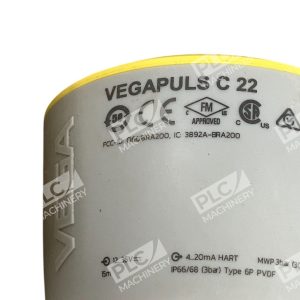

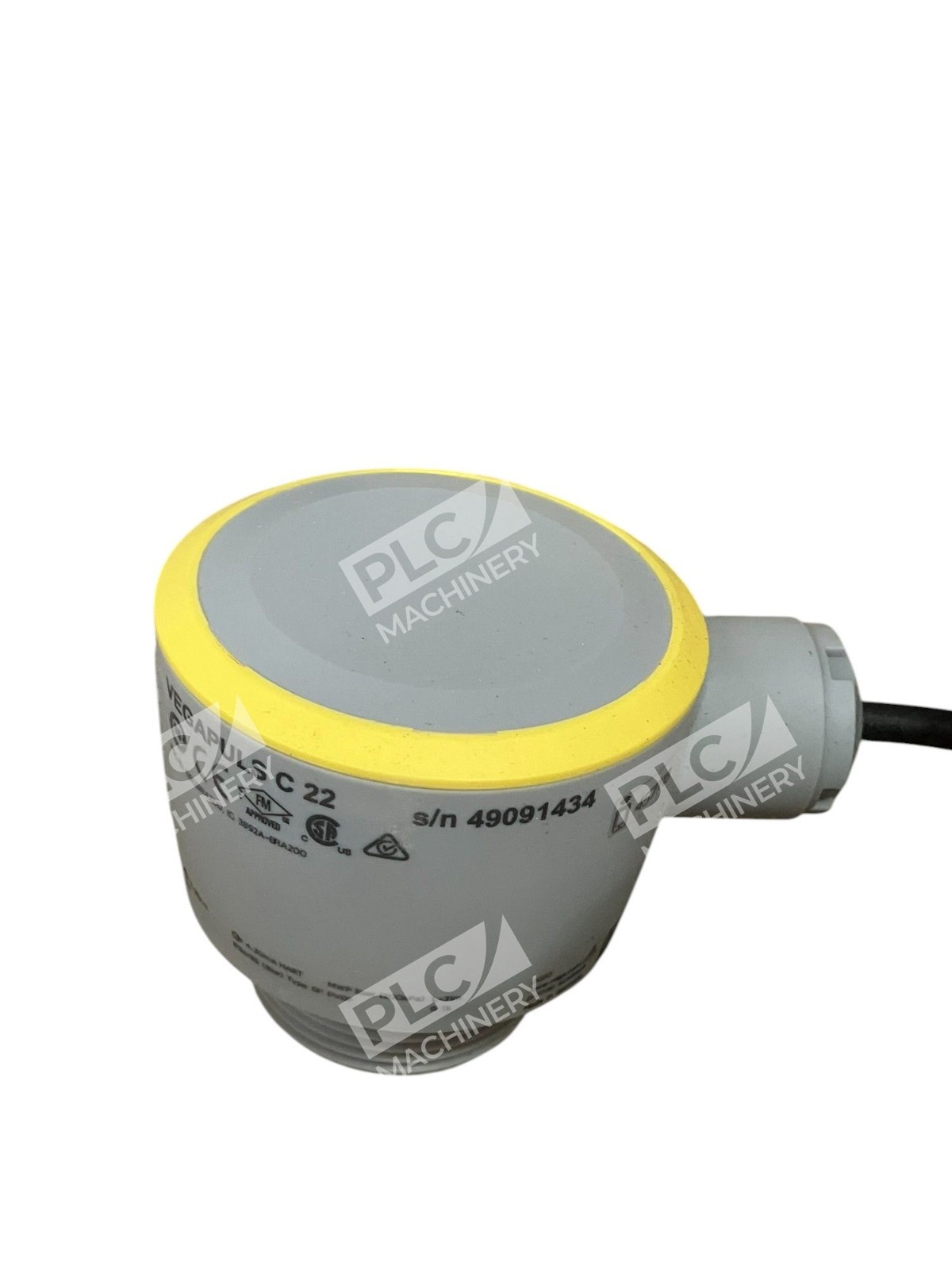

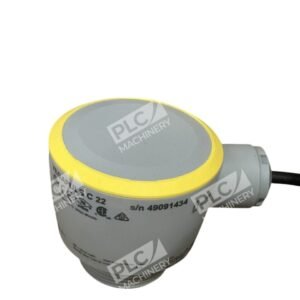

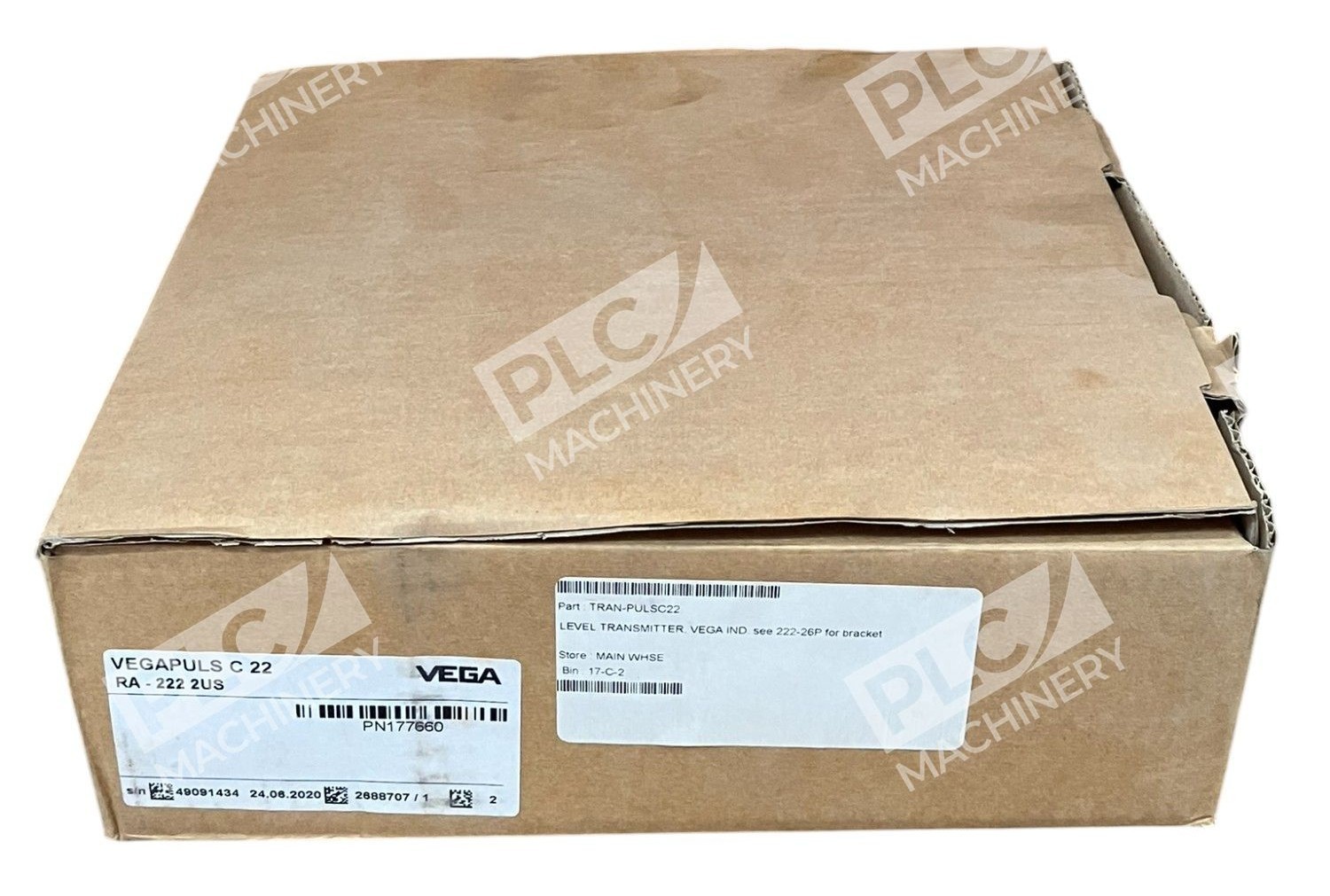

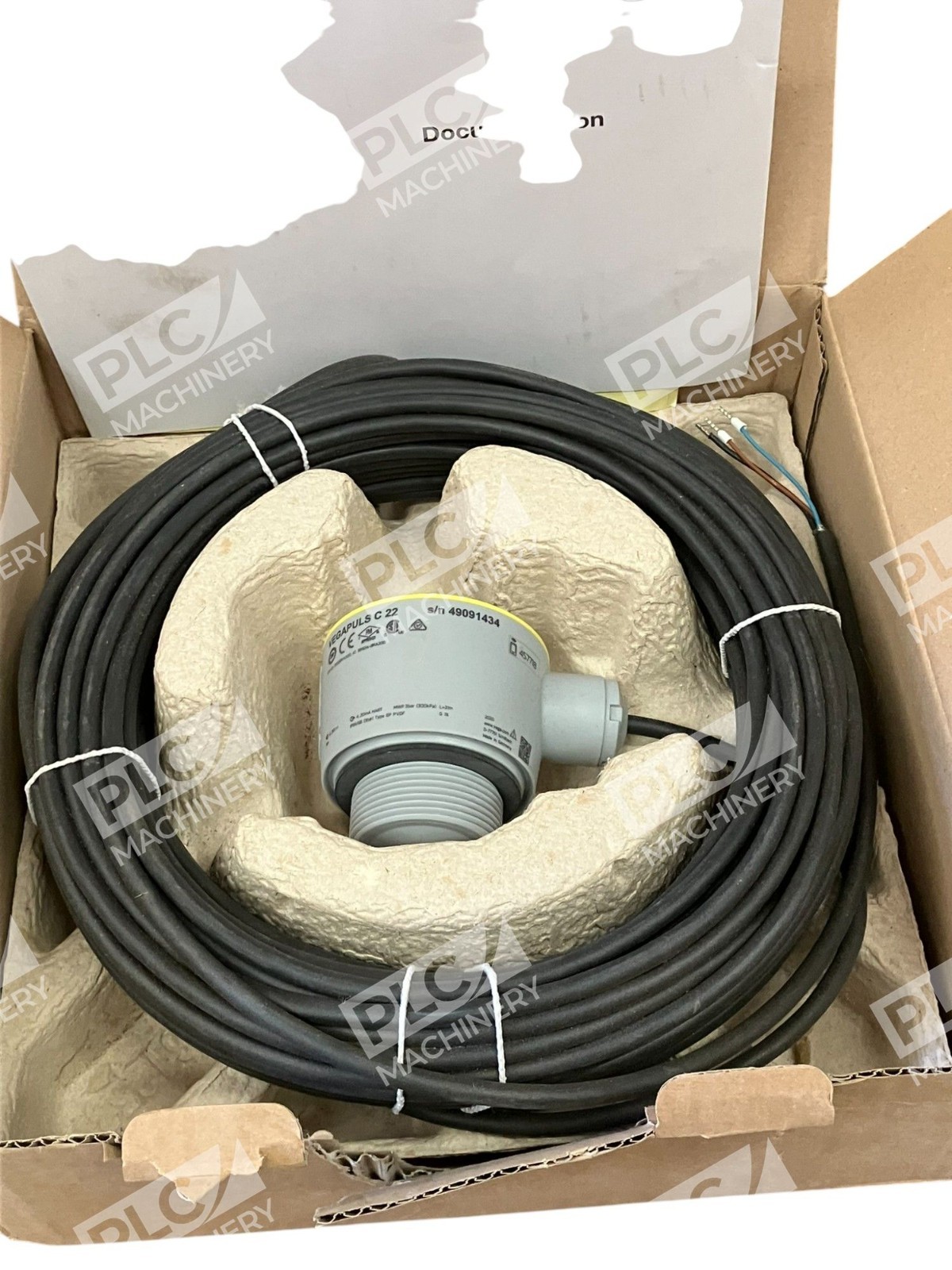

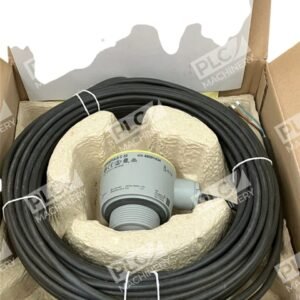

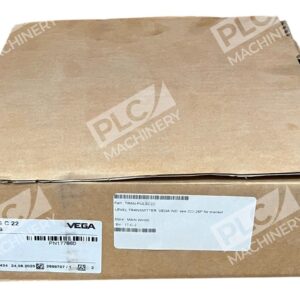

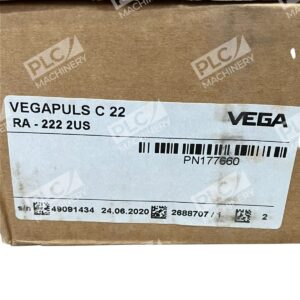

The Vega RA-222 2US (PN177660) is a VEGAPULS C 22 level transmitter manufactured by VEGA, a leader in precision level and pressure measurement instrumentation. This radar level transmitter employs non-contact 80 GHz radar technology to measure liquids and bulk solids in tanks, silos, and open containers without physical contact with the measured medium.
Key Features
- 80 GHz Radar Technology: Non-contact measurement ensures maintenance-free operation and immunity to deposits, foam, and condensation
- High Accuracy: ±2 mm measurement accuracy independent of medium properties and environmental conditions
- 4-20 mA Analog Output: Standard industrial signal for seamless integration with PLC and control systems
- Compact Design: Low overall height with G1 1/2 (1.5″) thread mounting for easy installation
- Bluetooth Interface: On-site configuration and commissioning via VEGA Tools smartphone app
- Wide Application Range: Suitable for water treatment, pumping stations, overflow basins, and bulk solid silos
Technical Specifications
- Measurement Range: Up to 20 meters
- Accuracy: ±2 mm
- Output Signal: 4-20 mA, HART protocol compatible
- Radar Frequency: 80 GHz

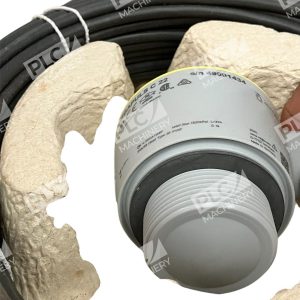

- Process Connection: G1 1/2 (1.5″) thread mounting
- Operating Pressure: -1 to 3 bar

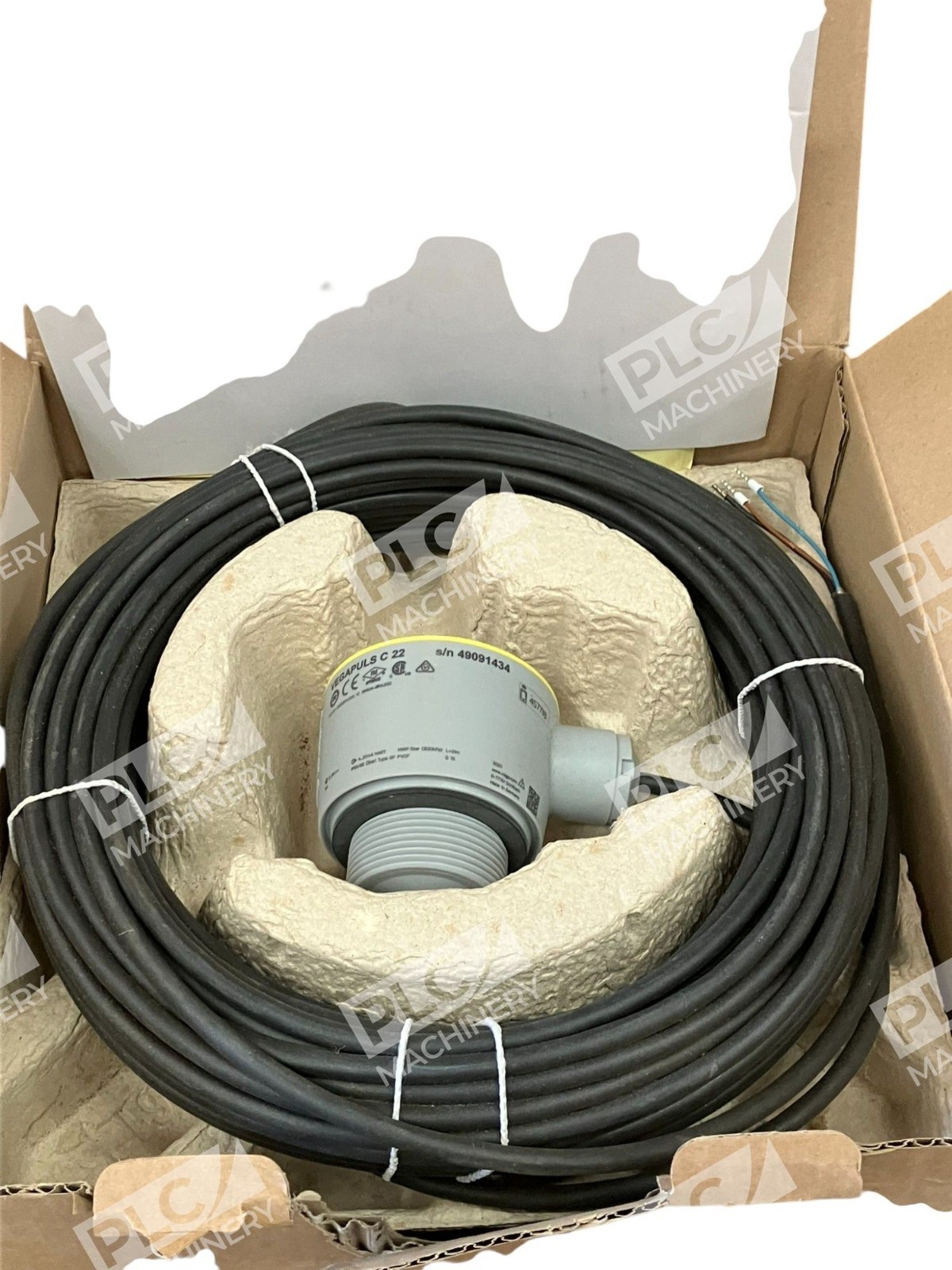

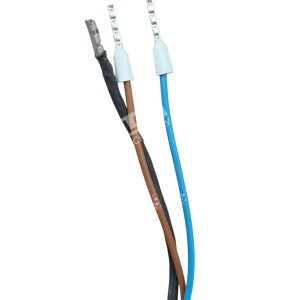

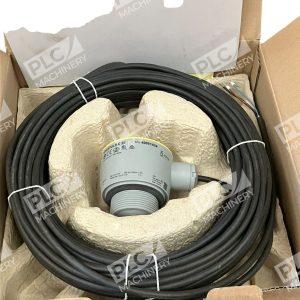

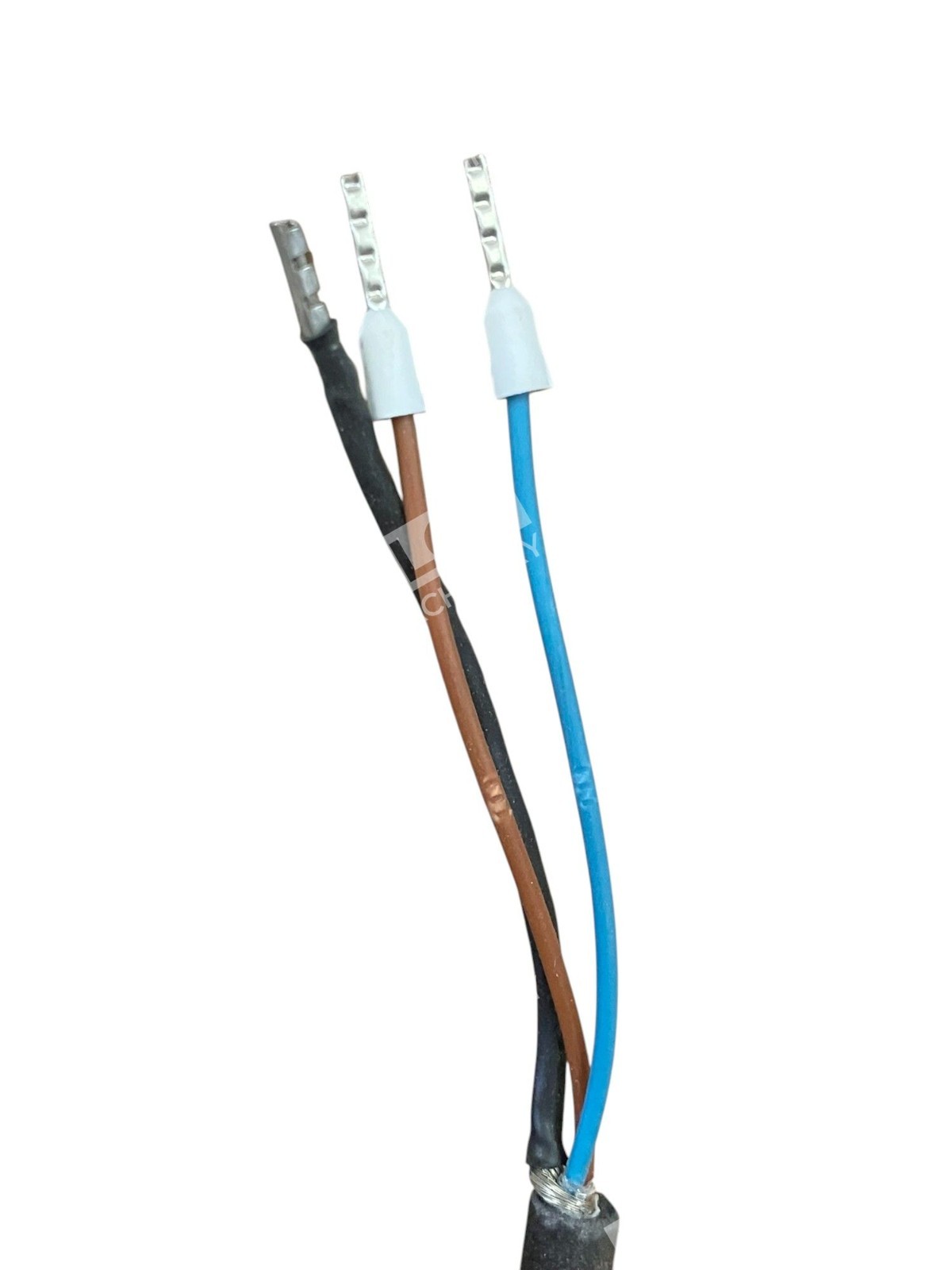

- Electrical Connection: PUR cable (standard 10 m)
- Interface: Bluetooth for wireless configuration
- Mounting: Thread-mounted with stainless steel (316L) bracket option

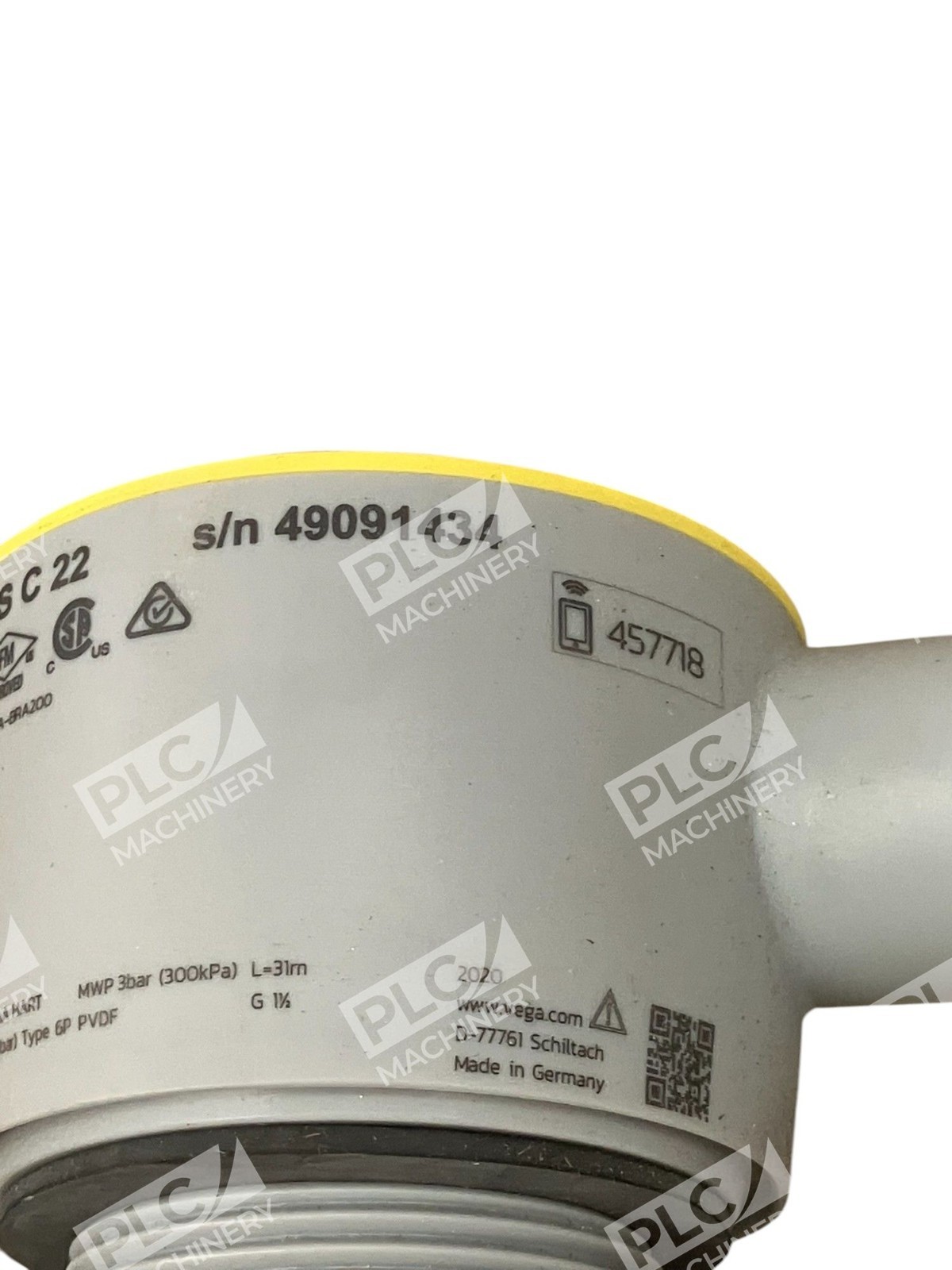

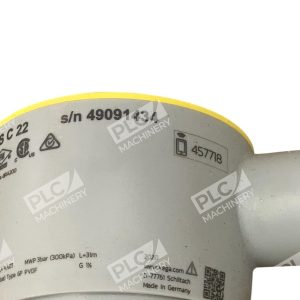

- Origin: Manufactured in Germany
- Series: VEGAPULS C 21/C 22
Typical Applications
- Water & Wastewater: Water treatment plants, pumping stations, clarifiers
- Overflow Management: Rainwater overflow basins and stormwater control systems
- Open Channel Flow: Weir and flume flow measurement
- Bulk Solids Storage: Small silos, hoppers, and open containers
- Process Monitoring: Level monitoring and control in industrial processes where non-contact measurement is required
Compatibility & Replacements
Compatible With
- All standard industrial controllers and PLCs accepting 4-20 mA analog input
- HART-compatible control systems and instruments
- SCADA and process automation software with analog input modules
- Bluetooth-enabled devices for wireless commissioning via VEGA Tools app
- Mounting brackets designed for VEGAPULS C 22, 11, 21, 31, and Air 41 series compatibility
Replaces / Drop-In Replacement For
- Previous VEGAPULS C 21 series models in the RA-222 product line
- Other non-contact radar transmitters requiring G1 1/2 thread mounting and 4-20 mA output
- Verify exact model compatibility with your system integrator before ordering
Works With
- 4-20 mA analog input modules in Allen-Bradley, Siemens, Mitsubishi, and Omron PLCs
- HART protocol handshakes and digital communication gateways
- VEGA Tools mobile app (iOS/Android) for sensor configuration and diagnostics
- Industrial data loggers and monitoring systems with analog data acquisition capability
