Overview

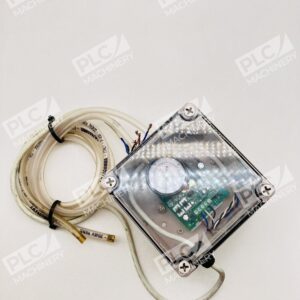

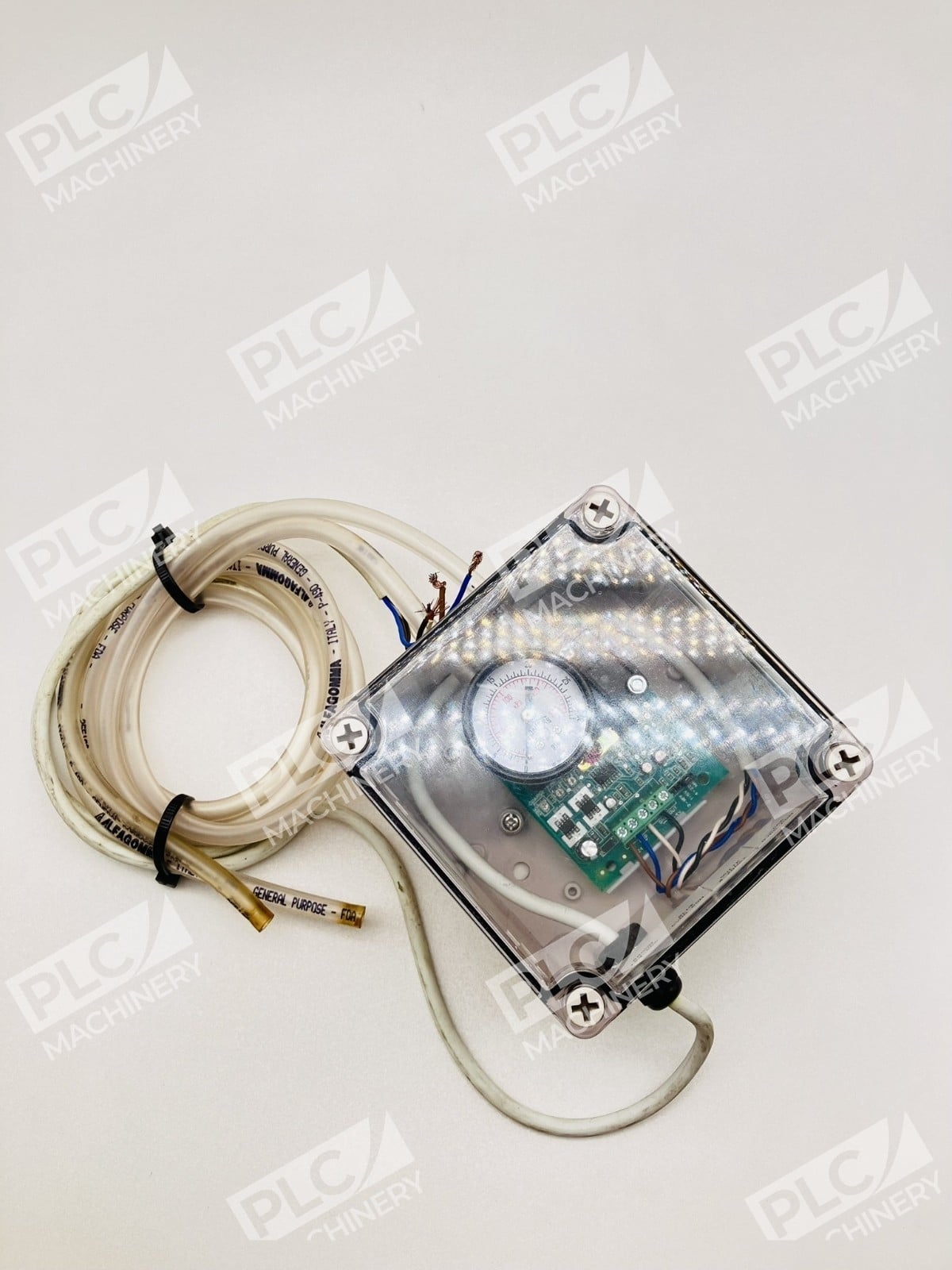

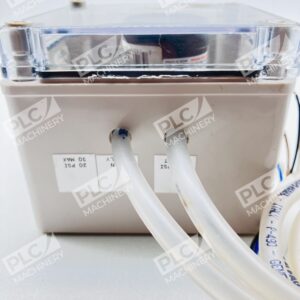

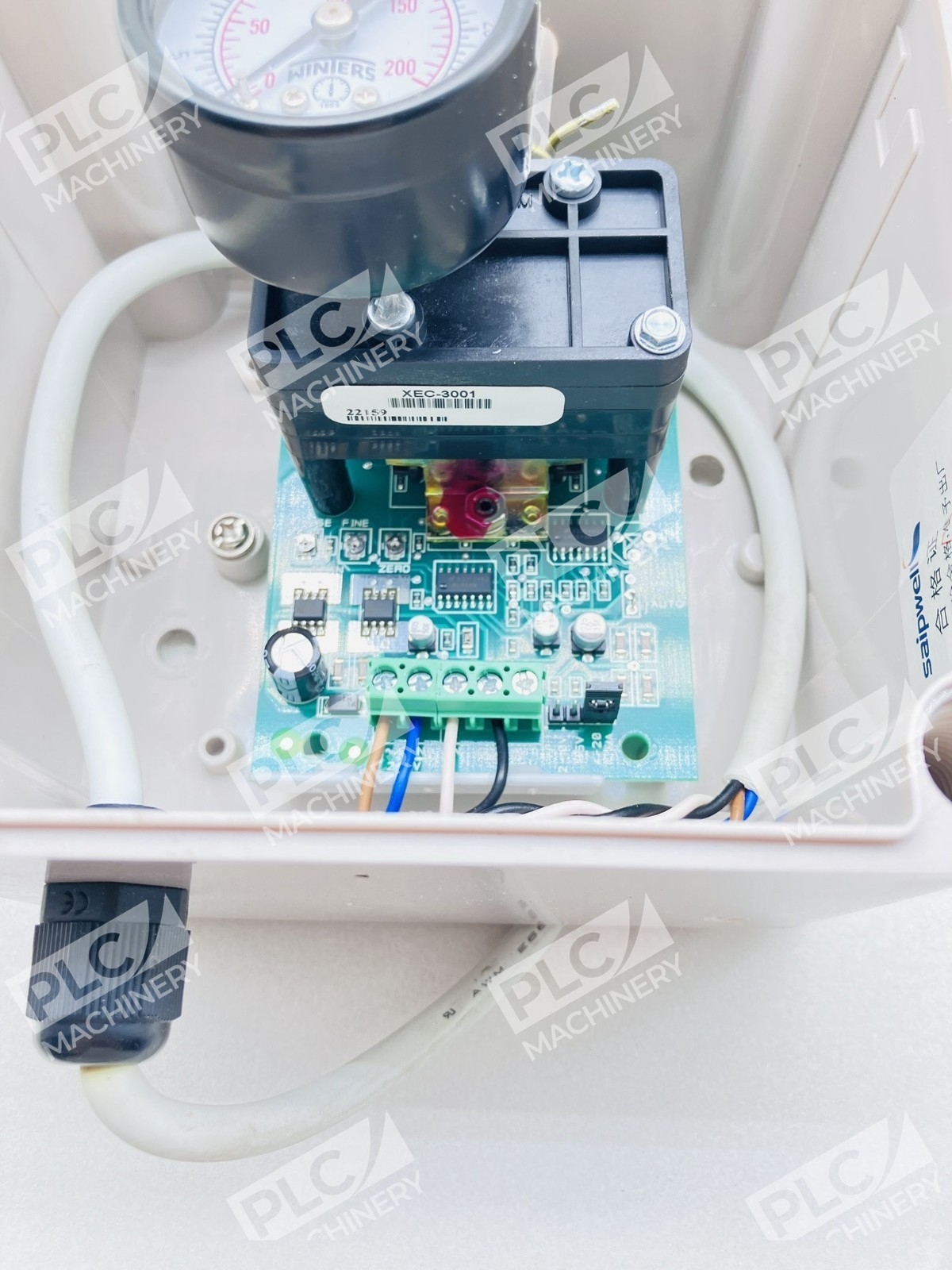

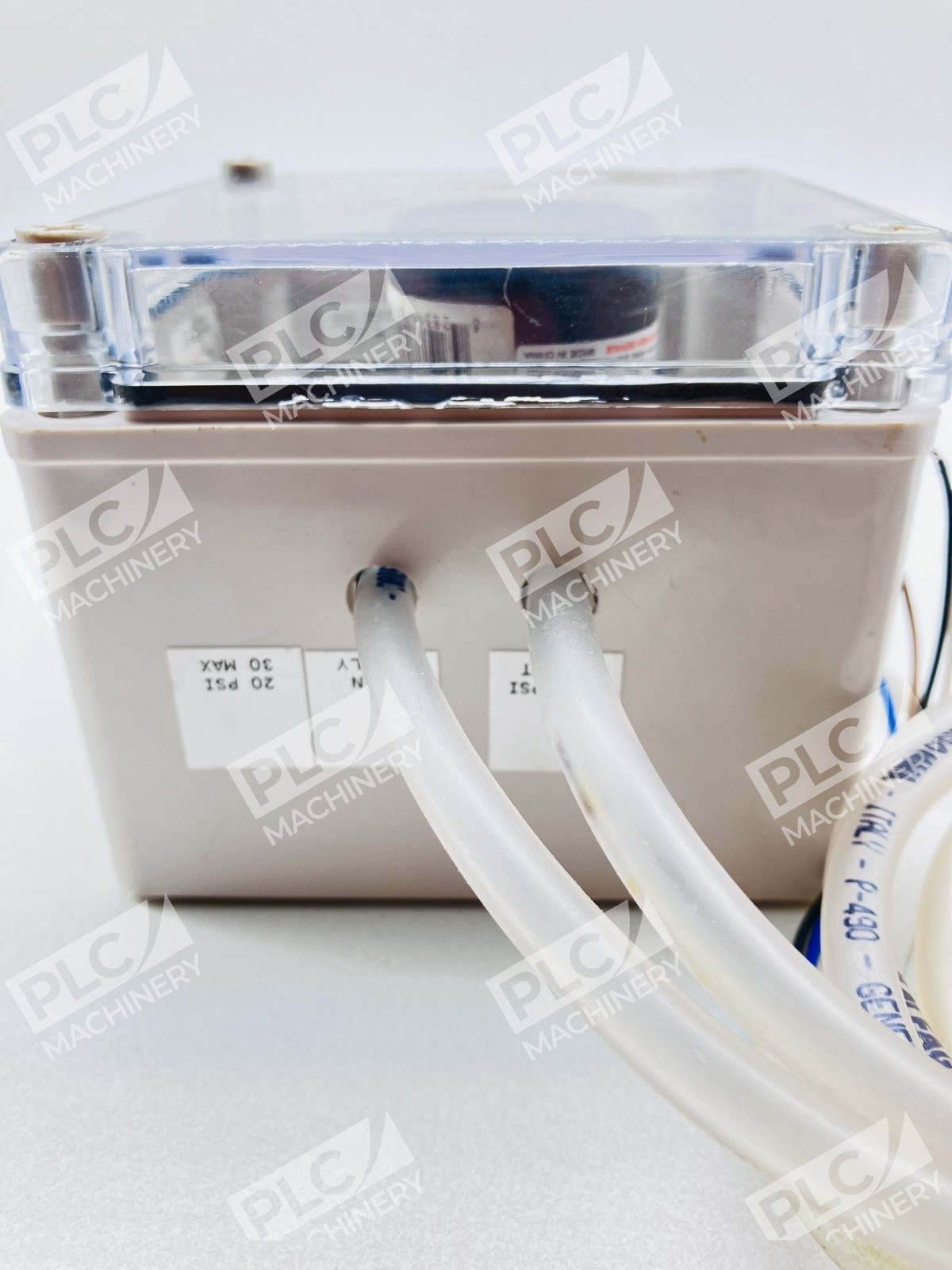

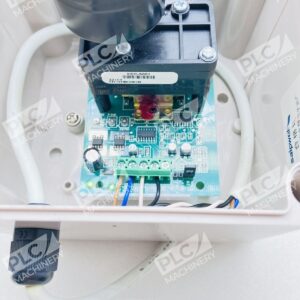

The KMC Controls XEC-3001 is an electronic-to-pneumatic (E/I-P) transducer that converts analog voltage or current signals into linear pneumatic output signals. Used primarily in HVAC systems, this transducer enables precise positioning of damper and valve actuators through branch line pressure feedback. The unit is neither position-sensitive nor directional, making it flexible for various building automation applications.
Key Features
- Flexible Input Signals: Accepts 1-5 VDC, 2-10 VDC, or 4-20 mA analog input signals
- Dual Power Supply: Can be powered by 24 VAC or 24 VDC
- Linear Pneumatic Output: Provides 3-15 psi linear pneumatic output signal
- Direct Feedback Signal: Includes 1-5 VDC output feedback signal proportional to the 3-15 psi output

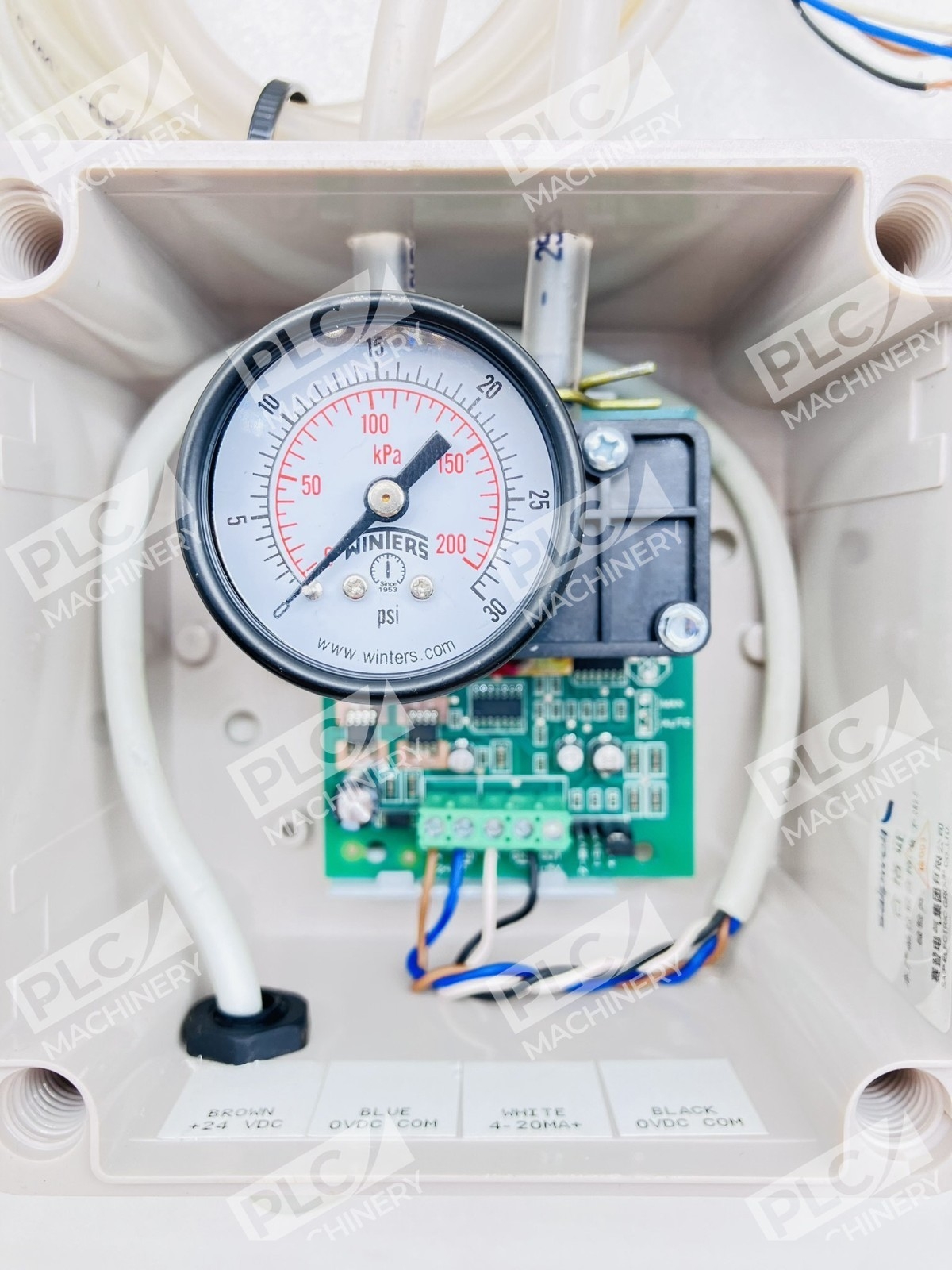

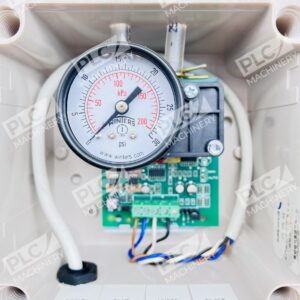

- Pressure Monitoring: Equipped with gauge tap for pressure output indication
- Universal Mounting: Standard 3.25″ Snap Track included for flexible installation
Technical Specifications

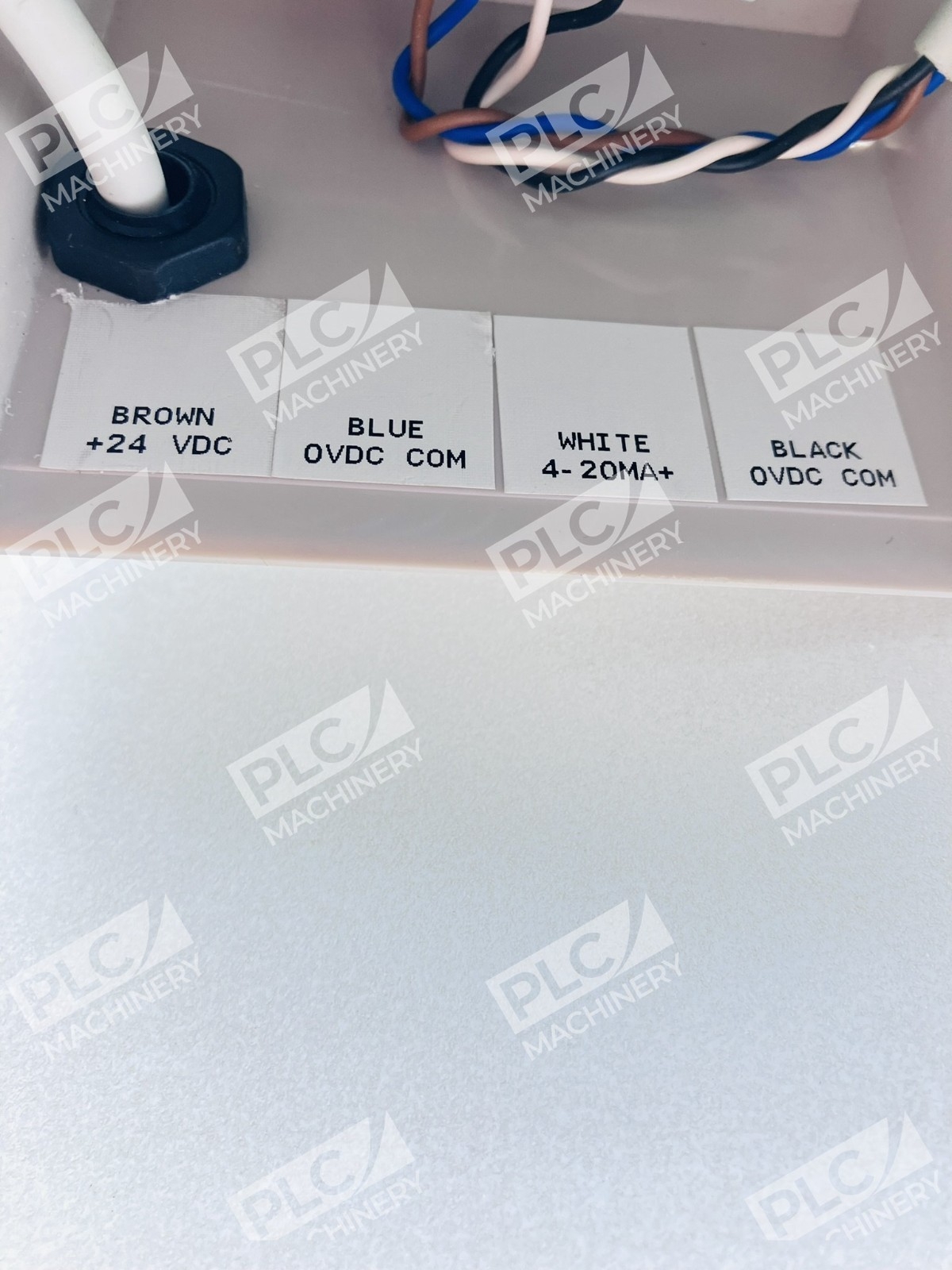

- Input Voltage (Power): 24 VAC or 24 VDC
- Input Signal Options: 1-5 VDC, 2-10 VDC, or 4-20 mA

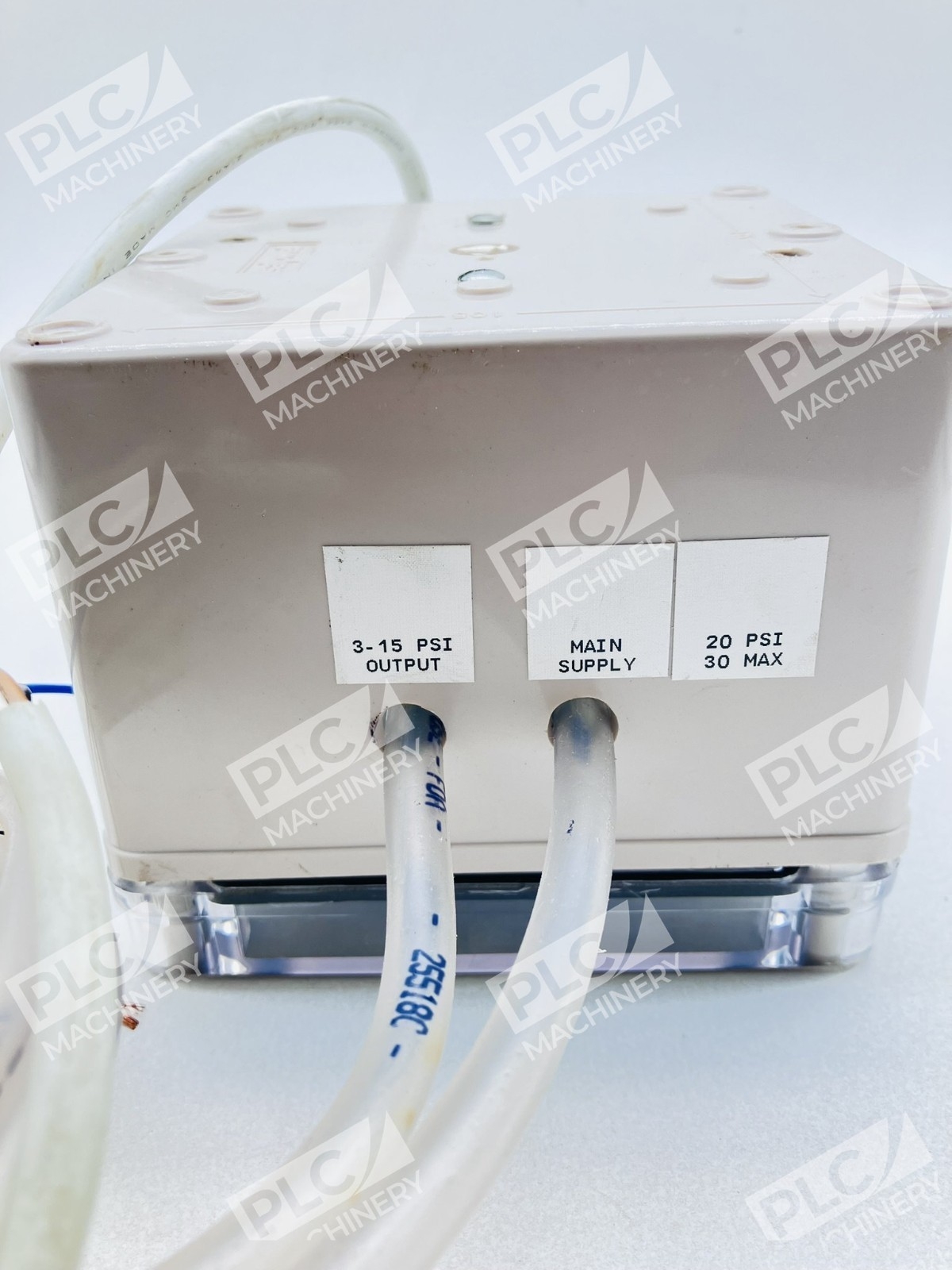

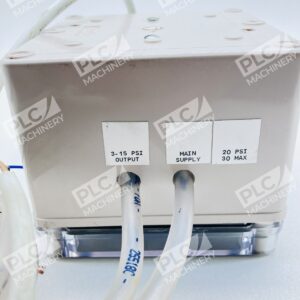

- Pneumatic Output: 3-15 psig linear
- Output Feedback: 1-5 VDC
- Mounting Standard: 3.25″ Snap Track
- Gauge Port: Pressure tap included
- Internal Filter: Integrated
- Orientation: Can be mounted vertically or horizontally
- Country of Origin: USA
Typical Applications
The XEC-3001 is used in HVAC systems to provide an accurate signal for positioning damper and valve actuators based on branch line pressure. Common uses include:
- Variable air volume (VAV) terminal control
- Chilled water valve modulation
- Hot water reheat control
- Exhaust damper positioning
- Building automation systems (BAS) requiring pneumatic output signals
Compatibility & Replacements
Compatible With
- KMC Controls building automation systems
- Pneumatic actuators (damper and valve types)
- Building management systems (BMS) supporting 4-20 mA or voltage output
- Standard 3.25″ Snap Track mounting systems
- Systems requiring 3-15 psi pneumatic control signals
Replaces / Drop-In Replacement For
- XEC-3001 serves as the base module; XEC-3004 includes the XEC-3001 with a manual (H/O/A) override function
- Legacy pneumatic control signal converters with equivalent 24 VAC/VDC and 4-20 mA input specs
- Similar-spec transducers requiring 3-15 psi output range
Works With
- BACnet and Modbus-compatible building automation platforms
- Pneumatic control logic systems
- Electronic control modules outputting 1-5 VDC or 4-20 mA signals
- KMC Controls installation guides and documentation (available via manufacturer)
- Standard HVAC accessory filters (HFO-0006, 25 micron)
