Overview

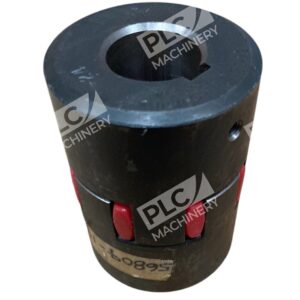

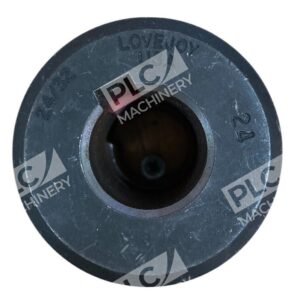

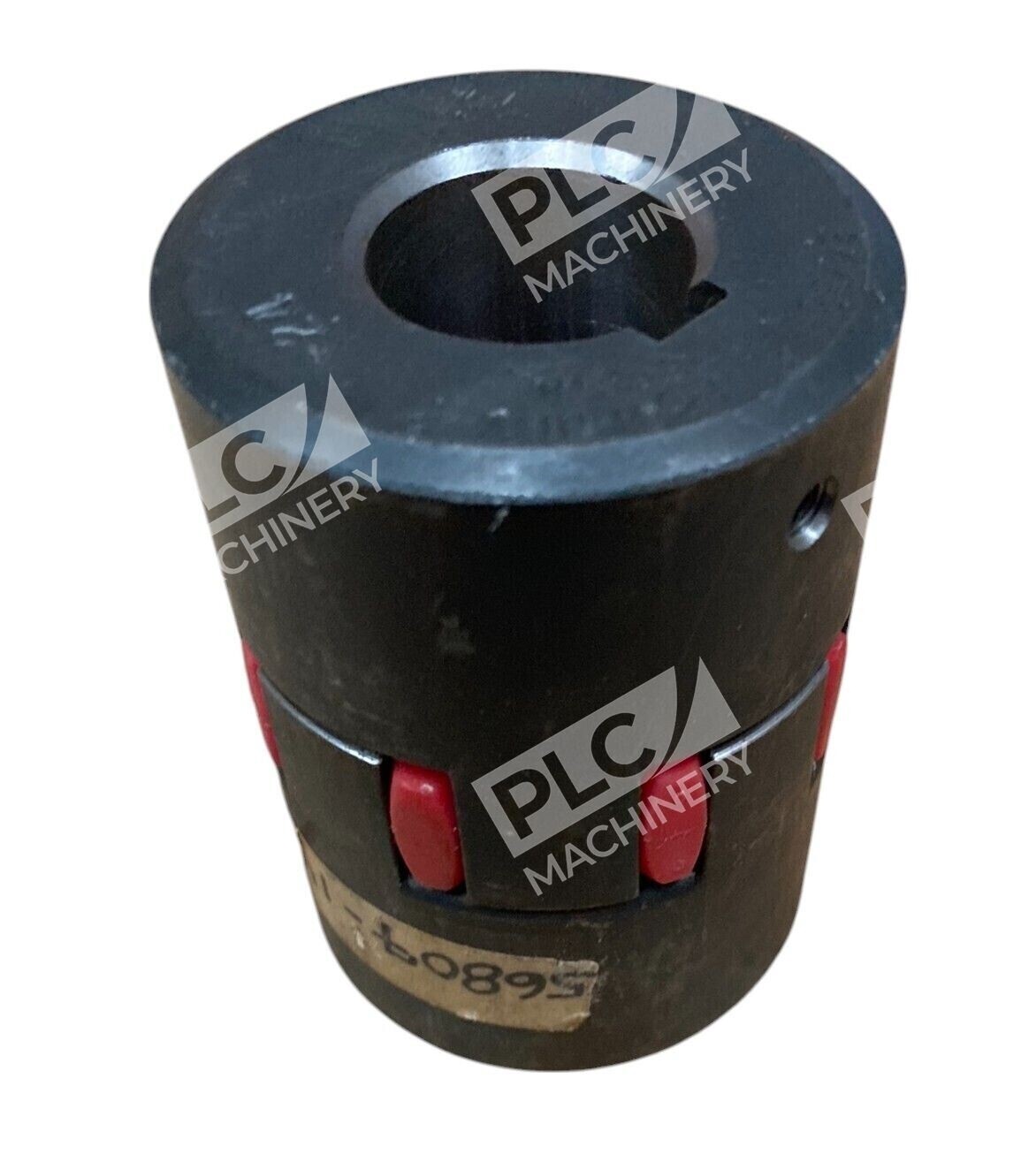

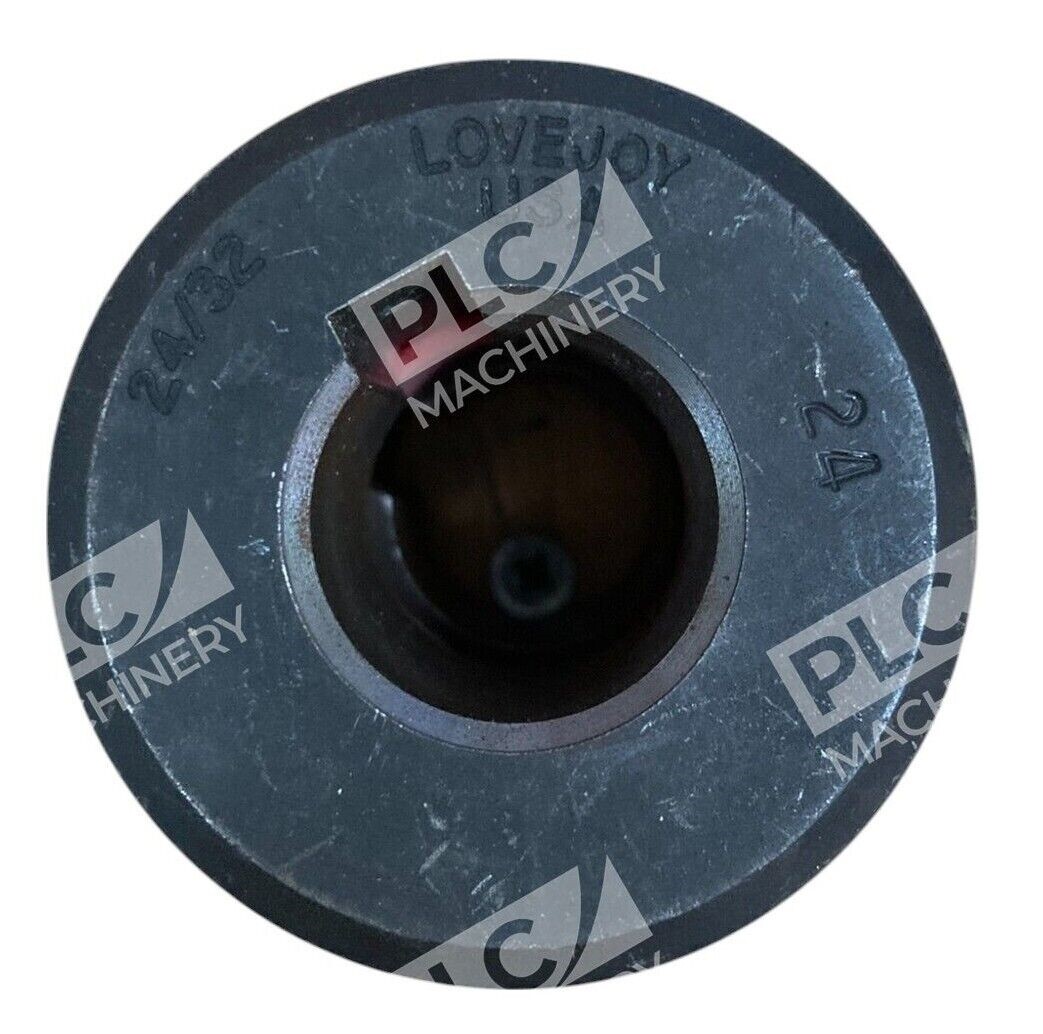

The Lovejoy CJ 24/32B jaw coupling hub is a precision-engineered component for flexible power transmission in industrial motion control applications. Made of steel sintered with powdered metals for strength, durability, and corrosion resistance, this curved jaw hub design transmits torque while accommodating shaft misalignment. This hub transfers shock and misalignment from the shaft to the center element of the coupling assembly for reduced wear on the shaft assembly. The 24/32 size rating indicates compatibility with standard Lovejoy CJ Series coupling assemblies.
Key Features
- Curved Jaw Design: No metal to metal contact, still performs if elastomer fails, and resists oil, dirt, sand, moisture, and grease
- No Lubrication Required: Elastomer spider requires no lubrication for extended service life
- Angular Misalignment Capability: 1.5° angular misalignment capability accommodates typical shaft runout
- Elastomeric Element: Central spider dampens vibration and shock loads
- Easy Installation: Set screw fastening for straightforward mounting to shaft
Technical Specifications
- Coupling Size: 24/32 (CJ Series)
- Hub Material: Powder Metal (sintered steel)
- Bore Size: 24mm (metric)
- Outside Diameter: 2.2 inches
- Length Through Bore: 1.18 inches
- Torque Rating: 310 in-lbs
- Maximum Speed: 10,600 RPM
- Fastening: Set Screw
- Color: Metallic Silver
- Weight: 0.97 lb (approximately)
Typical Applications
Lovejoy curved jaw style couplings are suitable for use in various industrial power transmission applications such as compressors, blowers, pumps, conveyors, mixers, and gear boxes. Applications include power transmission to industrial equipment such as pumps, gear boxes, compressors, blowers, mixers, and conveyors. This hub is ideal for systems requiring reliable torque transmission with accommodation for minor shaft misalignment.
Compatibility & Replacements
Compatible With
- Lovejoy CJ 24/32 Series coupling assemblies
- Standard Lovejoy elastomer spiders (spider size 24/32)
- Metric bore shafts with M24 dimensions
- Keyway and set screw fastening systems
Replaces / Drop-In Replacement For
- Lovejoy CJ24/32B-HUB-PM (powder metal variants with 24mm bore)
- OEM coupling hubs compatible with CJ 24/32 size rating
- Verify bore diameter and keyway specifications before installation
Works With
- Lovejoy CJ Series elastomer spiders (NBR, Urethane, or Hytrel options)
- Standard ISO metric bore and keyway tolerances
- AGMA, DIN, and SAE shaft coupling standards
- Lovejoy’s L-LOC Clamping Feature systems (on applicable hub variants)
