Overview

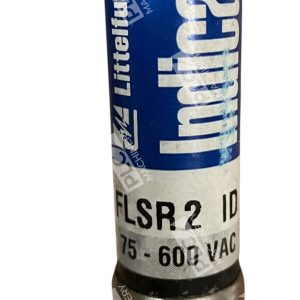

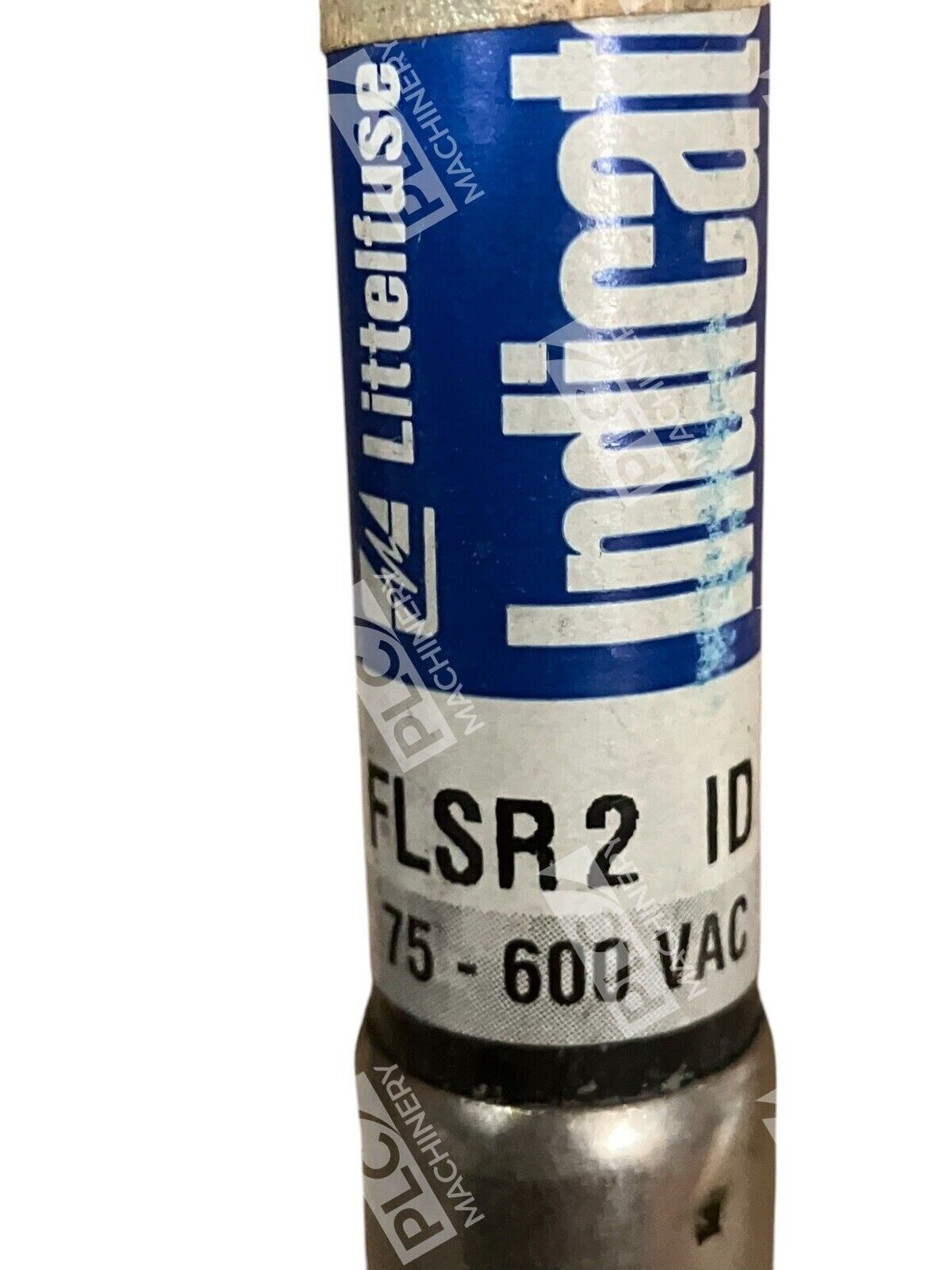

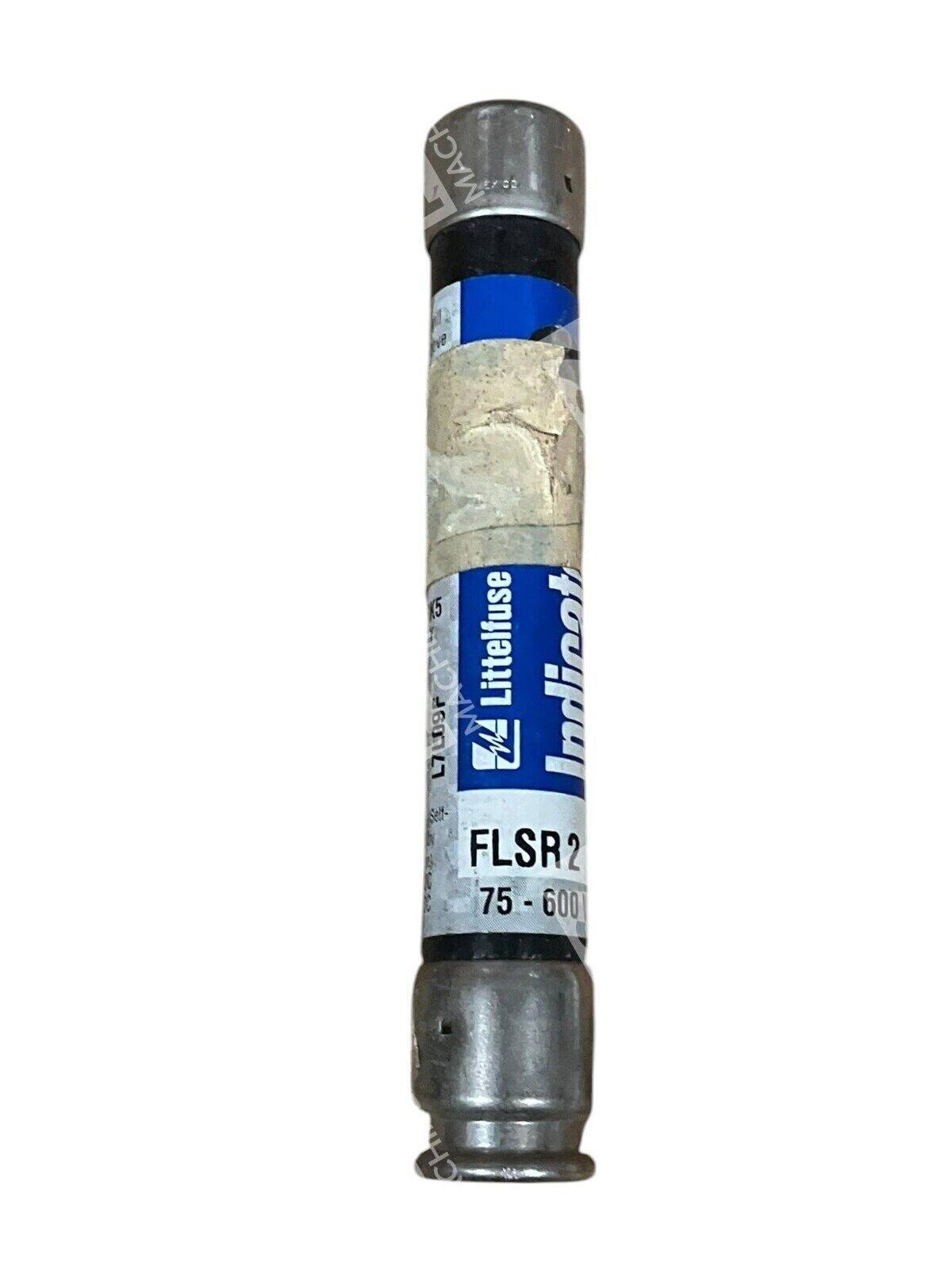

The Littelfuse FLS-R-2-ID is a Class RK5 dual-element time-delay indicator fuse rated for 2A at 600V AC. This fuse combines current-limiting protection with a patented visual indication system that clearly shows when the fuse has blown, eliminating guesswork during troubleshooting and maintenance. The dual-element design provides reliable short-circuit and overload protection, making it ideal for motor circuits and general industrial control applications where nuisance openings must be minimized.
Key Features
- Visual Indicator: Patented solid-state indicator clearly shows blown fuse status at a glance, reducing diagnostic time and equipment downtime
- Dual-Element Design: Provides advanced overload and short-circuit protection with minimal nuisance tripping
- Current Limiting: Class RK5 construction limits fault current, protecting downstream components
- Time-Delay Characteristic: Allows temporary inrush currents common in motor startup while protecting against sustained overloads
- Industry Standard: UL-listed and widely used in control panels, motor starters, and electrical distribution equipment
Technical Specifications
- Current Rating: 2 Amperes
- Voltage Rating: 600V AC / 300V DC
- Fuse Class: RK5
- Type: Dual-Element Time-Delay
- Indication: Visual blown fuse indicator
- Technology: POWR-GARD, solid-state design
- Terminal Type: Ferrule
- Series: FLSR-ID (FLSR002ID)
- UL Listed: Yes
Typical Applications
- Motor protection circuits in industrial machinery and HVAC systems
- Control panel and distribution equipment protection
- General circuit protection in equipment with inductive loads
- Applications where visual fuse status indication is required for safety and maintenance efficiency
Compatibility & Replacements
Compatible With
- Standard RK5 fuse holders and clips rated for 600V
- Industrial control panels and motor starter enclosures
- General-purpose electrical distribution and protection equipment
- Equipment designed for Class RK5 time-delay fuses
Replaces / Drop-In Replacement For
- Mersen Ferraz Shawmut TRS2R 2A 600V
- Bussmann Fusetron FRS-R-2 2A 600V
Works With
- RK5 fuse holders and mounting clips
- Standard 600V electrical panels and motor control centers
- Time-delay motor protection circuits
- POWR-GARD indicator fuse systems
