Overview

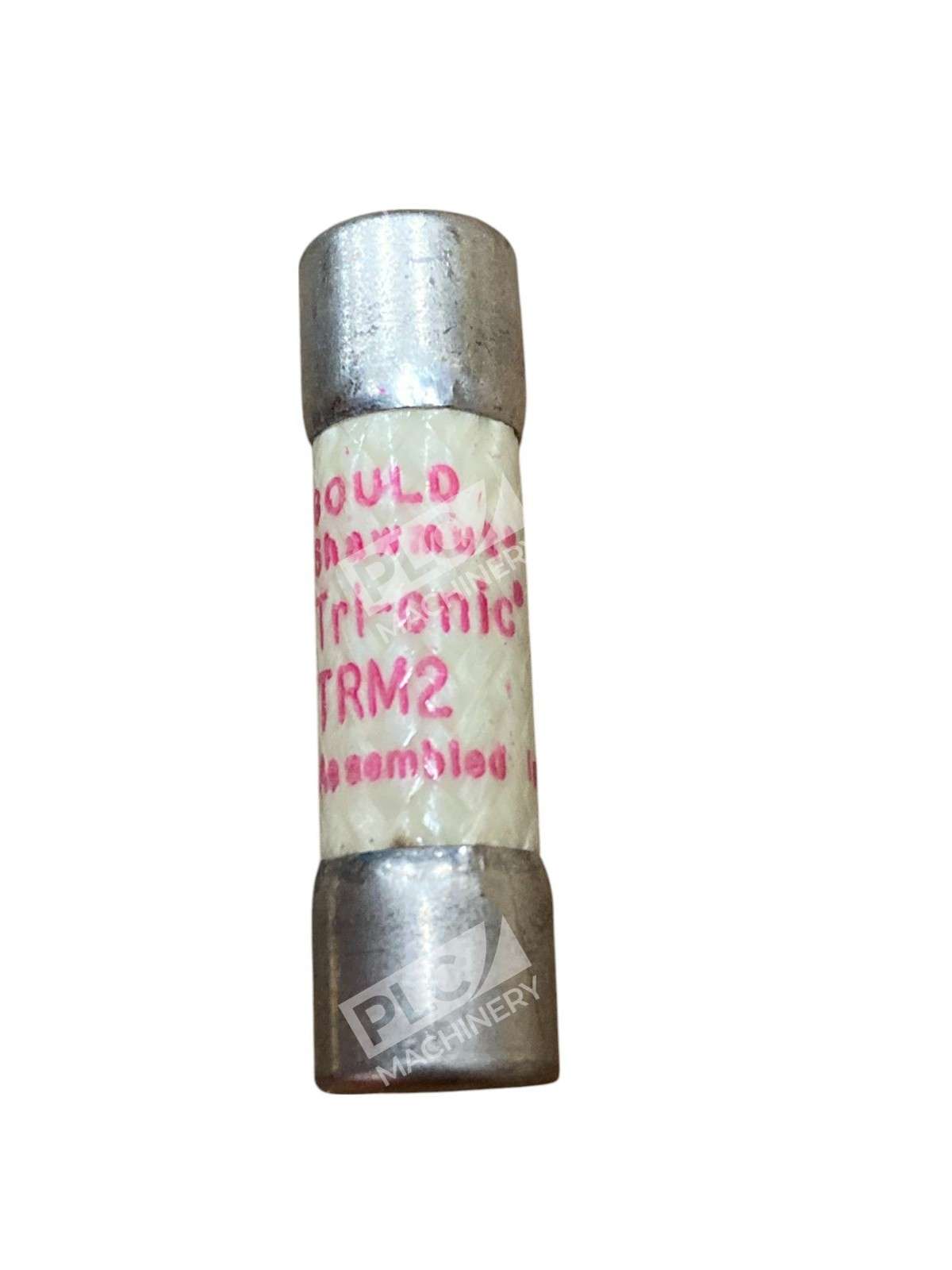

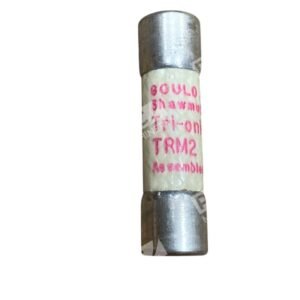

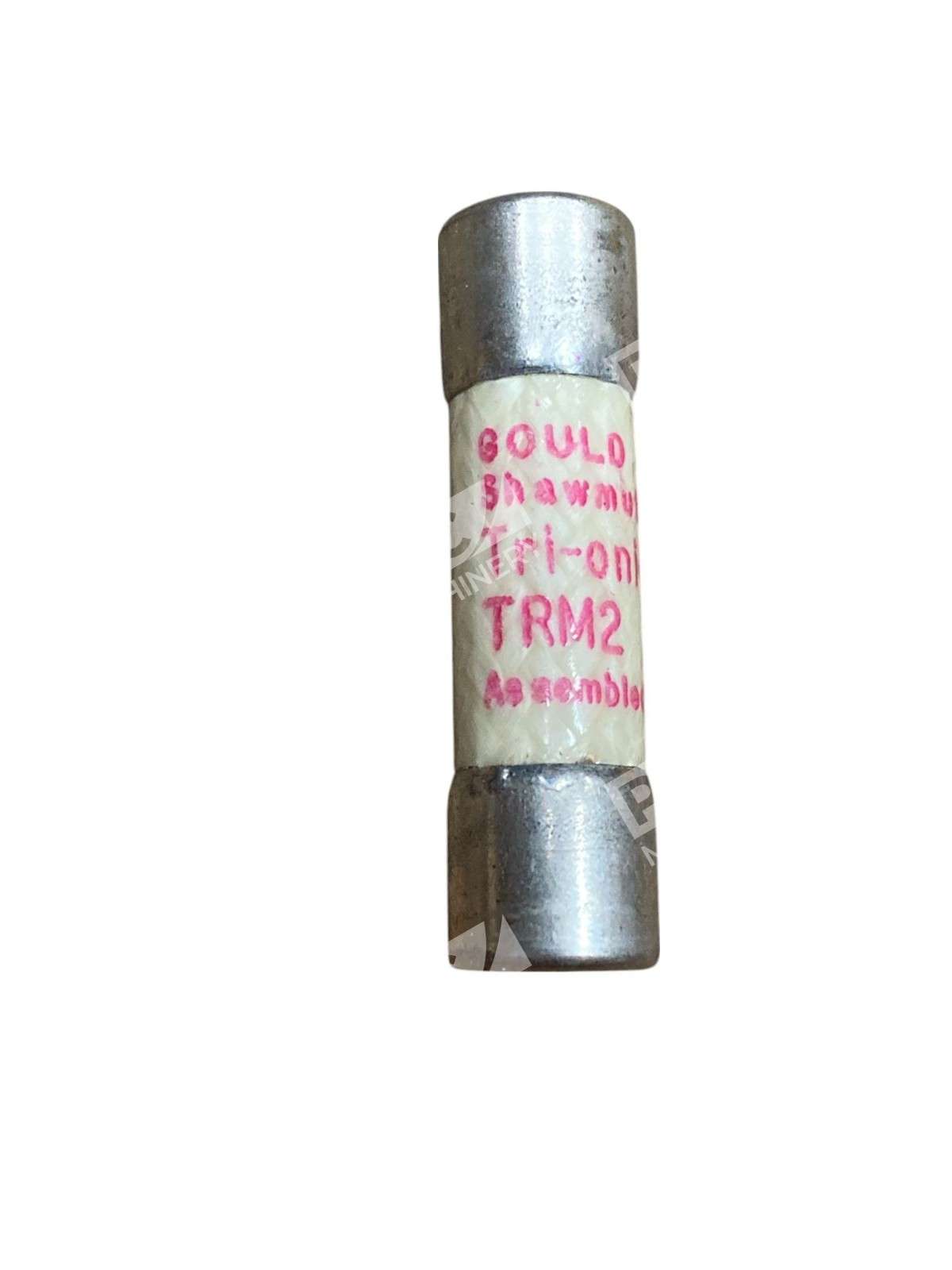

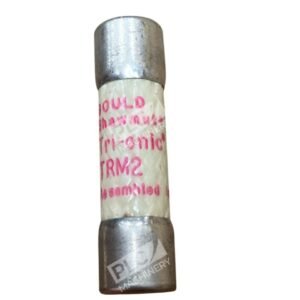

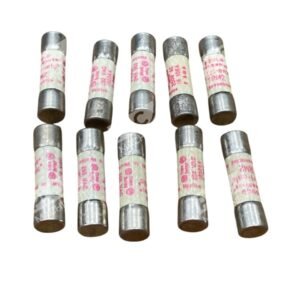

The Gould Shawmut TRM2 is a time-delay Tri-Onic cartridge fuse rated 2A at 250VAC. It is designed for supplemental overcurrent protection of small motors, transformers, and high-inrush circuits where conventional fast-blow fuses would nuisance-trip. This midget fuse meets UL and CSA standards for industrial and commercial applications.
Key Features
- Tri-Onic time-delay technology safely handles harmless motor starting and inrush currents
- 2A amperage rating with 250VAC voltage rating
- 10 kA interrupt rating for reliable fault clearing
- Midget cartridge form factor: 0.41″ diameter × 1.5″ length
- UL and CSA certified; RoHS compliant

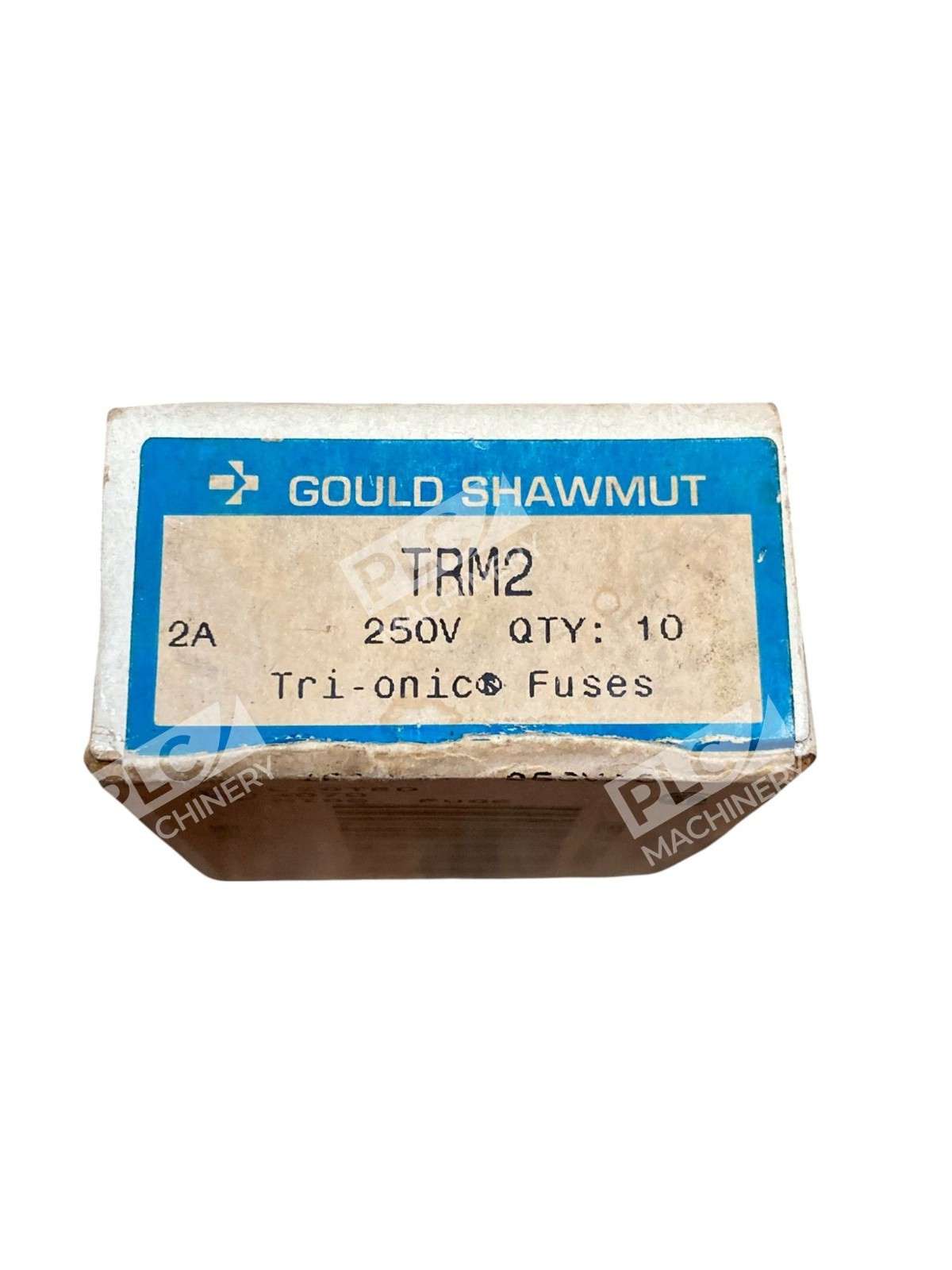

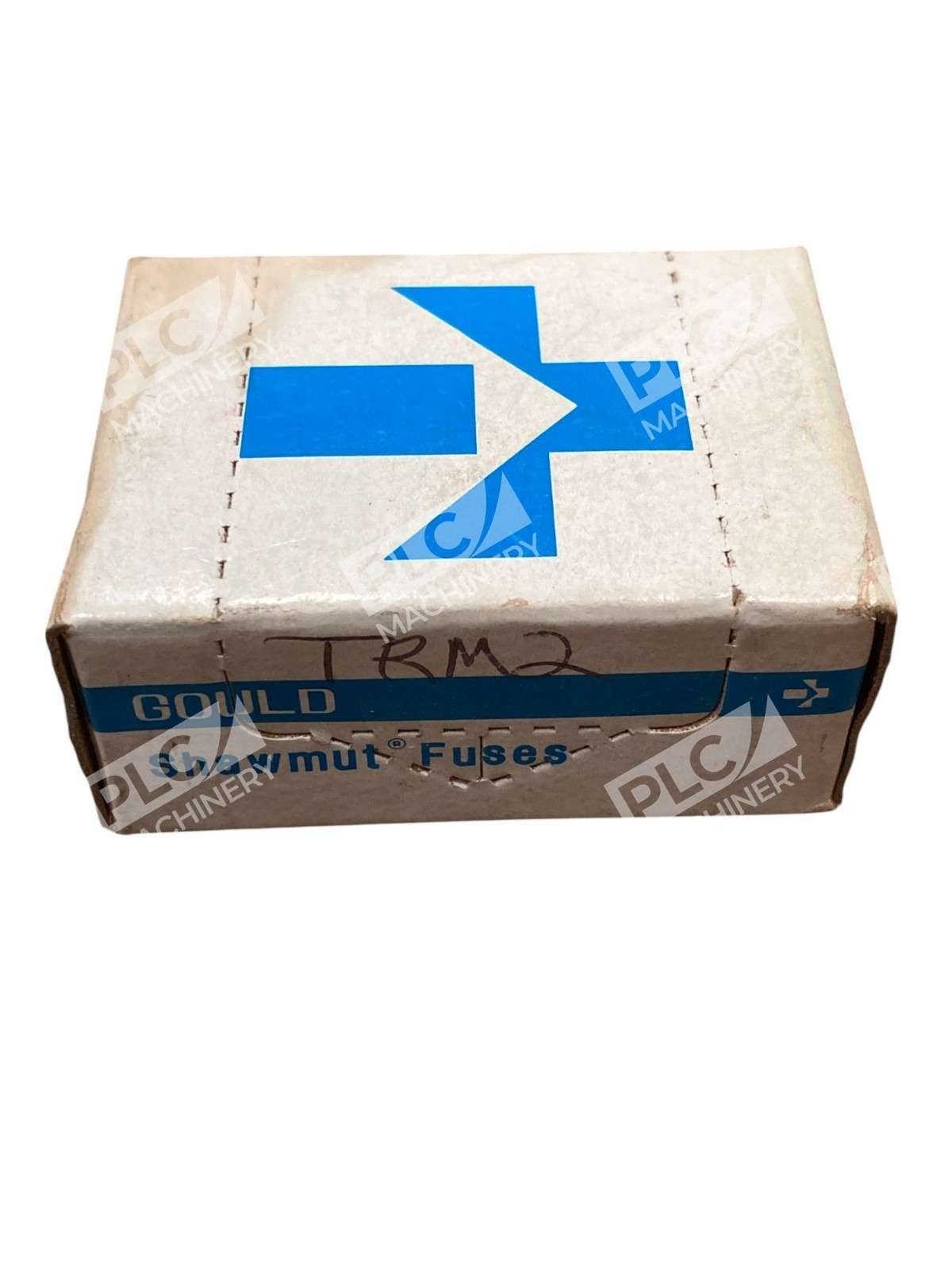

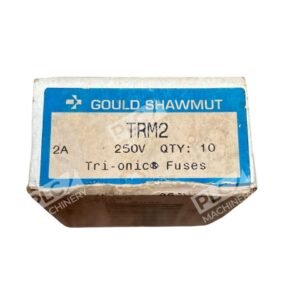

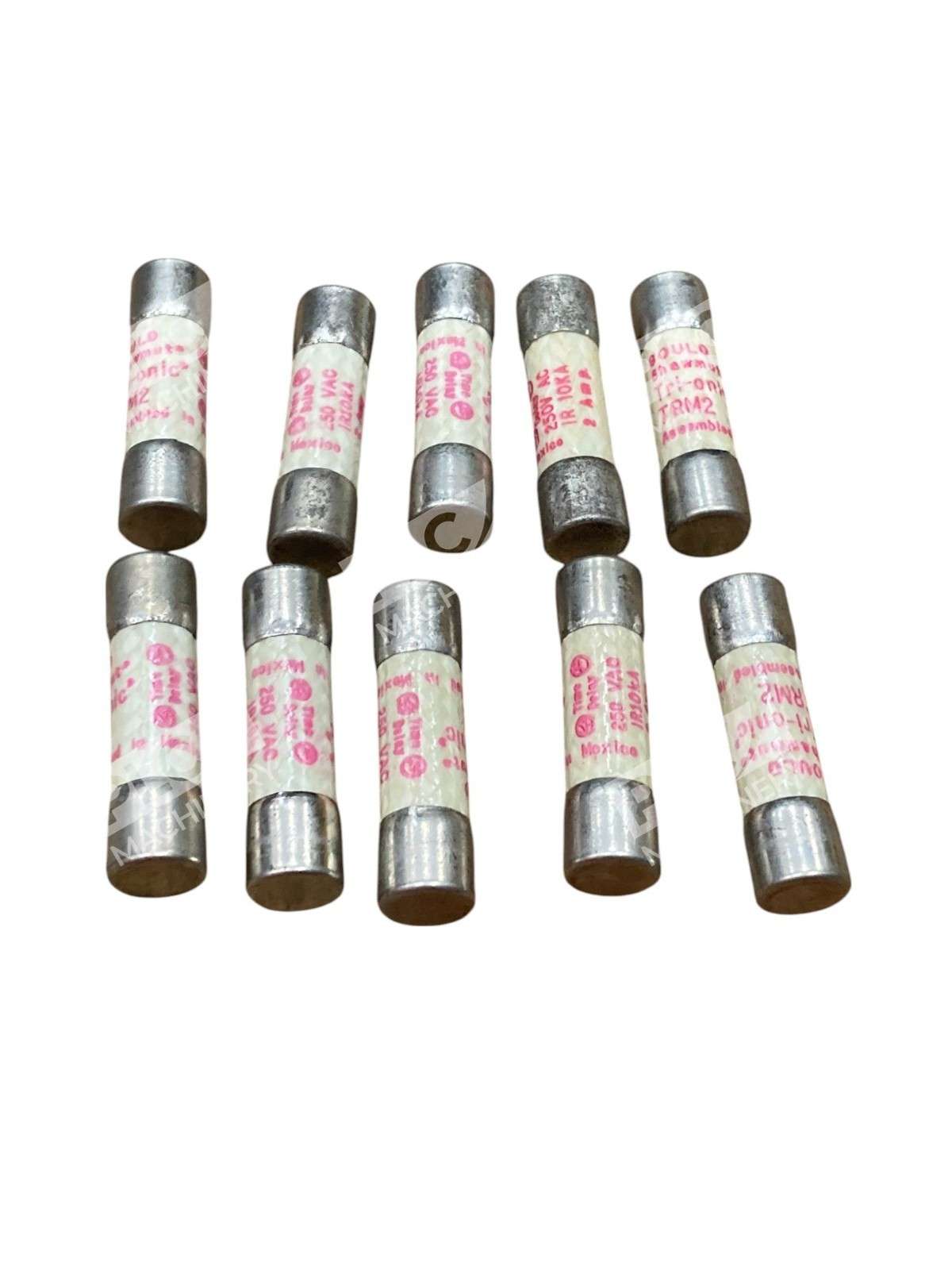

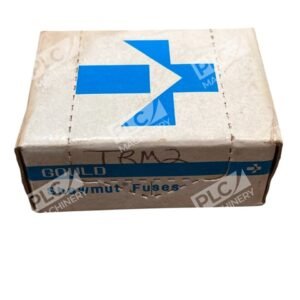

- 10 pieces per box for bulk protection needs
Technical Specifications
| Amperage | 2 A |
| Voltage Rating | 250 VAC |
| Interrupt Rating | 10 kA |
| Fuse Class | Midget |
| Fuse Type | Cartridge |
| Speed Characteristic | Time Delay |
| Diameter | 0.41″ (10.4 mm) |
| Length | 1.5″ (38.1 mm) |
| Weight Per Unit | 0.28 oz |
| Quantity Per Box | 10 pieces |
| Certifications | UL, CSA, RoHS |
| Series | Tri-Onic TRM |
Typical Applications
- Small motor circuit protection in pumps, fans, and blowers
- Power supplies and control transformers in industrial equipment
- Supplemental protection in auxiliary circuits and branch circuits (not branch circuit main protection)
- Equipment with high inrush currents that require time-delay coordination
- Commercial and industrial control panels requiring UL/CSA certification
Compatibility & Replacements
Compatible With
- Any 250VAC electrical circuit rated for 2A maximum load current
- Industrial motor starters and soft starters
- Low-voltage control transformers (secondary side)
- Automation equipment and panel-mount enclosures
- Original equipment manufacturer (OEM) control circuits
Replaces / Drop-In Replacement For
- Ferraz Shawmut TRM2 (same product, current manufacturer name)
- Mersen TRM2 (product now sold under Mersen brand)
- Other midget time-delay fuses with identical 2A/250V/10kA specs
Works With
- Midget fuse holders and clips sized for 0.41″ diameter cartridges
- Standard electrical enclosures and panelboards
- Motor control centers and soft-starter protected circuits
- Any UL/CSA-listed equipment that specifies TRM series fuses
