Overview

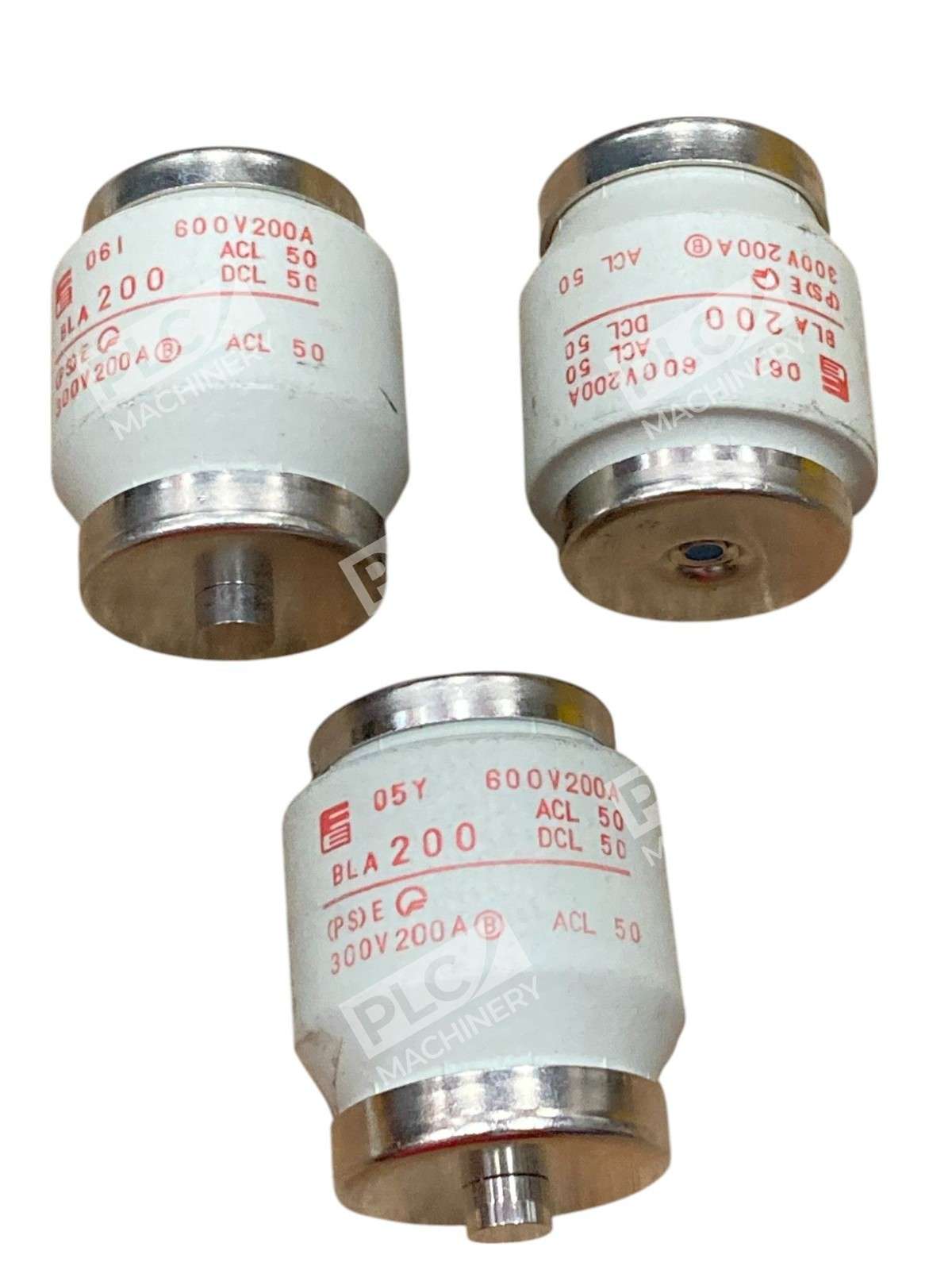

Fuji Electric BLA200 low-voltage ceramic fuses are industrial-grade cartridge-style fuses designed for circuit protection in power distribution equipment and motor control systems. These time-delay, current-limiting fuses provide reliable fault protection with a 100 kA interrupting capacity at rated voltage.
Key Features
- Rated 200 amperes at 600 volts AC/DC
- Time-delay characteristic for selective coordination
- Current-limiting design with 100 kA interrupting capacity

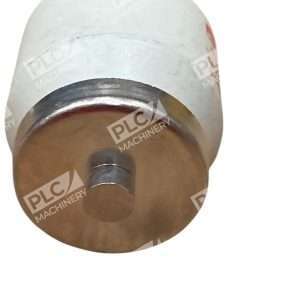

- Bottle-style cartridge with ceramic body
- Built-in trip indicator with color-coded tip (green for 200A)

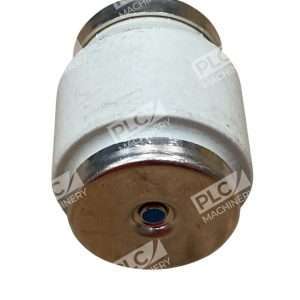

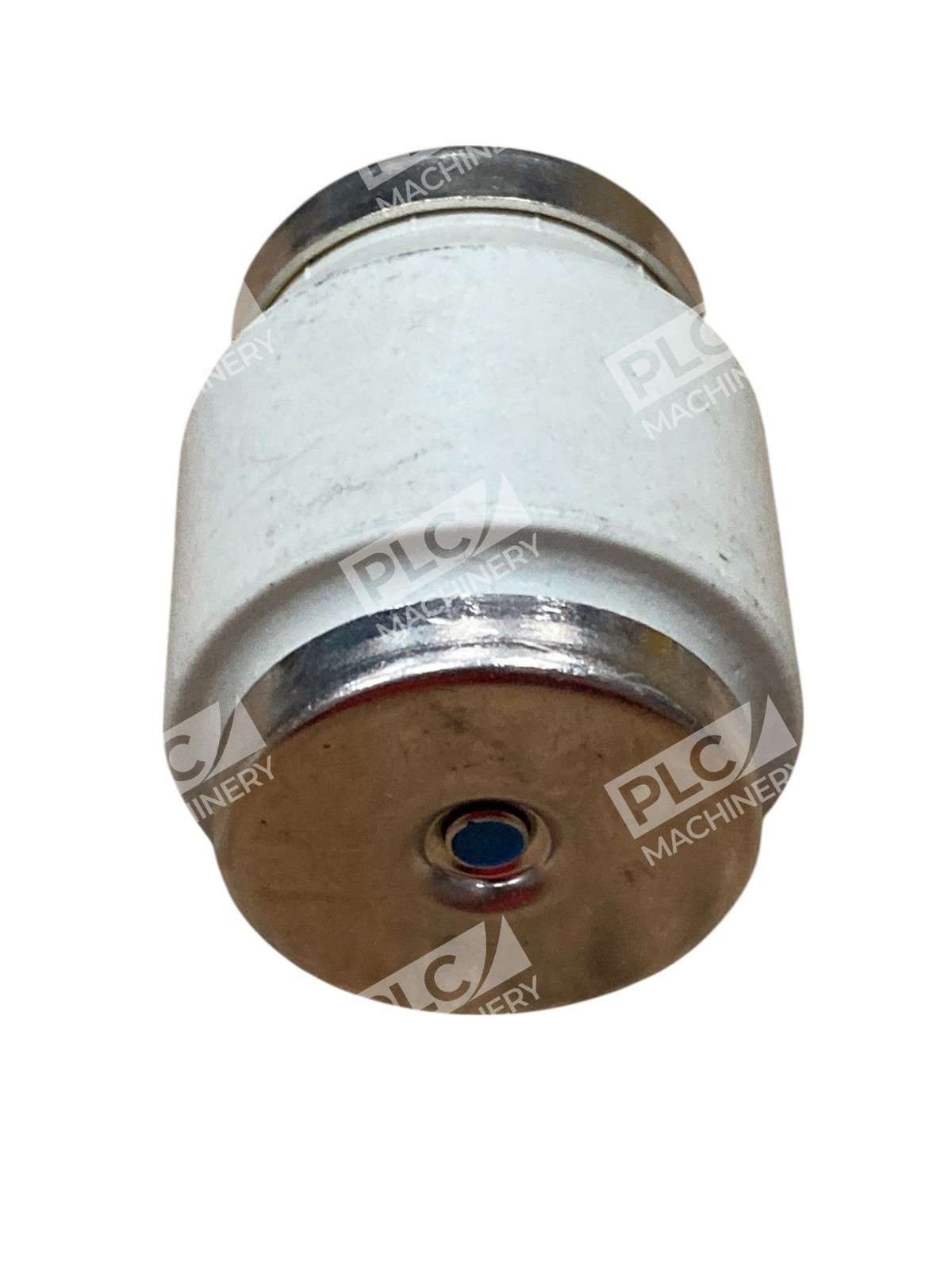

- Open fuse indication window for visual status confirmation
Technical Specifications
- Model: BLA200
- Current Rating: 200 A
- Voltage Rating: 600 V AC/DC
- Fuse Type: Time-delay, current-limiting
- Interrupting Capacity: 100 kA @ 600V
- Body Material: Ceramic cartridge
- Dimensions: 63 mm (L) × 47 mm (Ø) maximum
- Weight: 215 g per fuse
- Series: AFaC and BaC series
- Speed: TIME-DELAY
Typical Applications
- General industrial power distribution systems
- Distribution equipment and switchgear
- Motor starters and load centers
- Control centers and industrial panels
- Power cubicles and branch circuits
Compatibility & Replacements
Compatible With
- AFaC and BaC series fuse bases and holders
- Industrial power distribution equipment rated 600V
- Motor control centers and disconnect switches
- Standard 600V AC distribution panels
Replaces / Drop-In Replacement For
Verify compatibility with your equipment manufacturer before installation. The BLA200 is the standard Fuji Electric model for 200A protection in 600V systems. Related models in the BLA series include BLA150 (150A) and BLA250 (250A) for different amperage requirements.
Works With
- Fuji Electric AFaC and BaC fuse bases
- Standard industrial fuse holders rated 600V
- Motor control equipment and switchgear
- IEC and UL-compliant distribution systems
