Overview

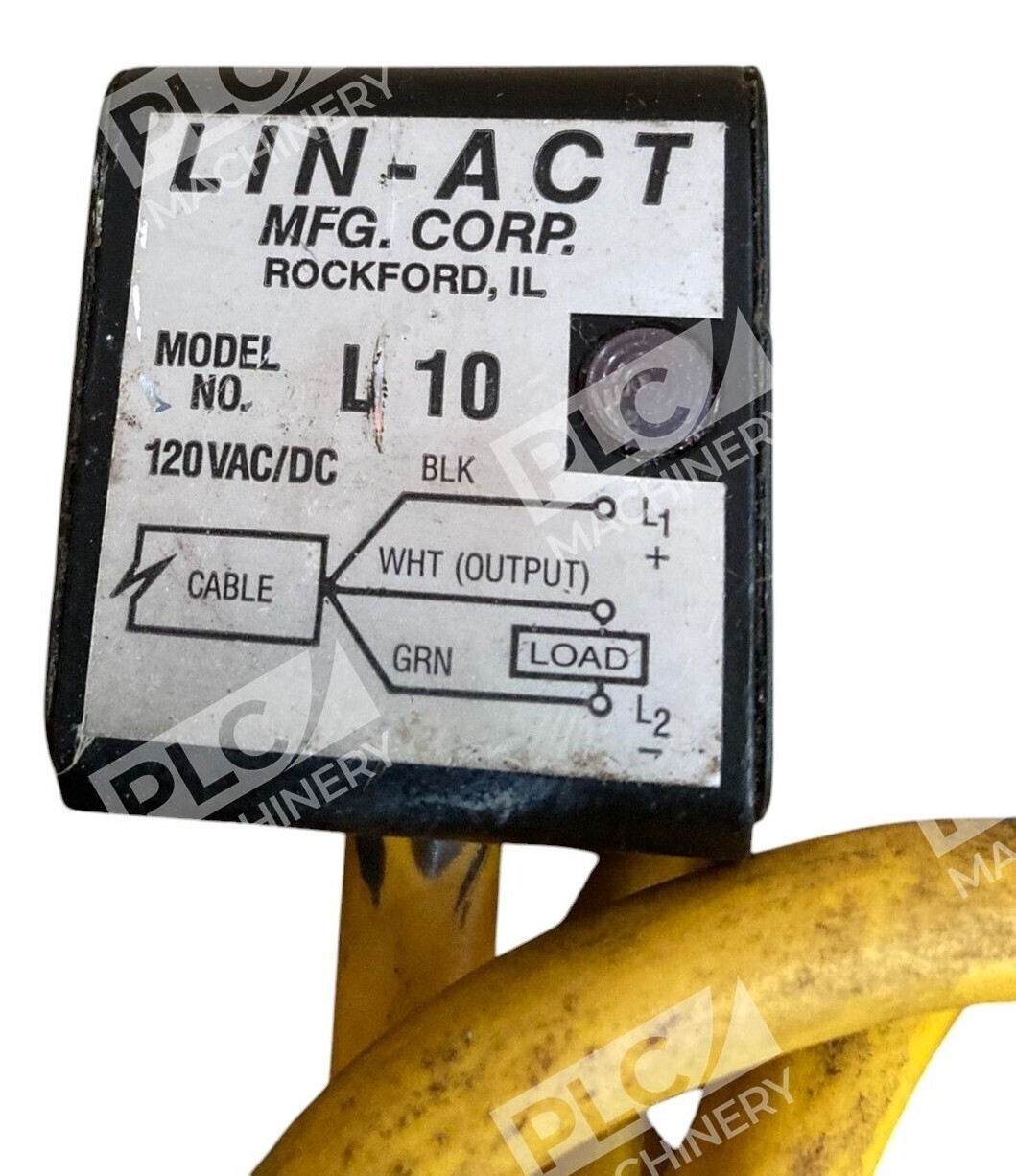

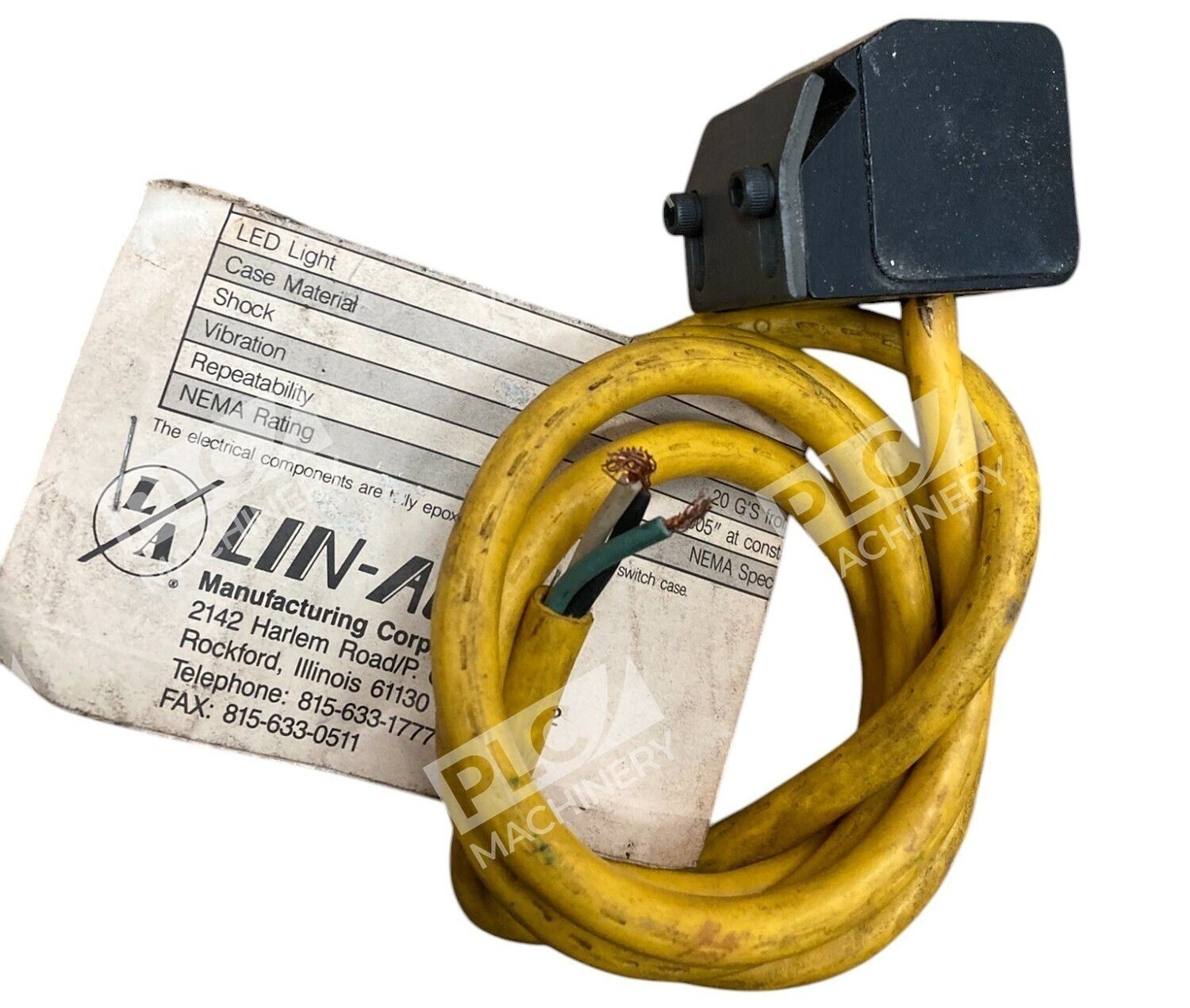

The Lin-Act L10 limit switch is a proven motion-control component designed for industrial automation applications. Operating on both 120VAC and DC power supplies, this switch delivers reliable position sensing and actuation feedback to PLC processors and control systems. The integrated indicator light provides visual confirmation of switch state, aiding diagnostics and troubleshooting in the field.
Key Features
- Dual voltage operation: 120VAC and DC compatible
- Built-in indicator light for visual status feedback
- Compact form factor suitable for mounting in tight spaces
- Suitable for linear actuator end-of-travel detection
- Proven reliability in material handling, machinery automation, and process control
Technical Specifications
The L10 is rated for industrial-grade electrical switching and is commonly deployed in motion-control circuits where end-of-stroke or position detection is required. Typical applications include linear actuators, conveyor systems, and automated machinery. The switch can interface directly with standard industrial control modules and PLC input cards.
Typical Applications
- Linear actuator end-of-travel control
- Conveyor and material handling position sensing
- Machinery automation and equipment sequencing
- PLC-based motion control systems
- Industrial process automation
Compatibility & Replacements
Compatible With
- Allen-Bradley PLC input modules (24VDC, 120VAC)
- Siemens SIMATIC S7 automation systems
- Omron PLC controllers
- Schneider Electric Modicon automation platforms
- Standard industrial 24VDC and 120VAC control circuits
- Linear actuator motion-control systems
Replaces / Drop-In Replacement For
The Lin-Act L10 may replace other industrial limit switches in similar form-factor applications. Verify specific mounting and connector compatibility with your system integrator before ordering. Contact our support team for cross-reference assistance.
Works With
- Studio 5000 / RSLogix 5000 (via standard input module)
- TIA Portal (Siemens systems)
- Industrial control relay circuits
- 24VDC and 120VAC industrial switching networks
- Discrete I/O signal chains in automation controllers
