Overview

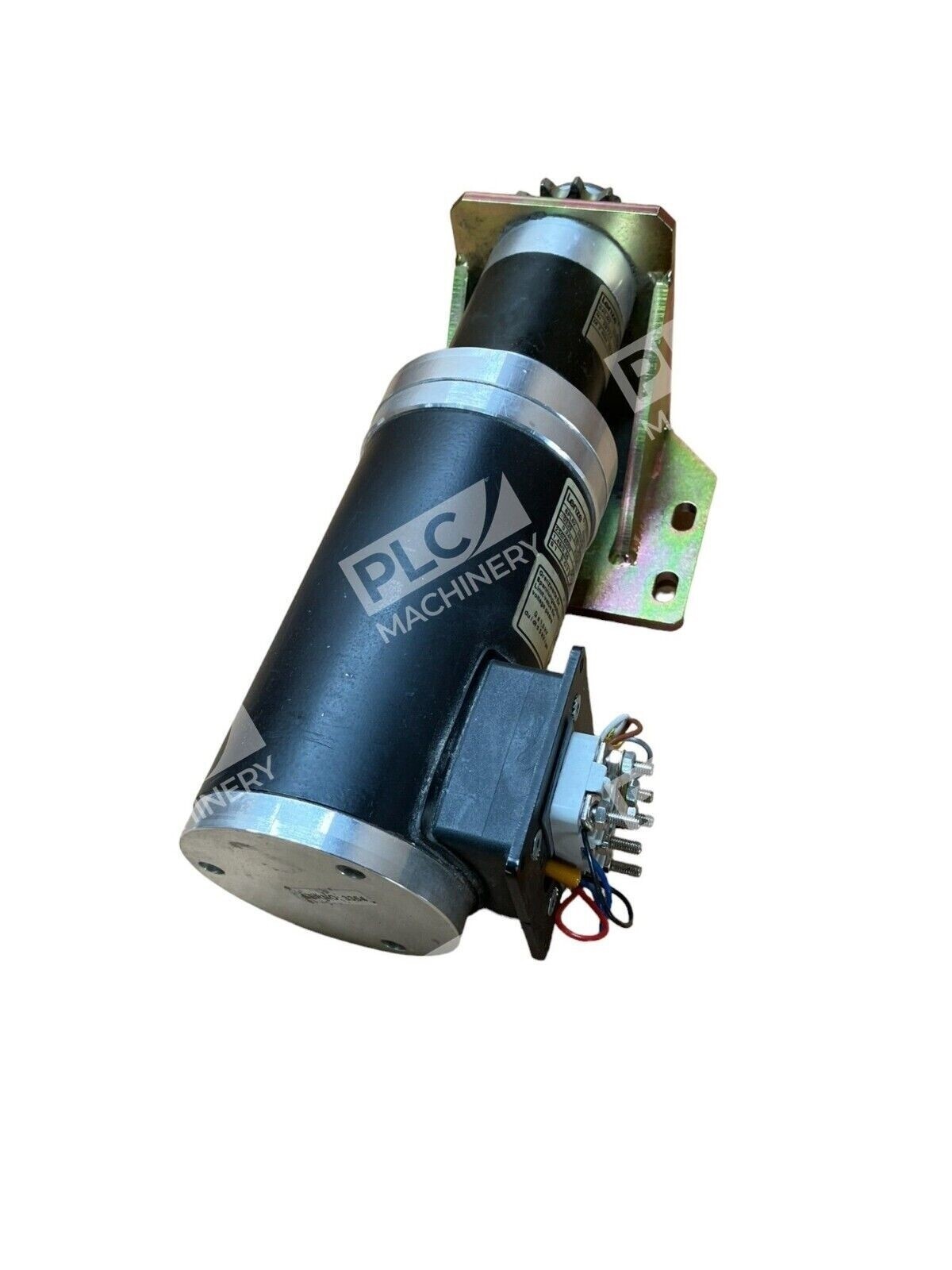

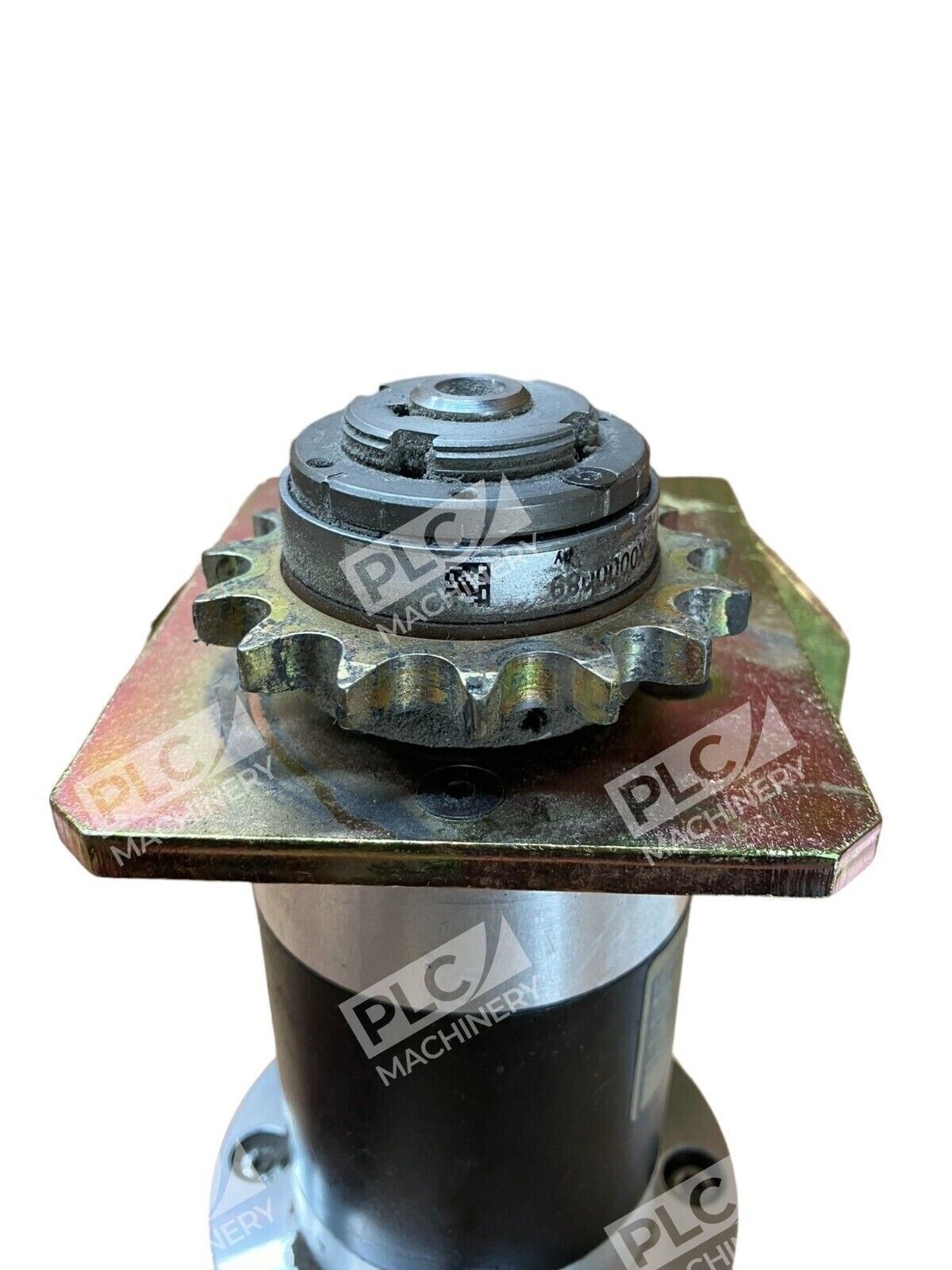

The Lenze SPL62-3GVCR-056N22 is a compact AC asynchronous servo gear motor engineered for industrial automation, motion control, and general-purpose applications. This unit combines a small-frame AC induction motor with a precision planetary gearbox, delivering consistent torque output and rotational efficiency across variable load conditions.
Key Features
- Planetary gearbox design for compact size and high torque density
- AC asynchronous motor technology with proven reliability
- Precision-machined gears for smooth, quiet operation
- Standard foot or flange mounting options
- IP54 enclosure rating for industrial environments
- Low backlash gearbox suitable for positioning applications

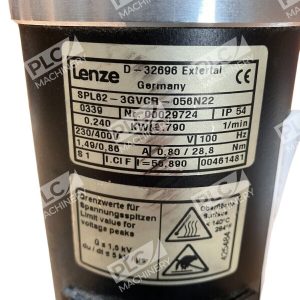

Technical Specifications
- Motor Type: AC Asynchronous (Induction)
- Gearbox Type: Planetary
- Input Voltage: 230/400 VAC (3-phase)
- Frequency: 50 Hz
- Power Output: 0.06 kW typical for SPL62 series
- Shaft Configuration: Standard hollow or solid shaft options
- Enclosure Rating: IP54
- Operating Temperature Range: -10°C to +50°C (standard)
- Mounting: Foot or flange mount available
Typical Applications
- Conveyor and material handling systems
- Packaging machinery and automation equipment
- Industrial pump and fan drive applications
- Precision positioning and indexing machines
- General-purpose equipment requiring low-speed, high-torque output
- Textile, printing, and process automation systems
Compatibility & Replacements
Compatible With
- Industrial 3-phase AC power systems (230/400V, 50 Hz)
- Standard mechanical couplings and shaft adapters
- Motor starters, soft starters, and variable frequency drives
- Industrial control systems and automation platforms
- Load-driven equipment with standard mounting interfaces
Replaces / Drop-In Replacement For
The SPL62-3GVCR-056N22 is part of the Lenze SPL62 family. Related models in the series include SPL62-1GVCR-056N22 and SPL62-2UVCR-056N22. Verify compatibility with your system integrator before ordering to ensure gearbox ratio and torque output match your application requirements.
Works With
- Standard 3-phase AC motor starters and contactors
- Soft-start and variable frequency drive controllers
- Mechanical load couplings and transmission systems
- Industrial automation control platforms

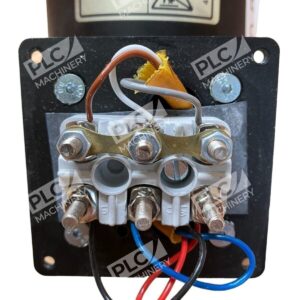

- Standard electrical conduit and terminal connections
