Overview

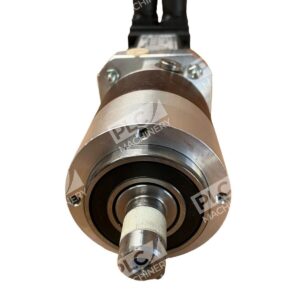

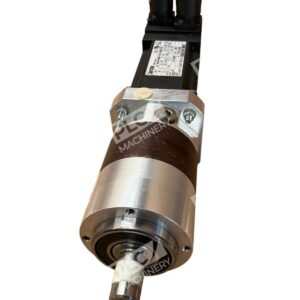

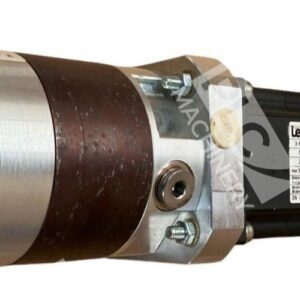

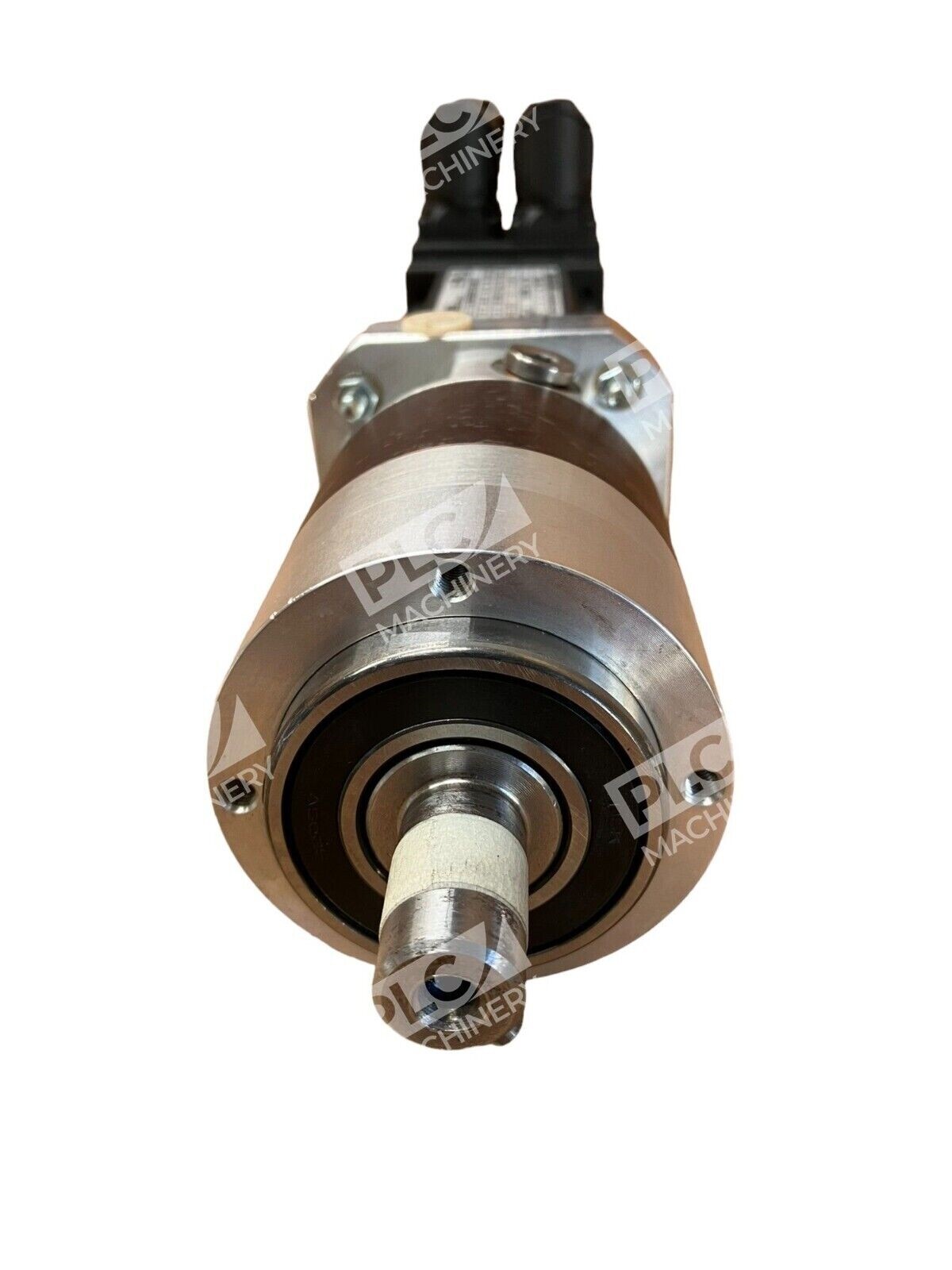

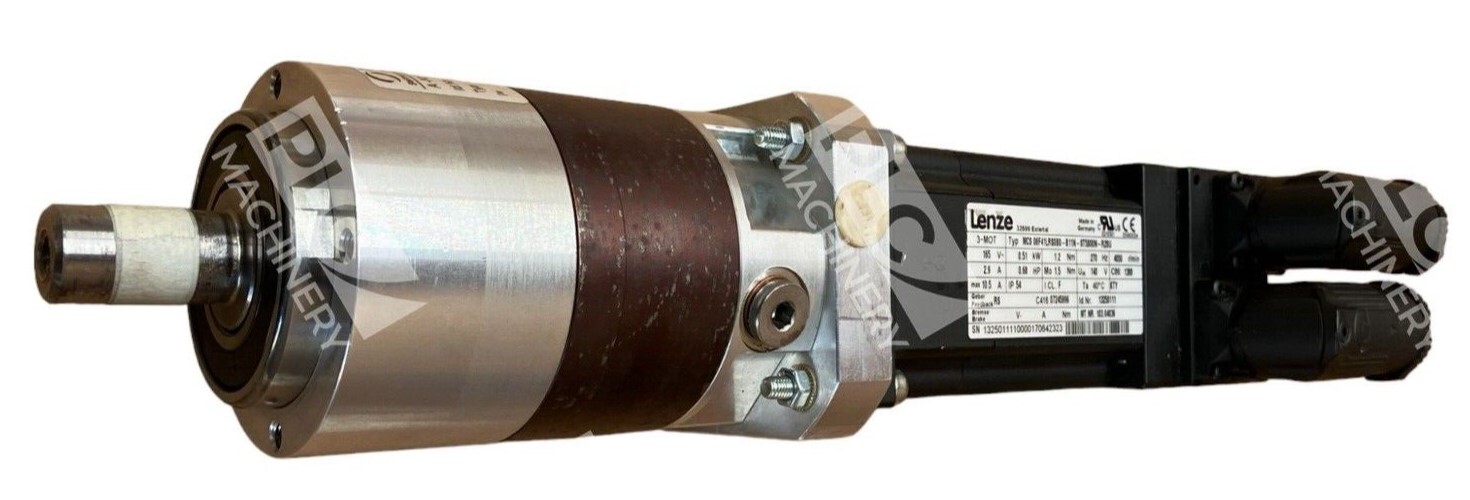

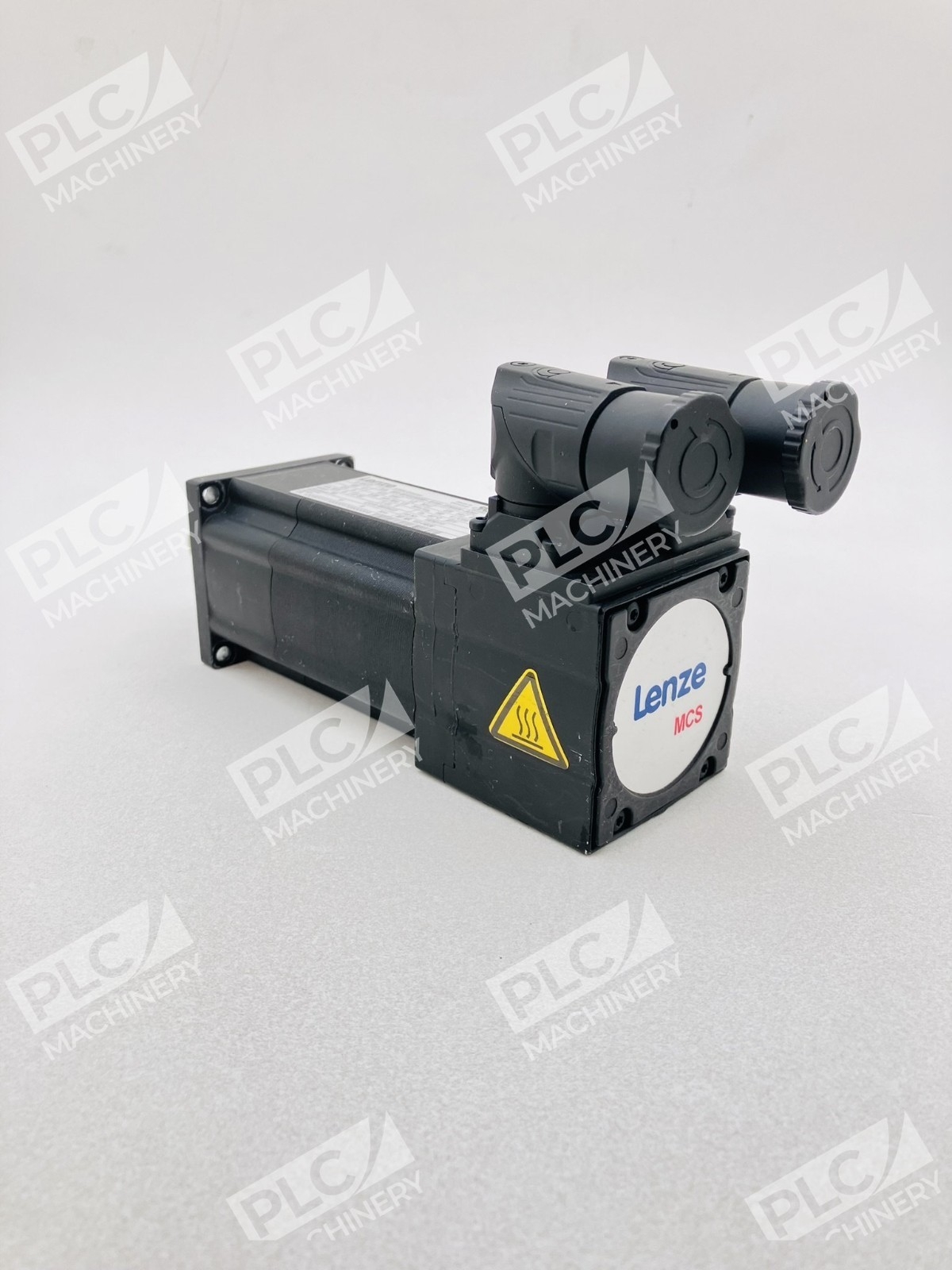

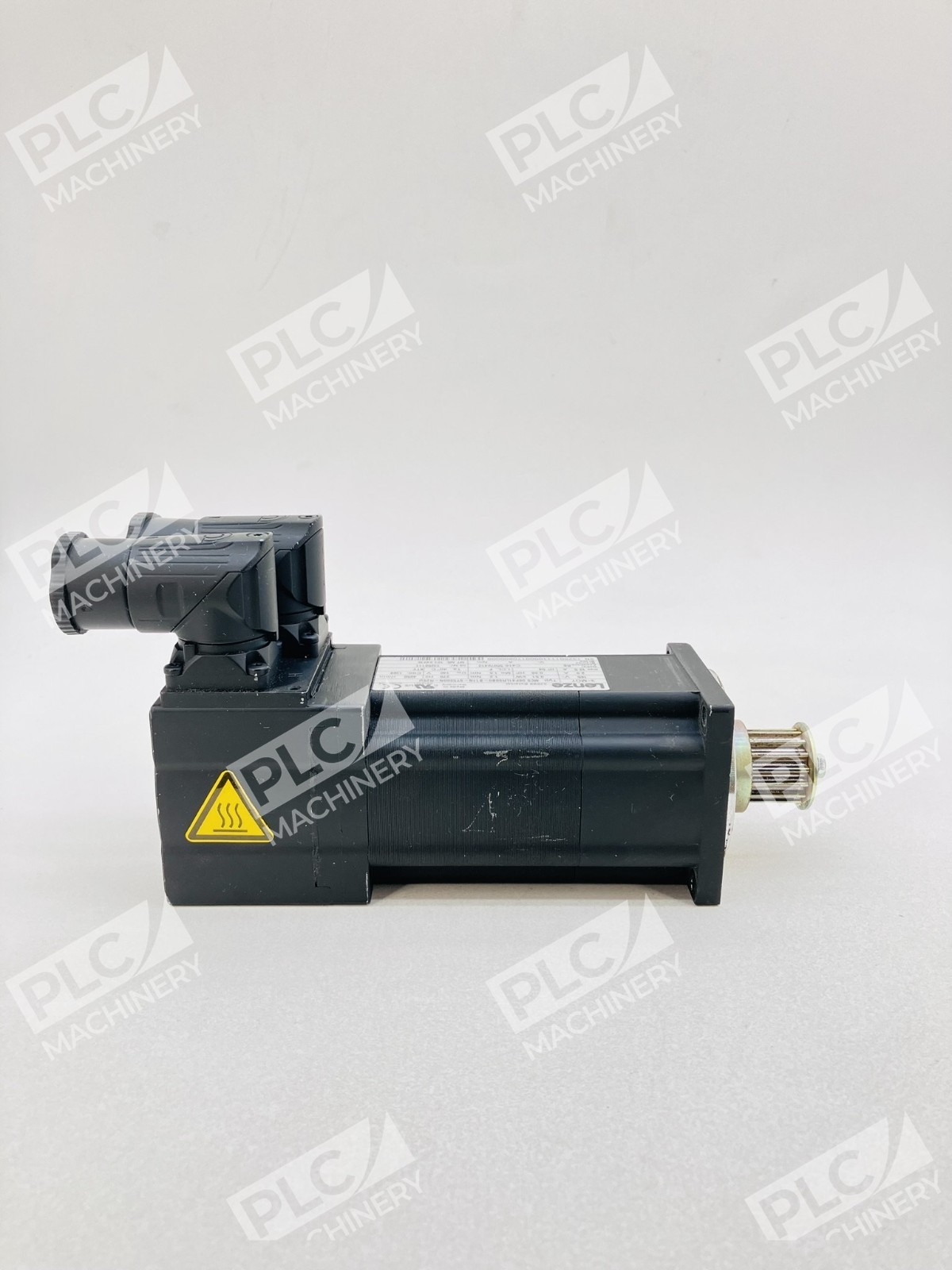

The Lenze MCS 06F41LRS0B0-B11N-ST5S00N-R2SU is a compact 06F-size synchronous servo motor designed for demanding motion control and precision positioning applications in industrial automation. With a 0.51 kW power rating and 4,100 RPM rated speed, this motor delivers smooth, synchronized operation with excellent torque characteristics ideal for conveyor systems, indexing tables, packaging machinery, and robotic automation.
Key Features
- Compact 06F motor frame size for space-constrained installations
- TTL incremental encoder (IK4096-5V-T) with communications signal for real-time position feedback
- 4,100 RPM rated speed with 1.20 Nm continuous torque
- Synchronous servo motor technology for precise motion synchronization across multiple axes
- IP54 protection rating for natural ventilation in standard industrial environments
- Standard shaft with 11 mm diameter for reliable coupling and mounting

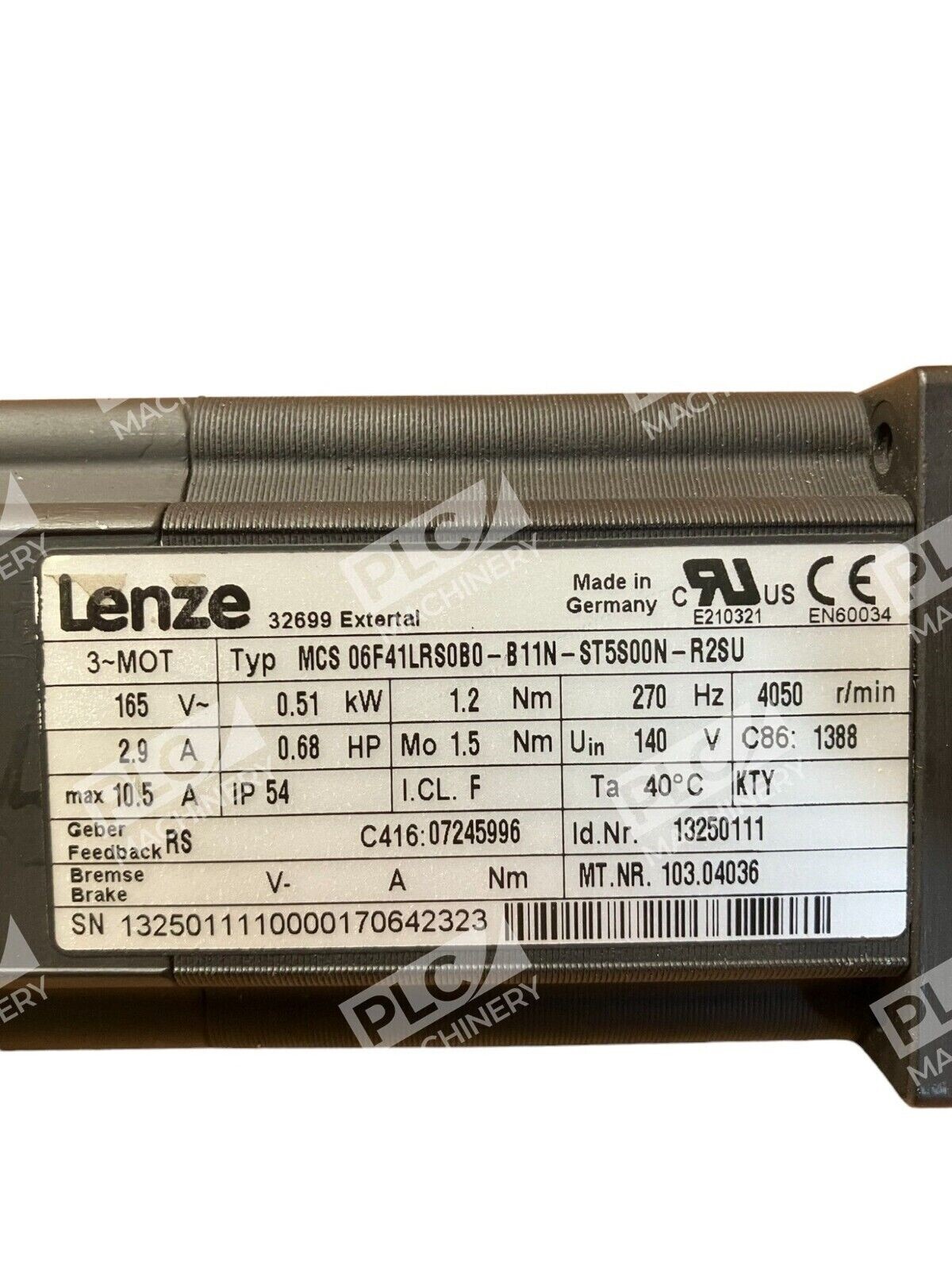

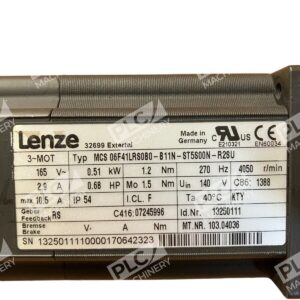

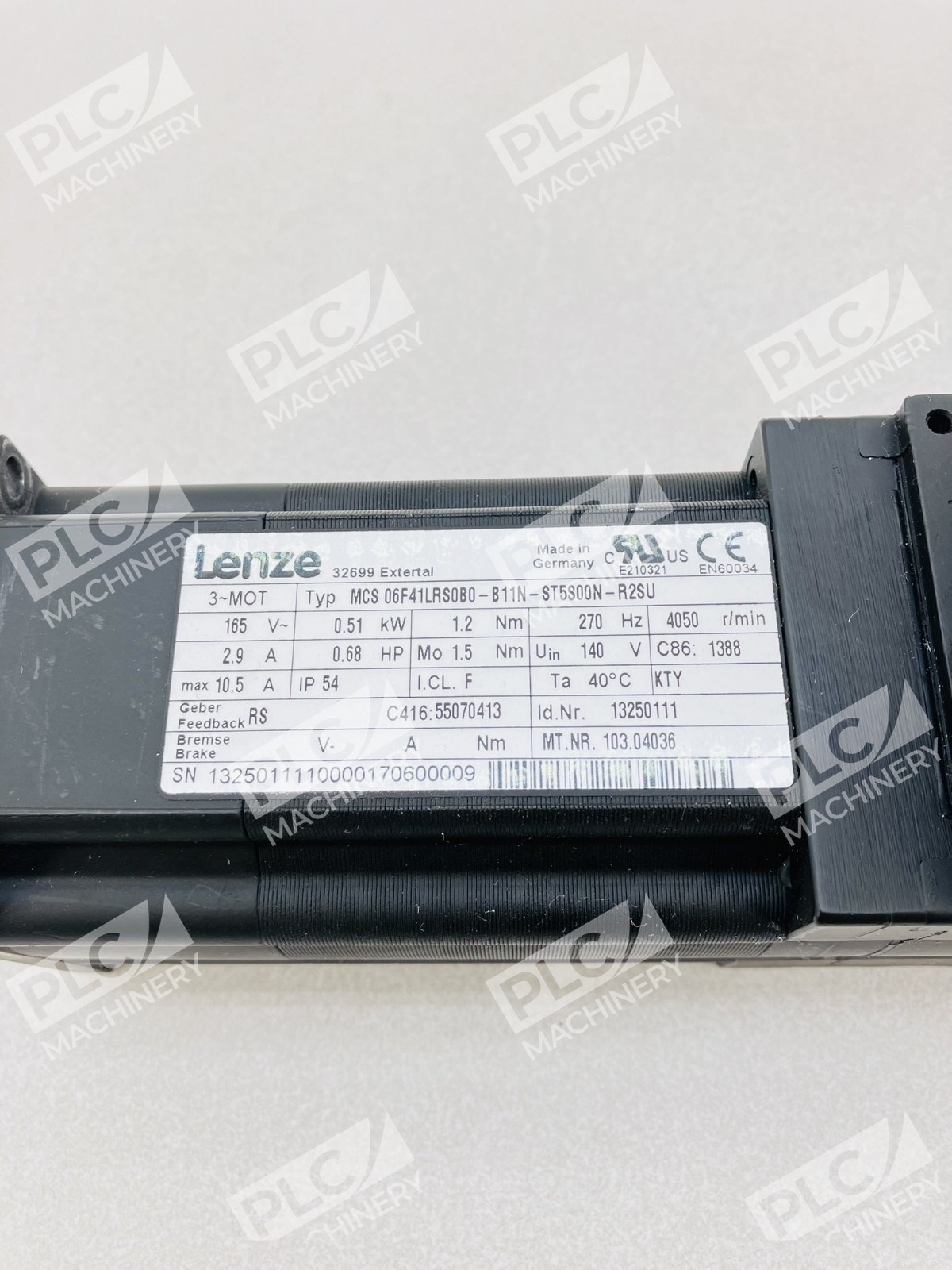

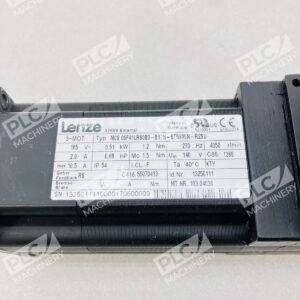

Technical Specifications
- Rated Power: 0.51 kW (0.68 HP)
- Rated Speed: 4,100 RPM
- Continuous Torque: 1.20 Nm
- Motor Type: MCS Synchronous Servo Motor
- Frame Size: 06F
- Speed/Angle Sensor: TTL Incremental Encoder (IK4096-5V-T) with Communications Signal

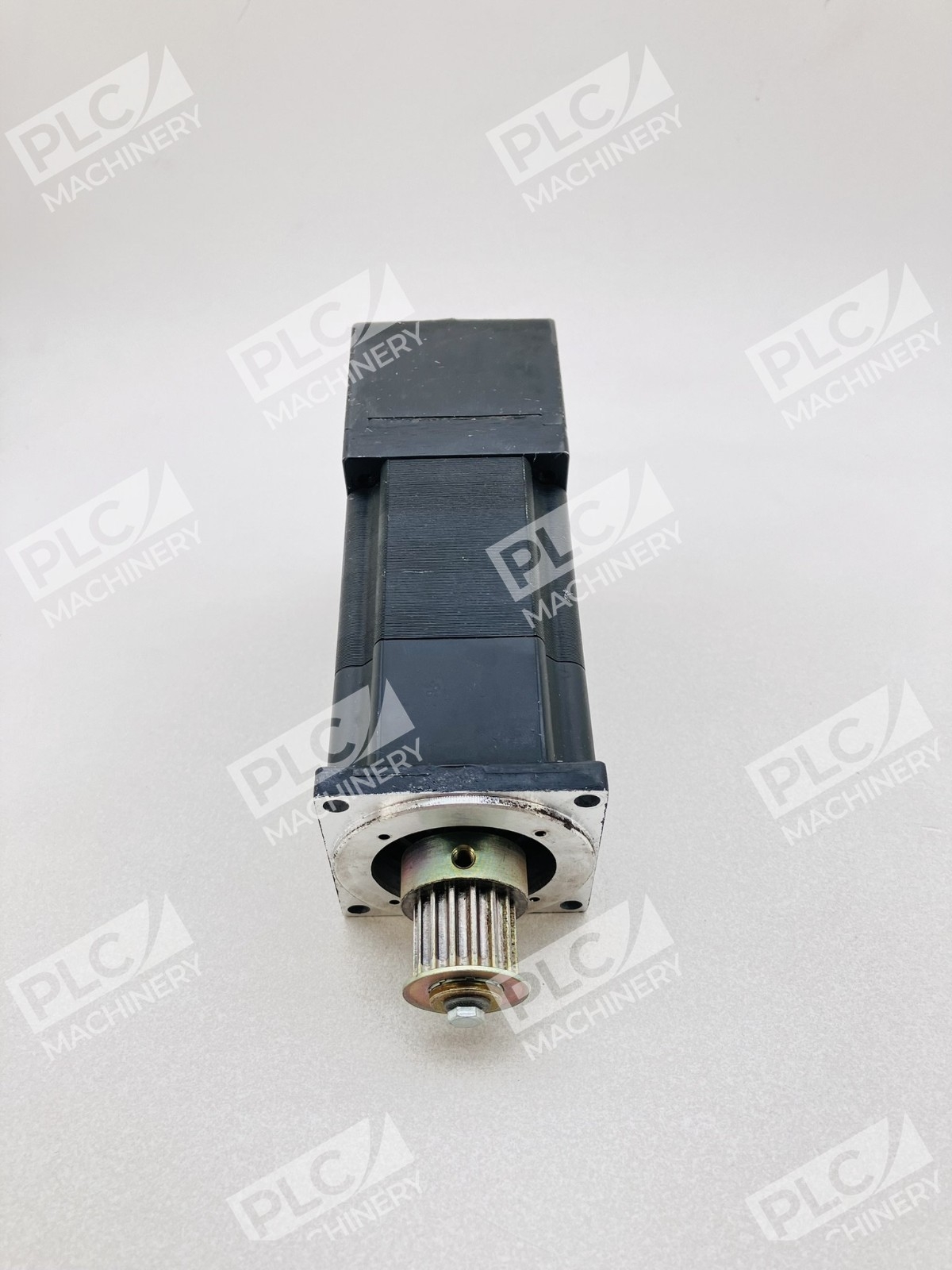

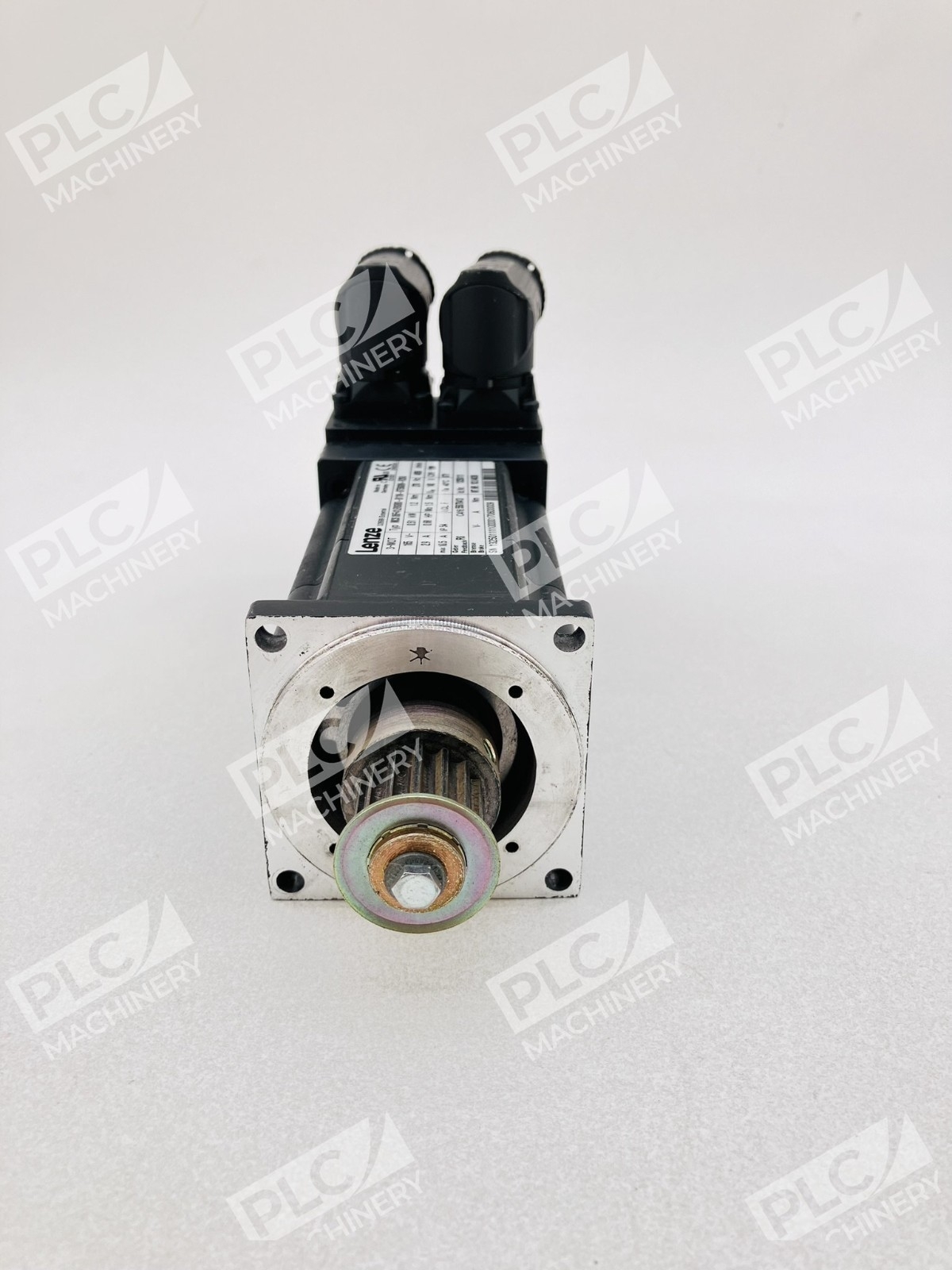

- Shaft Type: Standard shaft with 11 mm diameter
- Protection Rating: IP54
- Cooling Method: Natural ventilation

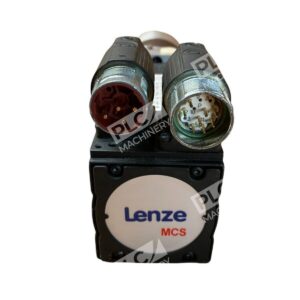

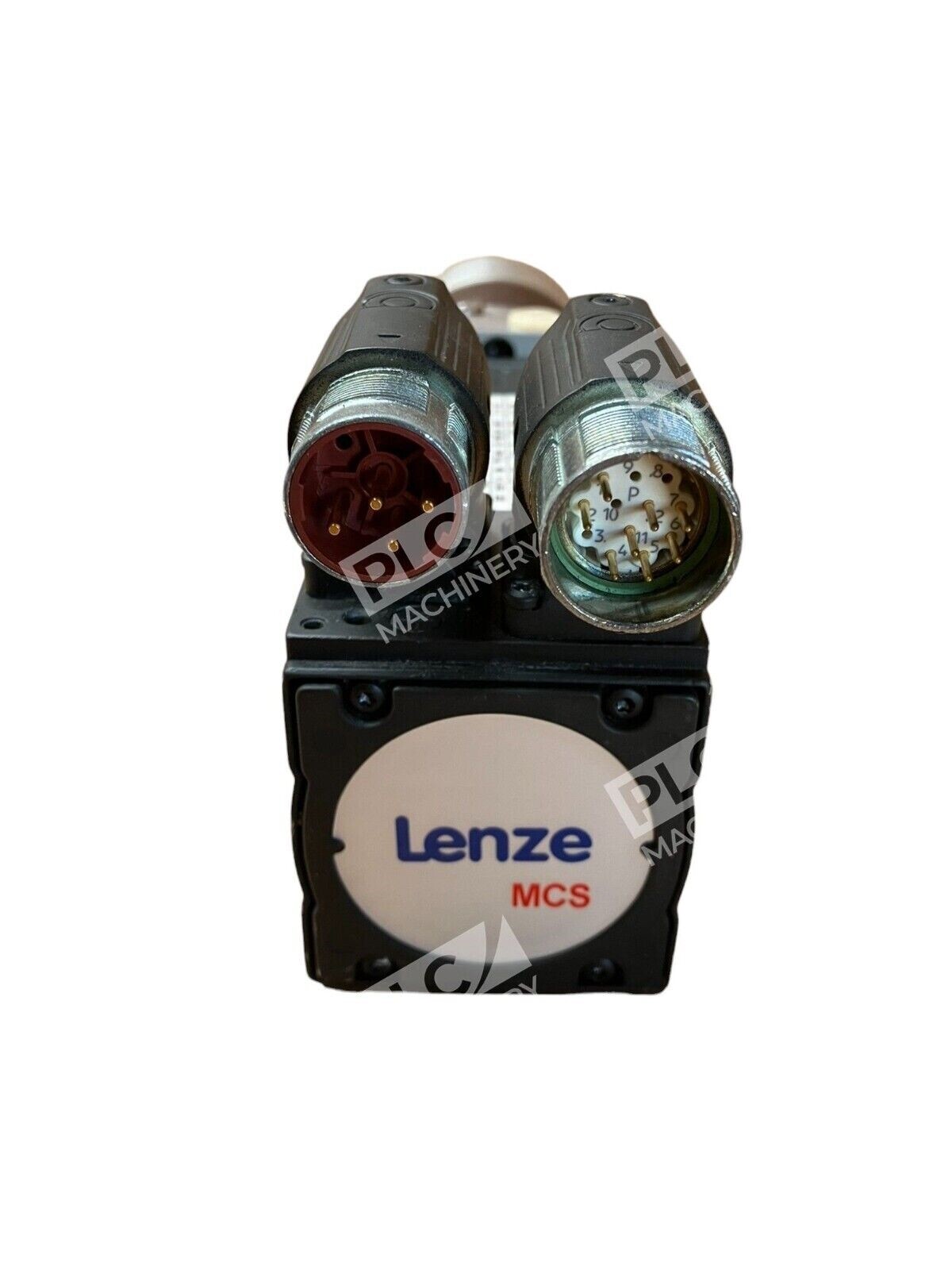

- Connector Type: Round plugs
- Brake: None
Typical Applications
- Conveyor belt indexing and synchronized motion control
- Packaging and labeling machinery requiring precise positioning
- Robotic arm and gantry axis drives
- Textile and print machinery servo drives
- Machine tool positioning and feed control
- Process automation systems requiring multi-axis synchronization
Compatibility & Replacements
Compatible With
- Lenze frequency converters and servo drives supporting MCS motor series
- Industrial motion control systems using TTL encoder feedback
- EtherCAT and CANopen networks via compatible gateway modules
- Standard industrial electrical cabinets and control panels rated for AC supply
Replaces / Drop-In Replacement For
- MCS06F41-RS0B0-B11N-ST5S00N-R0SU (alternative sensor configuration)
- MCS06F41-RS0B0-B11N-ST6S00N-R0SU (variant model)
Works With
- Lenze L-series and i7 drive controllers
- TTL encoder signal processing hardware
- Industrial Ethernet protocols when paired with appropriate interface modules
- Standard 230V or 400V AC supply with compatible frequency converters
