Overview

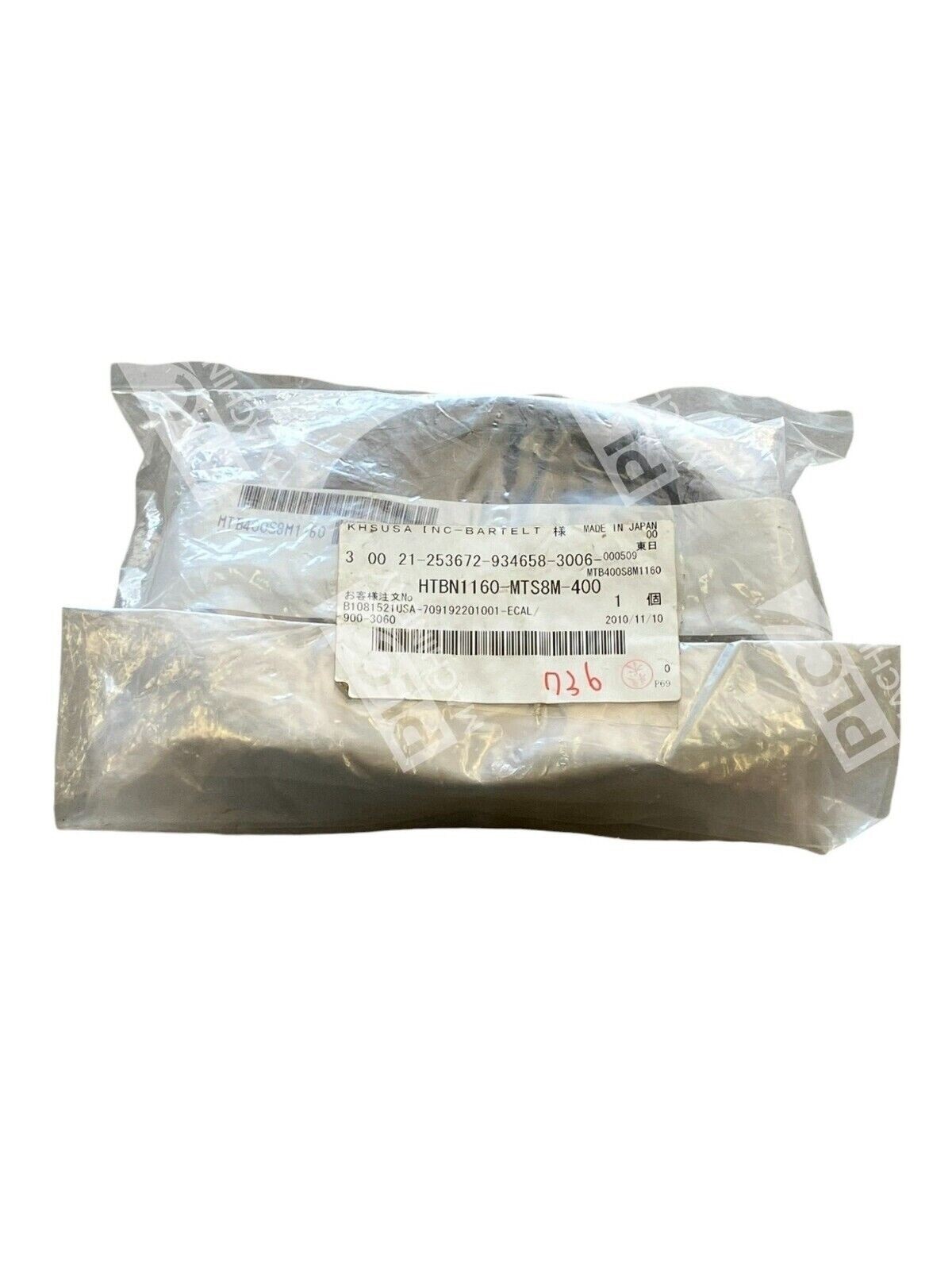

The MISUMI HTBN1160-MTS8M-400 is a super high torque timing belt engineered for industrial applications requiring reliable, synchronous power transmission. The MTS8M series delivers nearly doubled transmission capacity compared to standard high torque timing belts, enabling higher-load transmission with space-saving design. This 1160mm circumference, 40mm-width belt combines premium materials for consistent performance in mechanical power transmission and motion control systems.
Key Features
- Super high torque design—nearly double transmission capacity of conventional high torque belts
- 1160mm belt circumference with 40mm nominal width for optimal fit and load distribution
- 8mm pitch (MTS8M profile) compatible with S8M timing pulleys
- Durable chloroprene rubber back and tooth surfaces with nylon cloth reinforcement
- Glass fiber core wire for tensile strength and dimensional stability
- Black backside for consistent torque and grip characteristics
Technical Specifications

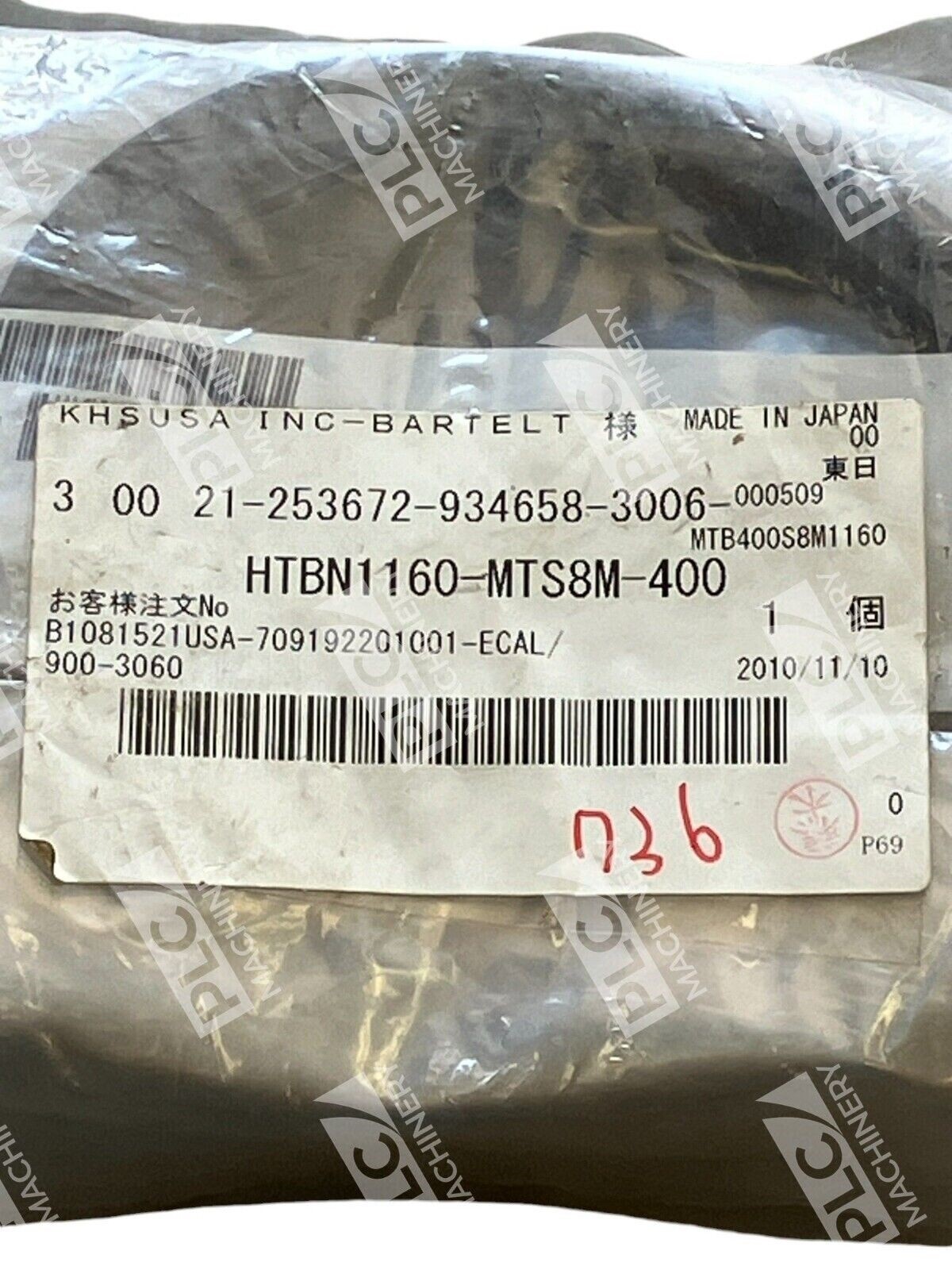

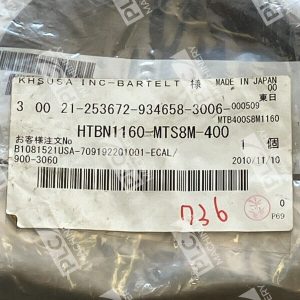

- Part Number: HTBN1160-MTS8M-400
- Manufacturer: MISUMI
- Belt Type: Super High Torque Timing Belt
- Series: MTS8M
- Pitch: 8mm
- Circumference Length: 1160mm
- Nominal Width: 40mm
- Back Material: Chloroprene Rubber
- Tooth Material: Chloroprene Rubber
- Core Wire: Glass Fiber Cord
- Tooth Fabric: Nylon Cloth
- Backside Color: Black
- Compatible Pulley Type: S8M Timing Pulleys
Typical Applications
- High-load conveyor and material handling systems
- Industrial automation motion control drives
- Precision machinery requiring synchronous power transmission
- Heavy-duty mechanical drive systems with space constraints
- Applications demanding reliable torque delivery with minimal slip
- OEM equipment requiring replacement timing belts with proven performance
Compatibility & Replacements
Compatible With
- MISUMI S8M timing pulleys (all tooth counts)
- Industrial automation systems using 8mm pitch synchronous drives
- Motion control applications with standard timing pulley shafts
- OEM machinery specified for MTS8M series belts
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. While the HTBN1160-MTS8M-400 is designed as a direct replacement for other MTS8M belts with identical circumference and width, always confirm the exact part number required by your equipment manufacturer to ensure proper fit and performance.
Works With
- MISUMI timing belt tensioning and mounting hardware
- Standard S8M timing pulley configurations
- Industrial motion control systems and drives
- Mechanical power transmission systems across MISUMI product ecosystems
