Overview

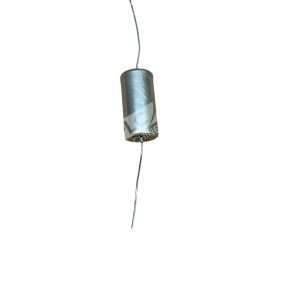

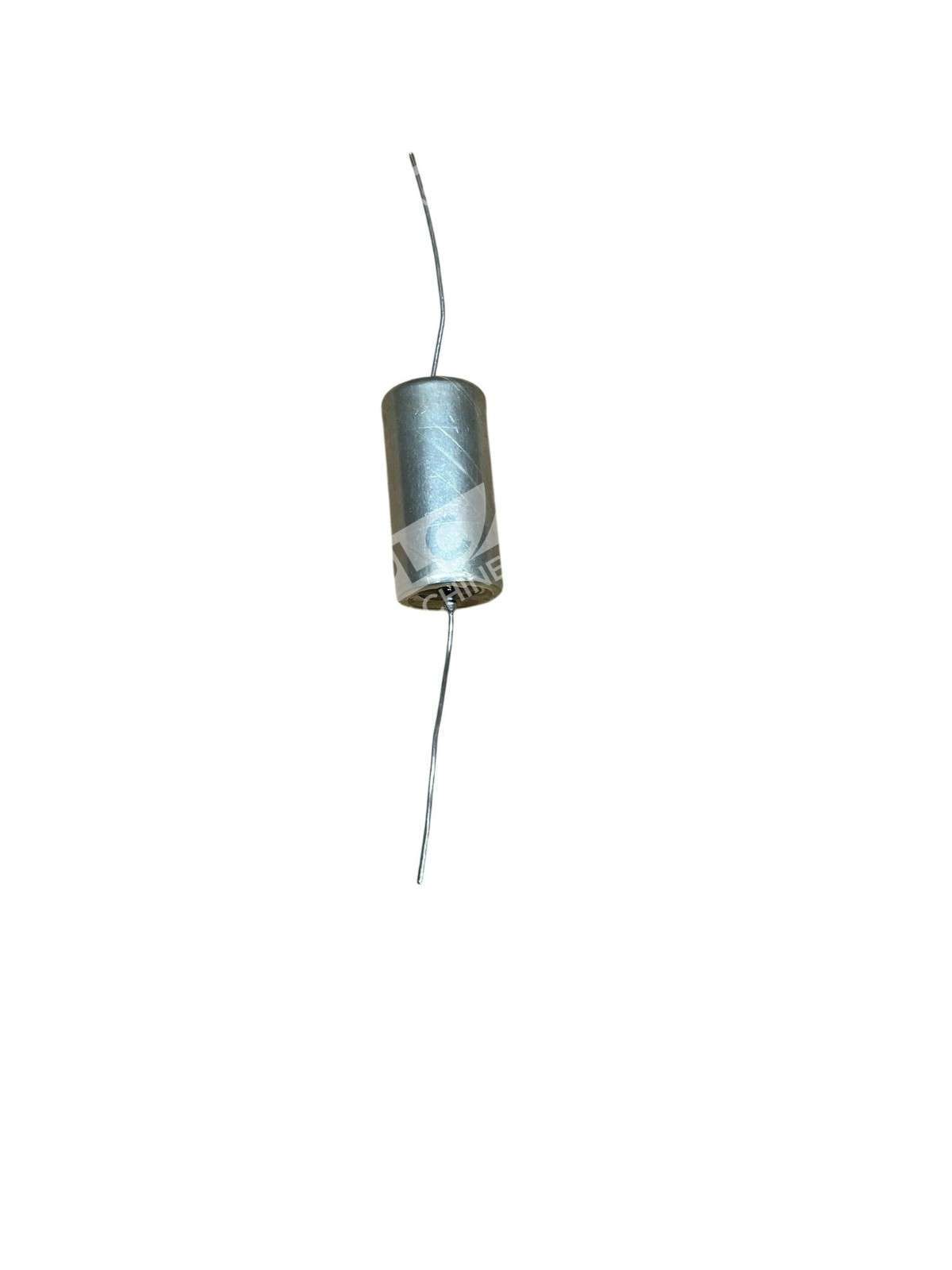

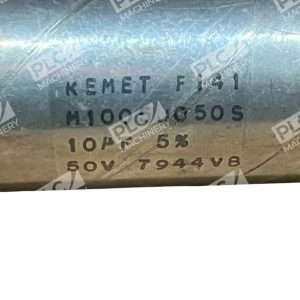

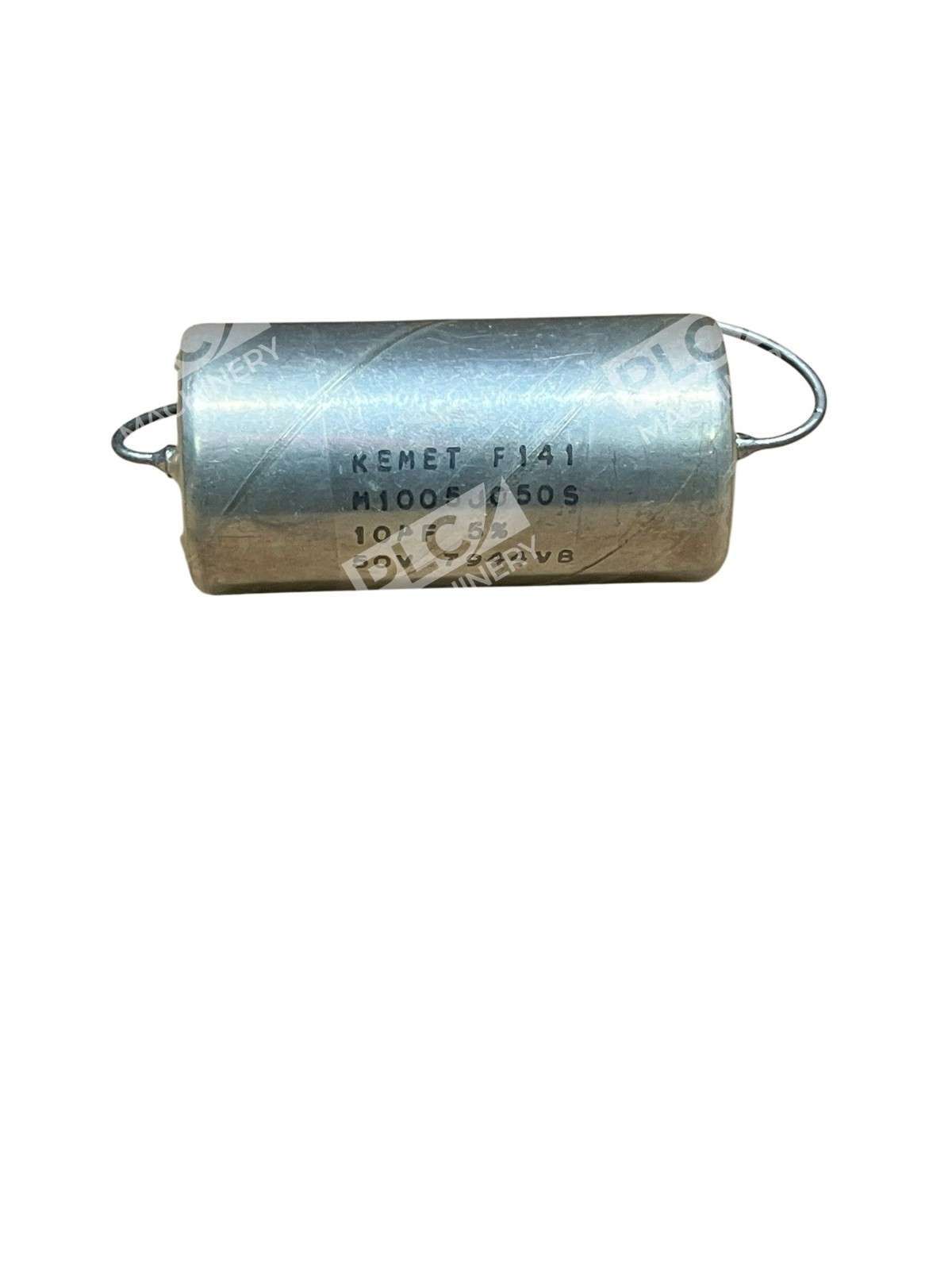

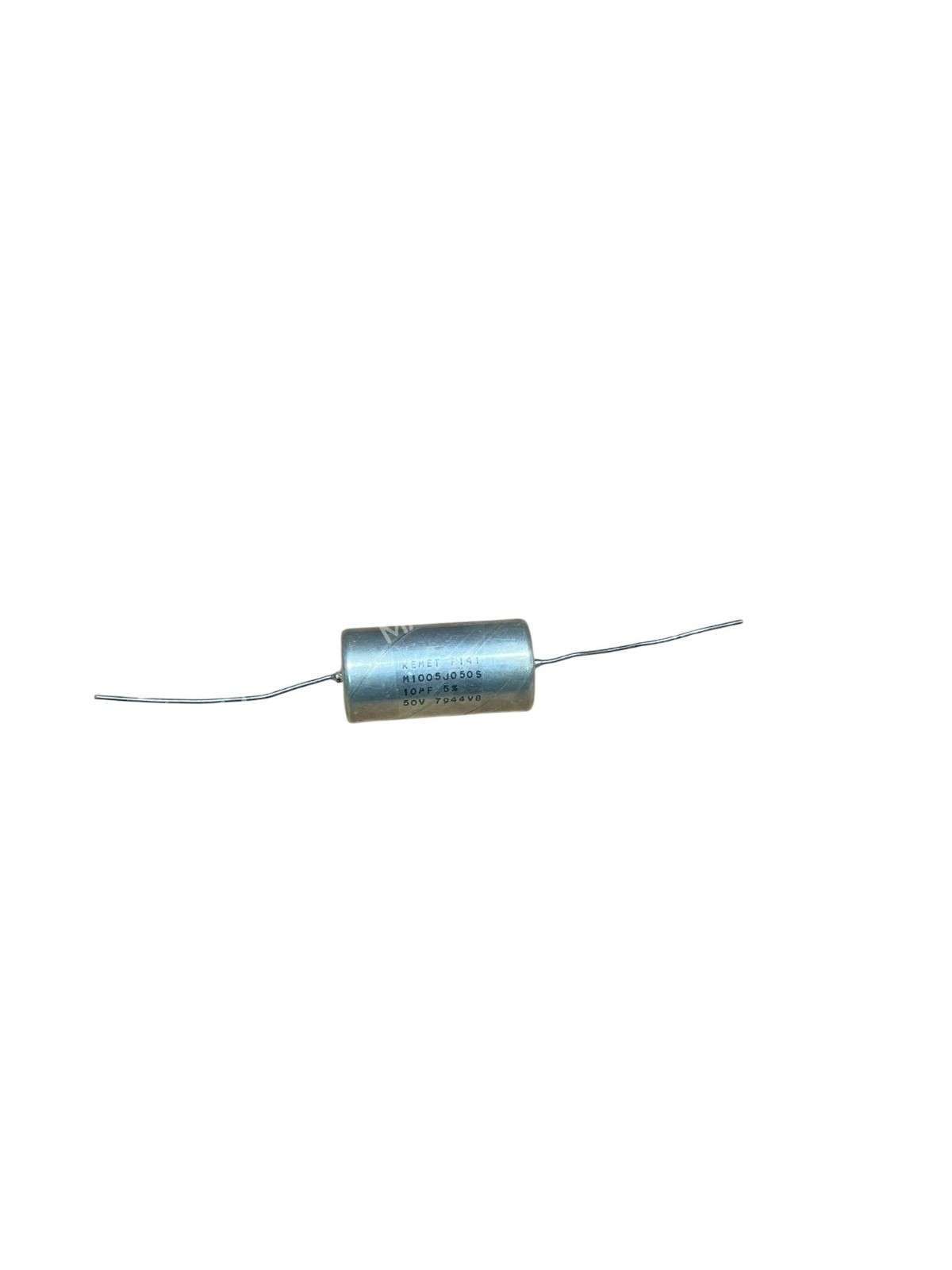

The KEMET F141 M1005J050S film capacitor is a precision component engineered for reliable performance in analog circuits, industrial control systems, and commercial electronics. With a capacitance rating of 10µF and working voltage of 50V, this unit delivers stable performance within tight tolerance specifications. The ±5% tolerance ensures predictable circuit behavior, making it suitable for applications where component accuracy is critical.
Key Features
- 10µF Capacitance — Delivers precise energy storage for analog filtering, timing, and signal conditioning circuits.
- 50V Rated Voltage — Suitable for standard industrial and consumer voltage levels with appropriate safety margin.
- ±5% Tolerance — Tight tolerance specification ensures minimal circuit variation and predictable behavior.
- Metallized Polycarbonate Film Dielectric — Provides low leakage current, self-healing characteristics, and stable capacitance over temperature.
- Axial Termination — Leads terminate axially for easy insertion into through-hole PCB layouts; compatible with manual and automated assembly.
Technical Specifications
- Capacitance: 10 µF
- Rated Voltage: 50V DC
- Tolerance: ±5% (J grade)
- Dielectric Material: Metallized Polycarbonate Film
- Termination Style: Axial Leads
- Operating Temperature Range: −55°C to +125°C
- Series: F141
- Part Number: M1005J050S
Typical Applications
- Analog and signal conditioning circuits requiring low distortion
- Industrial timing and oscillator circuits
- Power supply filtering and energy storage in control systems
- Audio and precision measurement instrument coupling
- Motor control and switching power supplies rated 50V or below
- Commercial electronics requiring long-term reliability and minimal capacitance drift
Compatibility & Replacements
Compatible With
- Through-hole PCB layouts with 0.1″ lead spacing
- 50V and lower DC/AC circuit applications
- Industrial control and automation systems
- Analog signal processing and filtering circuits
- Power supplies and energy storage modules rated ≤50V
Replaces / Drop-In Replacement For
Verify compatibility with your system designer before ordering. KEMET F141 series capacitors in 10µF 50V with ±5% tolerance may be compatible with legacy applications; consult the original equipment specification to confirm dimensional and electrical equivalence.
Works With
- Manual and automated PCB assembly processes
- Standard through-hole soldering techniques (wave, hand-soldering)
- Industrial test and measurement instrumentation
- Commercial EDA design software and circuit simulation tools
