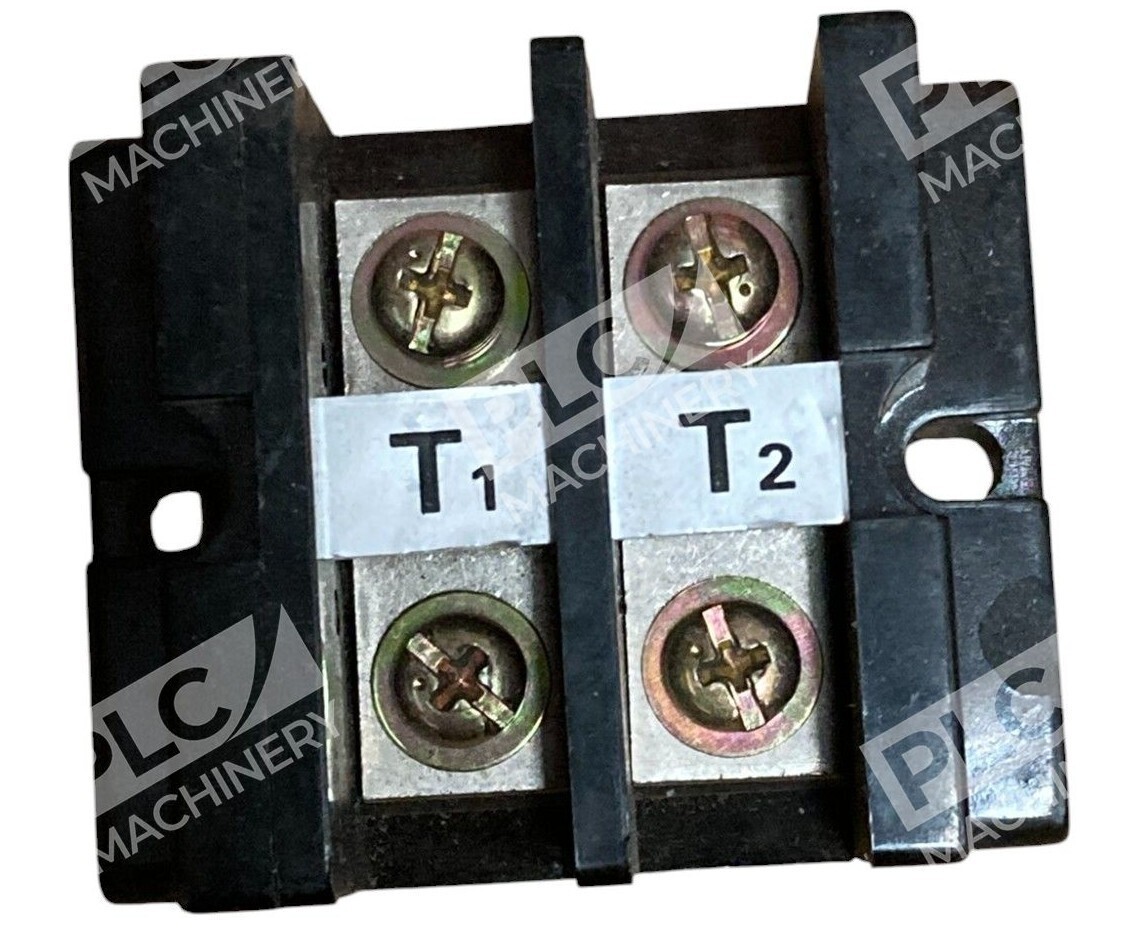

Kasuga 600V Terminal Block TC60

Overview

The Kasuga TC60 terminal block is a self-up style, pre-assembled terminal block designed for reliable electrical wire and cable termination in industrial control systems. Manufactured by Kasuga Electric Works, this 600V-rated assembly provides a secure, compact solution for junction and distribution applications in industrial electrical panels, machinery controls, and signal relay systems.

Key Features

• Pre-assembled in single or multiple pole configurations (1–30 poles available)
• Includes terminal cover and name seal accessories
• 600V insulation voltage rating with 2500V commercial frequency withstand voltage
• Phenol main body and polycarbonate cover for durability
• M5 screw terminals for reliable wire termination
• 6000V impulse withstand voltage for transient protection

Technical Specifications

• Rated Voltage: 600V AC
• Maximum Current: Up to 70A (depending on wire gauge)
• Terminal Screw: M5 × 10
• Compatible Wire Sizes: 5.5–14 mm²
• Commercial Frequency Withstand: 2500V for 1 minute
• Impulse Withstand Voltage: 6000V
• Tightening Torque: 2.2–2.8 Nm
• Flame Retardant Grade: UL94HB
• Main Body Material: Phenol
• Cover Material: Polycarbonate
• Typical Weight: 170g (for 3-pole unit)

Typical Applications

• Industrial machinery control panels and junction boxes
• Sensor and signal relay wiring in automation systems
• Power supply distribution in electrical cabinets
• Motor starter and contactor terminal connections
• PLC and HMI auxiliary contact terminations

Compatibility & Replacements

Compatible With

• DIN rail mounting systems (verify with your panel layout)
• Standard industrial 600V electrical systems
• Sensor and actuator wiring networks
• PLC auxiliary relay circuits
• Motor starter auxiliary contacts

Replaces / Drop-In Replacement For

• Kasuga TC60 series (all pole configurations: TC60C01, TC60C03, TC60C05, etc.)
• Verify specific pole and current rating match before ordering

Works With

• Standard industrial automation control systems
• PLC and variable frequency drive (VFD) auxiliary circuits
• Relay logic and hardwired control schematics
• Allen-Bradley, Siemens, Mitsubishi, and other standard industrial platforms
• Standard crimp terminals with round washers (5.5-5, 8-5, 14-5 sizes)
