Overview

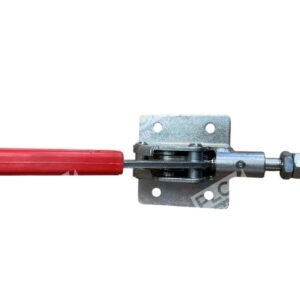

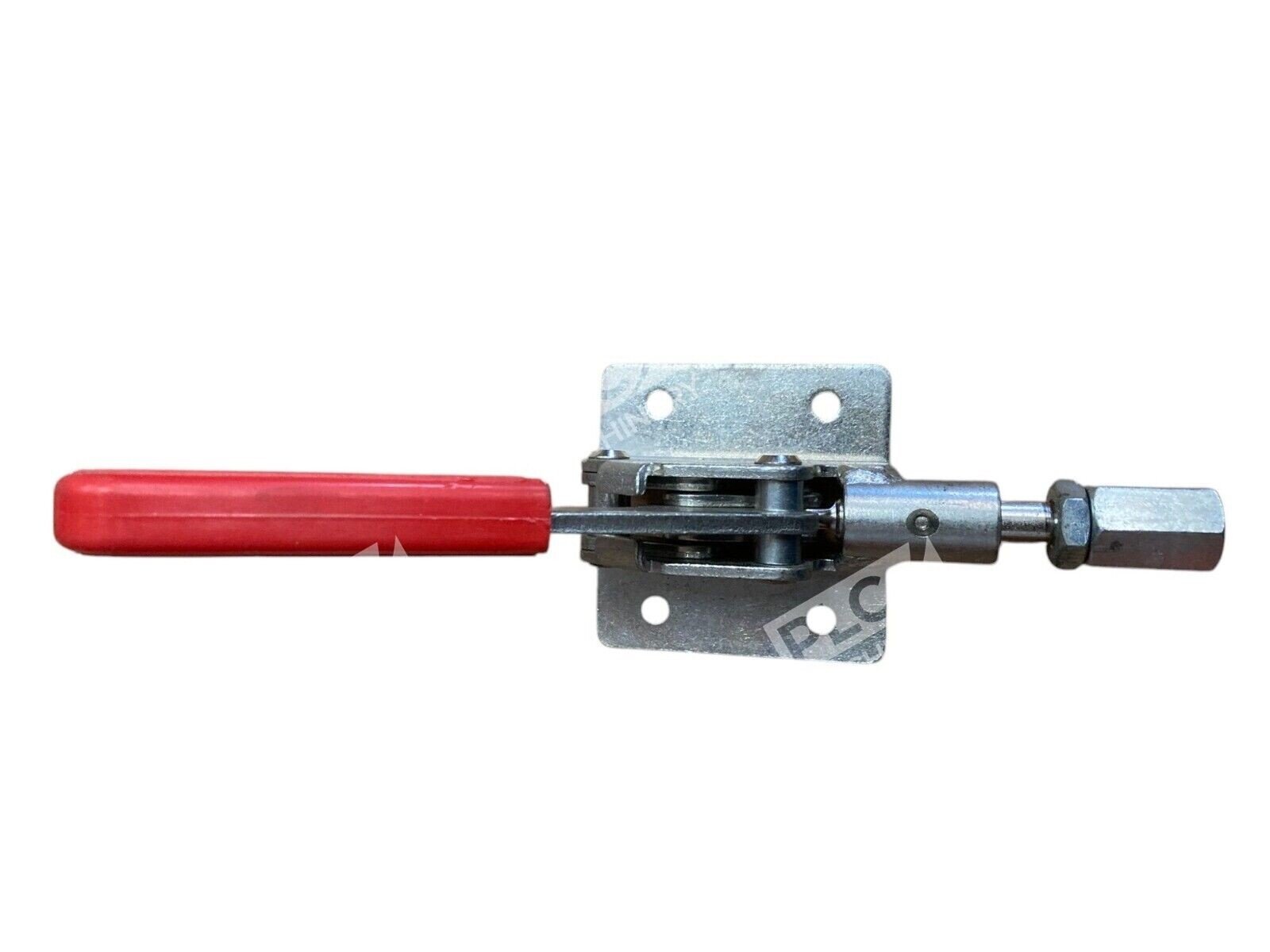

The Kakuta 51BX is a horizontal push-type toggle clamp designed for fastening and positioning in industrial manufacturing. Manufactured in Japan under the Kakuta brand, this steel clamp provides consistent clamping performance and is optimized for inspection, welding, assembly, and machining jigs.
Key Features
- Horizontal push-type mechanism for easy actuation
- Steel construction for durability and long service life
- Compact design suitable for space-constrained fixtures
- Ideal for repetitive clamping operations in production environments
- Japanese engineering with proven reliability
Technical Specifications
The Kakuta 51BX delivers the following specifications:
- Stroke: 0.5 inches (13 mm)
- Clamping Force: 33.5 lbs (160 kg) maximum
- Tip Screw Diameter: M10
- Total Length: 8.9 inches (226 mm)
- Material: Steel
- Mounting: Flanged base
Typical Applications
The Kakuta 51BX is well-suited for:
- Inspection and quality control jigs
- Welding fixtures and frames
- Assembly line fixtures
- Precision machining workholding
- High-volume production clamping
Compatibility & Replacements
Compatible With
- Standard machining centers and CNC equipment
- Manual assembly fixtures and workbenches
- Modular fixture systems with flanged base mounts
- Welding tables and frames
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or fixture designer before ordering, as the 51BX is part of the Kakuta horizontal push-type clamp family. Related models include the 51B-S, 51B-M, and 51MB series. For direct replacement confirmation, contact the manufacturer or your distributor with your specific fixture specification.
Works With
- Modular fixturing systems (DMU, Erowa, and equivalent platforms)
- Custom-designed workholding jigs
- Pneumatic or manual toggle clamp actuators
