Overview

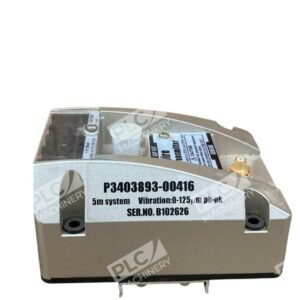

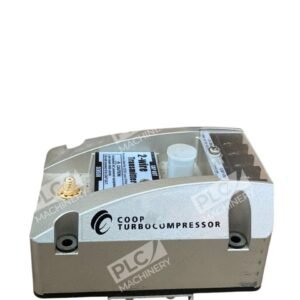

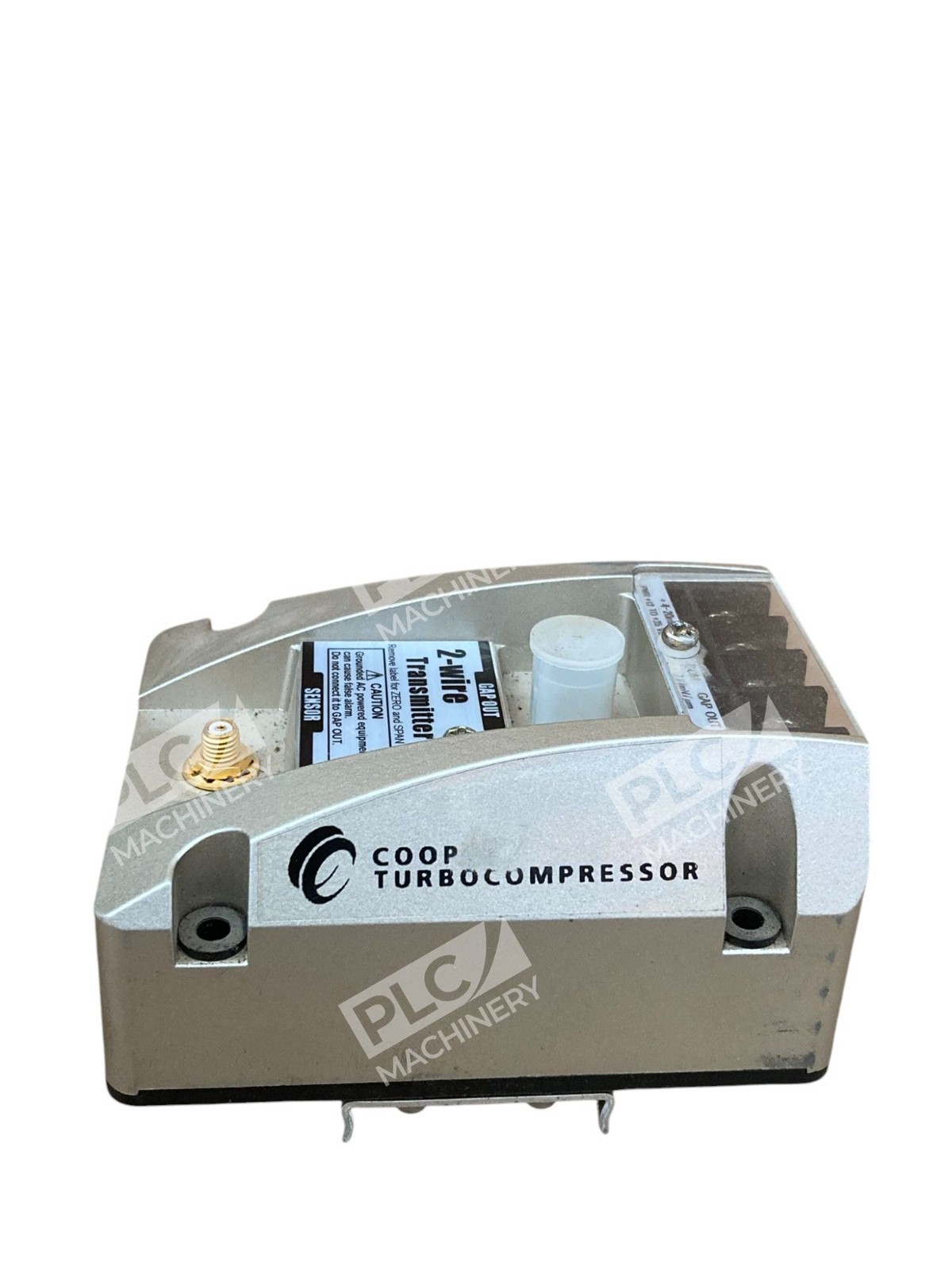

The Bently Nevada P3403893-00416 is a two-wire vibration transmitter engineered for real-time machinery monitoring in industrial automation environments. This transmitter is designed for continuous machinery monitoring and converts vibration measurements into a 4-20 mA output signal, making integration with plant control systems seamless. It is commonly used in applications involving centrifugal air compressors, small pumps, motors, or fans. The device provides continuous vibration data acquisition, allowing maintenance teams to detect abnormal conditions before they result in equipment failure.
Key Features
- 4-20 mA Output Signal: Converts vibration measurements into a standard output signal for seamless integration with plant control systems.
- Two-Wire Design: The two-wire setup reduces installation time, complexity, and costs.

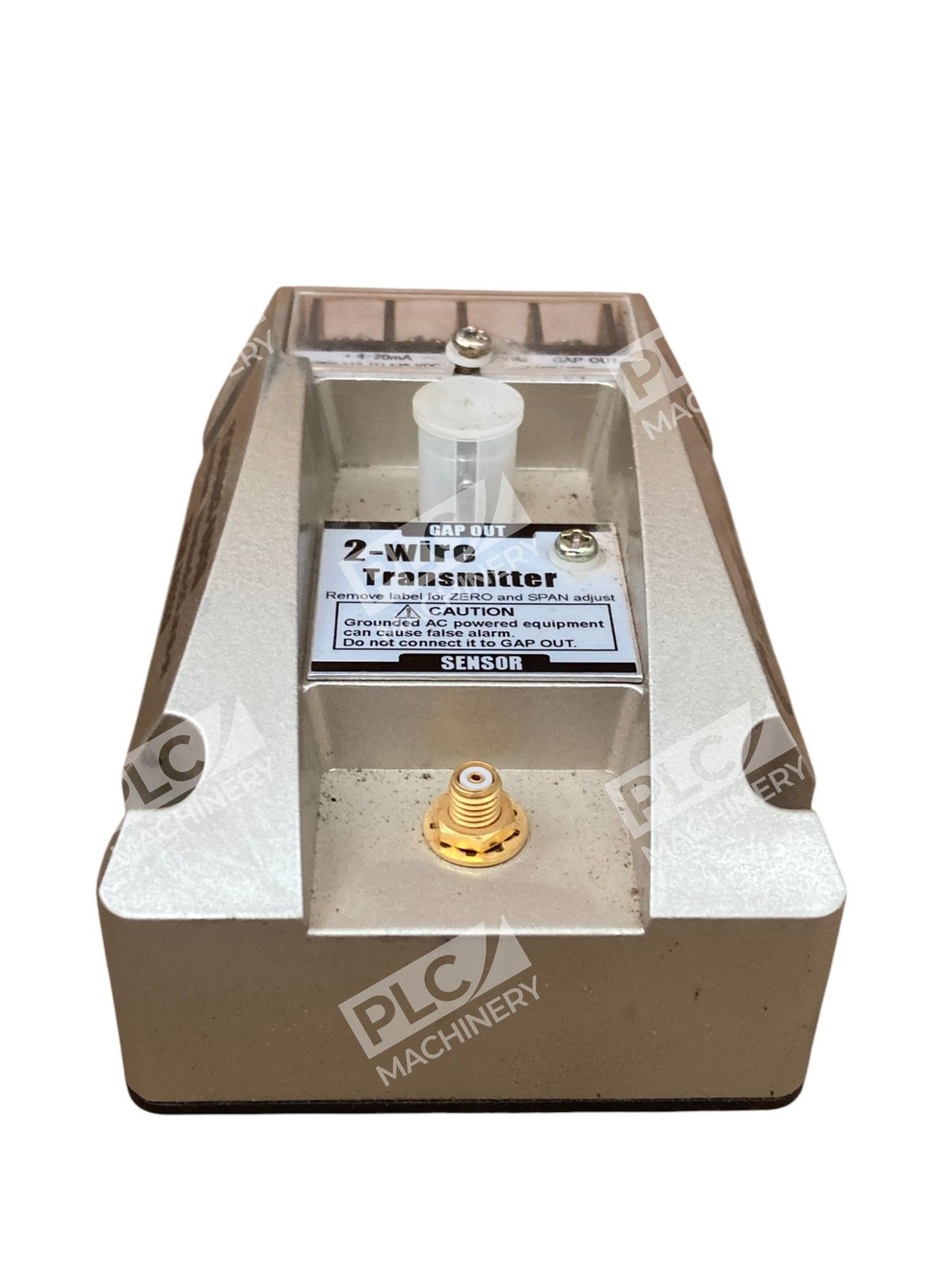

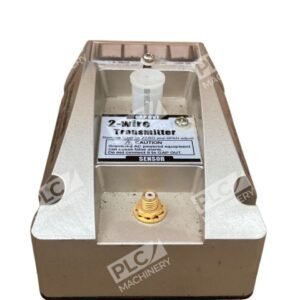

- Proximity Probe Compatible: Accepts 1 non-contacting proximity probe and extension cable.
- High Accuracy: Accuracy within ±1.5% over the specified full-scale range.
- Fail-Safe Monitoring: Output drops to less than 3.6 mA within 100 µs of a Not OK condition, restored within 2-3 seconds after condition is resolved.
- Rapid Power-Up Detection: Signal output remains less than 3.6 mA for 2 to 3 seconds after power-up to indicate the device is not ready.
Technical Specifications
- Output Signal: 4–20 mA DC
- Power Supply: +12 to +35 Vdc at the transmitter terminal.
- Load Impedance: Maximum of 1,000 Ω including cable at 35 Vdc.
- Accuracy: ±1.5% of full-scale range
- Probe Input: 1 non-contacting proximity probe

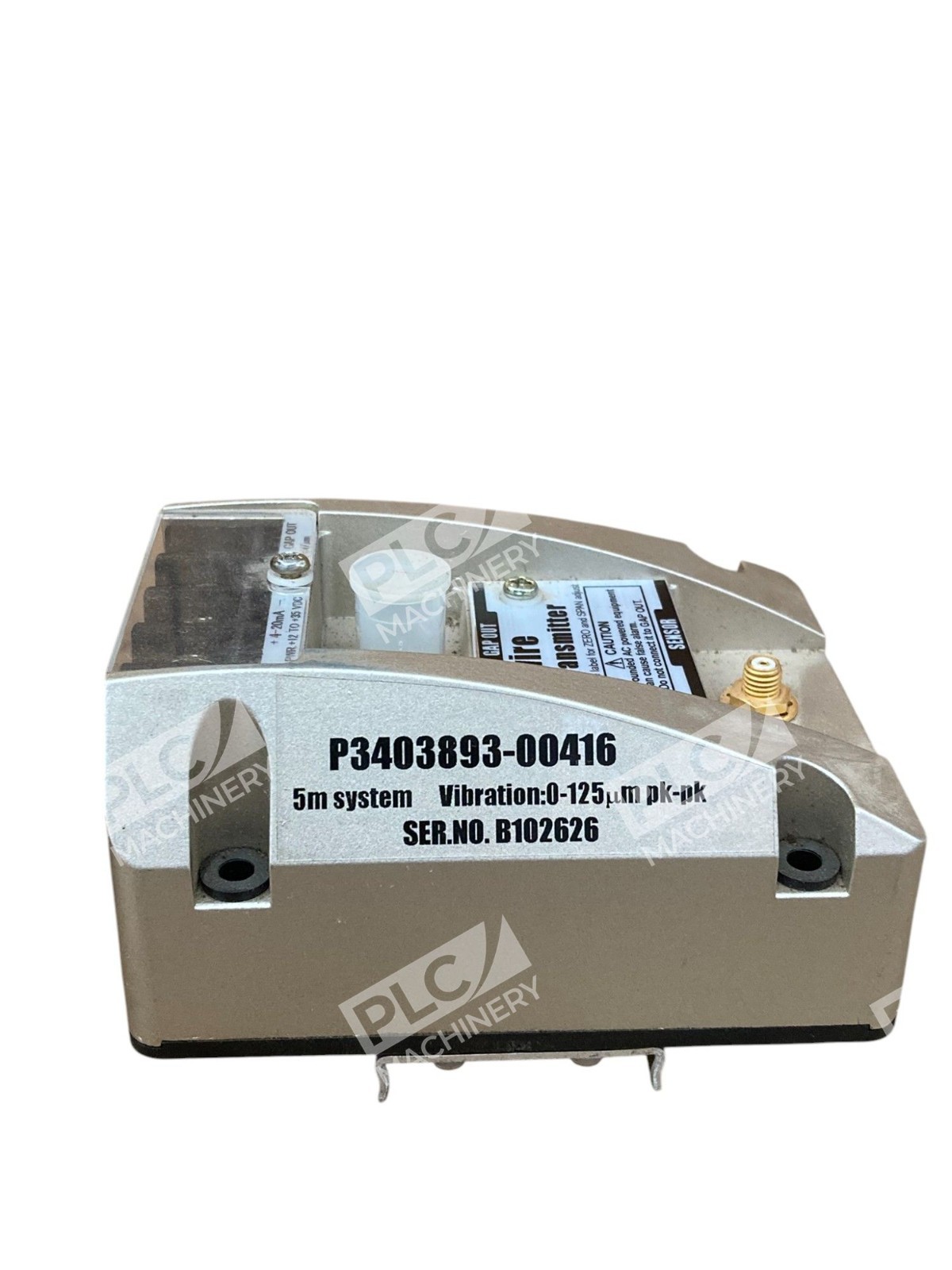

- Measurement Range: 0–125 microns (as per model designation)

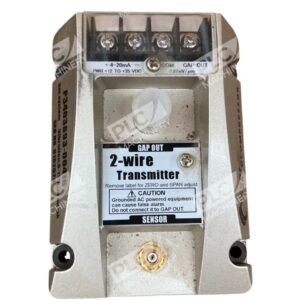

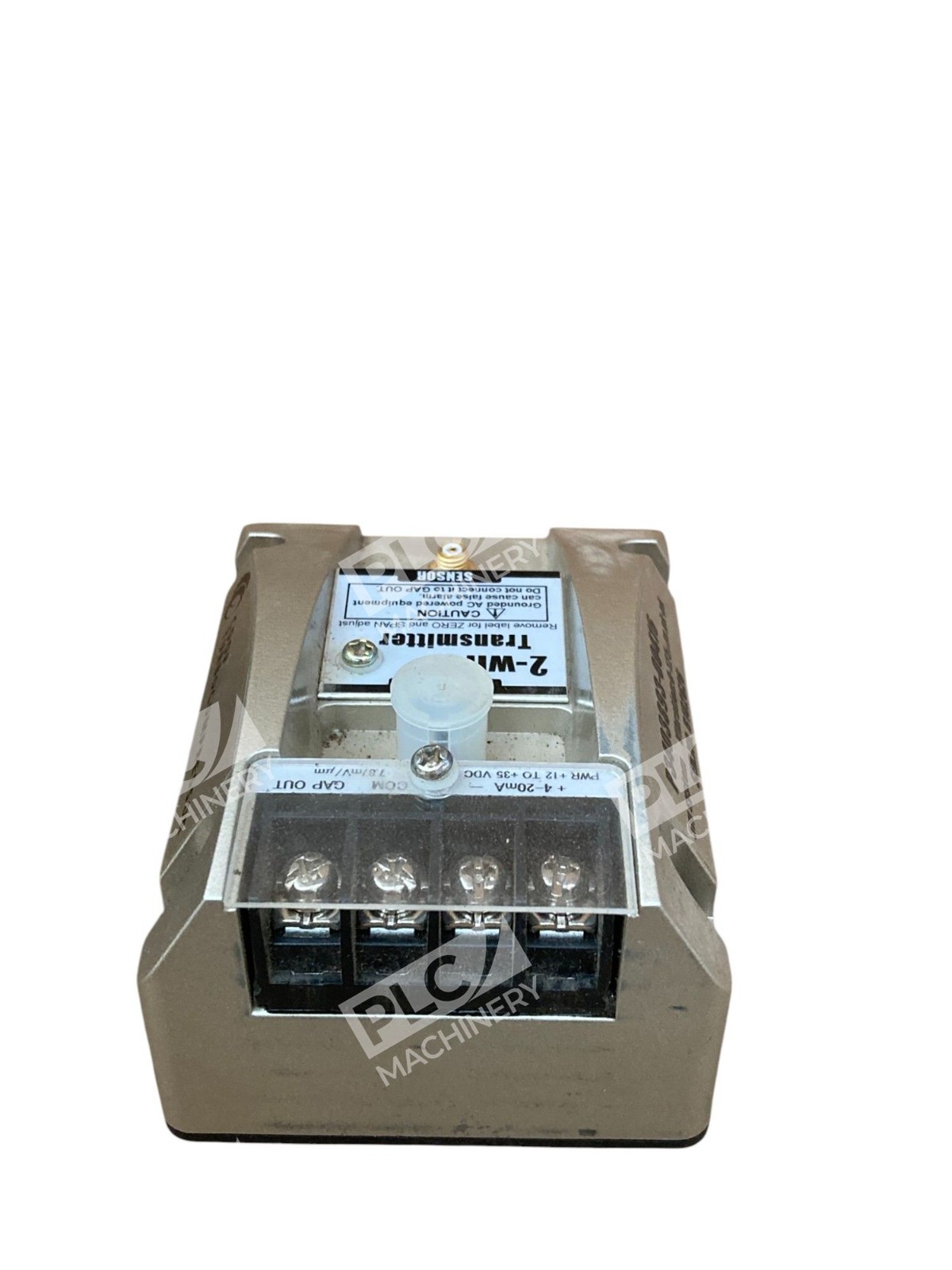

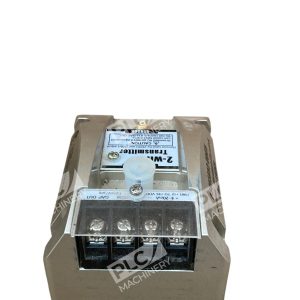

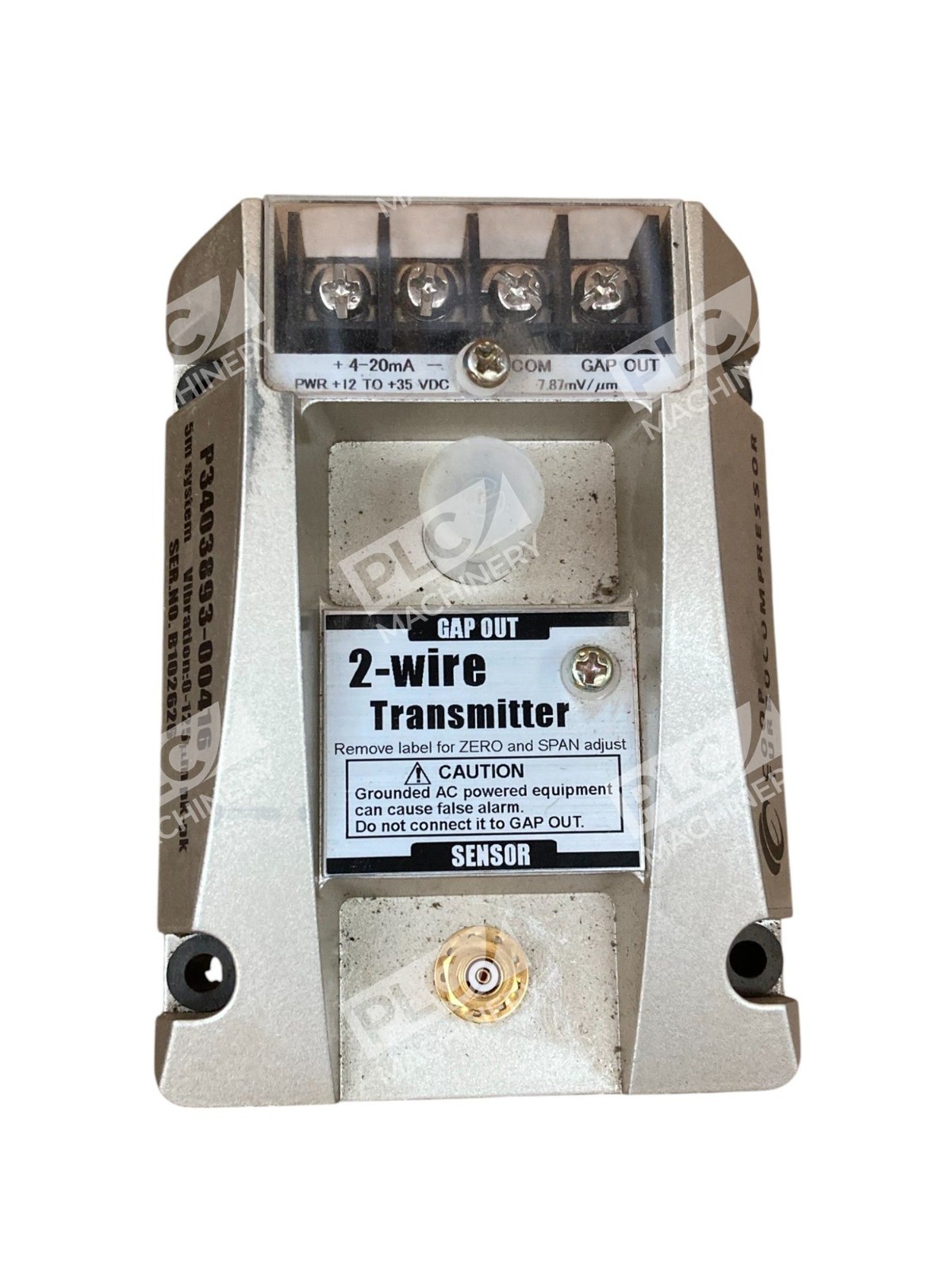

- Connector Type: 2-wire screw terminal
Typical Applications
The Bently Nevada P3403893-00416 is ideal for:
- Centrifugal Air Compressors: Early fault detection and predictive maintenance.
- Rotating Machinery: Continuous vibration monitoring of pumps, motors, and fans.
- Turbocompressor Systems: Real-time condition monitoring for turbochargers and compressor units.
- Predictive Maintenance Programs: Integration with CMMS and PLC-based control systems for automated alarm generation.
- Industrial Plant Monitoring: System-wide vibration tracking to prevent unplanned downtime.
Compatibility & Replacements
Compatible With
- PLC processors and distributed control systems accepting 4–20 mA input signals
- Bently Nevada proximity probes and extension cables
- Industrial automation control networks with analog input modules
- SCADA and HMI systems with 4–20 mA input cards
- Machinery condition monitoring platforms
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The P3403893-00416 supersedes earlier Cameron and Bently Nevada vibration transmitter models in similar form factors and signal ranges.
Works With
- Allen-Bradley PLC analog input modules (1756-IR, 1756-IF series)
- Siemens S7 analog input cards with 4–20 mA support
- Mitsubishi analog input units
- Omron analog input modules
- Standard 4–20 mA signal conditioning and data acquisition equipment
- Proximity probe detection systems (non-contacting eddy-current probes)
