Overview

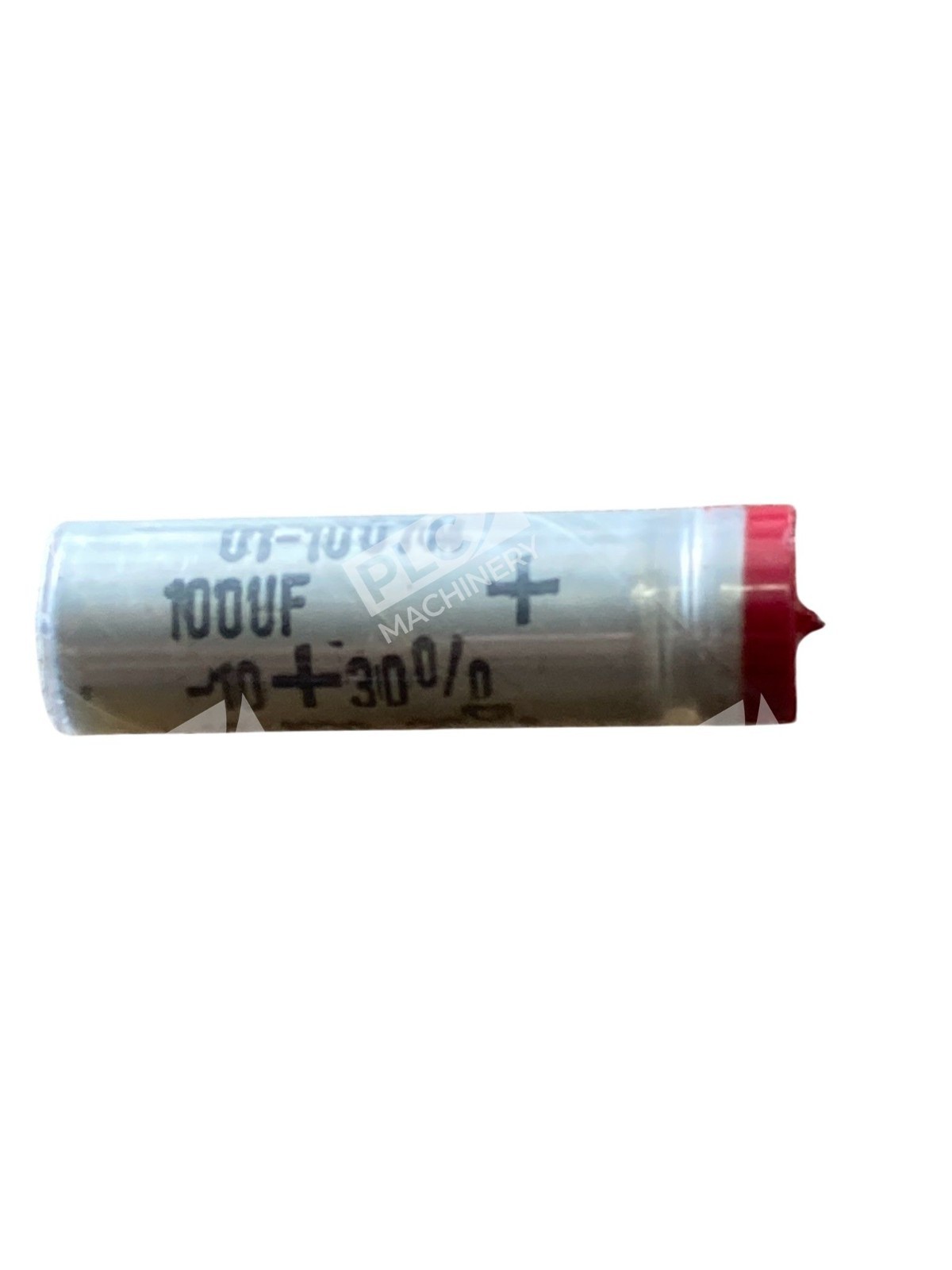

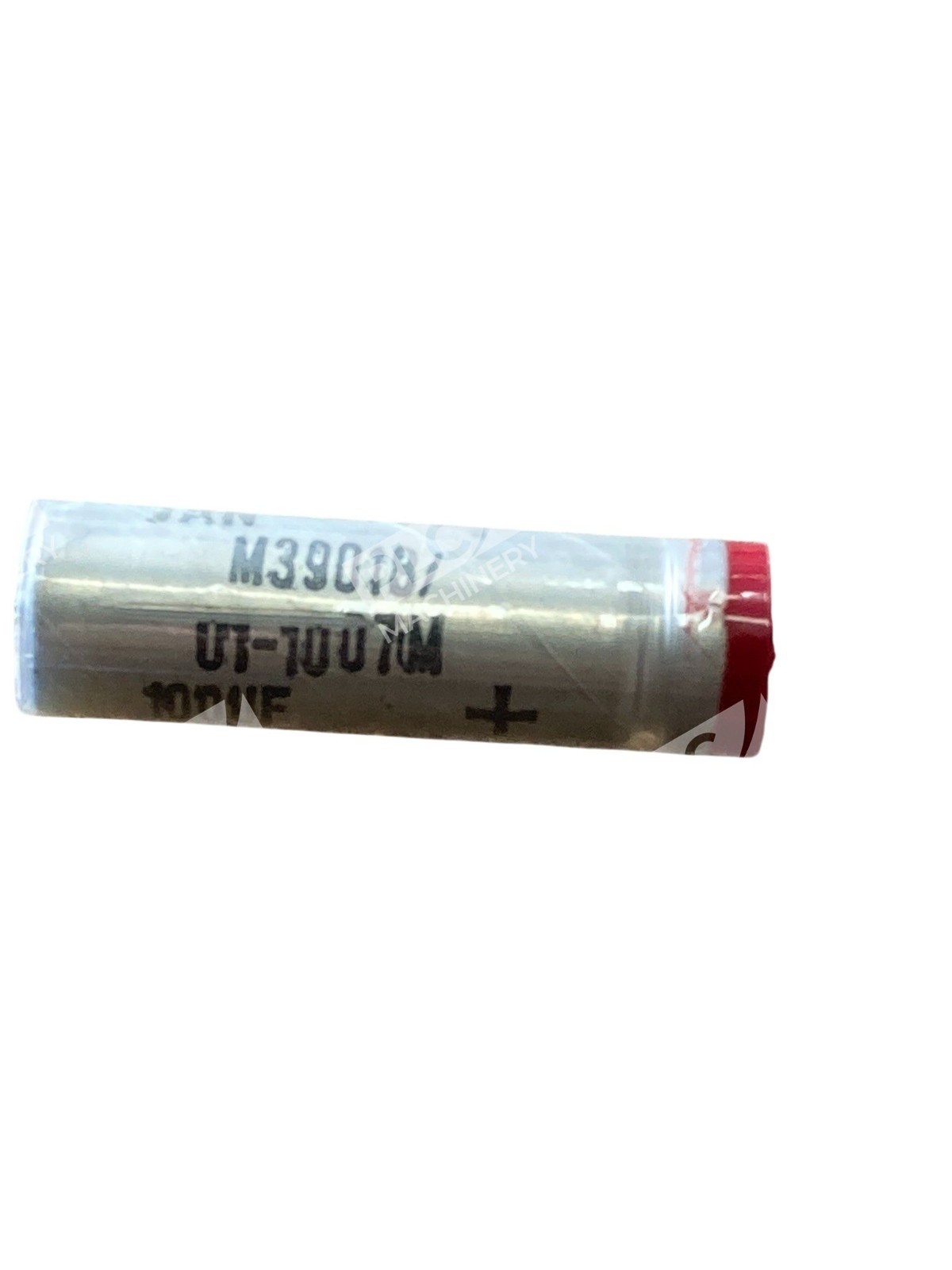

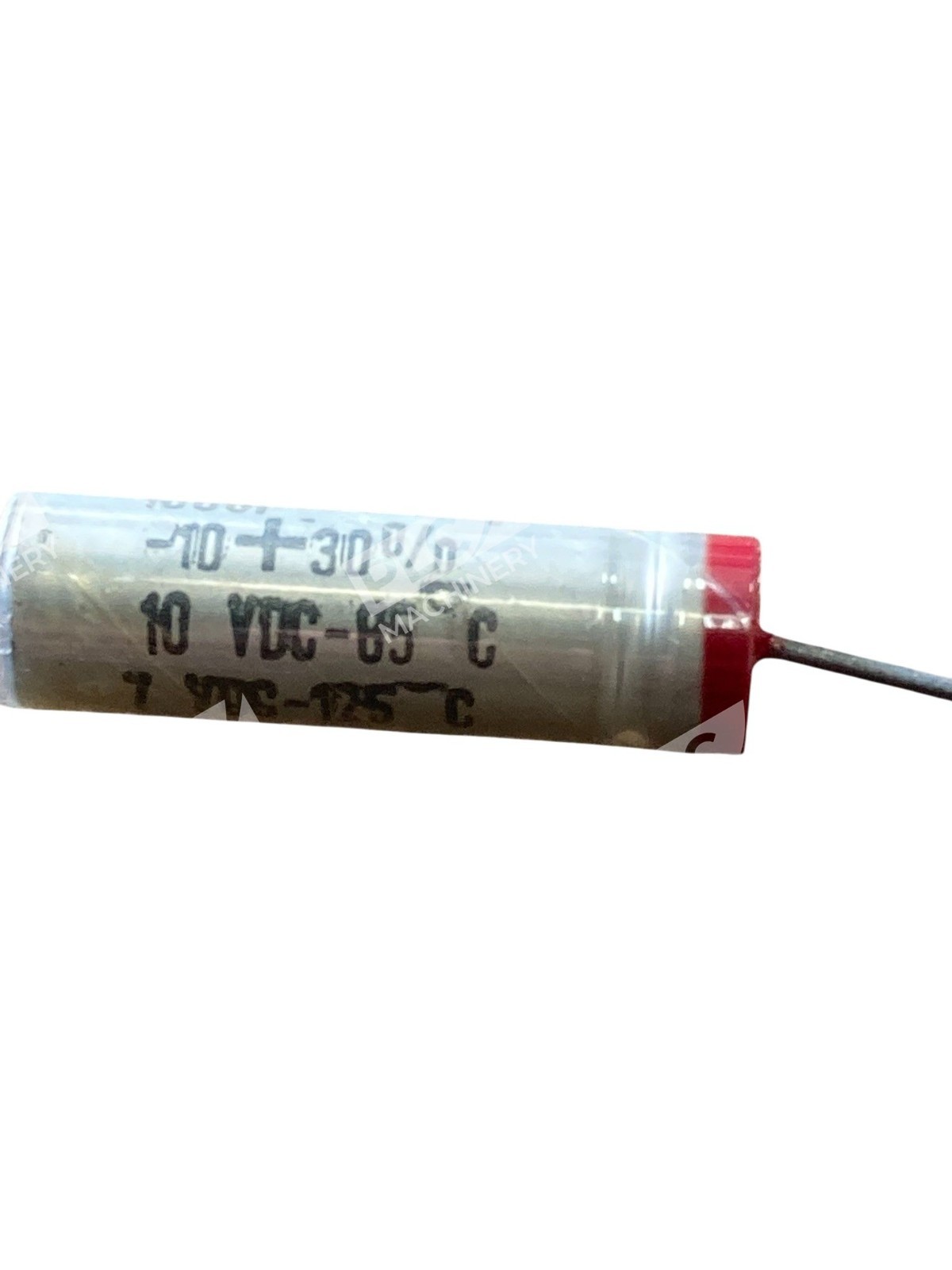

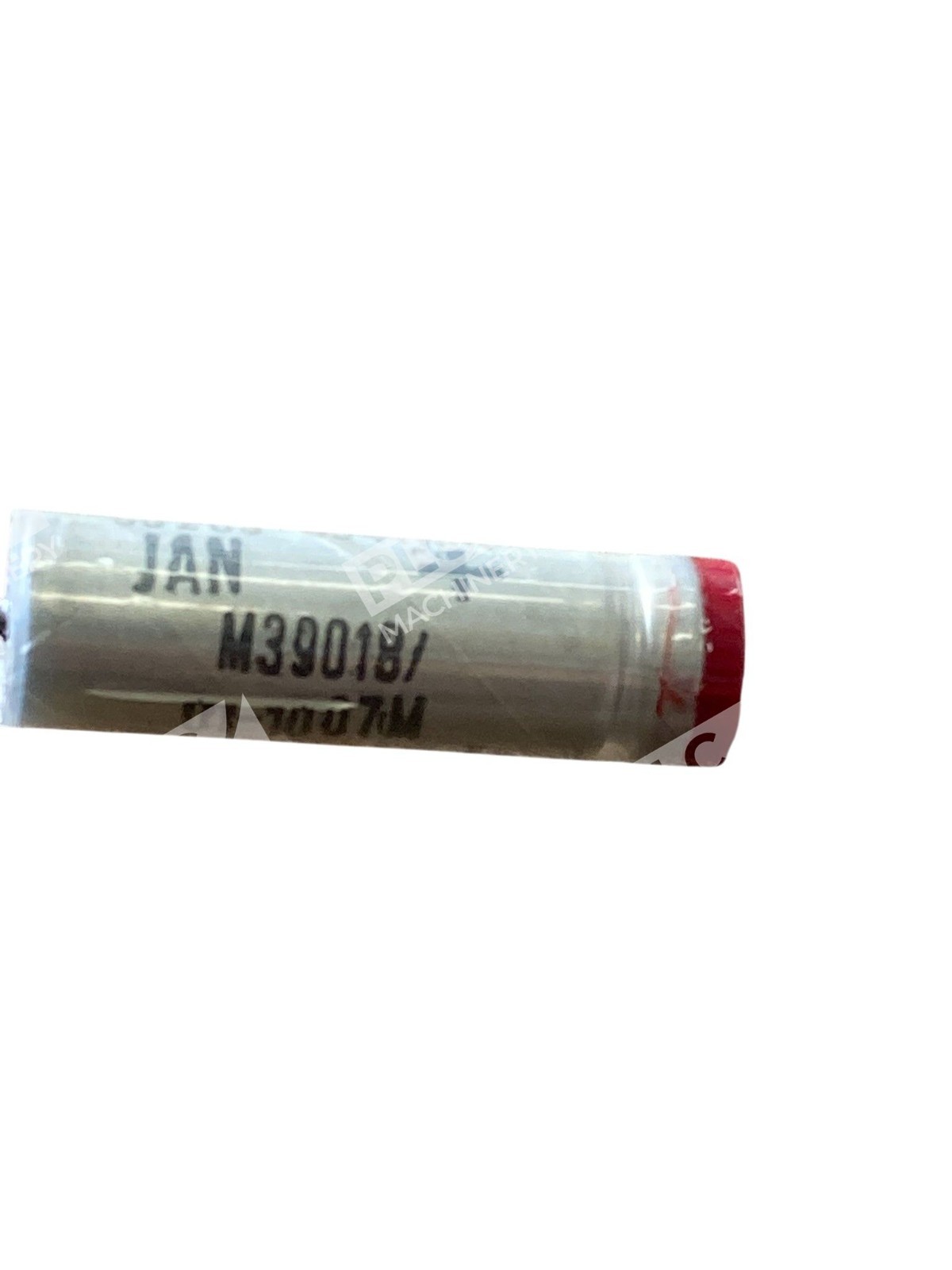

The M39018/01-1007M is a fixed electrolytic capacitor manufactured to military specifications MIL-C-39018/01. Designated as JAN 56289-8341HHP, this component is qualified for use in demanding aerospace, defense, and industrial environments. With a capacitance of 100µF and rated voltage of 7VDC, it delivers stable performance across temperature ranges and provides long-term reliability in critical applications.
Key Features
- Military-spec construction to MIL-C-39018/01 standard
- JAN-qualified for aerospace and defense applications
- Aluminum electrolytic fixed design with axial termination
- Capacitance: 100µF at rated voltage
- Compact footprint suitable for space-constrained assemblies
- Extended operating temperature range capability
Technical Specifications
- Capacitance: 100µF
- Rated Voltage (DC): 7VDC
- Part Number: M39018/01-1007M

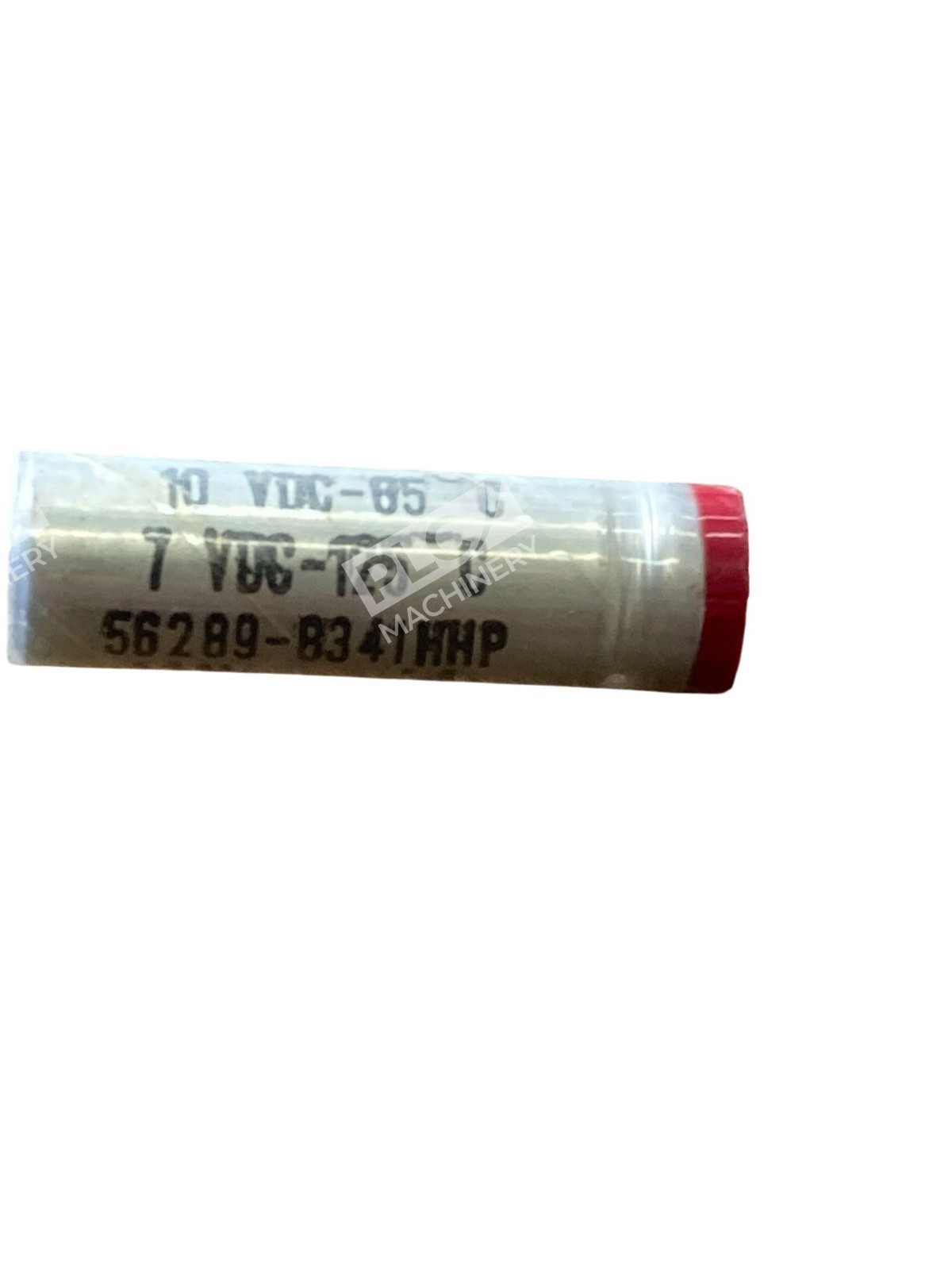

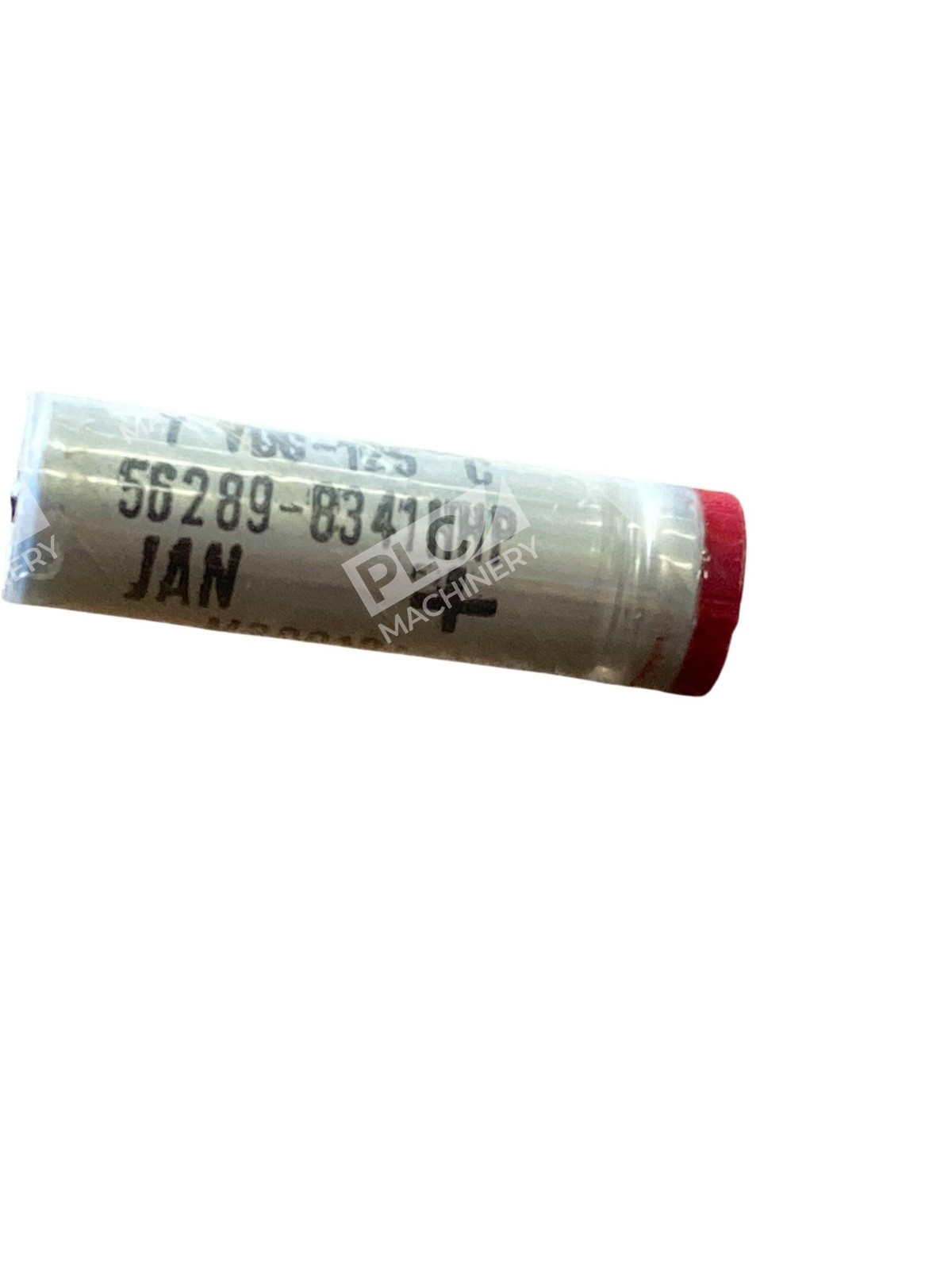

- JAN Designation: 56289-8341HHP
- Construction Type: Aluminum Electrolytic (Polarized)

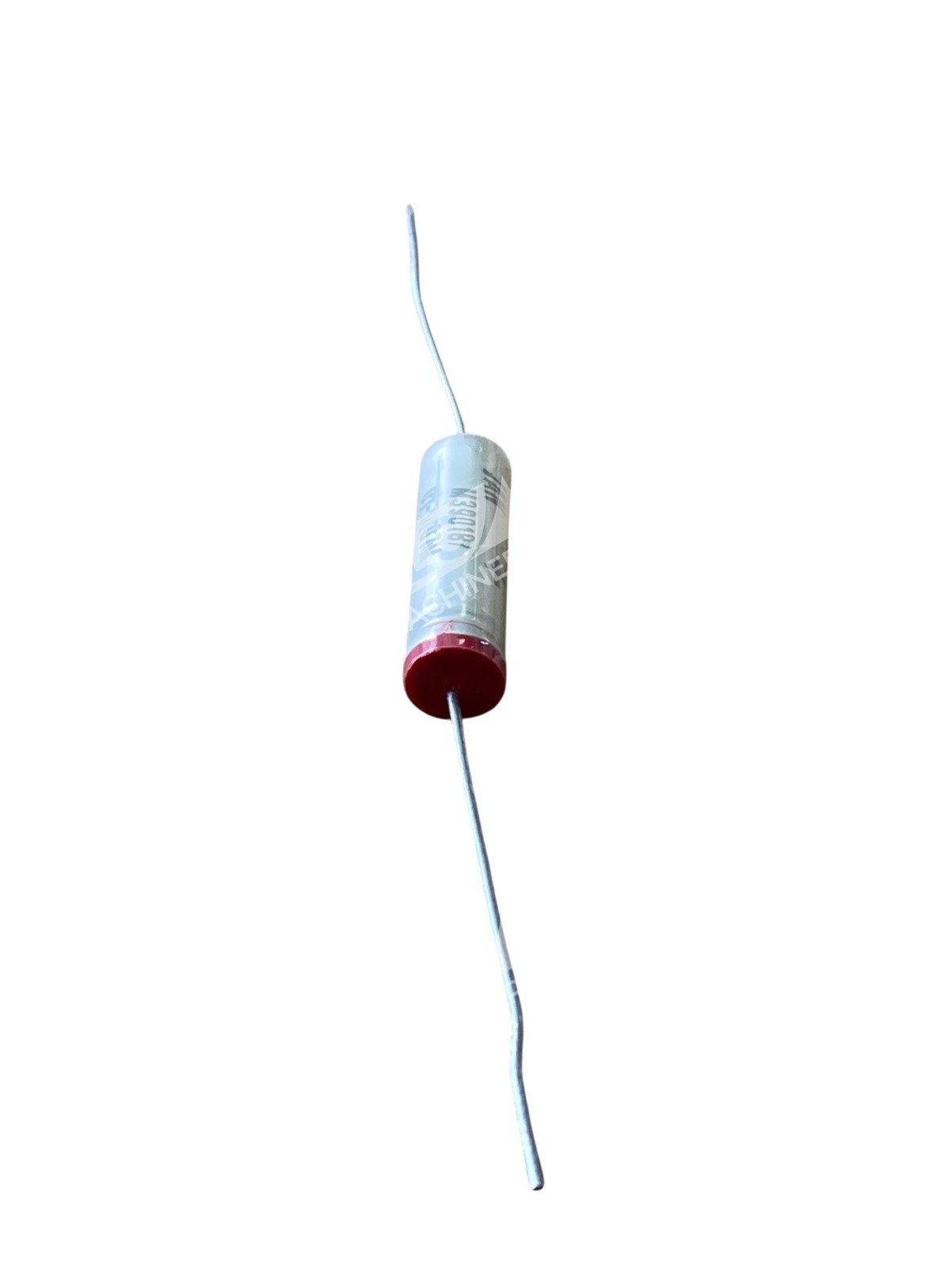

- Termination Style: Axial
- Specification: MIL-C-39018/01
- Category: Fixed Capacitor
Typical Applications
The M39018/01-1007M serves in filtering, energy storage, and signal conditioning roles across:
- Aerospace and avionics systems
- Military ground support equipment
- Defense communications and radar
- Industrial control systems
- Test and measurement instrumentation
Compatibility & Replacements
Compatible With
- MIL-C-39018/01 systems and assemblies
- Low-voltage DC circuits (7V nominal and below)
- Industrial and military equipment requiring JAN qualification
- Aerospace platforms with MIL-SPEC component requirements
Replaces / Drop-In Replacement For
- Other M39018/01 variants with identical capacitance and voltage rating
- Verify compatibility with your system integrator before ordering, as alternate part numbering may exist
Works With
- MIL-SPEC power supplies and distribution systems
- Military-grade DC filtering and buffering circuits
- Aerospace avionics and embedded systems
- Standard axial-lead component mounting and board layouts
