Overview

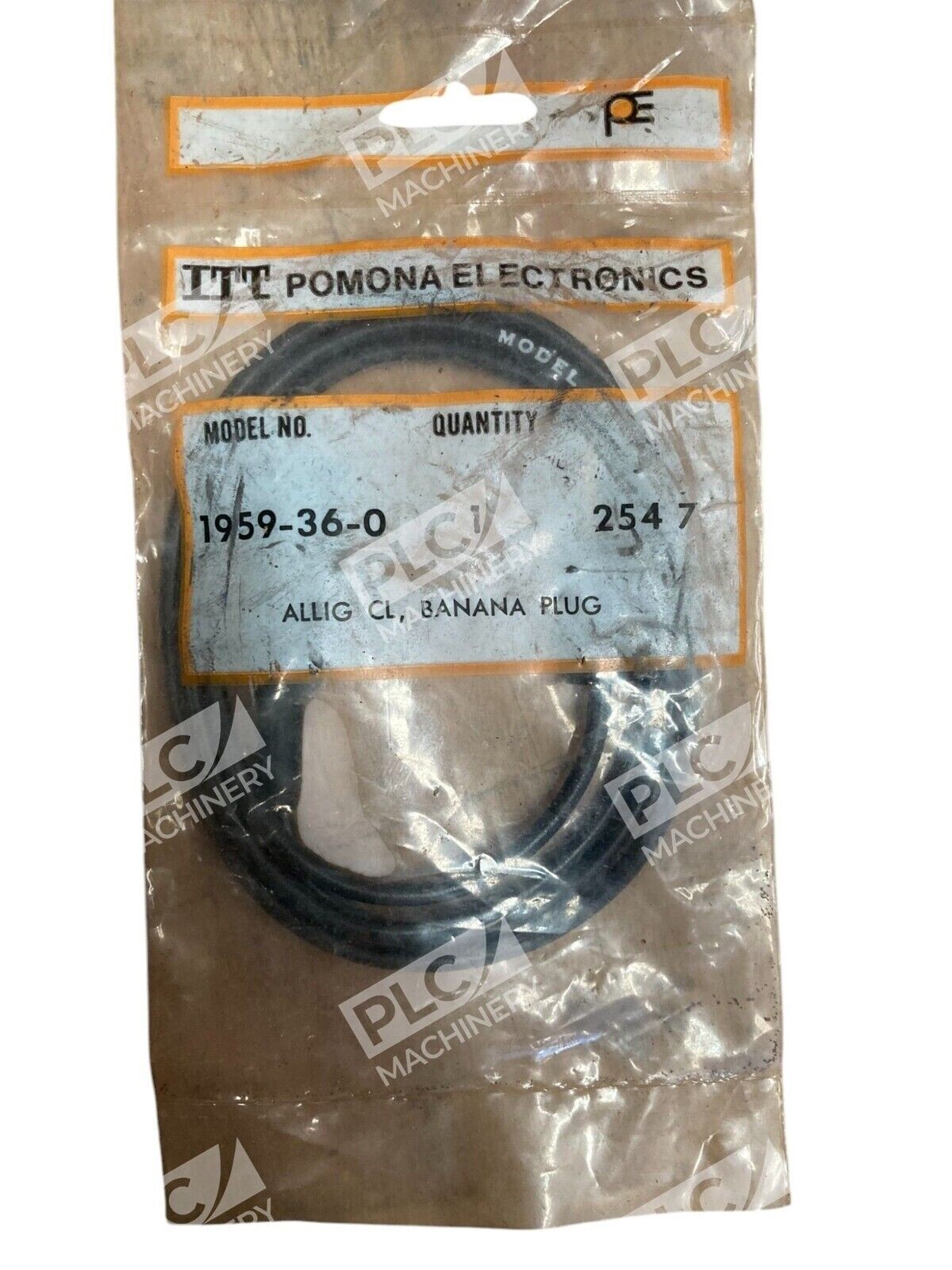

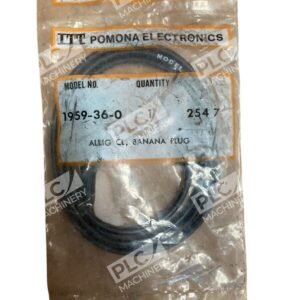

The Pomona 1959-36-0 is a professional-grade test lead designed for electrical measurement and troubleshooting. This banana plug to alligator clip patch cord combines proven connectivity with robust construction, making it an essential tool for engineers, technicians, and service professionals. The 36-inch length provides convenient reach for laboratory benches, equipment racks, and test fixtures.
Key Features
- Stackable banana plug: Multi-stacking capability in both front and vertical orientations for flexible setup options.
- Insulated alligator clip: Medium-sized clip with flex boot protection for safe terminal attachment up to 0.300″ outer diameter.
- Beryllium copper spring: Long-lasting banana plug construction for extended insertion life.
- Flexible conductor: High-strand-count 18 AWG wire for excellent bending and routing characteristics.
- Molded connection: Banana plug molded directly to the cable for improved pull strength and reliability.
Technical Specifications
- Part Number: 1959-36-0
- Manufacturer: Pomona Electronics
- Cable Length: 36 inches (914.4 mm)
- Wire Gauge: 18 AWG
- Insulation Material: Polyvinyl Chloride (PVC)
- Connector 1: Banana plug, single, stackable
- Connector 2: Alligator clip, insulated, medium
- Voltage Rating: 30 VAC
- Current Rating: 5 A
- Color: Black
- Stacking Method: Multi-stacking, front and vertical
Typical Applications
- Digital multimeter (DMM) connection to circuit boards and test points.
- Power supply testing and equipment interconnection.
- Laboratory bench test setups and measurement fixtures.
- Field service troubleshooting and diagnostics.
- Component testing and circuit validation.
Compatibility & Replacements
Compatible With
- Digital multimeters (DMMs) with standard banana jack inputs.
- Power supplies and programmable load equipment.
- Test fixtures and measurement panels.
- Any equipment with standard 4 mm banana jack receptacles.
Replaces / Drop-In Replacement For
- Pomona 1959-12-0 (12″ version – same connector type, different length).
- Pomona 1959-24-0 (24″ version – same connector type, different length).
- Other Pomona 1959 series models with alligator-to-banana configuration.
Works With
- Fluke digital multimeters and test equipment.
- Agilent and Keysight test instruments.
- Any standard banana jack measurement interface.
- Laboratory bench power supplies and signal generators.
