Overview

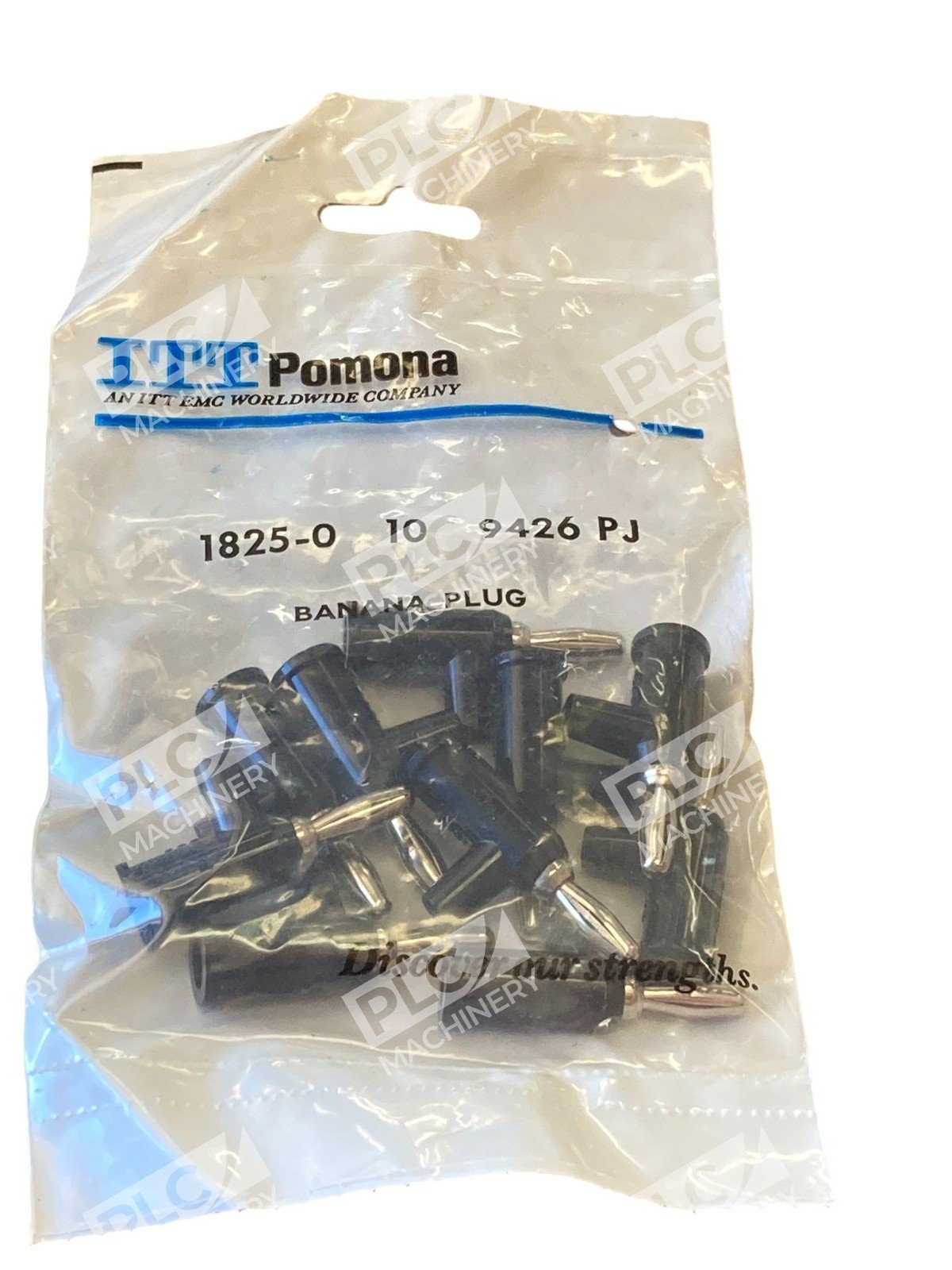

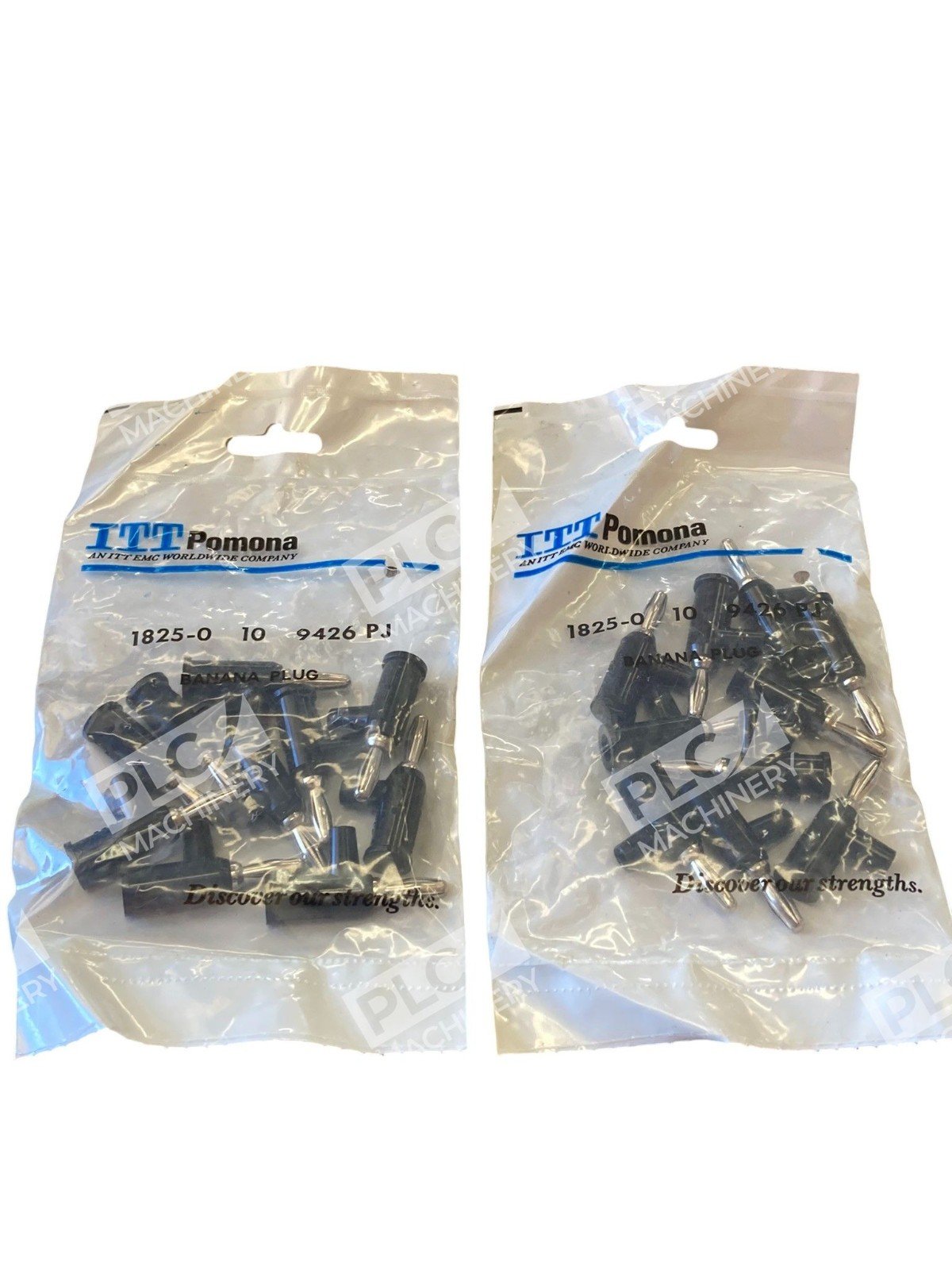

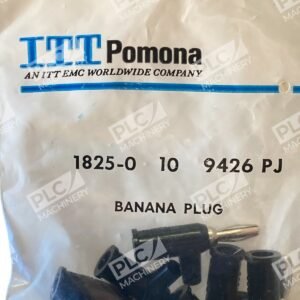

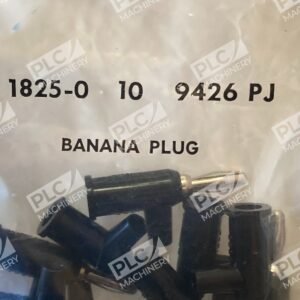

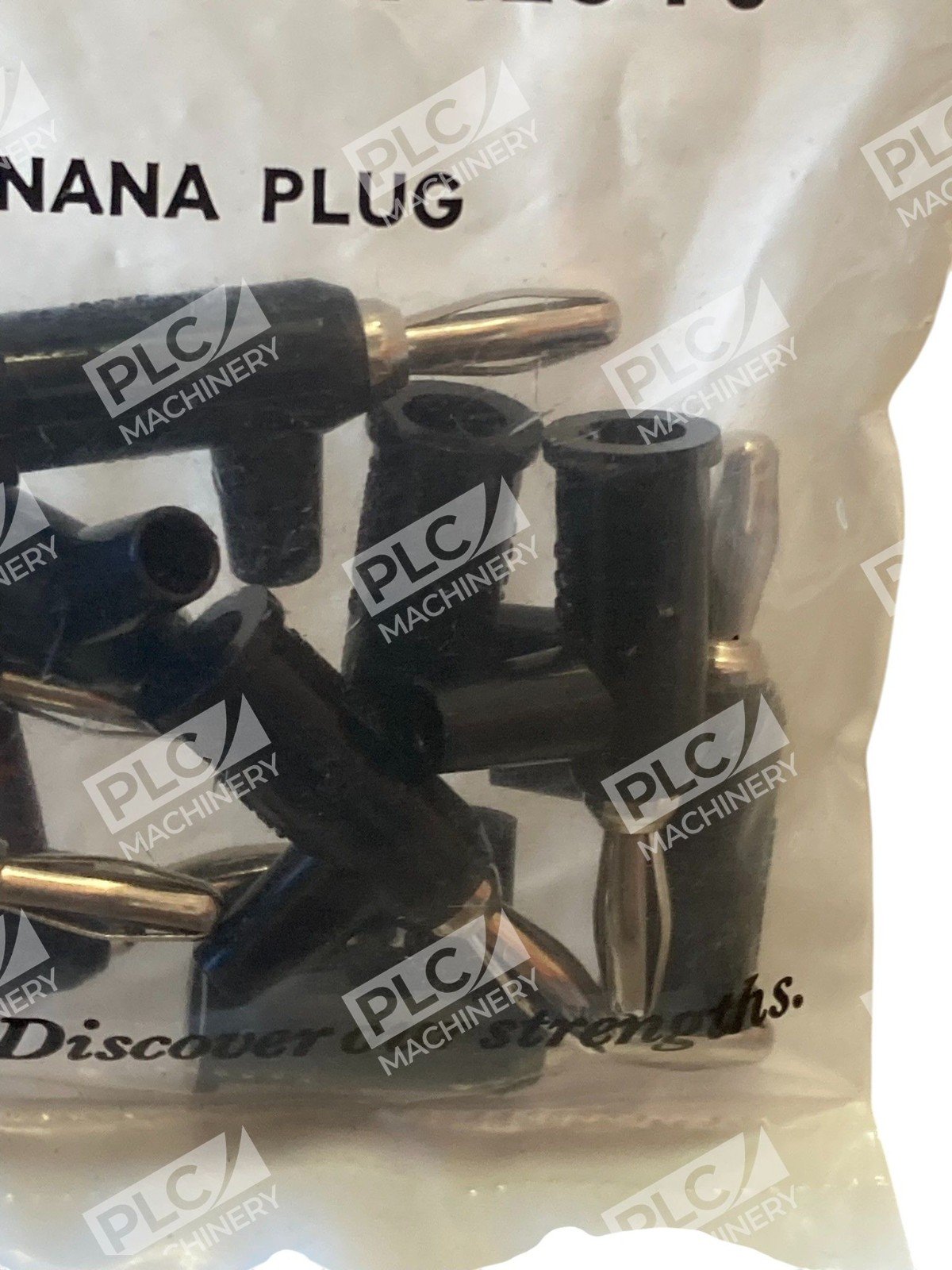

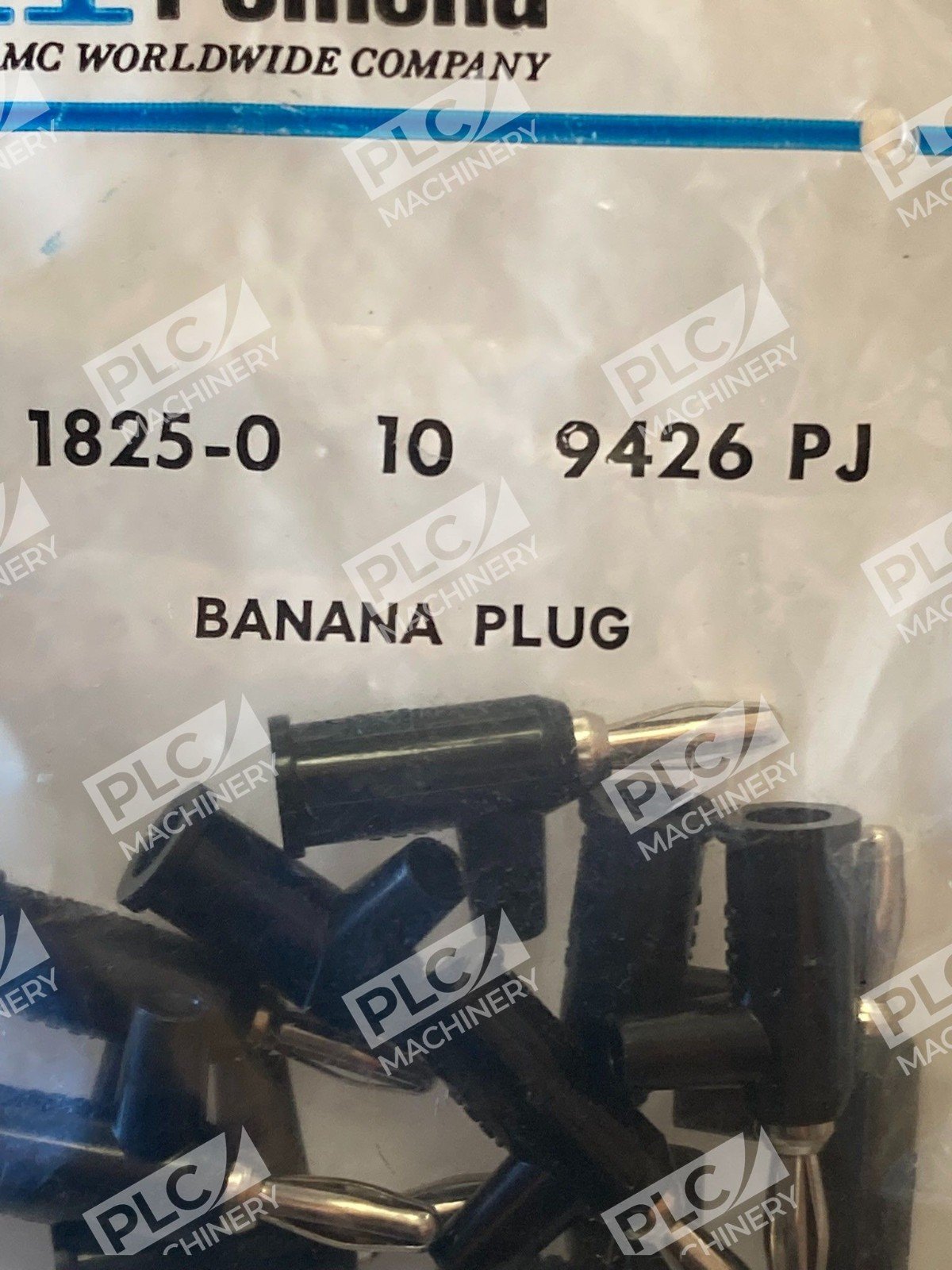

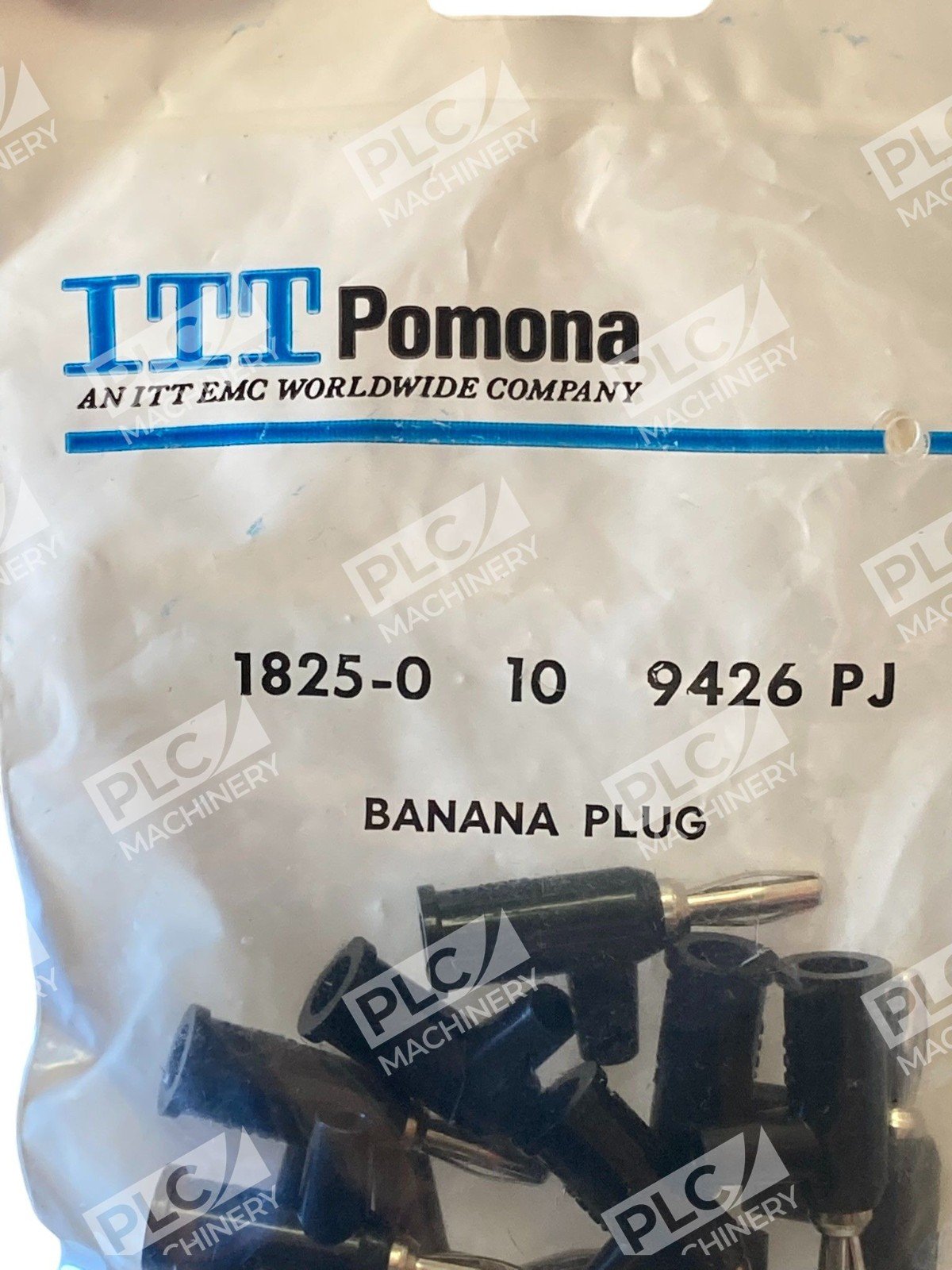

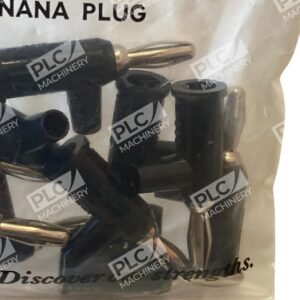

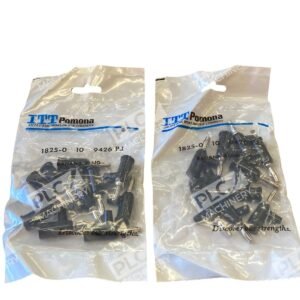

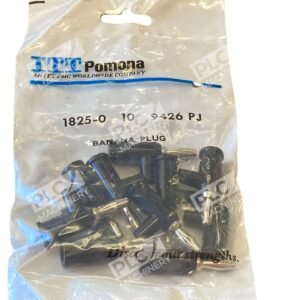

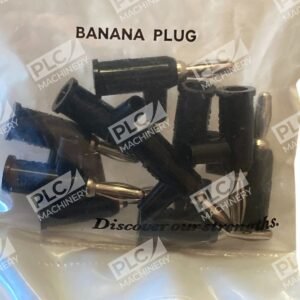

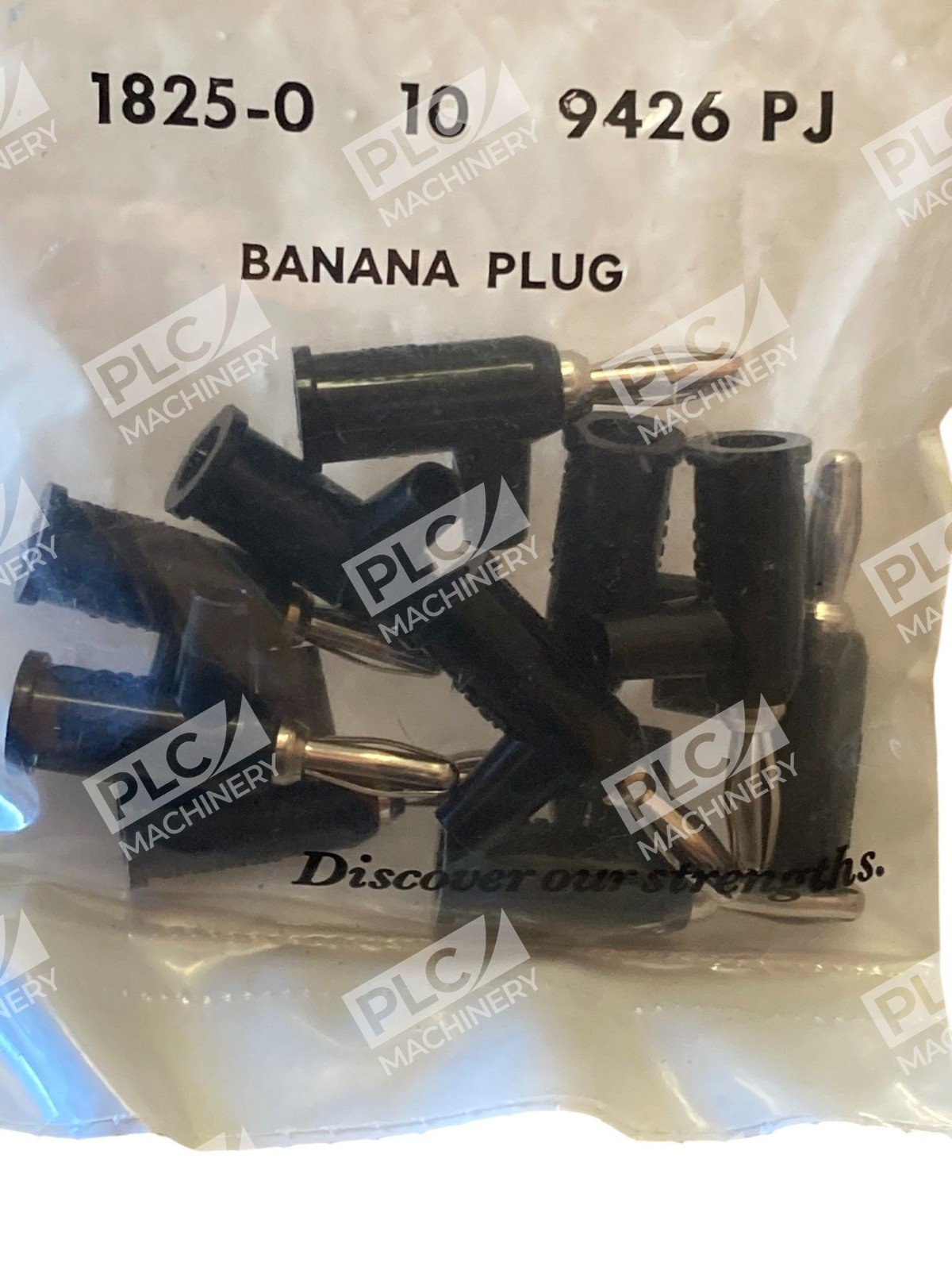

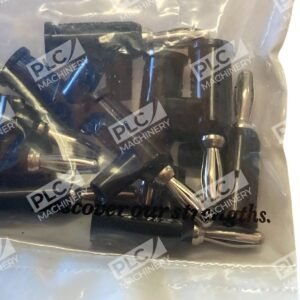

The Pomona 1825-0 banana plug is a do-it-yourself solderless stack-up banana plug with safety collar in black, featuring screw contact termination, nickel-plated zinc die-cast body, nickel-plated beryllium copper spring, polypropylene insulation, and zinc-plated steel set screw (8-32 single slot). Each pack includes 10 plugs, making it ideal for establishing a reliable supply for test and measurement applications.
Key Features
- Set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver for easy wire attachment
- Integral safety collar insulates wire conductor and offers wire strain relief
- Fits standard panel and binding post banana jacks .161″ to .166″ (4.0mm to 4.2mm) diameter
- Available with tarnish resistant nickel or gold plating for very low contact resistance
- Stackable configuration allows multiple plugs to be connected together
Technical Specifications
- Designed to fit on the end of any 22 AWG to 18 AWG wire
- Cross hole wire entry fits wires up to .12″ (3mm) diameter
- Current Rating: 15A
- Contact Material: Nickel-plated beryllium copper spring
- Body Material: Nickel-plated zinc die-cast
- Insulation: Polypropylene
- Set Screw: Zinc-plated steel, 8-32 single slot
- Termination Type: Solderless (no soldering required)
- Color: Black
- Quantity per Pack: 10 units
Typical Applications
Used in aerospace, computer hardware, electronics design, electronics service, instrumentation, manufacturing, sound & video, telecommunications, and test & measurement applications. The solderless design and safety collar make these plugs ideal for bench engineers, field technicians, product designers, and maintenance personnel assembling test leads, measurement jumpers, and temporary connections.
Compatibility & Replacements
Compatible With
- Standard panel banana jacks (.161″ to .166″ diameter)
- Binding post connectors
- Test equipment and measurement instruments with banana jack receptacles
- Laboratory bench setups and field test configurations
Replaces / Drop-In Replacement For
- Previous generation Pomona solderless banana plugs (same connector footprint)
- Other 15A-rated solderless banana plugs with equivalent wire gauge compatibility
Works With
- 18–22 AWG solid or stranded wire
- Pomona adapter networks and test cables
- Industry-standard banana jack panel mounts and banana receptacle modules
- CSA and IEC61010 compliant test systems
