Overview

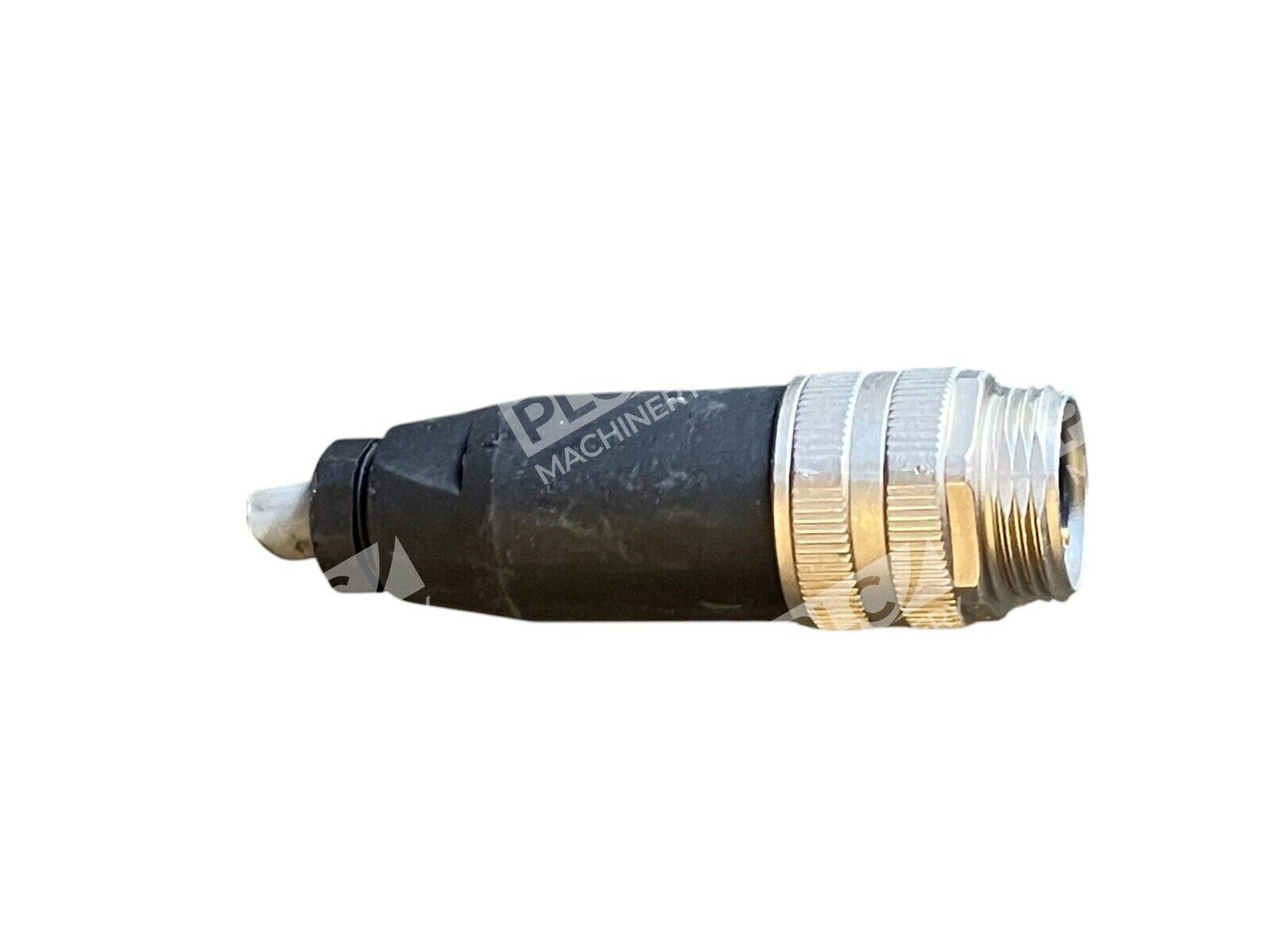

The M12 5 pin male plug is a standard A-coded circular connector widely used in industrial automation, sensor networks, and control systems. This field-wireable connector combines robust construction with straightforward field termination, making it ideal for technicians who need quick, reliable connections without special tools.
Key Features
- A-Code Configuration: Standard five-pin arrangement for power and signal transmission in industrial applications
- Field Wireable Design: Screw connection for terminating each conductor easily in the field
- IP67 Protection Rating: Rated IP67 and designed to withstand water conditions
- PG7 Gland: Comes with a PG7 size gland that screws in the back to secure the opening for the wire
- Gold-Plated Contacts: Center pin material is copper plated with gold, with good conductivity
- No Tools Required: Simple screw-terminal design for fast field assembly
Technical Specifications

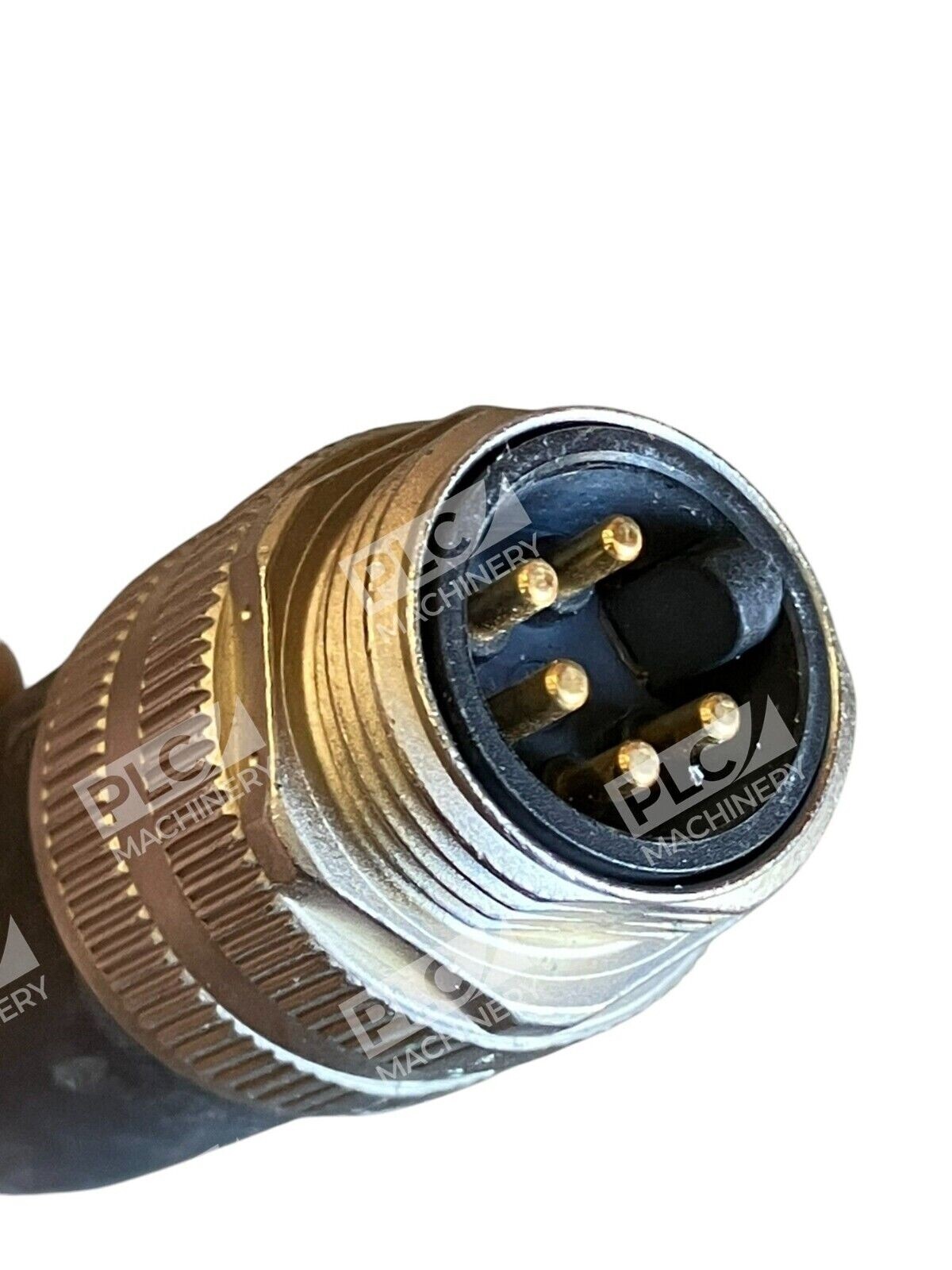

- Pin Configuration: 5 pins, A-Code
- Connector Type: Male, straight connector
- Contact Material: Gold-plated copper
- Rated Voltage: 60V nominal
- Rated Current: 4A per contact
- Cable Entry: 4–6 mm unshielded wire (22–26 AWG)
- IP Protection Class: IP67
- Thread Size: M12
- Cable Gland: PG7
- Installation Method: Screw terminal, field wireable
- Operating Temperature: –25 °C to +90 °C
- Standards Compliance: DIN EN 61076-2-101
Typical Applications
Can be easily connected to proximity switches, photoelectric barriers, flow monitoring devices and field bus components sensor devices and actuator devices. Common uses include:
- Industrial automation and machinery control
- Sensor signal transmission
- Field device interconnection
- Ethernet and network applications
- Environmental monitoring systems
- Harsh-environment control systems
Compatibility & Replacements
Compatible With
- M12 A-Code female receptacles and panel connectors
- Industrial sensor networks and field bus systems
- Proximity switch systems
- Actuator and valve control circuits
- Ethernet-over-M12 networks
Replaces / Drop-In Replacement For
Generic M12 5-pin male plugs from most industrial connector manufacturers. Verify connector coding (A-Code) and pin configuration with your system integrator before ordering to ensure compatibility.
Works With
- M12 A-Code female connectors and sockets
- DIN EN 61076-2-101 compliant systems
- PLC and industrial control panels
- Sensor and actuator devices
- Field-mounted terminal blocks and junction boxes
