Overview

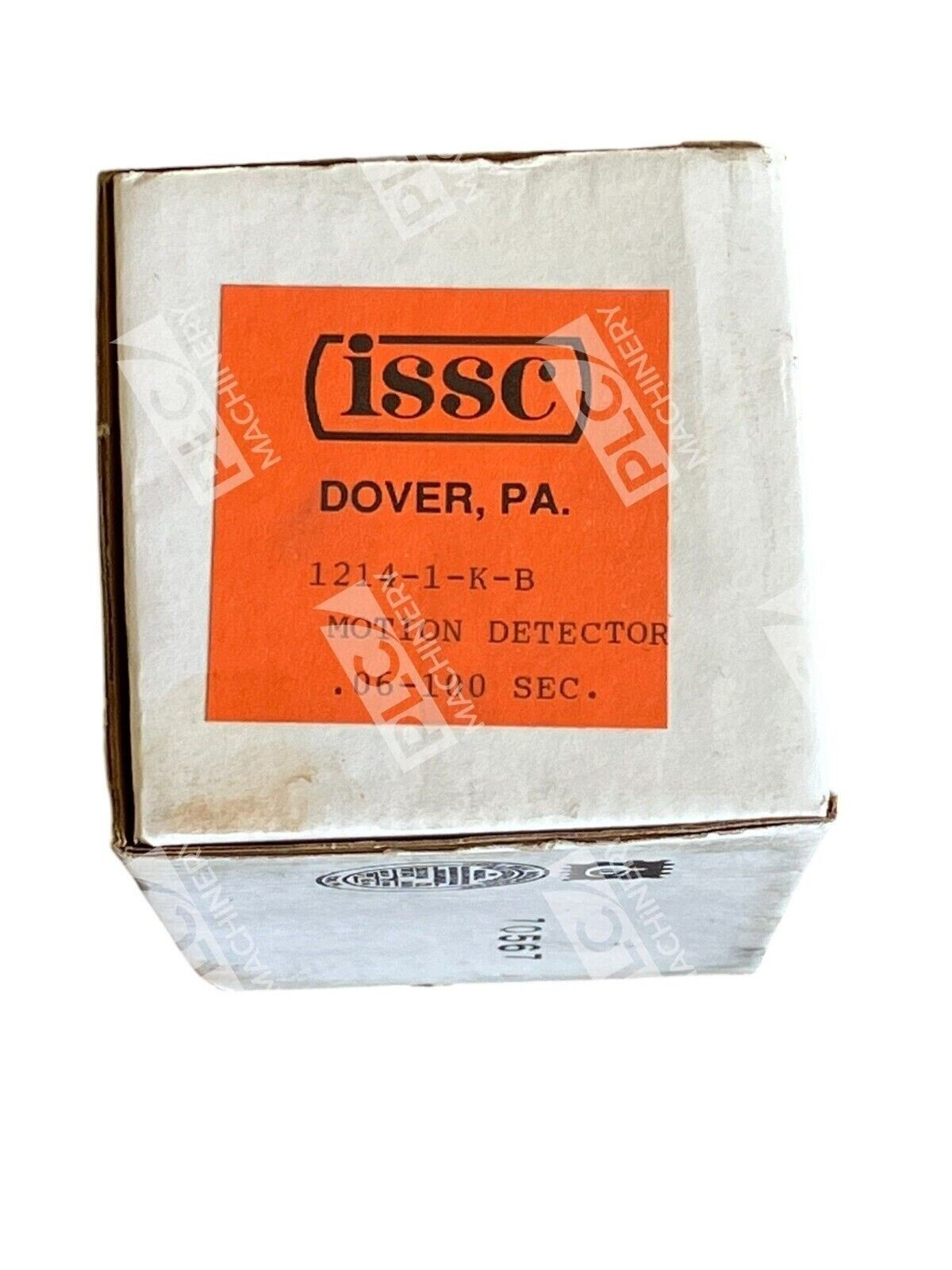

The ISSC 1214-1-K-B is an industrial solid-state motion detector manufactured by Kanson Electronics Inc. This time-delay relay monitors underspeed, zero-speed, and overspeed conditions on rotating equipment such as pumps, conveyor belts, and blower fans. With a flexible detection range from 0.06 to 100 seconds and 115V AC input/output at 10 amps, it provides dependable machinery protection for manufacturing, food processing, HVAC, and process automation environments.
Key Features
- Adjustable time delay range: 0.06 to 100 seconds for precise machinery monitoring
- 115V AC input, 115V AC 10A output for direct control of pilot circuits and alarm devices
- Solid-state construction with resin-filled enclosure for reliability in harsh industrial conditions
- Screw terminal connections (14 terminals) for quick panel mounting and wiring
- Mechanical input design with base-mount configuration for easy installation
- Made in USA since 1963 for proven industrial-grade performance
Technical Specifications
- Part Number: 1214-1-K-B (12141KB)
- Manufacturer: ISSC (Kanson Electronics Inc)
- Input Voltage: 115V AC, 50/60 Hz
- Output Voltage/Current: 115V AC, 10 Amps
- Detection Range: 0.06 to 100 seconds
- Input Type: Mechanical (motion/underspeed sensor input)
- Terminal Type: Screw terminals (14-terminal configuration)
- Mounting: Base mount, compact industrial form factor
- Housing: Resin-filled, sealed enclosure
- Frequency Rating: 50/60 Hz
Typical Applications
- Pump failure detection (underspeed/zero-speed alarm)
- Conveyor belt jam and stall detection
- Blower fan and ventilation equipment monitoring
- Mixer and agitator equipment speed verification
- Process equipment protection and shutdown logic
- Control panel integration for industrial automation systems
Compatibility & Replacements
Compatible With
- 115V AC control circuits and pilot devices
- Industrial control panels and machinery interlocks
- Pump, conveyor, and fan motor protection systems
- Time-delay relay assemblies and sensor networks
- Manual and automated machinery control systems
Replaces / Drop-In Replacement For
- ISSC 1214-1 series variants (different input/output configurations)
- Kanson Electronics 1214 motion detector versions
- Note: Verify compatibility with your specific control system and voltage requirements before ordering
Works With
- Industrial relay logic and PLC input modules
- Machinery protection and alarm circuits
- Standard 115V AC control systems
- General-purpose time-delay and motion-sensing applications
- OEM equipment interlocks and safety circuits
