Overview

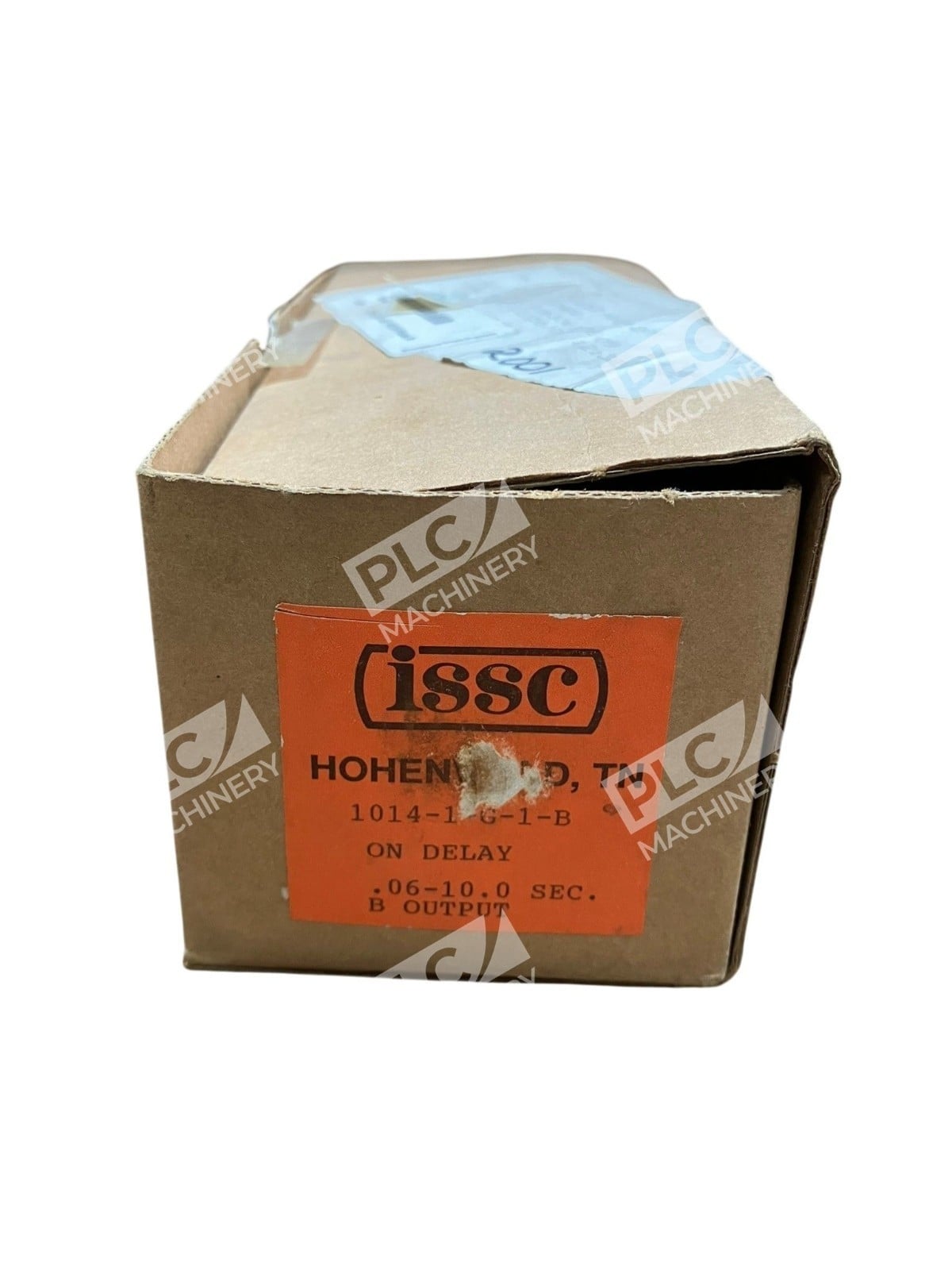

The ISSC 1014-1-G-1-B solid state timer is a base-mounted on delay relay designed for industrial control and automation circuits. This timer provides encapsulated, zero-maintenance solid-state construction with reliable timing performance across variable voltage and load conditions. ISSC timers have offered unmatched reliability since 1963 – in many cases lasting decades in the field without maintenance.
Key Features
- Adjustable timing range: 0.06 to 10.0 seconds
- 120VAC input voltage
- 10A single-pole relay output with instant contacts
- Solid-state encapsulated circuitry—zero maintenance required
- Base-mount design for panel or chassis installation
- Durable powder-coated steel casing
Technical Specifications
- Input Voltage: 120VAC
- Timing Function: On delay
- Time Range: 0.06–10.0 seconds (adjustable)
- Output Contacts: Single pole 13A (SP13A)
- Output Rating: 10A @ 125–250VAC
- Horsepower Rating: 1/3 HP
- Mounting Type: Base mount (panel/chassis)
- Construction: Solid-state, encapsulated
- UL File: E50957
- Certification: UL listed
- Manufacturing: 100% Made in USA
Typical Applications
- Motor soft-start and ramp control
- Pump and compressor startup sequencing
- Solenoid valve delayed activation
- Equipment warm-up and stabilization delay
- Alarm and warning system timing circuits
- Lighting control and fade-in sequences
Compatibility & Replacements
Compatible With
- Standard 120VAC control circuits
- Panel-mounted relay bases and DIN rail systems with appropriate adapters
- Industrial PLC and discrete relay control systems
- NEMA and IEC control enclosures
Replaces / Drop-In Replacement For
The ISSC 1014-1-G-1-B model designation specifies input voltage (1), terminal base (0), timing range “G” 0.06–10 sec (1-G), output type instant contacts (1), and base mount (B). For equivalent functionality, verify timing range and output rating with your system integrator before substitution. Related ISSC models include the 1013 (base mount) and 1012 (plug-in) series with different timing ranges.
Works With
- Standard 120VAC industrial control power supplies
- Mechanical relay bases and sockets (base mount compatible)
- Discrete and modular control systems
- Pneumatic and electromechanical automation circuits
- Legacy and modern industrial control platforms (timing-function independent)
