Overview

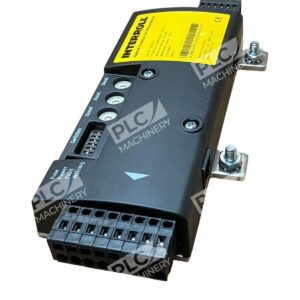

The Interroll 9006 /F hybrid control is a dedicated control module for Interroll RollerDrive conveyor systems. This device manages motor operation and implements zero-pressure accumulation (ZPA) logic, allowing packages to be held in zones without physical contact. The 9006 /F is designed for EC100, EC110, and EC120 RollerDrive models and is now a discontinued product, making it a valuable replacement component for existing conveyor installations.
Key Features
- Zero-pressure accumulation (ZPA) control for gentle package handling and singulation
- DIP switch configuration for independent or dependent zone operation
- PNP/NPN sensor input selection via DIP switch

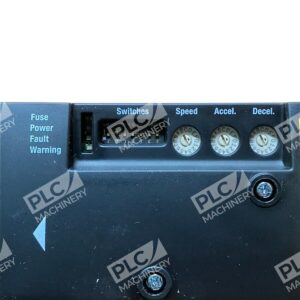

- LED diagnostics for motor, sensor, jam, power, fuse, and temperature status
- Thermal protection with automatic shutdown at 90°C (194°F) and dynamic braking
- Local jog and reverse controls with configurable upstream/downstream propagation
- Smart I/O handshake protocol for multi-zone conveyor networks
Technical Specifications

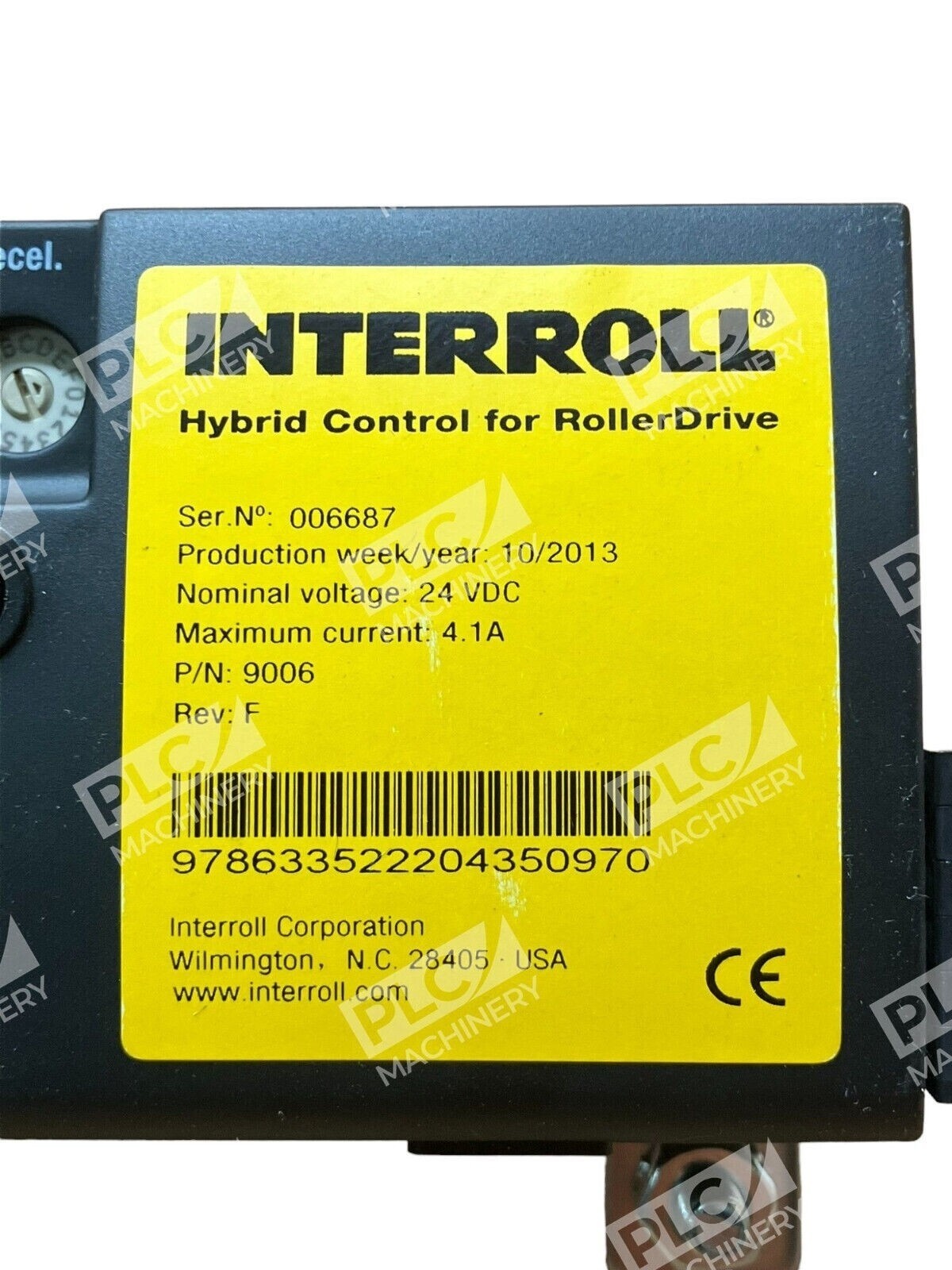

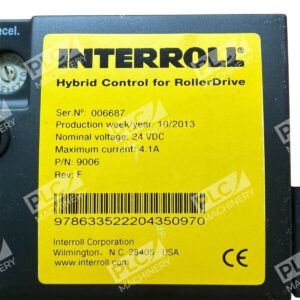

- Manufacturer: Interroll Corporation
- Part Number: 9006 /F
- Power Supply: 24 VDC
- Maximum Output Current: 4.1 A
- Compatible RollerDrive Models: EC100, EC110, EC120
- Temperature Shutdown: 90°C (194°F)
- Input Voltage Range: 24 VDC (see manual for tolerance specifications)
- Control Logic: Hybrid motor and ZPA control with singulation modes
- Sensor Types: NPN/PNP photoeye compatible

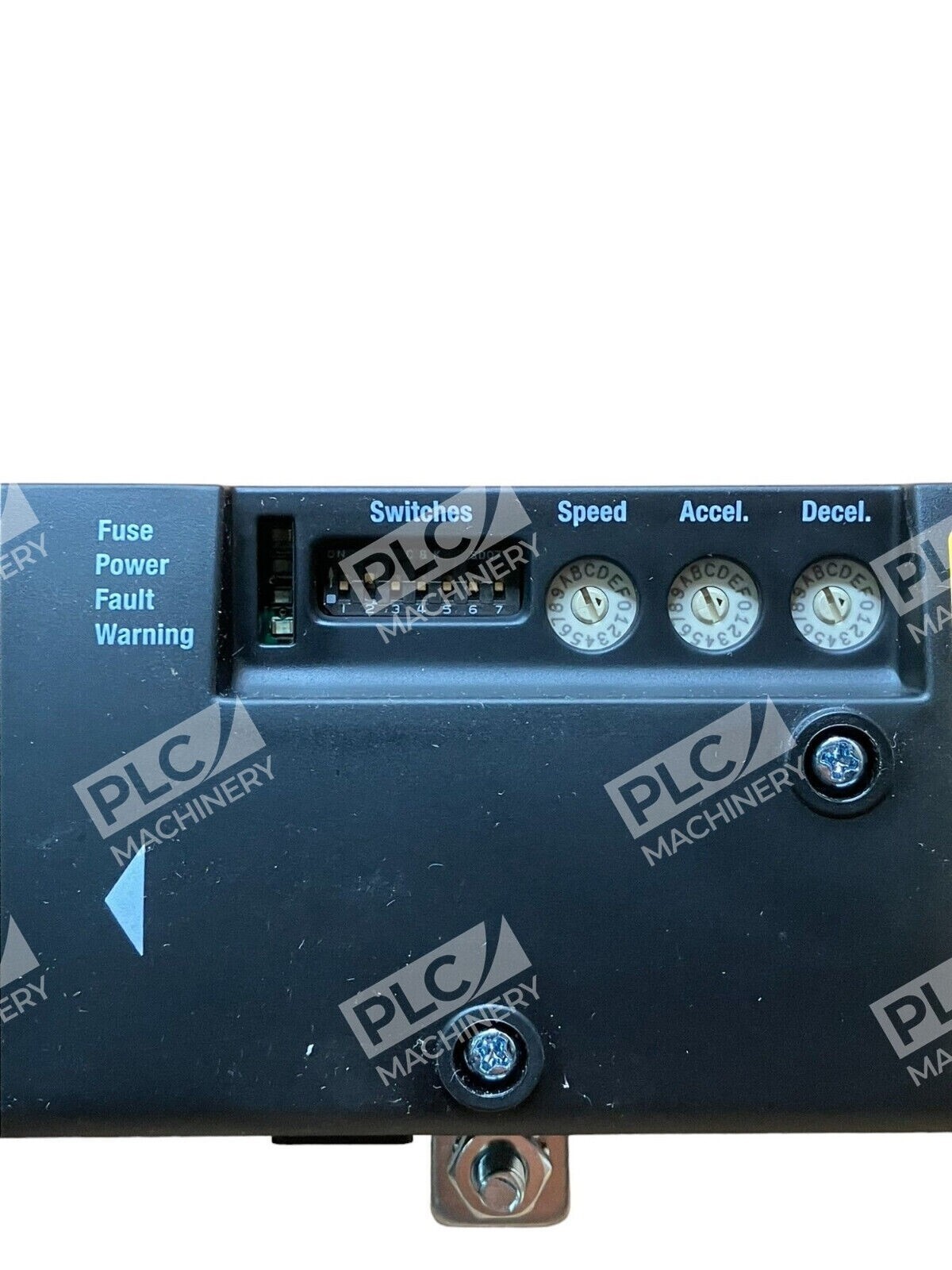

- Configuration Method: DIP switches (8 switches for zone, singulation, direction, and sensor type)
- Connectivity: Smart I/O interface with upstream/downstream propagation

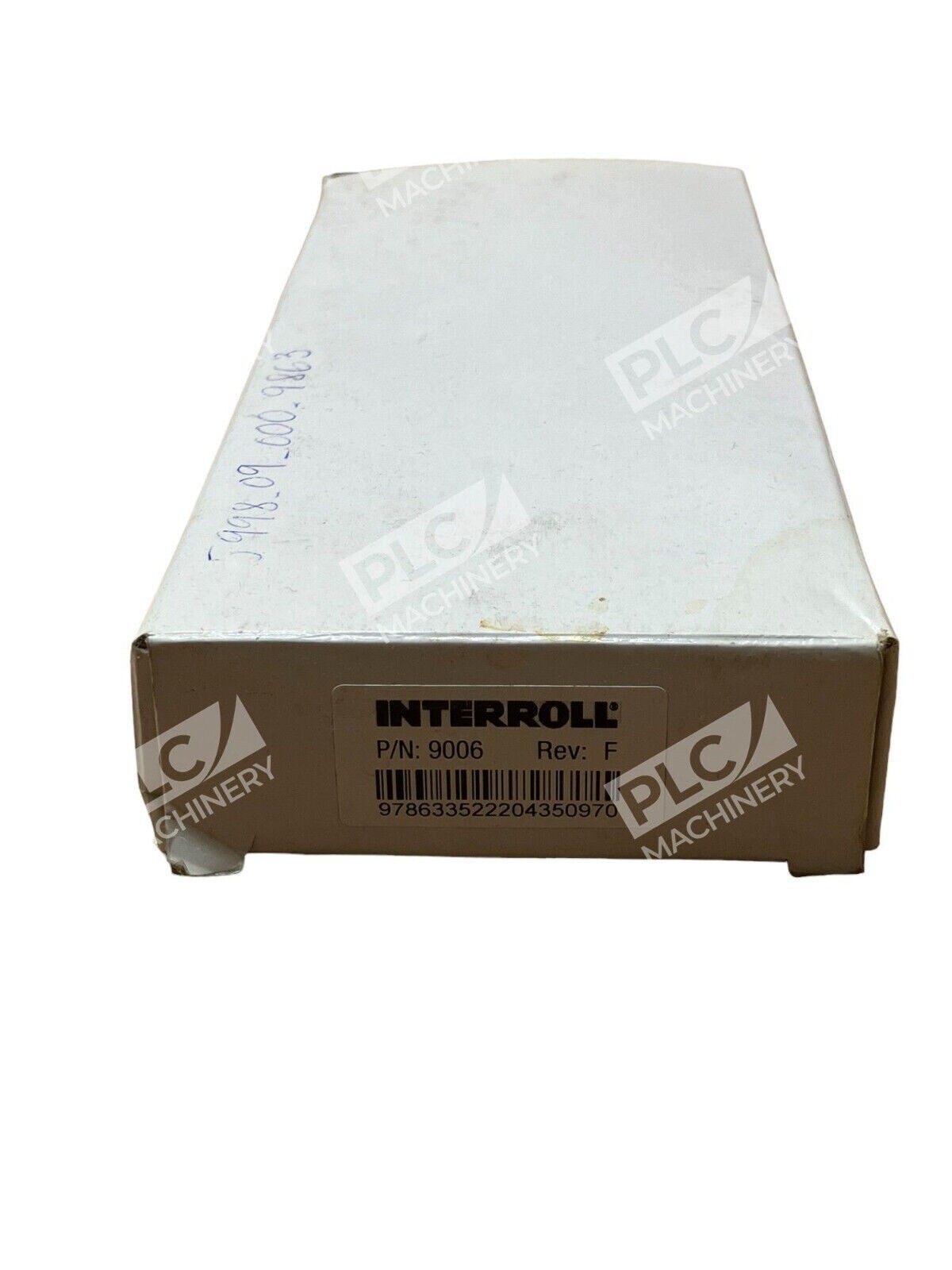

- Condition: New in Box
- Status: Discontinued by Manufacturer
Typical Applications
- Modular conveyor systems with package singulation requirements
- Multi-zone conveyor networks implementing zero-pressure accumulation
- Distribution center and parcel handling lines
- Manufacturing assembly lines with sequential zone control
- Replacement control modules for existing Interroll RollerDrive installations
- Equipment maintenance and OEM upgrades
Compatibility & Replacements
Compatible With
- Interroll RollerDrive EC100 (economical 24VDC brushless motor)
- Interroll RollerDrive EC110 (mid-range performance)
- Interroll RollerDrive EC120 (high-performance model)
- Multi-zone conveyor systems using Interroll modular components
- Conveyor systems requiring zero-pressure accumulation (ZPA) and singulation
- Idler rollers with O-rings, Poly-Vee belts, or chain-and-sprocket drive
Replaces / Drop-In Replacement For
- Interroll 9006 (original version)
- Previous generations of Interroll RollerDrive control modules for EC100/EC110/EC120 systems
- Verify exact compatibility with your system integrator before ordering to confirm model match
Works With
- Interroll smart I/O handshake protocol for multi-zone cascading control
- DIP-switch programmable logic for jog, reverse, and singulation modes
- Photoeye and proximity sensor inputs (NPN/PNP selectable)
- 24 VDC industrial control networks
- Standard conveyor system safety interlocks and emergency stop circuits
