Overview

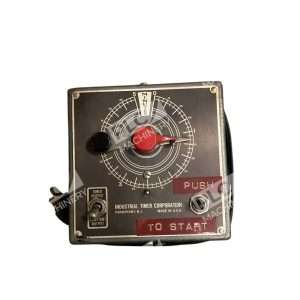

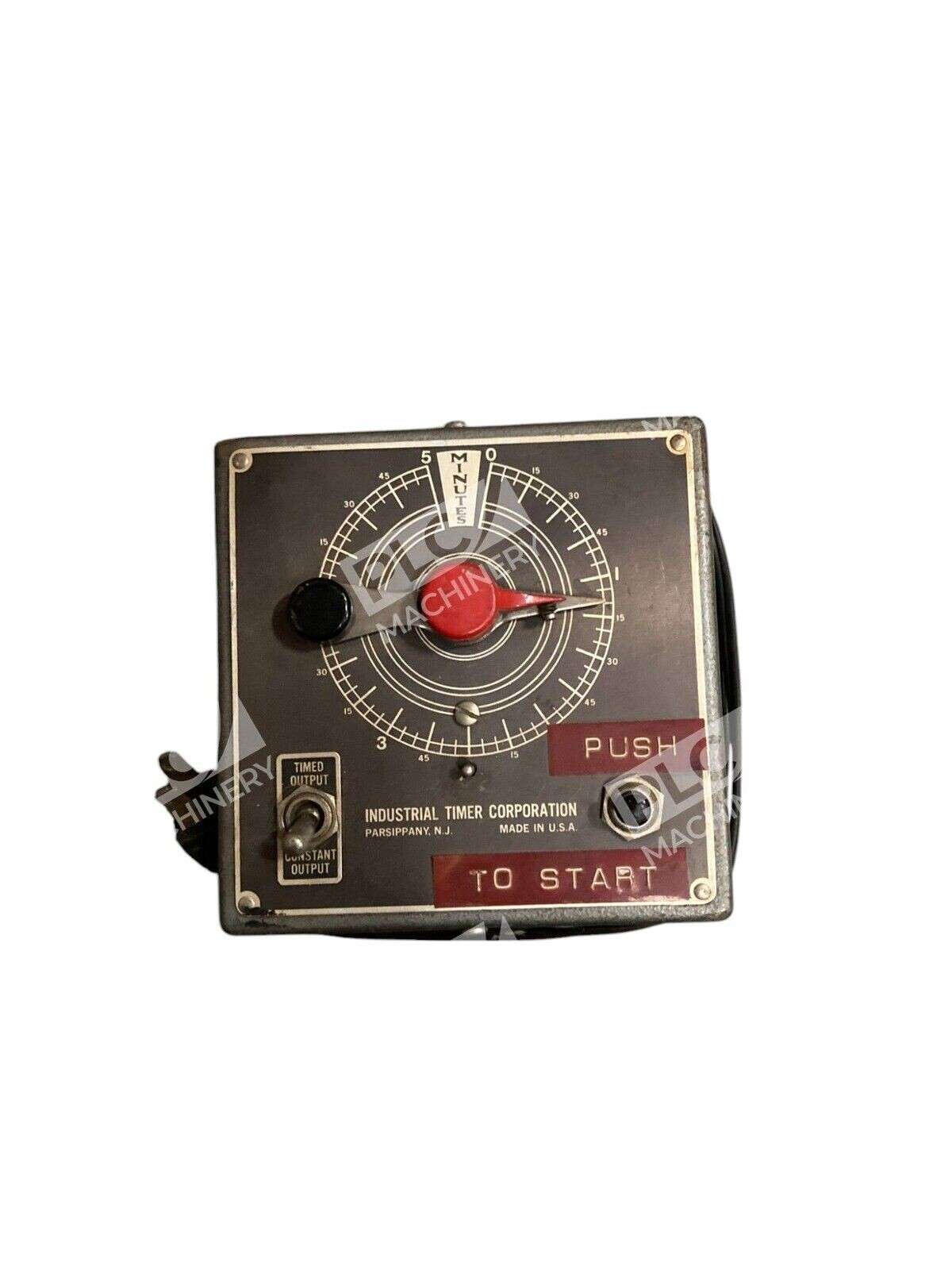

The Industrial Timer Co P-5M is a panel-mount timer counter display module engineered for industrial process control and automation. Rated at 120VAC with adjustable timing from 5 seconds to 5 minutes, this electromechanical timer delivers straightforward, reliable pulse-counting and time-delay control. The P-5M is a legacy control component widely used in motor control circuits, machinery sequencing, and process timing applications.
Key Features
- 120VAC operating voltage for standard industrial power systems
- Adjustable timing range from 5 seconds to 5 minutes
- Fast reset time of 500ms for rapid cycle control
- Panel-mount enclosure for compact DIN or cabinet integration
- RoHS compliant construction
- Electromechanical design proven in heavy-duty industrial environments
Technical Specifications
- Manufacturer: Industrial Timer Co
- Model: P-5M
- Supply Voltage: 120VAC
- Timing Range: 5 seconds to 5 minutes
- Reset Time: 500ms
- Mounting Style: Panel Mount
- Category: Timer Counter Display Panel
- RoHS Compliant: Yes
- Condition: Used
Typical Applications
- Motor start delay and soft-start circuits
- Machinery cycle timing and sequencing
- Process dwell and interval control
- Automated production line timing
- Conveyor and pneumatic system delays
- Retrofit and legacy system replacements
Compatibility & Replacements
Compatible With
- 120VAC single-phase power systems
- Motor control centers (MCCs) and control cabinets
- Electromagnetic contactors and relay logic circuits
- Industrial automation panel designs
- Legacy PLC and timer-based control schemes
Replaces / Drop-In Replacement For
- Other Industrial Timer Co 5-minute panel timers
- Equivalent 120VAC single-pole timer modules
- General-purpose time-delay relay functions in older systems
Works With
- Relay logic and hardwired control circuits
- Motor control and soft-start applications
- Pneumatic and hydraulic sequencing systems
- Standalone electromechanical timer solutions (non-networked)
