Overview

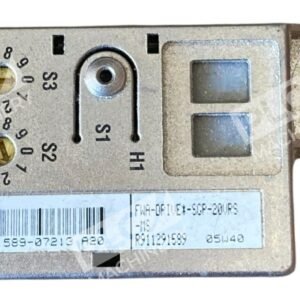

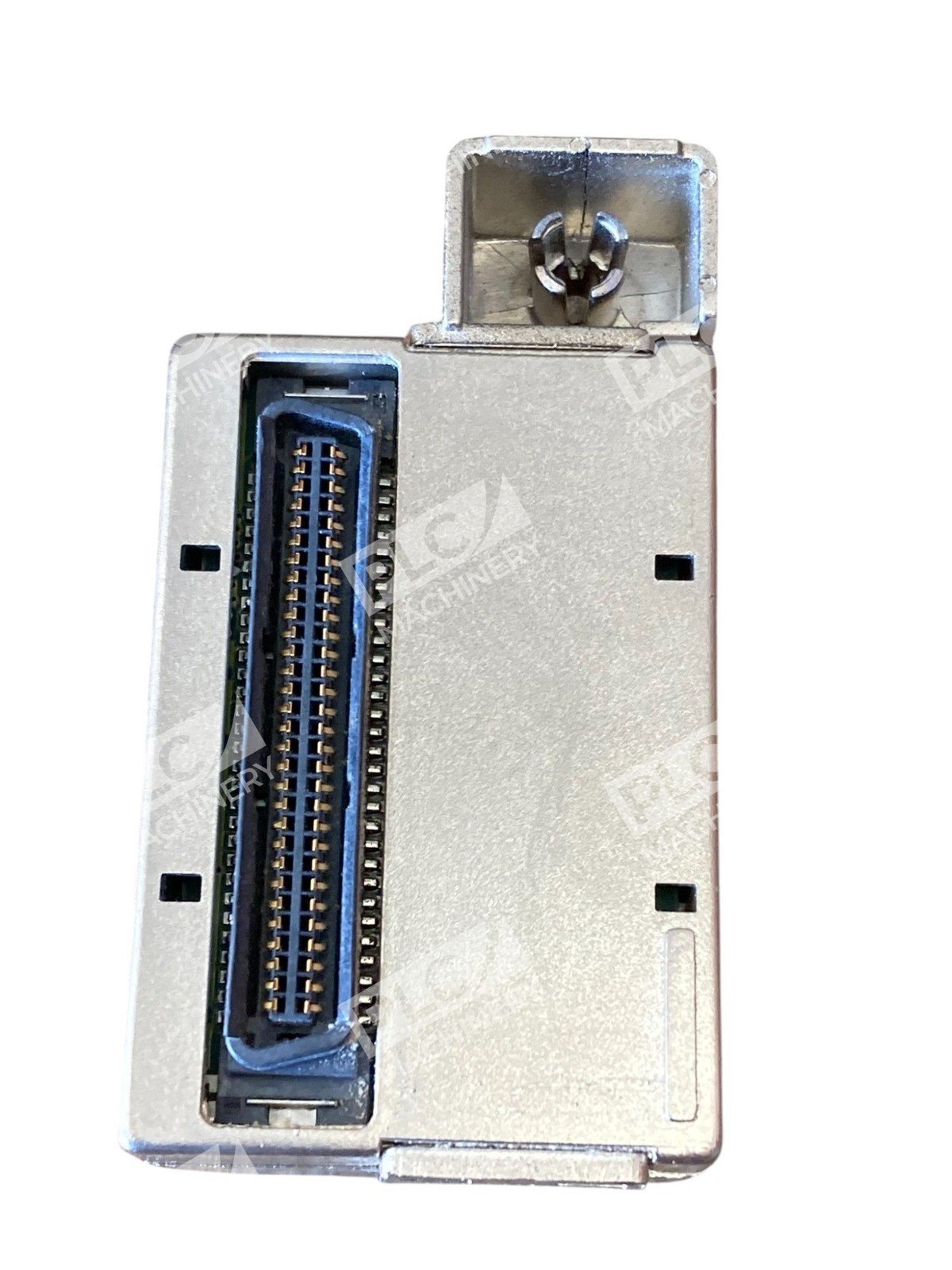

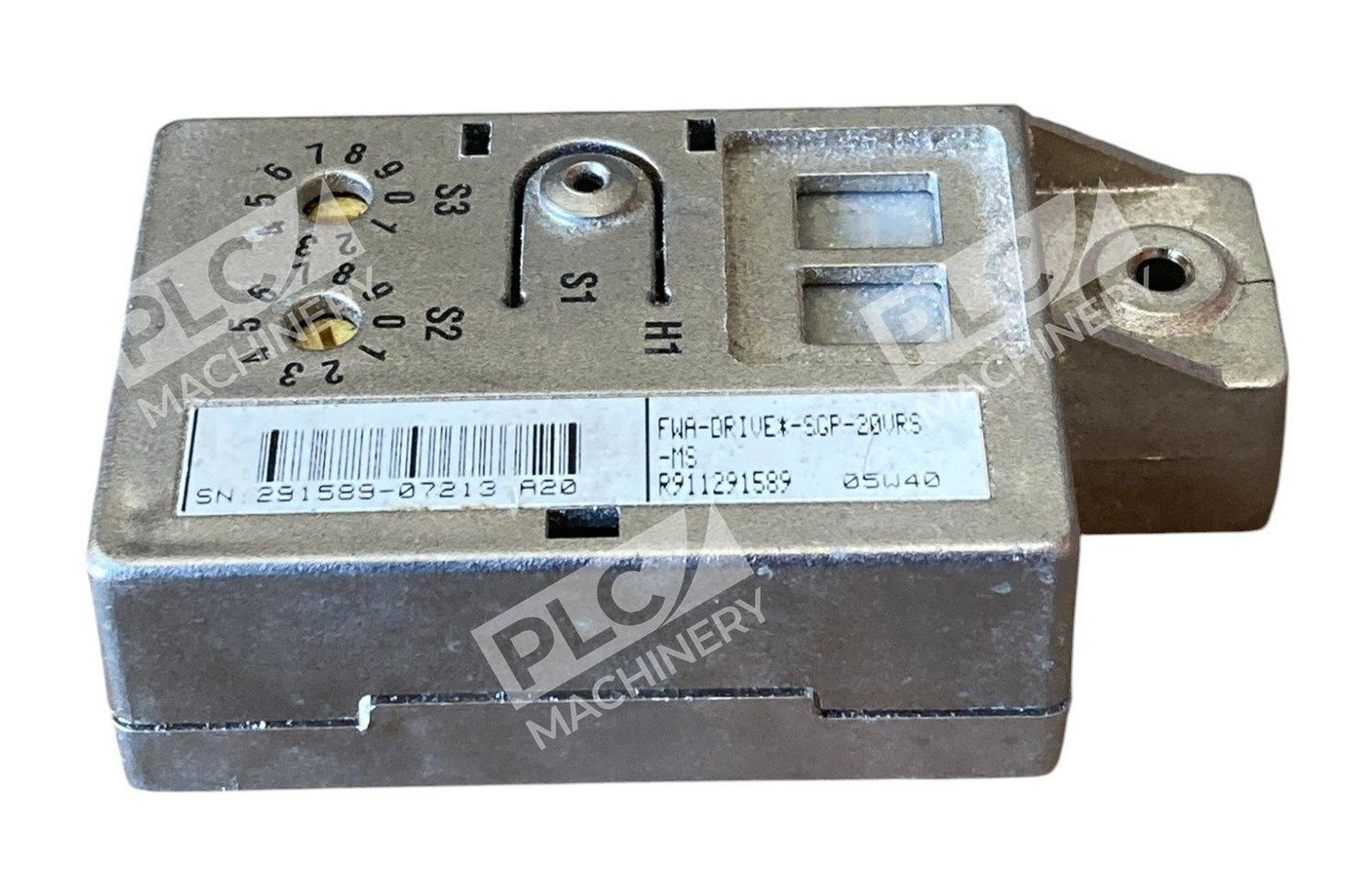

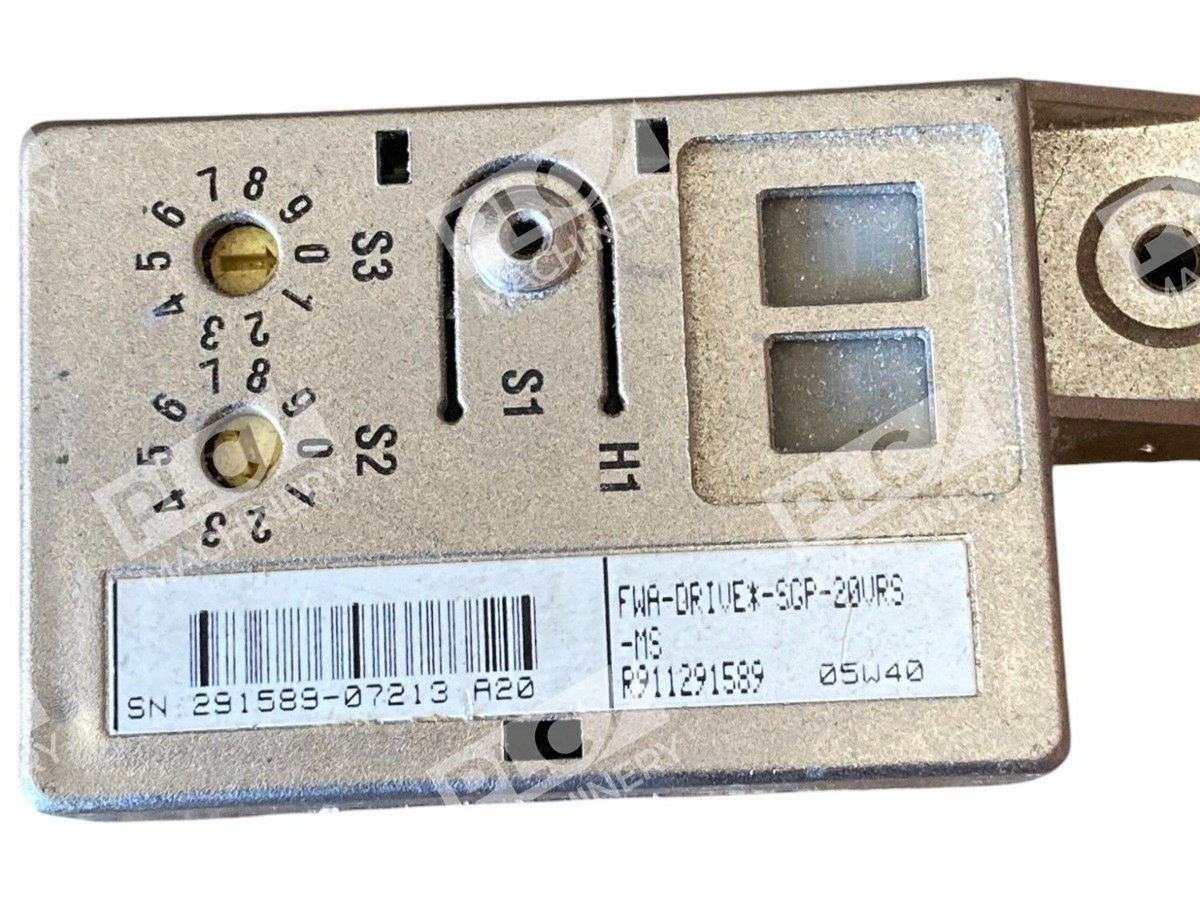

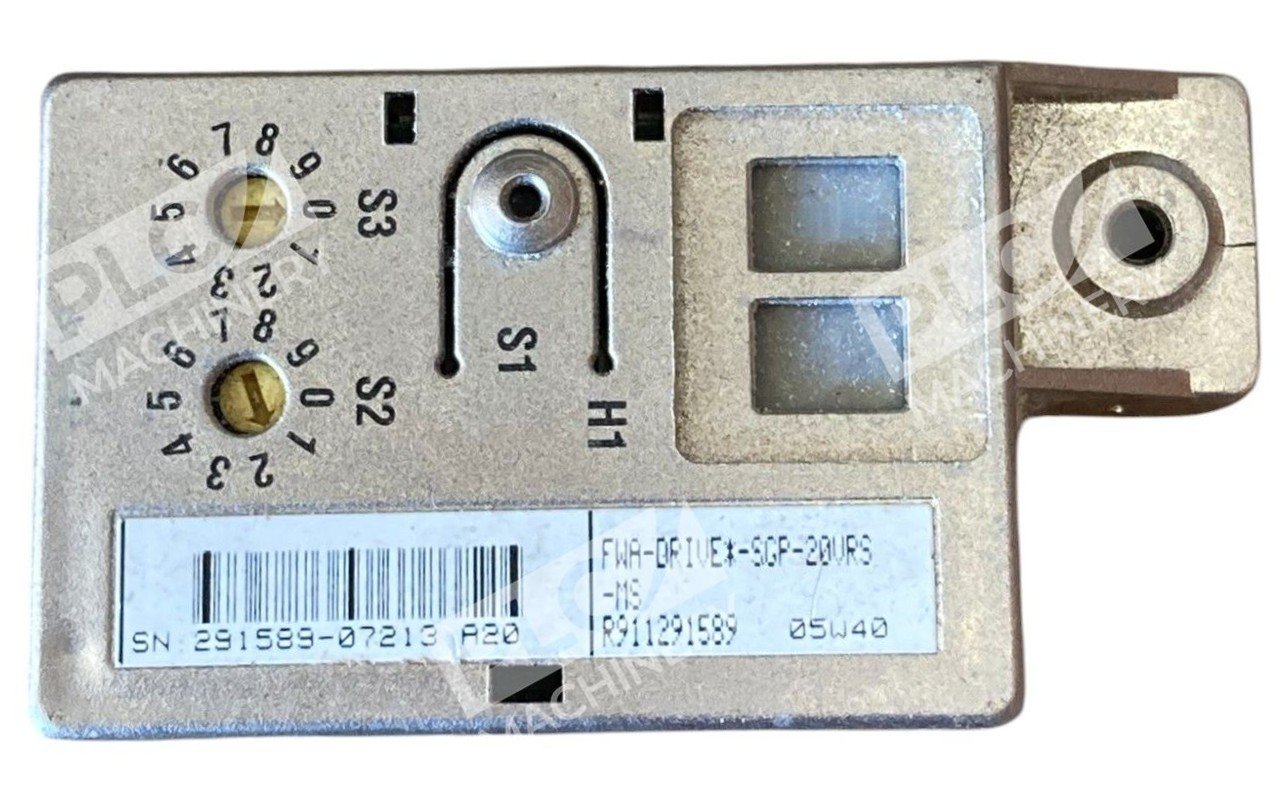

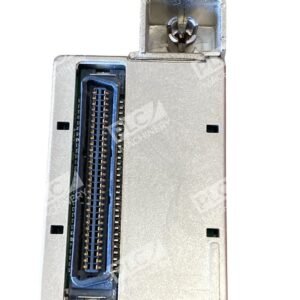

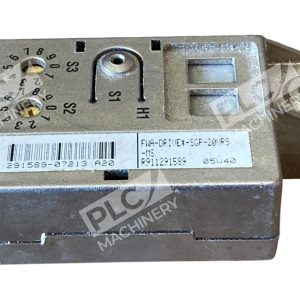

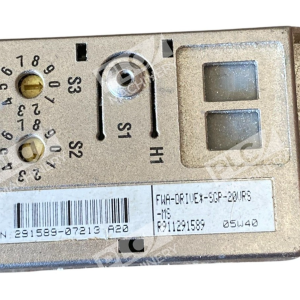

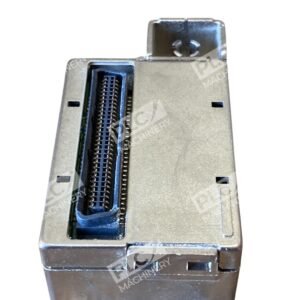

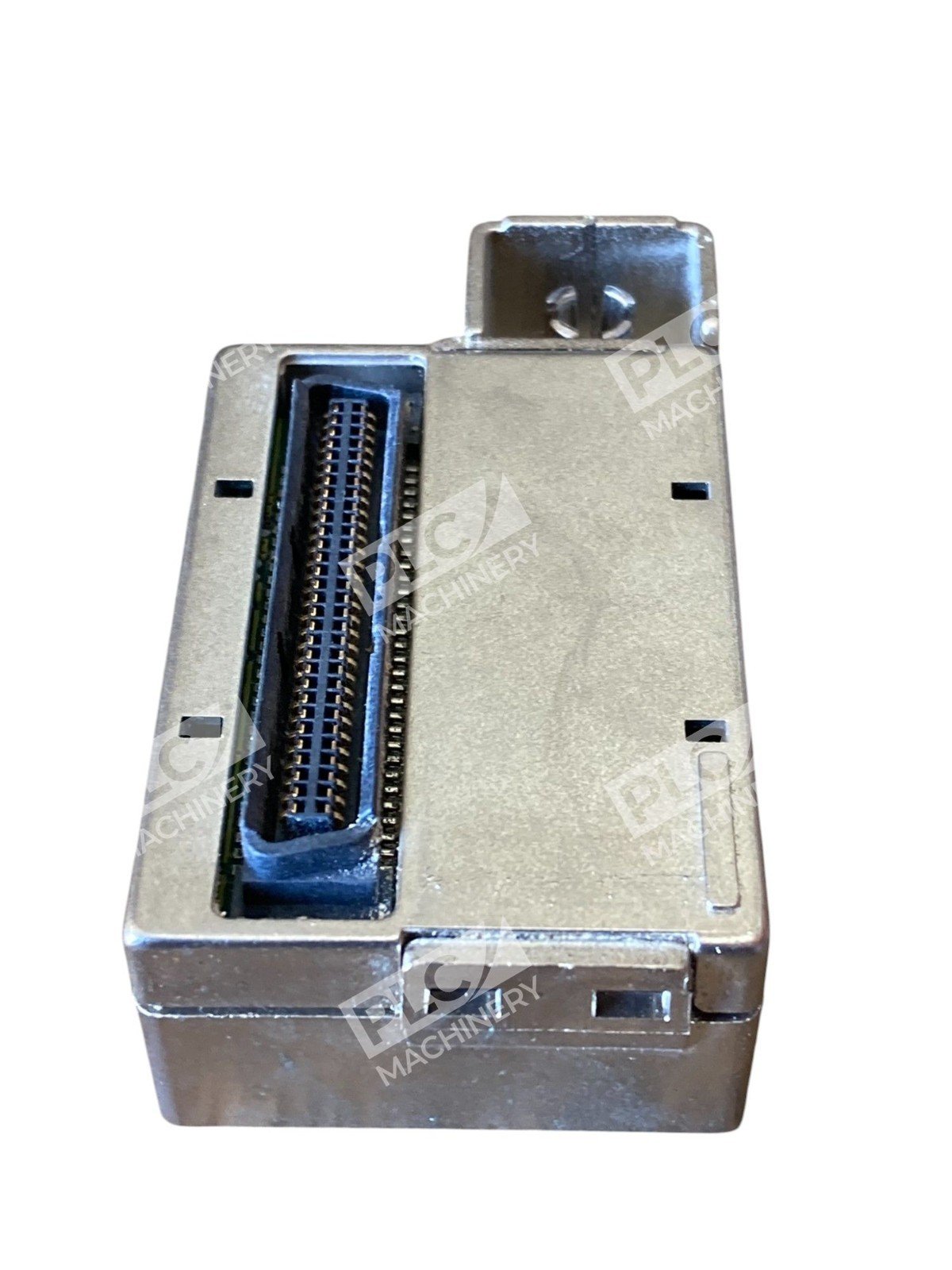

The Indramat FWA-DRIVE*-SGP-20VRS-MS firmware module is a memory-resident software/hardware component designed for Bosch Rexroth ECODRIVE and DURADRIVE series servo drive controllers. This product is firmware, which is a combination of hardware and a software program, which is loaded on the hardware drive. This part number designates a specific firmware variant — SGP (Standard General Purpose) at version 20VRS — stored on a memory module (MS) that is installed directly into the drive hardware. Used in legacy and refurbished servo systems across packaging, material handling, and machine tool applications.
Key Features
- Standard General Purpose (SGP) firmware — Supports positioning and velocity control modes with SERCOS interface compatibility
- Memory module format — Socketed directly into firmware slot; transferable between compatible drives after configuration
- Multi-interface support — Supports standard positioning and velocity control modes compliant with the SERCOS and RS-232/RS-485 interface standards used in the ECODR3 platform.
- Multilingual capability — MS designation indicates language support for international installations
- Compact, cost-effective design — Engineered for mid-range servo motion control without premium integration overhead
Technical Specifications
- Manufacturer: Bosch Rexroth Indramat GmbH

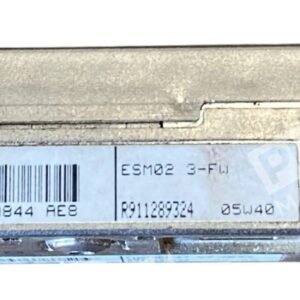

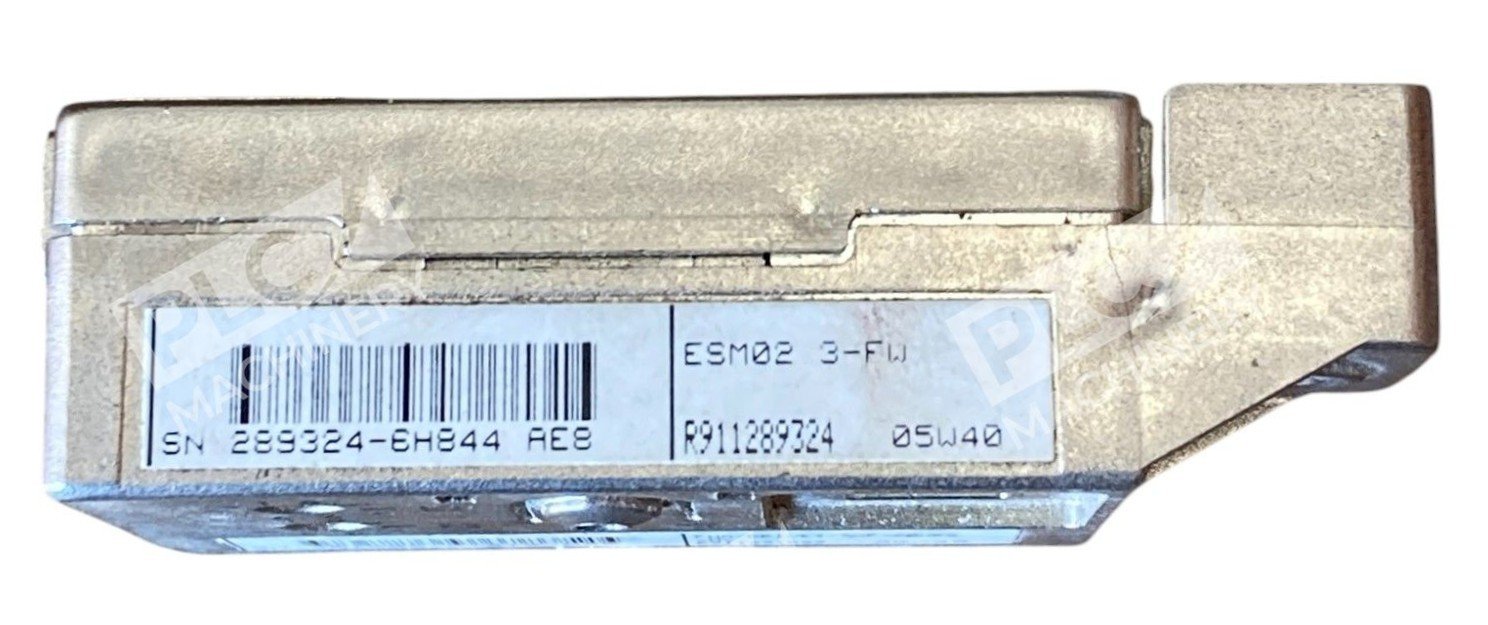

- Part Number: FWA-DRIVE*-SGP-20VRS-MS / R911289324
- Product Series: ECODRIVE / DURADRIVE firmware
- Firmware Type: SGP (Standard General Purpose), version 20VRS
- Format: Memory module (MS) — installed in firmware slot
- Communication Interfaces: SERCOS, RS-232/RS-485, parallel, analog
- Control Modes: Positioning, velocity
- Operating Temperature: 0 to 45°C ambient
- Humidity: Up to 95% non-condensing
- Protection Rating: IP20
- Weight: 0.2 kg
- Condition: Used, fully functional
Typical Applications
The ECODR3 SGP firmware is used across a wide range of industrial automation applications where precise servo motion control is required, including CNC machine tools, packaging machinery, printing presses, and general factory automation equipment. Commonly used in packaging, material handling, and factory automation systems. Ideal for retrofits and spare-parts procurement where legacy ECODRIVE/DURADRIVE servo systems remain in production.
Compatibility & Replacements
Compatible With
- Indramat ECODRIVE01 and ECODRIVE03 servo drive controllers
- Indramat DURADRIVE series digital servo drives
- DKC drive controller family (DKC01, DKC02, DKC02.1 series)
- Bosch Rexroth Indramat MKD, MHD, and MKE servo motors
- Systems using SERCOS communication protocol
- Machines with RS-232/RS-485 or parallel/analog interfaces
Replaces / Drop-In Replacement For
- FWA-DRIVE*-SGP-20VRS-MS (exact model)
- Legacy firmware modules in ECODRIVE/DURADRIVE systems requiring SGP firmware update
- Verify hardware revision compatibility with the Indramat compatibility documentation before installation
Works With
- SERCOS interface — Primary motion control protocol for multi-axis synchronization
- RS-232/RS-485 serial — Secondary communication channels
- Parallel I/O — Direct logic-level signal integration
- Analog control — Commissioning and legacy analog setups
- Bosch Rexroth documentation and software tools — Parameter configuration and diagnostics
