Overview

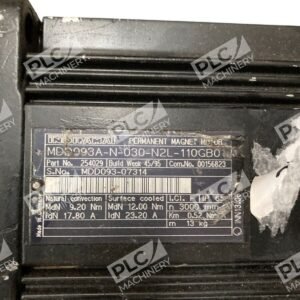

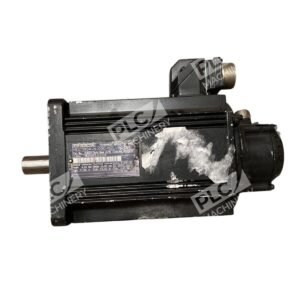

The Indramat MDD093A-N-030-N2L-110GB0 is a precision permanent magnet synchronous servo motor from the MDD series, manufactured by Bosch Rexroth Indramat. This used unit is designed for digital drive controllers and delivers reliable performance in demanding motion control and industrial automation applications. The motor features an integrated digital servo feedback (DSF) system for accurate speed and position monitoring, making it an ideal choice for applications requiring high repeatability and responsiveness.
Key Features
- Permanent magnet synchronous motor with electronic commutation
- Digital servo feedback (DSF) for real-time position and speed control
- Nominal speed of 3000 RPM for high-performance applications
- Motor size 93, length code A with 110 mm centering diameter
- Standard housing design for natural convection cooling
- Plain shaft design with shaft seal and connector interface
Technical Specifications
- Motor Size: 093 (MDD093A)
- Nominal Speed: 3000 RPM (min⁻¹)
- Motor Length: Type A
- Centering Diameter: 110 mm
- Housing Design: Standard (for natural convection)
- Shaft Type: Plain shaft with keyway (DIN 6885) and shaft seal
- Feedback System: Digital Servo Feedback (DSF)
- Motor Structure: Standard (without stubshaft on side B)
- Power Connection: Connector interface to side B
- Blocking Brake: None
- Excitation: Permanent magnet (EC excitation)
- Safety Compliance: DIN 40050 parameters
Typical Applications
The MDD093A-N-030-N2L-110GB0 is well-suited for applications requiring precise speed and torque control, including:
- CNC machining centers and turret punches
- Industrial automation and production machinery
- Motion control systems and servo-driven equipment
- Robotics and material handling systems
- Packaging and labeling machinery
Compatibility & Replacements
Compatible With
- Bosch Rexroth Indramat DCS digital drive controllers
- Indramat digital servo controllers and amplifiers
- Systems requiring 3-phase AC servo motors with digital feedback
- MDD series motor mounting standards and interfaces
Replaces / Drop-In Replacement For
Verify specific interchangeability with your system integrator. The MDD093A-N-030-N2L-110GB0 shares the same motor size (093), length (A), and centering diameter (110 mm) as related MDD093A variants including MDD093A-N-030-N2L-110PB0, MDD093A-N-030-N2L-110GA0, and MDD093A-N-030-N2L-110PA0. Confirmation of control system compatibility is recommended before ordering.
Works With
- Bosch Rexroth digital drive controllers and amplifiers
- Indramat servo motion control systems
- 3-phase AC power supplies (consult drive specifications for voltage/frequency)
- Industrial PLC systems and motion control networks
